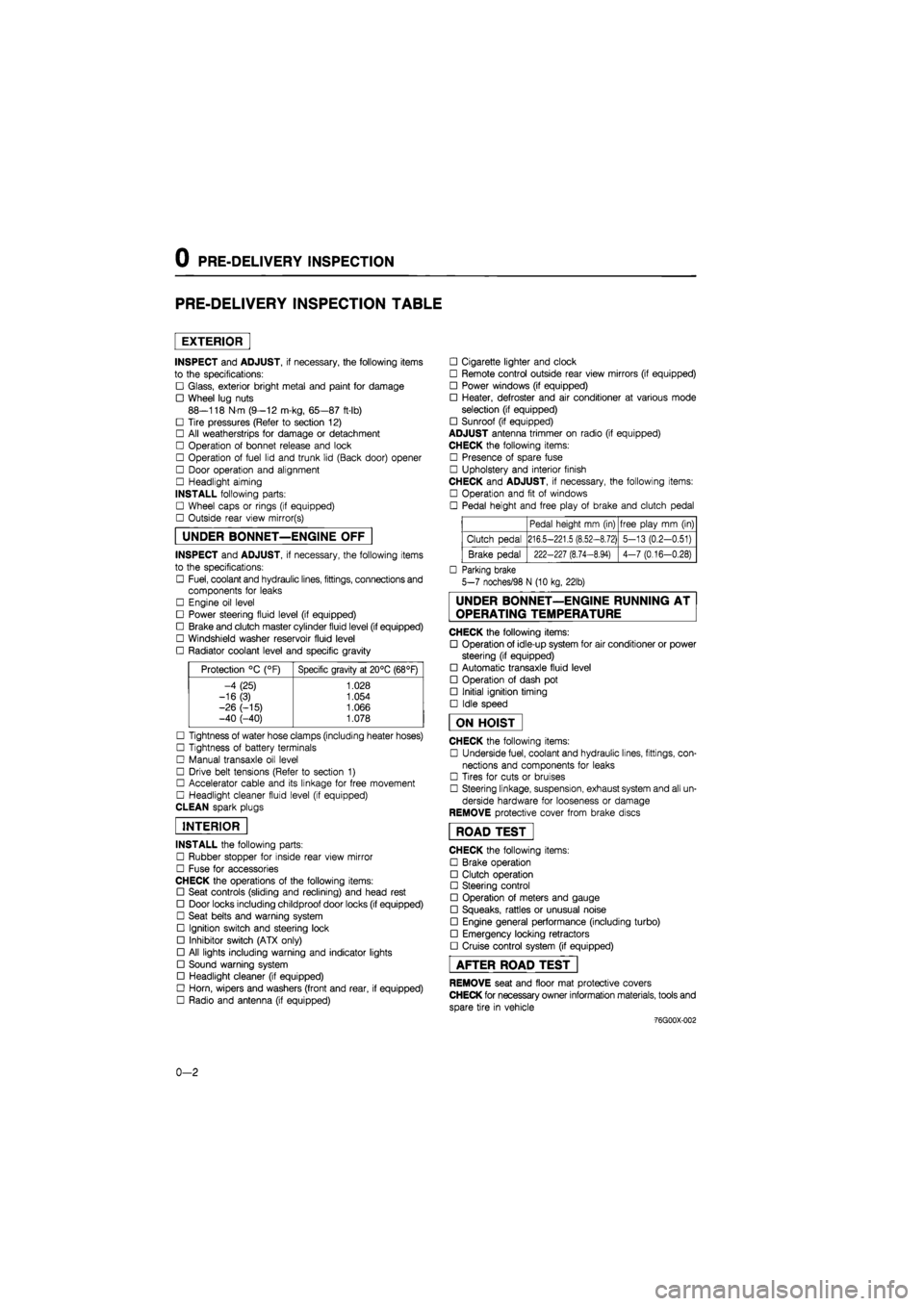

0 PRE-DELIVERY INSPECTION
PRE-DELIVERY INSPECTION TABLE
EXTERIOR
INSPECT and ADJUST, if necessary, the following items
to the specifications:
• Glass, exterior bright metal and paint for damage
• Wheel lug nuts
88—118 N m (9—12 m-kg, 65—87 ft-lb)
• Tire pressures (Refer to section 12)
• All weatherstrips for damage or detachment
• Operation of bonnet release and lock
• Operation of fuel lid and trunk lid (Back door) opener
• Door operation and alignment
• Headlight aiming
INSTALL following parts:
• Wheel caps or rings (if equipped)
• Outside rear view mirror(s)
UNDER BONNET—ENGINE OFF
INSPECT and ADJUST, if necessary, the following items
to the specifications:
• Fuel, coolant and hydraulic lines, fittings, connections and
components for leaks
• Engine oil level
• Power steering fluid level (if equipped)
• Brake and clutch master cylinder fluid level (if equipped)
• Windshield washer reservoir fluid level
• Radiator coolant level and specific gravity
Protection °C (°F) Specific gravity at 20°C (68°F)
-4 (25) 1.028
-16(3) 1.054
-26 (-15) 1.066 -40 (-40) 1.078
• Tightness of water hose clamps (including heater hoses)
• Tightness of battery terminals
• Manual transaxle oil level
• Drive belt tensions (Refer to section 1)
• Accelerator cable and its linkage for free movement
• Headlight cleaner fluid level (if equipped)
CLEAN spark plugs
INTERIOR
INSTALL the following parts:
• Rubber stopper for inside rear view mirror
• Fuse for accessories
CHECK the operations of the following items:
• Seat controls (sliding and reclining) and head rest
• Door locks including childproof door locks (if equipped)
• Seat belts and warning system
• Ignition switch and steering lock
• Inhibitor switch (ATX only)
• All lights including warning and indicator lights
• Sound warning system
• Headlight cleaner (if equipped)
• Horn, wipers and washers (front and rear, if equipped)
• Radio and antenna (if equipped)
• Cigarette lighter and clock
• Remote control outside rear view mirrors (if equipped)
• Power windows (if equipped)
• Heater, defroster and air conditioner at various mode
selection (if equipped)
• Sunroof (if equipped)
ADJUST antenna trimmer on radio (if equipped)
CHECK the following items:
• Presence of spare fuse
• Upholstery and interior finish
CHECK and ADJUST, if necessary, the following items:
• Operation and fit of windows
• Pedal height and free play of brake and clutch pedal
Pedal height mm (in) free play mm (in)
Clutch pedal 216.5-221.5 (8.52-8.72) 5-13 (0.2-0.51)
Brake pedal 222-227 (8.74-8.94) 4-7 (0.16-0.28)
• Parking brake
5-7 noches/98 N (10 kg, 22lb)
UNDER BONNET—ENGINE RUNNING AT
OPERATING TEMPERATURE
CHECK the following items:
• Operation of idle-up system for air conditioner or power
steering (if equipped)
• Automatic transaxle fluid level
• Operation of dash pot
• Initial ignition timing
• Idle speed
ON HOIST
CHECK the following items:
• Underside fuel, coolant and hydraulic lines, fittings, con-
nections and components for leaks
• Tires for cuts or bruises
• Steering linkage, suspension, exhaust system and all un-
derside hardware for looseness or damage
REMOVE protective cover from brake discs
ROAD TEST"
CHECK the following items:
• Brake operation
• Clutch operation
• Steering control
• Operation of meters and gauge
• Squeaks, rattles or unusual noise
• Engine general performance (including turbo)
• Emergency locking retractors
• Cruise control system (if equipped)
AFTER ROAD TEST
REMOVE seat and floor mat protective covers
CHECK for necessary owner information materials, tools and
spare tire in vehicle
-76G00X-002
0-2

For ECE Leaded gasoline
Chart symbols:
I
A
R
T
O
X
Inspect: Visual examination or functional measurement of a system's operation (performance)
Adjust : Examination resulting in adjustment or replacement
Replace or change
Tighten
Applicable
Not applicable
F8 engine with carbretor, MTX, ATX
FE engine with carbretor, MTX, ATX
FE DOHC engine with fuel injection, 4WS, MTX
RF-CX, RF-N engine with MTX
REMARKS:
Major service interval at 12 months/20,000 km (12,000 Miles), Lubrication service based on distance only 10,000 km (6,000 Miles) not time
After 80,000 km (48,000 Miles) or 48 months, continue to follow the described maintenance items and intervals periodically.
As for * marked items in this maintenance chart, please pay attention to the following points.
*1 Replacement of the timing belt is required at every 100,000 km (60,000 Miles). Failure to repace the timing belt may result in damage to the engine.
*2 If the vehicle is operatie under the following conditions, it is suggested that the engine oil and oil filter be changed more often than at usual recommended intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for a prolonged period in cold temperatures or driving only short distances regulary.
*3. If the vehicle is operated in very dusty or sandy areas, inspect and, if necessary, replace more often than at usual recommended intervals.
*4. This is a full function check of all electrical systems, i.e., all lights, washers (including condition of blades) electrical windows, sunroof, horn, etc....
*5. Replace every two years.
If there has been continuous hard driving, mountain driving, or if the brakes are used extensively or the vehicle is operated in extremely humid climates, the
brake fluid should be changed annually.
>
Z H m >
o m
H >
CD r-m
o m
m O m
(D o> Q. ® a
(Q 0) <0 o
o X m o
m a
o m
c/> o x m a
Emission Control and Related Systems
The ignition and fuel systems are vitally important to the proper operation of the emissions control and related systems, as well as for efficient engine operation.
It is strongly recommended that all servicing related to these systems be done by your Authorized Mazda Dealer.
m a
m z >
z o m
G)

r
For ECE Unleaded gasoline
Chart symbols:
I
A
R
T
O
X
Inspect: Visual examination or functional measurement of a system's operation (performance)
Adjust: Examination resulting in adjustment or replacement
Replace or change
Tighten
Applicable
Not applicable
FE engine with fuel injection, MTX, ATX
FE DOHC engine with fuel injection, 4WS, MTX
FE engine with carburetor, MTX, ATX
RF-CX, RF-N engine with MTX
REMARKS:
Major service interval at 12 months/20,000 km (12,000 Miles), Lubrication service based on distance only 10,000 km (6,000 Miles) not time
After 80,000 km (48,000 Miles) or 48 months, continue to follow the described maintenance items and intervals periodically.
As for * marked items in this maintenance chart, please pay attention to the following points.
*1 Replacement of the timing belt is required at every 100,000 km (60,000 Miles). Failure to repace the timing belt may result in damage to the engine.
*2 If the vehicle is operated under the following conditions, it is suggested that the engine oil and oil filter be changed more often than at usual recommended
intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for a prolonged period in cold temperatures or driving only short distances regulary.
*3. If the vehicle is operated in very dusty or sandy areas, inspect and, if necessary, replace more often than at usual recommended intervals.
*4. This is a full function check of all electrical systems, i.e., all lights, washers (including condition of blades) electrical windows, sunroof, horn, etc....
*5. Replace every two years.
If there has been continuous hard driving, mountain driving, or if the brakes are used extensively or the vehicle is operated in extremely humid climates, the brake fluid
should be changed annually.
Emission Control and Related Systems
The ignition and fuel systems are vitally important to the proper operation of the emissions control and related systems, as well as for efficient engine operation. It is
strongly recommended that all servicing related to these systems be done by your Authorized Mazda Dealer.
>
Z H m z >
o m
H >
DJ r~ m
m o m
c 3 5"
(/> O X m o c i-m
o
m z >
z o m
CD

OUTLINE 4A
SPECIFICATIONS
F6 & F8 Engine
Engine F6 F8
Specification General Singapore General
ECE,
Hong Kong, &
Singapore

Idle speed
rpm
MTX 800
+58
Idle speed
rpm
ATX 950
t5§
(in N range)|
900 +5§ (in N
range)
CO concentration
%
2.0
± 0.5
(Without secondary
air
injection)

Carburetor

Type Down draft, two barrel
Throat diameter
mm (in)
Primary 30 (1.18) Throat diameter
mm (in)
Secondary 34 (1.34)
Venturi diameter
mm
(in) Primary 23.5 (0.93) Venturi diameter
mm
(in) Secondary 29.0 (1.14)
Main nozzle
mm (in)
Primary 2.6 (0.10) Main nozzle
mm (in)
Secondary 2.8 (0.11)
Main
jet mm (in)
Primary MTX 1.10 (0.0433) 1.09 (0.0429) 1.14 (0.045)
Main
jet mm (in)
Primary ATX 1.10 (0.0433) 1.08 (0.0425) 1.12 (0.044) Main
jet mm (in)

Secondary 1.50 (0.059)
Main
air
bleed mm (in)
Primary MTX 0.60 (0.024) 0.60 (0.024) 0.55 (0.022) Main
air
bleed mm (in)
Primary ATX 0.60 (0.024) 0.80 (0.031) 0.60 (0.024) Main
air
bleed mm (in) Secondary 0.50 (0.020)
Slow
jet mm (in)
Primary 0.48 (0.019) 0.46 (0.018) Slow
jet mm (in)
Secondary 1.00 (0.039) 1.10 (0.043)
Slow
air
bleed mm (in)
Primary No.1 0.80 (0.031)
Slow
air
bleed mm (in)
Primary No.2 1.90 (0.075) Slow
air
bleed mm (in) Secondary No.1 1.00 (0.039) 0.80 (0.031) Slow
air
bleed mm (in) Secondary No.2 0.50 (0.020)
Power
jet mm (in)
0.50 (0.0201
Fast idle adjustment
mm (in)

Clearance between
Drimarv
throttle valve and bore
1.40-1.76 (0.055—0.069) MTX: 0.48-0.64 (0.019-0.025) ATX: 0.56-0.72 (0.022-0.028)
Float level adjustment mm (in)
Max. fuel flow
"L"

Clearance between
flo

44 (17.3)
at and
air
horn without aasket Float level adjustment mm (in) Fuel stop
"H"
12.5(0.49)
Clearance between float and
air
horn without aasket; float lowered
by
own weight
Choke breaker diaphragm mmHg (inHg)
Start 180-240 (7.1—9.5) 100-160 (3.9—6.3) Choke breaker diaphragm mmHg (inHg) Stop 290-350 (11.4—13.8) 220—280 8.7—11.01
Choke opener mmHg (inHg) Start 35-65 (1.4-2.6)
...
35-65 (1.4-2.6) Choke opener mmHg (inHg) Stop
......
130-190 (5.1-7.5) 130-190 (5.1-7.5)

Fuel tank capacity
Liters (US gal, Imp gal) 60 (15.9, 13.2)

Fuel Dump

Delivery pressure kPa (kg/cm2,
psi)
20-26 (0.20-0.27, 2.8—3.8)
Feeding capacity cc/min (cu in/min) More than 860 (52.5)
at
idle

Fuel filter

Type Paper element with magnet

Air cleaner

Fresh-Hot switching Manual Diaphragm type
Element tvoe Oil permeated paper
Fuel specification Leaded regular

76G04A-513
4 A—15

4A OUTLINE
FE Engine
Engine FE 8Valve FE 12Valve FE 8Valve
Specification General Middle East
ECE, Hong Kong, & Singapore Unleaded fuel

Idle speed
rpm
MTX 800
+5§
850
+5§
Idle speed
rpm
ATX 900
+58 (in N
range)
CO concentration
%
2.0
± 0.5
(Without secondary
air
injection)

Carburetor

Type Down draft,
two
barrel
Throat diameter
mm (in)
Primary 30 (1.18) Throat diameter
mm (in)
Secondary 34 (1.34)
Venturi diameter
mm (in)
Primary 23.5 (0.93) Venturi diameter
mm (in)
Secondary 29.0 (1.14)
Main nozzle
mm (in)
Primary 2.6 (0.10) Main nozzle
mm (in)
Secondary 2.8 (0.11)
Main
jet mm (in)
Primary MTX 1.14 (0.045) 1.09 (0.0429) 1.14 (0.045) 1.09 (0.0429) Main
jet mm (in)
Primary ATX 1.12 (0.044) 1.08 (0.0425) 1.12 (0.044) 1.09 (0.0429) Main
jet mm (in)

Secondary 1.55 (0.061) 1.50 (0.059) 1.55 (0.061) 1.50 (0.059)
Main
air
bleed
mm (in)
Primary MTX 0.50 (0.020) 0.60(0.024) 0.50 (0.020) 0.50 (0.020) Main
air
bleed
mm (in)
Primary ATX 0.55 (0.022) 0.80 (0.031) 0.55 (0.022) 0.50 (0.020) Main
air
bleed
mm (in) Secondary 0.50 (0.020)
Slow
jet mm (in)

Primary 0.46 (0.018)
Slow
jet mm (in)
Secondary MTX 1.10 (0.043) 1.00 (0.039) 1.10 (0.043) 0.90 (0.035) Slow
jet mm (in)
Secondary ATX 1.10 (0.043) 1.00 (0.039) 1.10 (0.043) 1.00 (0.039)
Slow
air
bleed
mm (in)
Primary No.1 0.80 (0.031)
Slow
air
bleed
mm (in)
Primary No.2 1.90 (0.075) Slow
air
bleed
mm (in) Secondary No.1 0.80 (0.031) 1.00 (0.039) 0.80 (0.031) 1.00 (0.039)
Slow
air
bleed
mm (in) Secondary No.2 0.50 (0.020)
Power
jet mm (in)
MTX 0.50 (0.020) 0.50 (0.020) Power
jet mm (in)
ATX 0.50 (0.020) 0.40 (0.016)
Fast idle adjustment
mm (in)
Clearance between primary throttle valve and bore
MTX 0.48—0.64
(0.019-0.025) 1.40—1.76
(0.055-0.069)
0.48—0.64
(0.019-0.025) 1.40-1.76
(0.055-0.069)
Fast idle adjustment
mm (in)
Clearance between primary throttle valve and bore ATX 0.56-0.72 (0.022—0.028)
1.40—1.76
(0.055-0.069) 0.56-0.72 (0.022—0.028)
1.40-1.76
(0.055-0.069)
Float level adjust-
ment
mm (in)

Max. fuel flow
"L"

Clearance between
flo

44 (17.3)
at and
air
horn without aasket Float level adjust-
ment
mm (in)
Fuel stop
"H" |
12.5(0.49)
Clearance between float and
air
horn without aasket: float lowered
bv
own weiaht
Choke breaker diaphragm mm-Hg (in-Hg)
Start 100-160 (3.9—6.3) 180—240 (7.1-9.4) 100-160
(3.9-6.3)
180-240
(7.1-9.4) Choke breaker diaphragm mm-Hg (in-Hg) Stop 220—280
(8.7-11.0)
290-350
(11.4-13.8)
220—280
(8.7-11.0)
290-350
(11.4-13.8)
Choke opener mmHg (inHg)
Start 80—120
(3.1-8.7)
30-70 (1.2-2.8) Choke opener mmHg (inHg)
Stop 220-280 (8.7—11.0) 130-190
(5.1-7.5)

Fuel tank capacity
Liters (US aal, Imp aal) 60 (15.9, 13.2)

Fuel DumD

Delivery pressure kPa (kg/cm2,
psi)
20-26 (0.20—0.27, 2.8-3.8) 20-29 (0.20-0.30, 2.8-4.3)
20-26 (0.20-0.27, 2.8-3.8)
Feedina caDacitv cc/min
feu
in/mini More than 860 (52.5)
at
idle

Fuel filter

Type Paper element with magnet

Air cleaner

Fresh-Hot switchina Diaphragm Manual Diaphragm Bimetal
Element
tvDe
Oil permeated paper
Fuel specification Leaded super
Unleaded super Leaded regular Leaded super Unleaded super Unleaded regular

76G04G-514
4A—16

FUEL SYSTEM 4A
Disassembly
FE and F8 (General, ECE, Hong Kong, and Singapore)
76G04A-028
Disassemble in the sequence shown in the figure.
1. Lever
2. Secondary diaphragm
3. Choke breaker diaphragm and thermo wax
(If equipped)
4. Choke opener and bracket (If equipped)
5. Air horn
6. Float
7. Needle valve
8. Accelerator pump
9. Slow fuel cut solenoid valve
10. Idle-up solenoid valve and idle switch
(If equipped)
11. Air bleeds and jets
12. Injector weight
13. Primary venturi and nozzle
14. Secondary venturi and nozzle
15. Main body
16. Throttle body
4A—27

4A FUEL SYSTEM
FE 8Valve (Except General) and F6
76G04A-029
Disassemble in the sequence shown in the figure.
1. Lever 8. Solenoid valve* and idle switch (If equipped)
2. Air horn, choke breaker diaphragm, and 9. Air bleeds and jets
choke opener (If equipped) 10. Injector weight
3. Float 11. Primary venturi and nozzle
4. Secondary diaphragm 12. Secondary venturi and nozzle
5. Needle valve 13. Main body
6. Accelerator pump 14. Throttle body
7. Slow fuel cut solenoid valve
* Solenoid valve:
Coast enrichment solenoid valve FE 8 Valve—Unleaded fuel
Coasting leaner F6 Singapore
4A-28

FUEL SYSTEM 4 A
Assembly [FE and F8 (General, ECE, Hong Kong, and Singapore)]
Assemble in the sequence shown in the figure, referring to the assembly note for specially marked parts.
1. Throttle body
2. Main body
3. Secondary ven-
turi and nozzle
4. Primary venturi
and nozzle
5. Injector weight
Q. Air bleeds and
jets
7. Idle-up solenoid
valve and idle
switch (If
equipped)
8. Slow fuel cut
solenoid valve
9. Accelerator
pump
10. Needle valve
11. Float
12. Air horn
13. Choke opener
and bracket (If
equipped)
14. Choke breaker
diaphragm and
thermo wax (If
equipped)
15. Secondary di-
aphragm
16. Lever
76G04A-030
Assembly note
Air bleeds and jets
1. Step jet and plug
2. Secondary step air bleed (No. 1) (Fixed type)
3. Secondary main air bleed
4. Secondary main jet
5. Power jet
6. Primary main jet
7. Primary main air bleed
8. Primary slow air bleed (No. 1)
9. Primary slow jet and plug
10. Primary slow air bleed (No. 2)
76G04A-031
4A—29

4A FUEL SYSTEM
[FE 8Valve (Except General) and F6]
Assemble in the sequence shown in the figure, referring to the assembly note for specially marked parts.
1. Throttle body
2. Main body
3. Secondary ven-
turi and nozzle
4. Primary venturi
and nozzle
5. Injector weight
©Air bleeds and
jets
7. Solenoid valve
and idle switch
(If equipped)
8. Slow fuel cut
solenoid valve
9. Accelerator
pump
10. Needle valve
11. Secondary di-
aphragm
12. Float
13. Air horn, choke
breaker di-
aphragm, and
choke opener (If
equipped)
14. Lever
'3
©
76G04A-032
Assembly note
Air bleeds and jets
1. Step jet and plug
2. Secondary step air bleed (No. 1) (Fixed type)
3. Secondary main air bleed
4. Secondary main jet
5. Power jet
6. Primary main jet
7. Primary main air bleed
8. Primary slow air bleed (No. 1)
9. Primary slow jet and plug
10. Primary slow air bleed (No. 2)
76G04A-033
4A-30

FUEL SYSTEM 4A
76G04A-034
Inspection
Note
a) Clean all parts with carburetor cleaner and
dry with compressed air.
b) Do not use a wire to clean the jets.
Check the following and replace any faulty parts.
1. Damaged air horn, main body, or throttle body
2. Improper operation of the choke valve or throttle
valve
3. Damaged float
4. Needle valve damage or improper seating
5. Clogged or damaged jet or air bleed
6. Damaged piston cup in the accelerator pump
7. Weakened or broken spring
8. Damaged diaphragm
9. Improper solenoid operation
76G04A-191
Primary throttle valve
(0.248—0.327 in)
When secondary throttle valve
begins to open
Secondary Throttle Valve
1. Check the clearance between the primary throttle
valve and wall when lever A contacts lever B.
>
L_ Clearance:
7.3—8.3 mm (0.248—0.327 in)
7.3—8.3 mm
76G04A-035
3. If not within specification, adjust it by bending
lever A.
76G04A-036
4 A—31
