SRS equip-ment Types of collision
A severe frontal/near frontal collision A severe side col-
lision A roll-over/near
roll-over
*2A rear collision
Front seat
belt preten- sioner X
*1X*1X*1
No air bag and
seat belt preten-
sioner will be ac-
tivated in a rear
collision.
Rear seat
belt preten-
sioner
*XXX
Driver air bag X
――
Front pas- senger air bag X
*1――
Knee air bag X
*1――
Side air
bags for
driver and front pas- senger ―
X
*1 (impact side
only) ―
Side air
bags for
rear pas-
sengers
*
― X*1 (impact side
only) ―
Curtain air bag ―X (impact side
only) X (both sides)
X:
The SRS air bag equipment deploys in a collision.
― :The SRS air bag equipment does not deploy in a collision.
*1 (With Driver and Front Passenger Occupant Classification System)
The front and side air bags for the front passenger and seat belt pretensioner and knee air bag are
designed to deploy depending on the condition of the total seated weight on the front passenger
seat.
*2(With Driver and Front Passenger Occupant
Classification System)
In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.
NOTE
In a frontal offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
Some airbags and the pretensioners may no t deploy depending on the level of the
impact.
Essential Safety Equipment
SRS Air Bags
2-64*Some models.
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

Limitations to SRS Air Bag
▼Limitations to SRS Air Bag
In severe collisions such as those
described previously in "SRS Air Bag
Deployment Criteria", the applicable
SRS air bag equipment will deploy.
However, in some accidents, the
equipment may not deploy depending
on the type of collision and its severity.

Limitations to front/near front
collision detection:
The following illustrations are
examples of front/near front collisions
that may not be detected as severe
enough to deploy the SRS air bag
equipment.

Impacts involving trees or poles

Frontal offset impact to the vehicle

Rear-ending or running under a
truck's tail gate
Limitations to side collision detection:
The following illustrations are
examples of side collisions that may
not be detected as severe enough to
deploy the SRS air bag equipment.

Side impacts involving trees or poles

Side impacts with two-wheeled
vehicles

Roll-over (Without Front Passenger
Occupant Classification System)
Essential Safety Equipment
SRS Air Bags
2-65
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

Limitations to roll-over detection
(With Front Passenger Occupant
Classification System):
The following illustration is an example
of an accident that may not be
detected as a roll-over accident.
Therefore, the seat belt pretensioners
and curtain air bags may not deploy.

Pitch end over end
Driver and Front
Pa s s e n g e r O cc u p a n t
Classification System
*
▼ Driver and Front Passenger
Occupant Classification System
First, please read "Supplemental
Restraint System (SRS) Precautions"
(page 2-52) carefully.
▼Driver Seat Slide Position Sensor
Your vehicle is equipped with a driver
seat slide position sensor as a part of
the supplemental restraint system. The
sensor is located under the driver seat.
The sensor determines whether the
driver seat is fore or aft of a reference
position and sends the seat position to
the diagnostic module (SAS unit).
The SAS unit is designed to control the
deployment of the driver air bag
depending on how close the driver
seat is to the steering wheel.
The air bag/seat belt pretensioner
system warning light
flashes if the
sensor has a possible malfunction
(page 2-62).
Essential Safety Equipment
SRS Air Bags
2-66*Some models.
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

▼Front Passenger Seat Weight
Sensors
Your vehicle is equipped with a front
passenger seat weight sensors as a part
of the supplemental restraint system.
These sensors are located under both
of the front passenger seat rails. These
sensors determine the total seated
weight on the front passenger seat and
monitor the seat belt buckle for the
front passenger seat. The SAS unit is
designed to prevent the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system from deploying if
the front passenger air bag
deactivation indicator light illuminates.
To reduce the chance of injuries
caused by deployment of the front
passenger air bag, the system
deactivates the front passenger front
and side air bags and knee air bags,
and also the seat belt pretensioner
system when the front passenger air
bag deactivation indicator light
illuminates. Refer to the following
table for the front passenger air bag
deactivation indicator light
illumination conditions.

This system shuts off the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system, so make sure the
front passenger air bag deactivation
indicator light illuminates according to
the following table.

The air bag/ seat belt pretensioner
system warning light flashes and the
front passenger air bag deactivation
indicator light illuminates if the sensors
have a possible malfunction. If this
happens, the front passenger front and
side air bags and knee air bags, and
seat belt pretensioner system will not
deploy.
Front passenger air bag deactivation
indicator light
This indicator light illuminates to
remind you that the front passenger
front and side air bags and knee air
bags, and seat belt pretensioners will
not deploy during a collision.
Essential Safety Equipment
SRS Air Bags
2-67
CX-30_8LD3-EA-22J_Edition1_new
2022-6-7 13:06:59

If the front passenger weight sensors
are normal, the indicator light
illuminates when the ignition is
switched ON. The light turns off after a
few seconds. Then, the indicator light
illuminates or is off under the following
conditions:
Front passenger air bag deactivation
indicator light on/off condition chart
Condition
detected by the
front pas-
senger oc- cupant
classifica- tion sys- tem Front pas-
senger air
bag deacti-
vation indi- cator light Front pas-
senger
front and side andknee air
bags Front
passen-
ger seat
belt pre-
tensioner
system
Empty
(Not occu-
pied) On
Deactivat-
ed Deacti-
vated
Child or
child-re-
straint sys-
tem
*1
On Deactivat-
ed Deacti-
vated
Adult
*2Off Ready Ready
*1 If a larger child sits on the front passenger seat, the sensors might detect the child as
being an adult depending on the child's
physique.
*2 If a smaller adult sits on the front passengerseat, the sensors might detect the person as
being a child depending on the person's
physique.
The curtain air bag is ready for inflating
regardless of what the front passenger air bag
deactivation indicator light on/off condition
chart indicates.

If the front passenger air bag
deactivation indicator light does not
illuminate when the ignition is
switched ON and does not illuminate
as indicated in the front passenger air
bag deactivation indicator light on/off
condition chart, do not allow a child to
sit in the front passenger seat and
consult an Authorized Mazda Dealer
as soon as possible. The system may
not work properly in an accident.
WARNING
Do not decrease the total seated
weight on the front passenger seat:
When an adult or large child sits on the
front passenger seat, decreasing the
total seated weight on the front
passenger seat required for air bag
deployment is dangerous. The front
passenger seat weight sensors will
detect the reduced total seated weight
condition and the front passenger front
and side air bags and knee air bags,
and the seat belt pretensioner system
will not deploy during an accident. The
front passenger will not have the
supplementary protection of the air
bag, which could result in serious
injury. Decreasing the total seated
weight on the front passenger seat
could result in an air bag not deploying
under the following conditions, for
example:
Essential Safety Equipment
SRS Air Bags
2-68
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

A front passenger is seated as shown
in the following figure:A rear passenger pushes up on the
front passenger seat with their feet.
 Luggage or other items placed under
the front passenger seat or between
the front passenger seat and driver
seat that push up the front passenger
seat bottom.
 Any accessories which might
decrease the total seated weight on
the front passenger seat are attached
to the front passenger seat.
The front passenger front and side air
bags and knee air bags, and the seat
belt pretensioner system will
deactivate if the front passenger air
bag deactivation indicator light
illuminates.

Do not increase the total seated
weight on the front passenger seat:
When an infant or small child sits on
the front passenger seat, increasing the
total seated weight on the front
passenger seat is dangerous. The front
passenger seat we ight sensors will
detect the increased total seated
weight, which could result in the
unexpected deployment of the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system in an accident and
may cause serious injury. Increasing the
total seated weight on the front
passenger seat could result in the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system deployment in an
accident under the following
conditions, for example:
 Luggage or other items are placed on
the seat with the child in the
child-restraint system.
Essential Safety Equipment
SRS Air Bags
2-69
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

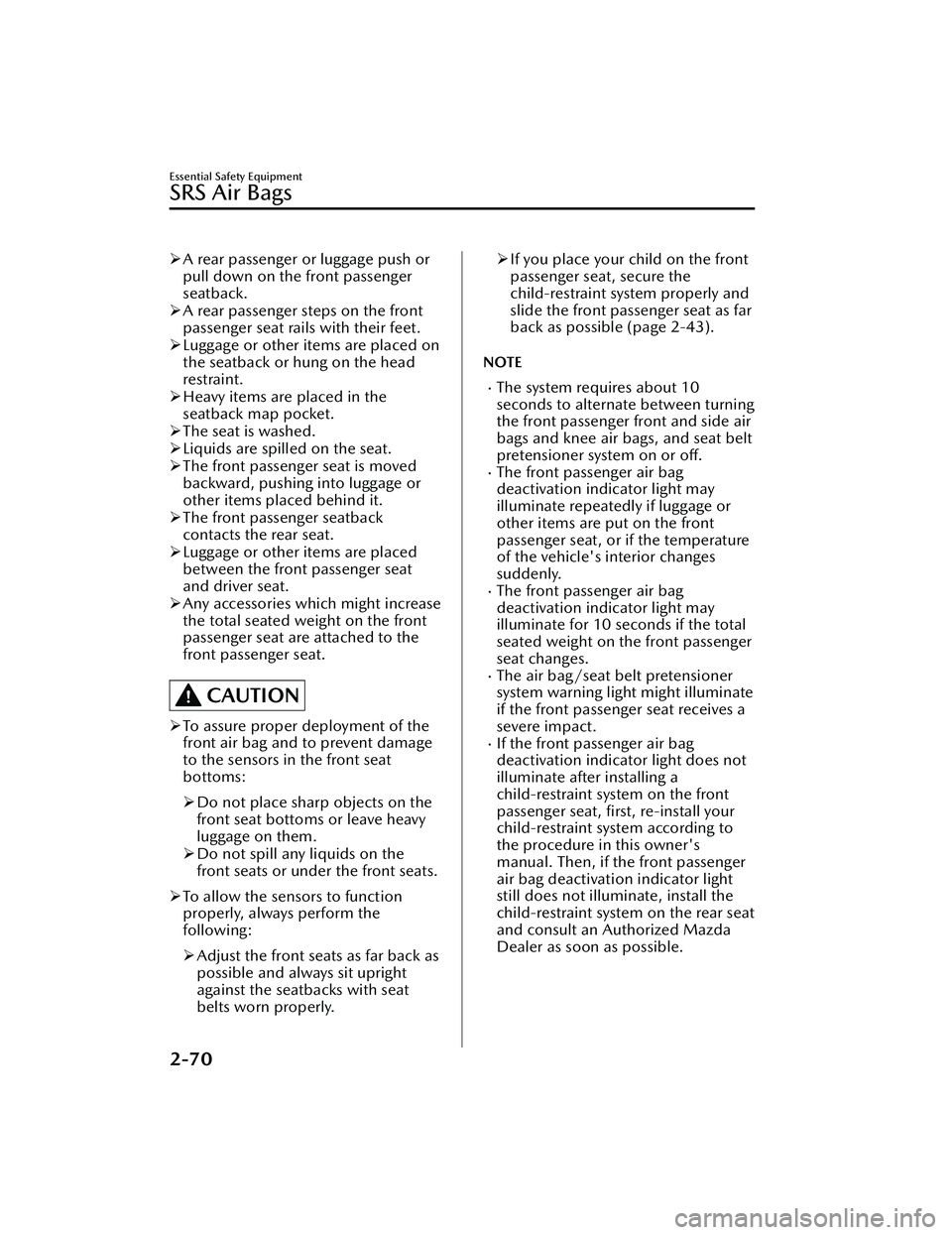

A rear passenger or luggage push or
pull down on the front passenger
seatback.
 A rear passenger steps on the front
passenger seat rails with their feet.
 Luggage or other items are placed on
the seatback or hung on the head
restraint.
 Heavy items are placed in the
seatback map pocket.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved
backward, pushing into luggage or
other items placed behind it.
 The front passenger seatback
contacts the rear seat.
 Luggage or other items are placed
between the front passenger seat
and driver seat.
 Any accessories which might increase
the total seated weight on the front
passenger seat are attached to the
front passenger seat.
CAUTION
To assure proper deployment of the
front air bag and to prevent damage
to the sensors in the front seat
bottoms:
 Do not place sharp objects on the
front seat bottoms or leave heavy
luggage on them.
 Do not spill any liquids on the
front seats or under the front seats.
 To allow the sensors to function
properly, always perform the
following:
 Adjust the front seats as far back as
possible and always sit upright
against the seatbacks with seat
belts worn properly.
If you place your child on the front
passenger seat, secure the
child-restraint system properly and
slide the front passenger seat as far
back as possible (page 2-43).
NOTE
The system requires about 10
seconds to alternate between turning
the front passenger front and side air
bags and knee air bags, and seat belt
pretensioner system on or off.
The front passenger air bag
deactivation indicator light may
illuminate repeatedly if luggage or
other items are put on the front
passenger seat, or if the temperature
of the vehicle's interior changes
suddenly.
The front passenger air bag
deactivation indicator light may
illuminate for 10 seconds if the total
seated weight on the front passenger
seat changes.
The air bag/seat belt pretensioner
system warning light might illuminate
if the front passenger seat receives a
severe impact.
If the front passenger air bag
deactivation indicator light does not
illuminate after installing a
child-restraint system on the front
passenger seat, first, re-install your
child-restraint system according to
the procedure in this owner's
manual. Then, if the front passenger
air bag deactivation indicator light
still does not illuminate, install the
child-restraint system on the rear seat
and consult an Authorized Mazda
Dealer as soon as possible.
Essential Safety Equipment
SRS Air Bags
2-70
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

If the front passenger air bag
deactivation indicator light
illuminates when an adult is seated
in the front passenger seat, have the
passenger re-adjust their posture by
sitting with their feet on the floor,
and then re-fastening the seat belt. If
the front passenger air bag
deactivation indicator light still
illuminates, move the passenger to
the rear seat. If sitting in the rear seat
is not possible, slide the front
passenger seat as far back as
possible. Consult an Authorized
Mazda Dealer as soon as possible.
▼Driver and Front Passenger Buckle
Switches
The buckle switches on the front seat
belts detect whether or not the front
seat belts are securely fastened and
further control the deployment of the
air bags.
Constant Monitoring
▼Constant Monitoring
The following components of the air
bag systems are monitored by a
diagnostic system:

Front air bag sensorsCrash sensors, and diagnostic
module (SAS unit)
Side crash sensorsAir bag modulesSeat belt pretensionersAir bag/Seat belt pretensioner
system warning light
Related wiring
(With Driver and Passenger Occupant
Classification System)
Driver seat slide position sensorFront passenger occupant
classification sensor
Front passenger occupantclassification module
Front passenger air bag deactivation
indicator light
Front passenger seat belt buckle
switch

The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition is switched
ON and continues while the vehicle is
being driven.
Essential Safety Equipment
SRS Air Bags
2-71
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59

MEMO
2-72
CX-30_8LD3-EA-22J_Edition1_new2022-6-7 13:06:59

3Before Driving
Use of various features, including keys, doors, mirrors and
windows.
Keys........................................ 3-2 Keys...................................... 3-2
Keyless Entry System...............3-4
Advanced Keyless Entry
System...................................3-10 Advanced Keyless Entry
System
*............................... 3-10
Operational Range...............3-11
Doors and Locks..................... 3-12 Door Locks.......................... 3-12
Liftgate................................ 3-21
Fuel and Emission................... 3-30 Fuel and Engine Exhaust
Precautions......................... 3-30
Fuel-Filler Lid and Cap..........3-32
Mirrors.................................. 3-35 Mirrors................................3-35
Windows............................... 3-39 Power Windows...................3-39
Moonroof
*.......................... 3-42
Security System.......................3-46Modification and Add-
On Equipment..................... 3-46
Immobilizer System..............3-46
Theft-Deterrent System
*........3-48
Driving Tips............................ 3-50 Break-In Period.................... 3-50
Saving Fuel and Protection of the
Environment........................ 3-50
Hazardous Driving............... 3-51
Floor Mat............................ 3-52
Rocking the Vehicle..............3-53
Winter Driving..................... 3-53
Driving In Flooded Area........3-55
Overloading........................ 3-56
Driving on Uneven Road.......3-56
Turbocharger Information
(SKYACTIV-G 2.5T).............. 3-57
Towing.................................. 3-58 Trailer Towing...................... 3-58
Recreational Towing............. 3-58
*Some models.3-1
CX-30_8LD3-EA-22J_Edition1_new 2022-6-7 13:06:59
