fuse MAZDA CX5 2023 User Guide

No.FUSE RAT-
ING PROTECTED COMPONENT
F41 30 A Audio
*
F4220 A Windshield wipers
F43 30 A
Cooling fan
*
F44 30 A Starter
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 15 A
Panorama sunroof
*
F52 15 A
Panorama sunroof*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 50 A For protection of various circuits
F56 ――
Maintenance and Care
Owner Maintenance
6-40*Some models.
CX-50_8KB8-EA-22A_Edition2_new 2022-1-6 14:55:18

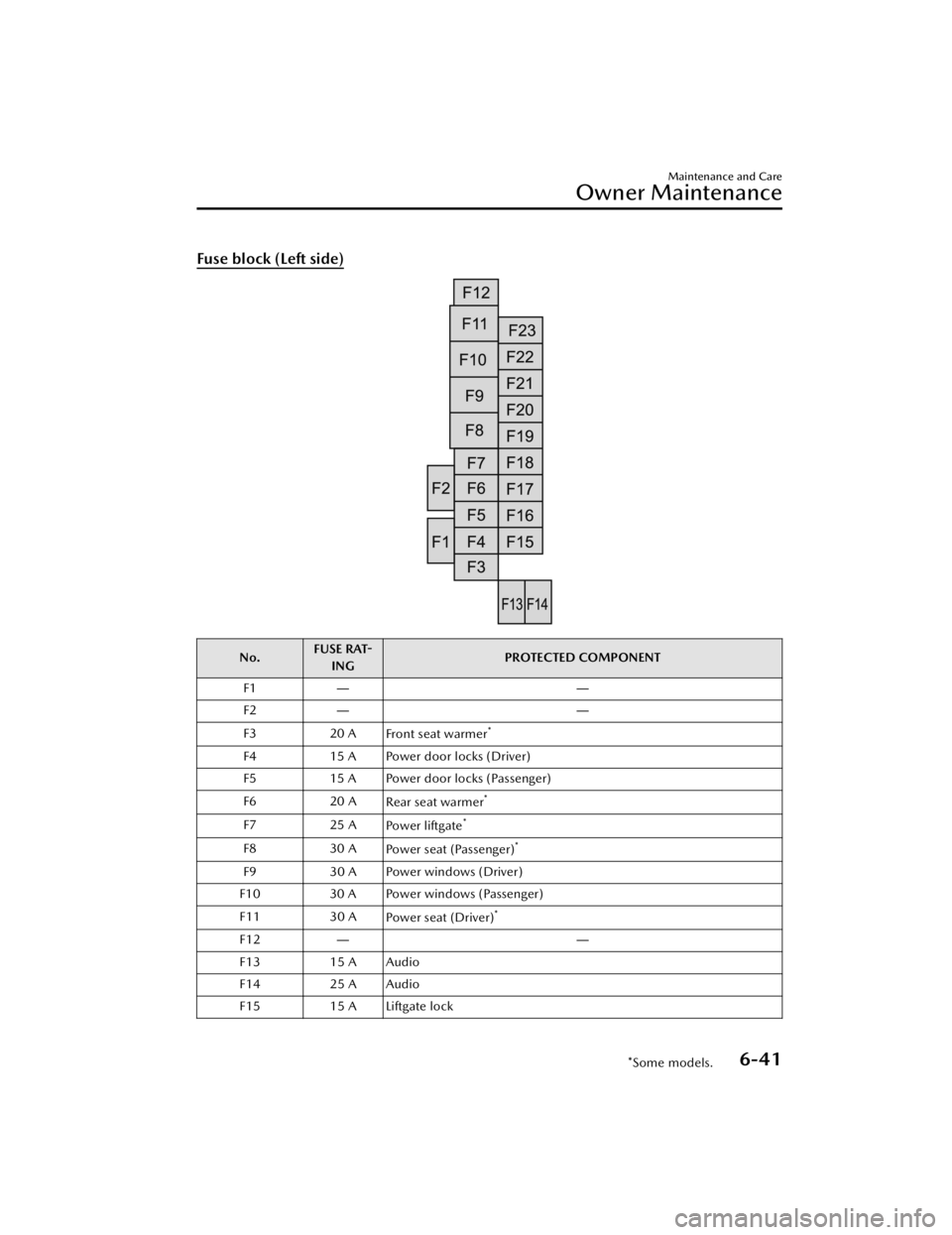

Fuse block (Left side)
No.FUSE RAT-
ING PROTECTED COMPONENT
F1 ――
F2 ――
F3 20 A Front seat warmer
*
F415 A Power door locks (Driver)
F5 15 A Power door locks (Passenger)
F6 20 A
Rear seat warmer
*
F7 25 A
Powe r l i ft ga te*
F8 30 A
Power seat (Passenger)*
F9 30 A Power windows (Driver)
F10 30 A Power windows (Passenger)
F11 30 A
Power seat (Driver)
*
F12 ――
F13 15 A Audio
F14 25 A Audio
F15 15 A Liftgate lock
Maintenance and Care
Owner Maintenance
*Some models.6-41
CX-50_8KB8-EA-22A_Edition2_new 2022-1-6 14:55:18

No.FUSE RAT-
ING PROTECTED COMPONENT
F16 15 A Illumination
F17 10 A Brake lights
F18 10 A Reverse lights
F19 10 A Rear turn signal lights
F20 10 A Taillights
F21 10 A Taillights
F22 7.5 A
Air bag
*
F23 ――
Maintenance and Care
Owner Maintenance
6-42*Some models.
CX-50_8KB8-EA-22A_Edition2_new 2022-1-6 14:55:18

Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
225/65R17 102H 250 kPa (36 psi)250 kPa (36 psi)
245/45R20 99V 240 kPa (35 psi)240 kPa (35 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
225/65R17 102H 250 kPa (2.5 bar, 36 psi) 250 kPa (2.5 bar, 36 psi)
245/45R20 99V 240 kPa (2.4bar, 35 psi) 240 kPa (2.4bar, 35 psi)
Temporary spare tire
(U.S.A. and Canada)
Tire size Inflation pressure
T155/90D17 101M 420 kPa (60 psi)
(Mexico)
Tire sizeInflation pressure
185/80R17 99M 320 kPa (3.2 bar, 46 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
