MAZDA MAZDA 2023 Owners Manual

5–door
1.Fuel-filler lid
2. Fuel-filler cap

5. Insert the refueling nozzle all the way and begin refueling. Pull out
the refueling nozzle after the
refueling stops automatically.
6. To close the fuel-filler cap, turn it
clockwise until a click is heard.
7. To close, press the fuel-filler lid
until a click sound is heard.

4–door
5–door
8. Make sure to lock all the doorswhen leaving the vehicle.
NOTE
Lock the doors after closing the
fuel-filler lid.
If the fuel-filler lid is closed after
locking the doors, the fuel-filler lid
cannot be locked.
CAUTION
(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-filler cap may not
be properly installed. If the warning
light illuminates, park your vehicle
safely off the right-of-way, remove the
fuel-filler cap and reinstall it correctly.
After the cap has been correctly
installed, the fuel cap warning light
may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of
starting the engine (after four or more
hours with the engine off) and driving
the vehicle on city and highway roads.
Continuing to drive with the check fuel
cap warning light illuminated could
cause the check engine light to
illuminate as well.
Before Driving
Fuel and Emission
3-30
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Mirrors
▼Mirrors
Before driving, adjust the inside and
outside mirrors.
▼Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC
or ON position.

To a d j u s t :
1. Press the select switch for the
outside mirror to be adjusted to
turn on the indicator light.
2. Press the adjustment switch toadjust the angle of the outside
mirror.
1. Indicator light
2. Select switch
3. Adjustment switch

After adjusting the angle of the outside
mirror, press the select switch for the
outside mirror to be adjusted to turn
off the indicator light.
NOTE
(With driving position memory
function)
The on-road outside mirror position
can be programmed in conjunction
with the driving position memory
function.
Refer to Driving Position Memory on
page 2-11.
Before Driving
Mirrors
3-31
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Power mirrors with reverse tilt down
function*
The outside mirrors tilt downward to
facilitate the view of the lower area on
each side of the vehicle.
1. Switch the ignition ON.
2. Press the select switch for theoutside mirror to be tilted
downward to turn on the indicator
light of the select switch.
3. Shift the shift lever/selector lever to the R position to tilt the outer
mirror on the side where the select
button was pressed downward.
NOTE
When any of the fo llowing condition is
met, the outer mirrors return to their
normal positions.
The ignition is switched to a position
other than ON.
The shift lever/selector lever is
shifted to a position other than R.
The select switch is pressed again.
Folding outside mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors folded
in is dangerous. Your rear view will be
restricted, and you could have an
accident.
Manually fold the outside mirror
rearward until it is flush with the
vehicle.
Engine-off outside mirror operation
The outside mirrors can be operated
for about 40 seconds after the ignition
is switched from ON to off.
Driver's side auto-dimming outside
mirror*
The movement of the auto-dimming
outside mirror is interlocked with the
auto-dimming rearview mirror in the
interior to automatically reduce glare
from rear on-coming vehicles.
Refer to Rearview Mirror on page
3-33.
NOTE
The front passenger-side outside
mirror does not have the
auto-dimming feature.
Before Driving
Mirrors
3-32*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview
mirror to center on the scene through
the rear window.

NOTE
For the manual day/night mirror,
perform the adjustment with the day/
night lever in the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for
day driving. Pull it back to reduce glare
of headlights from vehicles at the rear.

1. Day/Night lever
2. Day
3. Night

Auto-dimming mirror
The auto-dimming mirror
automatically reduces the glare of
headlights from vehicles at the rear
when the ignition is switched ON.

NOTE
Do not use glass cleaner or suspend
objects on or around the light
sensor. Otherwise, light sensor
sensitivity will be affected and may
not operate normally.
1. Light sensor

Before Driving
Mirrors
3-33
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

(With Homelink wireless control
system)
For information regarding the 3
buttons (
,,) on the
auto-dimming mirror.
Refer to HomeLink Wireless Control
System on page 4-71.
The auto-dimming function is
canceled when the ignition is
switched ON and the shift lever/
selector lever is in the R position.
Before Driving
Mirrors
3-34
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Powe r Wi n d ow s
▼Po we r Wi n d o w s
The windows can be opened/closed
by operating the power window
switches.
WARNING
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught
by the window.
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just before
it reaches the fully closed position or
while fully holding up the power
window switch is dangerous.
In this case, the jam-safe function may
not prevent the window from closing
all the way. If
fingers are caught,
serious injuries could occur.
Do not let a child put a hand or head
out of the window while driving the
vehicle:
If the person's hand or head hits
something outside the vehicle, or
sudden braking is applied, it could
result in serious injury or death.
NOTE
When driving with only 1 of the rear
windows open, your ears might
experience a resonating sound.
However, this does not indicate a
problem. The sound can be reduced
by slightly opening a front window or
by changing the size of the rear
window opening.
▼ Opening/Closing Windows
The window opens while the switch is
pressed and it closes while the switch
is pulled up with the ignition switched
ON. Do not open or close 3 or more
windows at the same time.
The front passenger's window and rear
windows can be opened/closed when
the power window lock switch on the
driver's door is in the unlocked
position. Keep this switch in the locked
position while children are in the
vehicle.

Before Driving
Windows
3-35
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

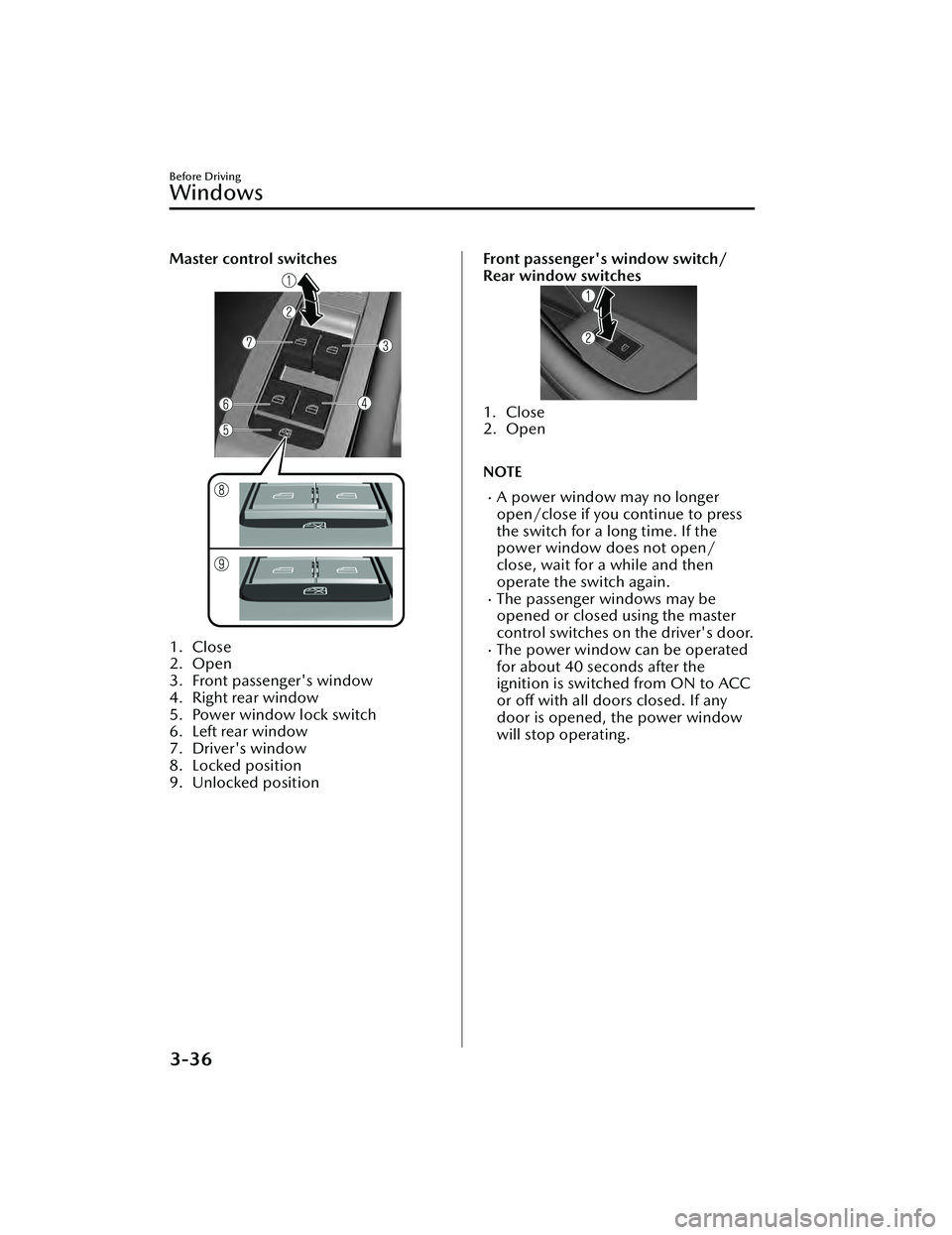

Master control switches
1. Close
2. Open
3. Front passenger's window
4. Right rear window
5. Power window lock switch
6. Left rear window
7. Driver's window
8. Locked position
9. Unlocked position

Front passenger's window switch/
Rear window switches
1. Close
2. Open

NOTE
A power window may no longer
open/close if you continue to press
the switch for a long time. If the
power window does not open/
close, wait for a while and then
operate the switch again.
The passenger windows may be
opened or closed using the master
control switches on the driver's door.
The power window can be operated
for about 40 seconds after the
ignition is switched from ON to ACC
or off with all doors closed. If any
door is opened, the power window
will stop operating.
Before Driving
Windows
3-36
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

▼Auto-opening/Closing
To fully open the window
automatically, press the switch
completely down, then release. The
window will fully open automatically.
To fully close the window
automatically, pull the switch
completely up, then release. The
window will fully close automatically.

To stop the window partway, pull or
press the switch in the opposite
direction and then release it.
NOTE
Power window system initialization
procedure
If you operate the switch any number
of times with the power window not
fully closed, the window may no longer
fully open/close automatically.
The power window auto function will
only resume on a power window that
has been reset.
1. Switch the ignition ON.
2. Make sure that the power window
lock switch located on the driver's
door is not depressed.
3. Press the switch and fully open the
window.
4. Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Make sure that the power windows operate correctly using the door
switches.
▼Jam-safe Window
When the window is closing and a
foreign object is detected between the
window and the window frame, the
window stops closing and
automatically opens partway.
NOTE
The jam-safe function may operate
under the following conditions:
A strong impact is detected while
the window is closing.
The window is closing in very low
temperatures.
(A window cannot be closed)
If the jam-safe function has operated
and the window cannot be closed,
check around the window frame for
a foreign object.
If there is no foreign object around
the window frame, forcibly close a
window using the following
procedure.
1. After switching the ignition OFF,
wait for 45 seconds or longer.
2. Switch the ignition ON.
3. Operate the switch in the direction to close the window
until the jam-safe function
operates and the window stops.
Repeat this operation a total of 5
times.
4. Continue pulling up the switch to fully close the window.
▼Remote Power Window Operation
All power windows can be opened
from outside the vehicle after the
doors are closed.
The power windows can be operated
remotely when the power window lock
switch on the driver's door is in the
lock or unlocked position.
Before Driving
Windows
3-37
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Remote power window operation is
activated under the following
conditions.
All the doors and liftgate are closed.The ignition is switched OFF.
NOTE
The power windows cannot be
opened from the outside of the vehicle
if the power window initialization has
not been completed.
Opening
The windows can be opened for
ventilating the cabin before getting in
the vehicle.
Press the unlock button on the key
quickly and briefly 3 times and then
immediately afterwards, press and
hold the unlock button to open the
windows.
To stop the windows from opening,
release the button. If the operation is
performed from the beginning again,
the windows open.
Moonroof*
▼Moonroof
The moonroof can be opened or
closed when operating the overhead
tilt/slide switch at the front seats.
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Never allow children to play with the
tilt/slide switch:
The tilt/slide switch would allow
children to operate the moonroof
unintentionally, which could result in
serious injury if a child's hands, head
or neck becomes caught by the
moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it
as it closes, causing serious injury or
even death.
Before Driving
Windows
3-38*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
closing. If fingers are caught, serious
injuries could occur.
CAUTION
Do not sit on or put heavy items on
the area where the moonroof opens
and closes. Otherwise, the
moonroof could be damaged.
 Do not open or close the moonroof
forcefully during freezing
temperatures or snowfall. Otherwise,
the moonroof could be damaged.
 The sunshade does not tilt. To avoid
damaging the sunshade, do not push
it up.
 Do not close the sunshade while the
moonroof is opening. Trying to force
the sunshade closed could damage
it.
▼ Tilt/Slide Operation
The moonroof can be opened or
closed electrically only when the
ignition is switched ON.
Before leaving the vehicle or washing
your Mazda, make sure the
moonroof is completely closed so
that water does not get inside the
cabin area.
After washing your Mazda or after it
rains, wipe the water off the
moonroof before operating it to
avoid water penetration which could
cause rust and water damage to your
headliner.
1. Tilt/Slide switch
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically,
momentarily press the tilt/slide switch
in the forward direction.
To stop tilting partway, press the tilt/
slide switch.
Before Driving
Windows
3-39
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10
