NOTE
The engine cannot be started
unless the clutch pedal is fully
depressed (manual transmission)
or the brake pedal is fully
depressed (automatic
transmission).
If there is a malfunction with the
push button start function, the
push button start indicator light
(amber) flashes. In this case, the
engine may start, however, have
the vehicle checked at an
Authorized Mazda Dealer as
soon as possible.
If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle
checked at an Authorized Mazda
Dealer.
To switch the ignition position
without starting the engine,
perform the following operations
after the push button start
indicator light (green) turns on.
1. Release the clutch pedal (manual transmission) or
brake pedal (automatic
transmission).
2. Press the push button start to switch the ignition position.
The ignition switches in the
order of ACC, ON, and off
each time the push button
start is pressed. To switch the
ignition position again,
perform the operation from
the beginning.
▼ Emergency Operation for Starting
the Engine
If the KEY warning indication (red) is
displayed, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may not
start using the usual starting method.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can
be force-started. Press and hold the
push button start until the engine
starts. Other procedures necessary for
starting the engine such as having the
key in the cabin, and depressing the
clutch pedal (manual transmission) or
the brake pedal (automatic
transmission) are required.
When Driving
Start/Stop Engine
4-9
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Turning the Engine Off
▼Turning the Engine
Off
WARNING
Do not stop the engine while the
vehicle is moving:
Stopping the engine while the vehicle
is moving for any reason other than in
an emergency is dangerous. Stopping
the engine while the vehicle is moving
will result in reduced braking ability
due to the loss of power braking ,
which could cause an accident and
serious injury.
1. Stop the vehicle completely.
2.(Manual transmission)
Shift into neutral and set the
parking brake.
(Automatic transmission)
Shift the selector lever to the P
position and set the parking brake.
3. Press the push button start to turn off the engine. The ignition position
is off.
CAUTION
When leaving the vehicle, make sure
the push button start is off.
NOTE
The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the
A/C is on or
off, to cool the engine
compartment quickly.
If the system detects that the
remaining battery power of the key is
low when the ignition is switched
from ON to ACC or OFF, the
following is indicated.
Replace with a new battery before
the key becomes unusable.
Refer to Key Battery Replacement on
page 6-30.
A message is indicated in the display
of the instrument cluster.
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-34.
(Automatic transmission)
If the engine is turned off while the
selector lever is in a position other
than P, the ignition switches to ACC.
▼ Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number
of times while the engine is running or
the vehicle is being driven will turn the
engine
off immediately. The ignition
switches to ACC.
When Driving
Start/Stop Engine
4-10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

WARNING
Do not rely completely on the vehicle
roll prevention function.
The vehicle roll prevention function
is a supplementary function which
operates for a maximum of 2
seconds after releasing the brake
pedal and accelerating the vehicle
from an engine idling stop condition.
Over reliance on the system may
result in an unexpected accident if
the vehicle were to suddenly
accelerate. Before starting to drive
the vehicle, always confirm the safety
of the surroundings and operate the
selector lever, brake pedal, and
accelerator pedal appropriately.
Note that the vehicle may move
suddenly depending on the vehicle's
load or if it is towing something.
 Note that the vehicle may move
suddenly after the vehicle roll
prevention function is released while
the vehicle is under the following
conditions:
 The selector lever is in the N
position.
 If the selector lever is shifted to the
N position and the brake pedal is
released while the i-stop function
is operating, the brake force is
gradually released. To accelerate
the vehicle, release the brake pedal
after the engine restarts and shift
the selector lever to a position
other than the N position.
NOTE
When the vehicle is stopped on a
steep grade, the vehicle roll
prevention function does not
operate because engine idling is not
stopped.
The brake pedal response may
change, sound may occur from the
brakes, or the brake pedal could
vibrate from the operation of the
vehicle roll prevention function.
However, this does not indicate a
malfunction.
▼ i-stop Warning Light (Amber)/
i-stop Indicator Light (Green)
To ensure safe and comfortable use of
the vehicle, the i-stop system
constantly monitors the driver's
operations, the vehicle's interior and
exterior environment, and the
operational status of the vehicle, and
uses the i-stop warning light (amber)
and i-stop indicator light (green) to
inform the driver of various cautions
and warnings.
NOTE
On vehicles equipped with the center
display, the i-stop operation status is
displayed in the fuel efficiency monitor
display.
Refer to the Fuel Efficiency Monitor
section in the Mazda Connect
Owner's Manual.
i-stop warning light (amber)
The light turns on/flashes continuously
if the system has a problem. Have the
vehicle inspected by an Authorized
Mazda Dealer.
i-stop indicator light (green)
When Driving
Start/Stop Engine
4-16
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Instrument Cluster andDisplay
▼Instrument Cluster and Display
ƒ
Instrument Cluster.......... page 4-18
„ Active Driving Display..... page 4-36
Instrument Cluster
▼Instrument Cluster
ƒ
Tachometer.................... page 4-19
„ Multi-information Display...............
..................................... page 4-20
… Engine Coolant Temperature
Gauge............................ page 4-23
† Fuel Gauge..................... page 4-23
‡ Dashboard Illumination
Switch............................ page 4-24
ˆ Speedometer..................page 4-18
‰ TRIP Switch.................... page 4-22
▼Speedometer
The speedometer indicates the speed
of the vehicle.
When Driving
Instrument Cluster and Display
4-18
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.

1. STRIPED ZONE*1
2. RED ZONE*1
*1 The range varies depending on the type of
gauge.
NOTE
When the tachometer needle enters
the STRIPED ZONE, this indicates to
the driver that the gears should be
shifted before entering the RED ZONE.
When Driving
Instrument Cluster and Display
4-19
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

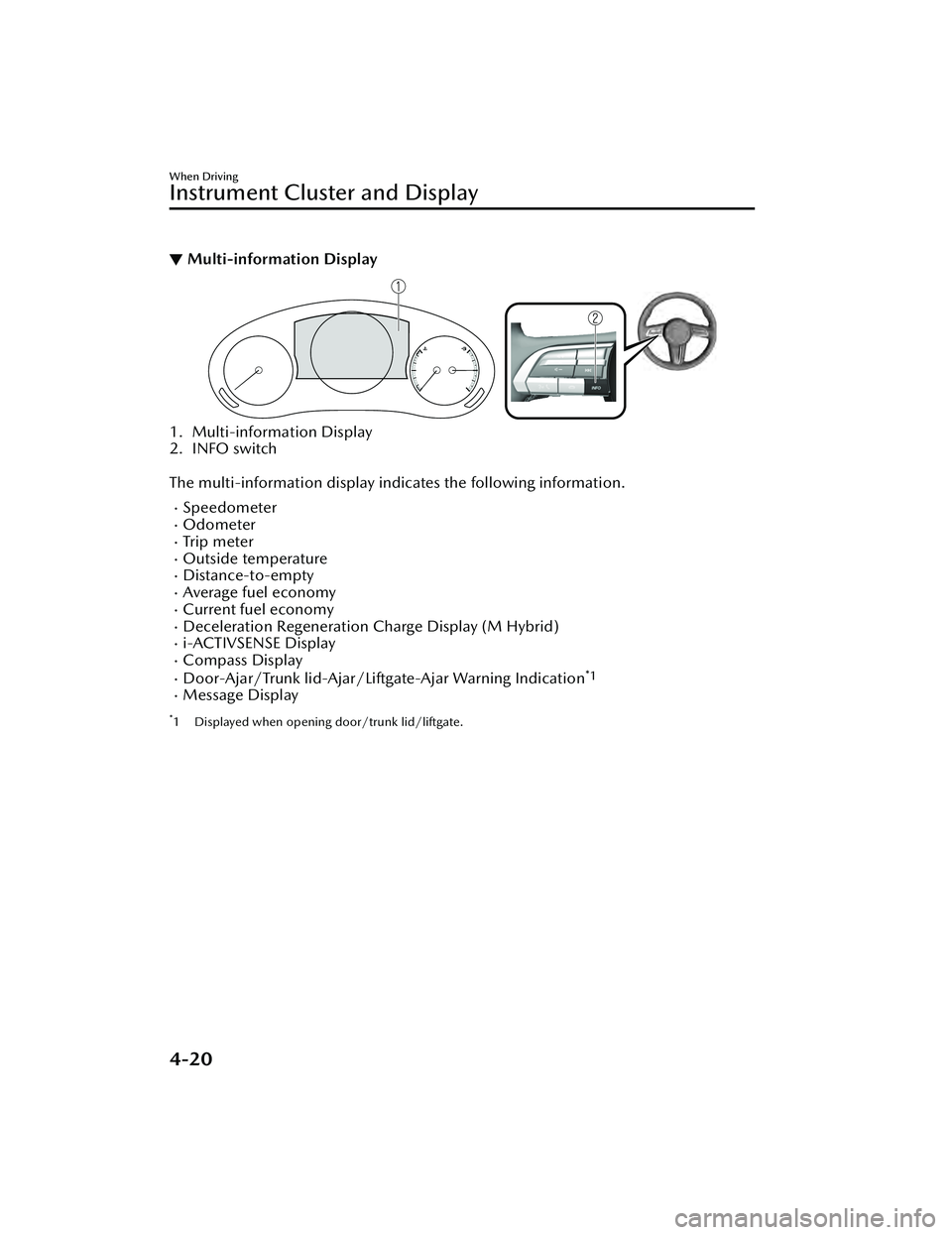

▼Multi-information Display
1. Multi-information Display
2. INFO switch

The multi-information display indicates the following information.
SpeedometerOdometerTr i p m e te rOutside temperatureDistance-to-emptyAverage fuel economyCurrent fuel economyDeceleration Regeneration
Charge Display (M Hybrid)i-ACTIVSENSE DisplayCompass DisplayDoor-Ajar/Trunk lid-Ajar/Liftgate-Ajar Warning Indication*1
Message Display
*1 Displayed when opening door/trunk lid/liftgate.
When Driving
Instrument Cluster and Display
4-20
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

The screen content changes each time the INFO switch is pressed.
1. Basic display
2. Drive information display
3. i-ACTIVSENSE display
4. Message display
*1
*1 Displayed only when a warning occurs.

The type of display for the fuel economy and the maximum driving distance can be
changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When Driving
Instrument Cluster and Display
4-21
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

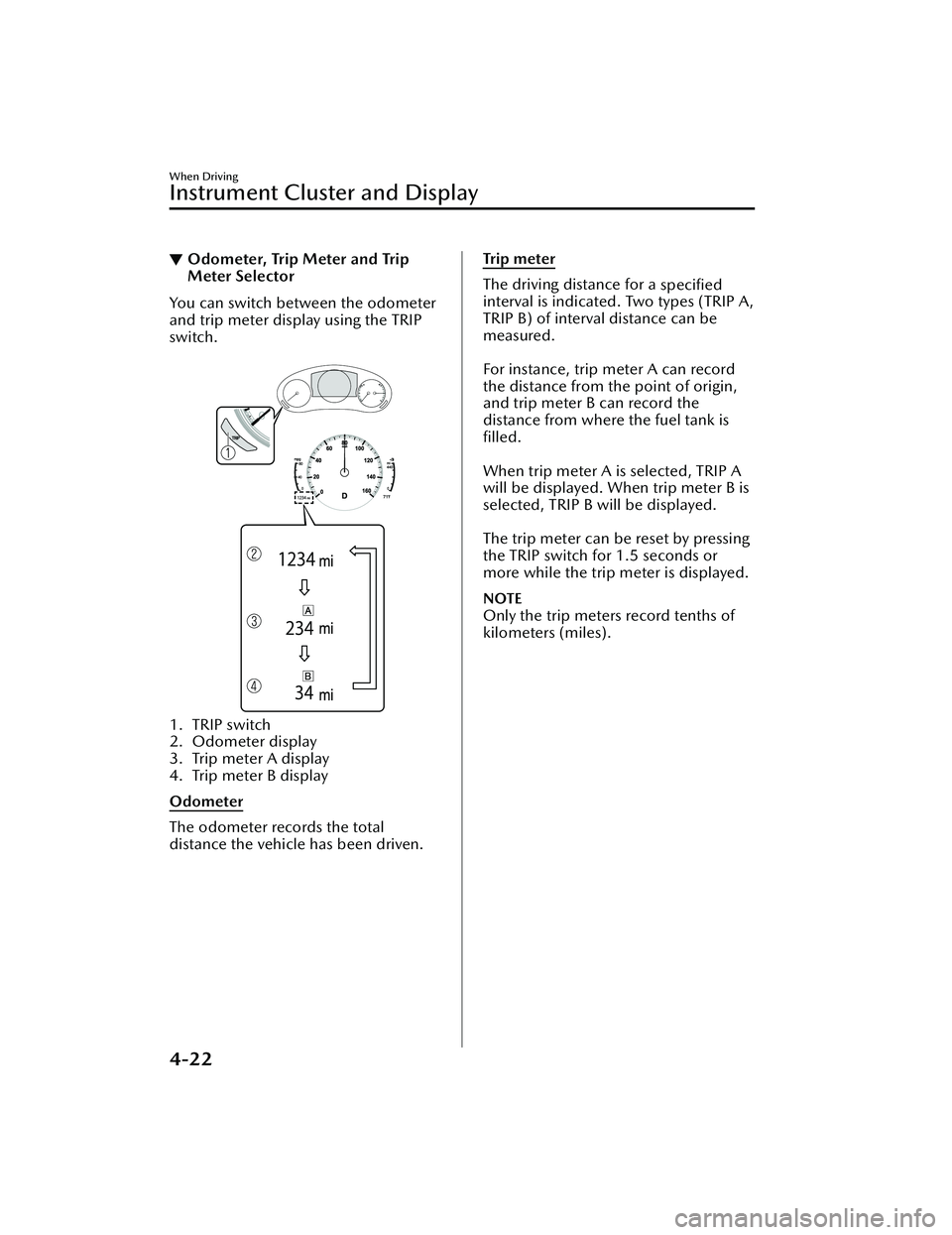

▼Odometer, Trip Meter and Trip
Meter Selector
You can switch between the odometer
and trip meter display using the TRIP
switch.

1. TRIP switch
2. Odometer display
3. Trip meter A display
4. Trip meter B display
Odometer
The odometer records the total
distance the vehicle has been driven.
Tr i p m e te r
The driving distance for a
specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance can be
measured.

For instance, trip meter A can record
the distance from the point of origin,
and trip meter B can record the
distance from where the fuel tank is
filled.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter can be reset by pressing
the TRIP switch for 1.5 seconds or
more while the trip meter is displayed.
NOTE
Only the trip meters record tenths of
kilometers (miles).
When Driving
Instrument Cluster and Display
4-22
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Engine Coolant Temperature
Gauge
Displays the engine coolant
temperature. The blue range of the
gauge indicates that the engine coolant
temperature is low, and the red range
of the gauge indicates that the engine
coolant temperature is high and
overheating.

CAUTION
When the engine coolant temperature
gauge needle is in the red range, the
engine coolant temperature is
extremely high. Drive slowly to reduce
engine load. If the engine coolant
temperature gauge needle is in the red
range, there is the possibility of
overheating. Park the vehicle in a safe
place immediately and take
appropriate measures.
Refer to Overheating on page 7-21.
NOTE
If the engine or engine coolant
temperature is high or low, the
engine output may be restricted to
protect the engine.
▼Fuel Gauge
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4
full.

1. Full
2. 1/4 Full
3. Empty

When Driving
Instrument Cluster and Display
4-23
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

If the low fuel warning light illuminates
or the fuel level is very low, refuel as
soon as possible.
If inconsistency in engine performance
or stalling occurs due to low fuel level
conditions, refuel the vehicle as soon
as possible and add at least 10 L (2.7
US gal, 2.2 Imp gal) of fuel.
Refer to Low Fuel Warning Indication/
Warning Light on page 7-35.
NOTE
After refueling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.
The direction of the arrow ()
indicates that the fuel-filler lid is on
the left side of the vehicle.
▼ Dashboard Illumination
(Without auto-light control)
When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
(With auto-light control)
When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
However, when the light sensor
detects that the surrounding area is
bright such as when the lights are
turned on in the daytime, the
dashboard illumination does not dim.
NOTE
(With auto-light control)
When the ignition is switched ON in
the early evening or at dusk, the
dashboard illumination is dimmed
for several seconds until the light
sensor detects the brightness of the
surrounding area, however, the
dimming may cancel after the
brightness is detected.
When the lights are turned on, the
lights-on indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-57.
The brightness of the instrument panel
and dashboard illuminations can be
adjusted by pressing the dashboard
illumination switch while the
dashboard illumination is dimmed.
The brightness increases by pressing
the + switch.
The brightness decreases by pressing
the - switch. If you press the - switch
while the instrument cluster is at
maximum dimness, a sound is
activated to notify you that the
current dimmer setting is at
maximum dimness.

1. Bright
2. Dim
When Driving
Instrument Cluster and Display
4-24
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
