MAZDA MAZDA 2023 Owner's Guide

Rear Seat
▼Split Folding the Seatbacks
By lowering the rear seatbacks the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with
occupants on folded down seatbacks
or in the luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.
Do not allow children to play inside
the vehicle with the seatbacks
lowered.
Allowing children to play in the vehicle
with the seatbacks folded down is
dangerous. If a child enters the luggage
compartment and the seatbacks were
raised back up, the child may become
trapped in the luggage compartment
which could lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or a
collision resulting in an unexpected
accident.
When transporting cargo, do not
allow the cargo to exceed the height
of the seatbacks.
Transporting cargo stacked higher than
the seatbacks is dangerous as visibility
to the rear and sides of the vehicle is
reduced which could interfere with
driving operations and lead to an
accident.
Lowering the seatbacks
CAUTION

(5–Door)
When folding the seatback forward,
always support the seatback with
your hand. If it is not supported by a
hand, fingers or the hand pressing
the push knob could be injured.
 Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a
rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Lower or remove the head restraint
on the rear outboard seat if
necessary.
Essential Safety Equipment
Seats
2-14
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

(4–Door)
1. Open the trunk lid and pull thelever of the seatback you want to
fold down.

2. Open a rear door and fold the rearseat forward.
(5–Door)
Press the push knob to fold down the
seatback.

To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the
3-point seat belt is not caught in the
seatback and the 3-point seat belt is
not twisted.
If the seat belt is used while it is
twisted and caught in the seatback, the
seat belt cannot function at its full
capacity, which could cause serious
injury or death.
When returning a seatback to its
upright position, make sure that it is
firmly locked and the red indication is
not visible (5–Door).
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.

1. Locked position
2. Unlocked position
3. Red indication
Essential Safety Equipment
Seats
2-15
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

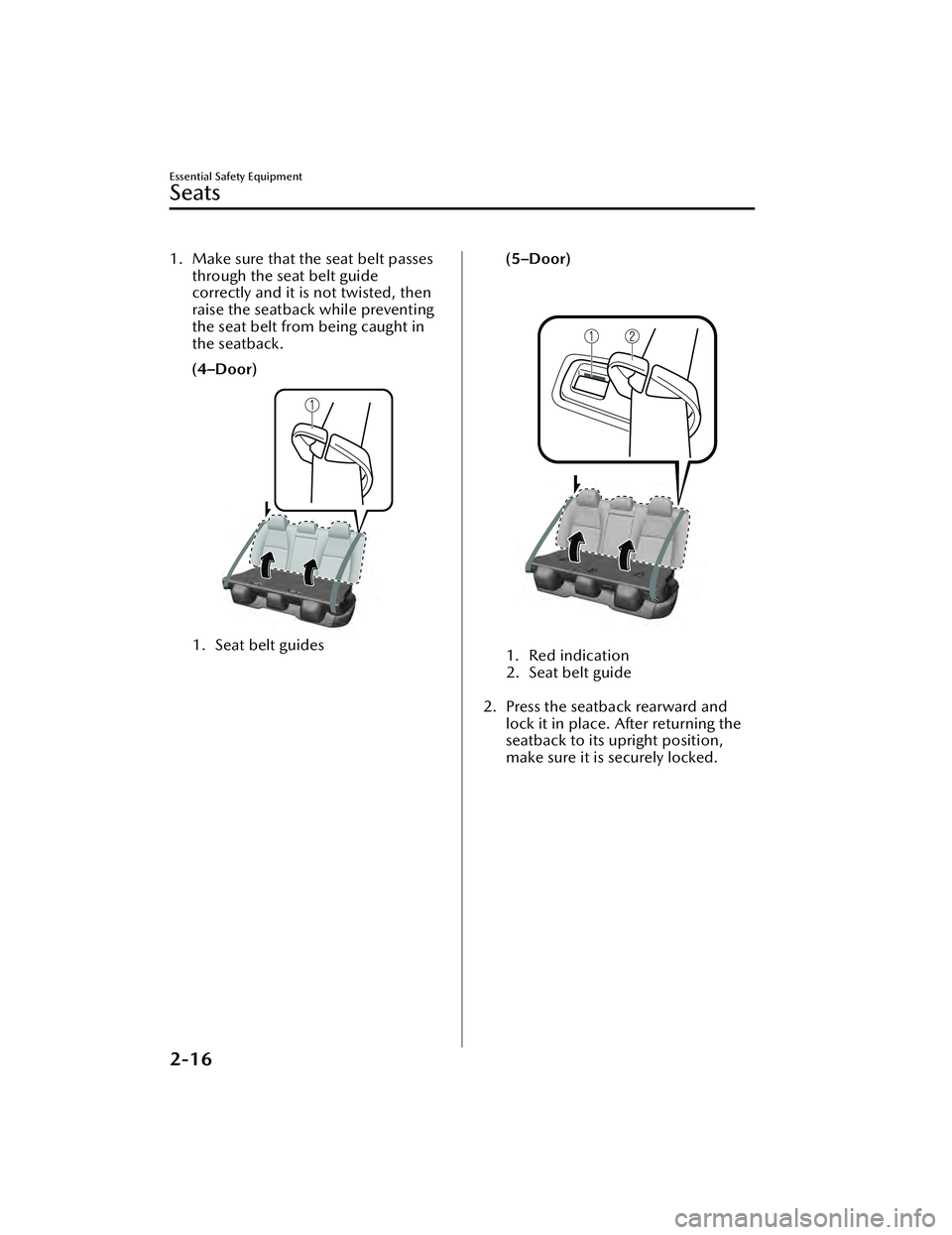

1. Make sure that the seat belt passesthrough the seat belt guide
correctly and it is not twisted, then
raise the seatback while preventing
the seat belt from being caught in
the seatback.
(4–Door)
1. Seat belt guides

(5–Door)
1. Red indication
2. Seat belt guide

2. Press the seatback rearward and
lock it in place. After returning the
seatback to its upright position,
make sure it is securely locked.
Essential Safety Equipment
Seats
2-16
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Armrest*
The rear armrest in the center of the
rear seatback can be used (no
occupant in the center seat) or placed
upright.

WARNING
Never put your hands and fingers
around the moving parts of the seat
and armrest:
Putting your hands and
fingers around
the moving parts of the seat and
armrest is dangerous as they could get
injured.
Head Restraints
▼ Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
▼
Height Adjustment
Adjust the head restraint so that the
center is even with the top of the
passenger's ears.

To raise a head restraint, pull it up to
the desired position.
To lower the head restraint, press the
stop-catch release, then push the head
restraint down.
Essential Safety Equipment
Seats
*Some models.2-17
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Front seats

Rear outboard seats

Rear center seat

▼Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the
legs into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
effectiveness
of the head restraint will
be compromised which could cause it
to unexpectedly detach from the seat.
CAUTION
 When installing a head restraint,
make sure that it is installed correctly
with the front of the head restraint
facing forward. If the head restraint is
installed incorrectly, it could detach
from the seat during a collision and
result in injury.
 The head restraints on each of the
front and rear seats are specialized to
each seat. Do not switch around the
head restraint positions. If a head
restraint is not installed to its correct
seat position, the effectiveness of the
head restraint during a collision will
be compromised which could cause
injury.
Essential Safety Equipment
Seats
2-18
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Seat Warmer*
▼Seat Warmer
The front seats can be warmed up
while the engine is running.
While the seat warmer is operating,
the indicator light in the seat warmer
switch turns on according to the set
temperature.
Manual mode
When the seat warmer switch is
pressed, the seat warmer operates in
manual mode.
The set temperature changes as shown
in the figure each time the seat warmer
switch is pressed.
1. OFF
2. High
3. Mid
4. Low
NOTE
If the engine is turned
off while the
seat warmer is operating in manual
mode, the seat warmer does not turn
on automatically the next time the
engine is turned on. To turn the seat
warmer on, press the switch again.
Auto mode
The driver and front passenger's seat
warmer can be operated in auto mode
using the following procedure.
1. If “Occupant Comfort” has been disabled, enable it using the
following procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Occupant Comfort”.
2. Press the AUTO switch.
While in auto mode, the seat
temperature is automatically controlled
in 4 levels (High, Mid, Low, and OFF)
according to the conditions in the
cabin.
NOTE
If the front passenger’s seat belt is
unfastened, the front passenger’s
seat warmer turns off.
If the seat warmer switch is pressed
during auto mode, the seat warmer
on the side where the switch was
pressed switches to manual mode.
To return to auto mode, press the
AUTO switch.
If the engine is turned off while the
seat warmer is operating in auto
mode, the seat warmer operates in
auto mode again the next time the
engine is turned on.

Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
*Some models.2-19
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for the following people and
could cause a low-temperature burn.
Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high
moisture-retention ability such as a
blanket or cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even
when taking a short nap in the
vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
 Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Heated Steering Wheel*
▼ Heated Steering Wheel
The grips on the left and right of the
steering wheel can be warmed up
when the ignition is switched ON.
While the heated steering wheel is
operating , the indicator light in the
heated steering wheel switch turns on.
1. Heated steering wheel switch
2. Heating area

Manual mode
The heated steering wheel operates for
about 30 minutes when the heated
steering wheel switch is pressed, and
then automatically turns off.
To turn the heated steering wheel off
manually, press the switch again.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-20*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Auto mode
The heated steering wheel can be
operated in auto mode using the
following procedure.
1. If “Occupant Comfort” has beendisabled, enable it using the
following procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Occupant Comfort”.
2. Press the AUTO switch.
While in auto mode, the heated
steering wheel automatically operates/
turns off according to the conditions in
the cabin.
NOTE
If the heated steering wheel switch is
pressed during auto mode, the
heated steering wheel switches to
manual mode. To return to auto
mode, press the AUTO switch.
If the ignition is switched OFF while
the heated steering wheel is
operating in auto mode, the heated
steering wheel operates in auto
mode again the next time the
ignition is switched ON.

CAUTION
The following types of persons should
be careful not to touch the steering
wheel. Otherwise, it could cause a
low-temperature burn.
 Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 Pe o pl e w h o have ta ke n
sleep-inducing medicine such as
sleeping pills or cold medicine
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-21
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Seat Belt Precautions
▼Seat Belt Precautions
Seat belts help to decrease the
possibility of severe injury during
accidents and sudden stops. Mazda
recommends that the driver and all
passengers always wear seat belts.
(Mexico)
All the seats have lap/shoulder belts.
These belts have retractors with inertia
locks that keep them out of the way
when not in use. The locks allow the
belts to remain comfortable on users,
but they will lock in position during a
collision.

(Except Mexico)
All of the seat belt retractors are
designed to keep the lap/shoulder
belts out of the way when not in use.
The driver's seat belt has no provisions
for child-restraint systems and has only
an emergency locking mode. The
driver may wear it comfortably, and it
will lock during a collision.
However, the front passenger's seat
and all rear lap/shoulder belt
retractors operate in two modes:
emergency locking mode, and for
child-restraint systems, automatic
locking mode. While we recommend
you put all children in the rear seats, if
you must use the front passenger seat
for a child, slide the front passenger
seat as far back as possible and make
sure any child-restraint system is
secured properly.
WARNING
Always wear your seat belt and make
sure all occupants are properly
restrained:
Not wearing a seat belt is extremely
dangerous. During a collision,
occupants not wearing seat belts could
hit someone or things inside the
vehicle or even be thrown out of the
vehicle. They could be seriously injured
or even killed. In the same collision,
occupants wearing seat belts would be
much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a
collision, the full width of the belt is
not available to absorb the impact.
This puts more force on the bones
beneath the belt, which could cause
serious injury or death. So, if your seat
belt is twisted, you must straighten the
seat belt to remove any twists and to
allow the full width of the belt to be
used.
Never use one seat belt on more than
one person at a time:
Using one seat belt for more than one
person at a time is dangerous. A seat
belt used in this way cannot spread the
impact forces properly and the two
passengers could be crushed together
and seriously injured or even killed.
Never use one belt for more than one
person at a time and always operate
the vehicle with each occupant
properly restrained.
Essential Safety Equipment
Seat Belt Systems
2-22
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Do not operate a vehicle with a
damaged seat belt:
Using a damaged seat belt is
dangerous. An accident could damage
the belt webbing of the seat belt in
use. A damaged seat belt cannot
provide adequate protection in a
collision. Have an Authorized Mazda
Dealer inspect all seat belt systems in
use during an accident before they are
used again.
Have your seat belts changed
immediately if the pretensioner or
load limiter has been expended:
Always have an Authorized Mazda
Dealer immediately inspect the seat
belt pretensioners and air bags after
any collision. Like the air bags, the seat
belt pretensioners and load limiters
will only function once and must be
replaced after any collision that caused
them to deploy. A seat belt with an
expended pretensioner or load limiter
is still better than wearing no seat belt
at all; however, if the seat belt
pretensioners and load limiters are not
replaced, the risk of injury in a collision
will increase.
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder portion
of the seat belt is positioned across
your shoulder and near your neck, but
never under your arm, on your neck, or
on your upper arm.Positioning the Lap Portion of the Seat
Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low as
possible.
CAUTION
Belt retraction may become difficult if
the belts and rings are soiled, so try to
keep them clean. For more details
about cleaning the seat belts, refer to
"Seat Belt Maintenance" (page
6-53).

1. Ring

Essential Safety Equipment
Seat Belt Systems
2-23
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10
