oil capacity MAZDA MAZDA 2023 Owners Manual

Winter Driving
▼Winter Driving
Carry emergency gear, including tire
chains, window scraper,
flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
check the following:
Have the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page
6-19.
Inspect the battery and its cables.
Cold reduces battery capacity.
Use an engine oil appropriate for the
lowest ambient temperatures that
the vehicle will be driven in (page
6-16).
Inspect the ignition system for
damage and loose connections.
Use washer fluid made with
antifreeze ―but do not use engine
coolant antifreeze for washer fluid
(page 6-21).
NOTE
Remove snow before driving. Snow
left on the windshield is dangerous
as it could obstruct vision.
Do not apply excessive force to a
window scraper when removing ice
or frozen snow on the mirror glass
and windshield.
Never use warm or hot water for
removing snow or ice from windows
and mirrors as it could result in the
glass cracking.
Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake
components. If this situation occurs,
drive the vehicle slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the
brake performance returns to
normal.
▼ Snow Tires
Use snow tires on all 4 wheels
Do not go faster than 120 km/h (75
mph) while driving with snow tires.
Inflate
snow tires 30 kPa (0.3 kgf/cm
2,
4.3 psi) more than recommended on
the tire pressure label (driver's door
frame), but never more than the
maximum cold-tire pressure shown on
the tires.

Mexico
The vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, Mazda recommends
that you replace the tires originally
equipped on your vehicle with snow
tires during the winter months.
Except Mexico
The vehicle is originally equipped with
all season radials designed to be used
all year around. In some extreme
climates you may find it necessary to
replace them with snow tires during
the winter months to further improve
traction on snow and ice covered
roads.
Before Driving
Driving Tips
3-49
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

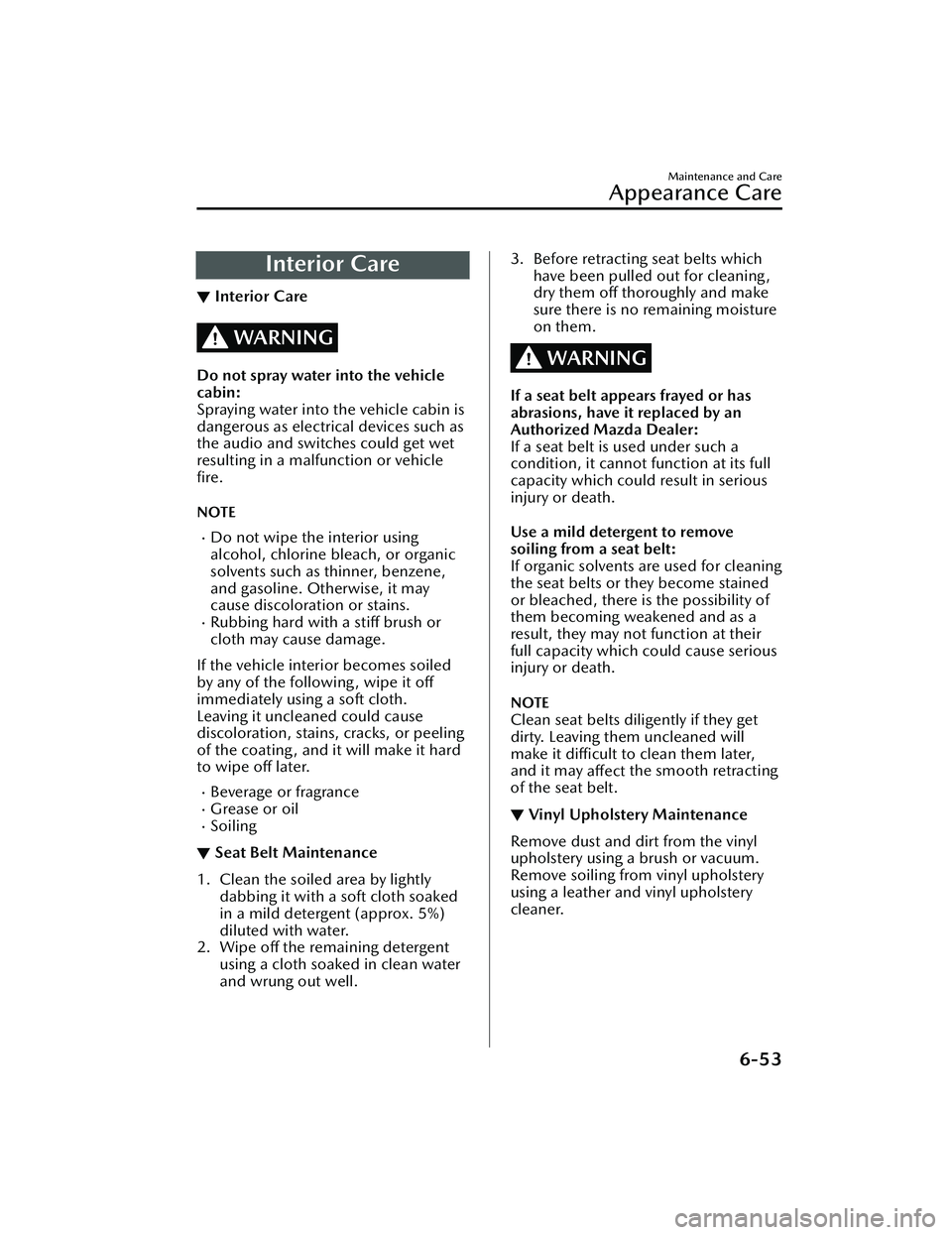

Interior Care
▼Interior Care
WARNING
Do not spray water into the vehicle
cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as
the audio and switches could get wet
resulting in a malfunction or vehicle
fire.
NOTE
Do not wipe the interior using
alcohol, chlorine bleach, or organic
solvents such as thinner, benzene,
and gasoline. Otherwise, it may
cause discoloration or stains.
Rubbing hard with a stiff brush or
cloth may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling
of the coating , and it will make it hard
to wipe off later.
Beverage or fragranceGrease or oilSoiling
▼ Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked
in a mild detergent (approx. 5%)
diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water
and wrung out well.
3. Before retracting seat belts whichhave been pulled out for cleaning,
dry them off thoroughly and make
sure there is no remaining moisture
on them.
WARNING
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:
If a seat belt is used under such a
condition, it cannot function at its full
capacity which could result in serious
injury or death.
Use a mild detergent to remove
soiling from a seat belt:
If organic solvents are used for cleaning
the seat belts or they become stained
or bleached, there is the possibility of
them becoming weakened and as a
result, they may not function at their
full capacity which could cause serious
injury or death.
NOTE
Clean seat belts diligently if they get
dirty. Leaving them uncleaned will
make it difficult to clean them later,
and it may affect the smooth retracting
of the seat belt.
▼ Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from
vinyl upholstery
using a leather and vinyl upholstery
cleaner.
Maintenance and Care
Appearance Care
6-53
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
F
FlasherHazard warning.................... 4-71
Headlights............................4-57
Flat Tire Changing a flat tire................. 7-7
Mounting the spare tire........ 7-12
Removing a flat tire................ 7-8
Floor Mat................................. 3-48
Fluids Brake/Clutch........................6-20
Classification.......................... 9-5
Washer................................ 6-21
Foot Brake................................ 4-76
Forward Sensing Camera (FSC) ..........
.............................................. 4-211
Front Camera/Side Cameras/Rear
Camera.................................. 4-221
Front Cross Traffic Alert (FCTA) ..........
.............................................. 4-123
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-47
Front Radar Sensor.................. 4-215
Front Side Radar Sensor........... 4-218
Fuel Filler lid and cap...................3-28
Requirements....................... 3-26
Tank capacity......................... 9-5
Fuses........................................ 6-39 Panel description.................. 6-42
Replacement........................ 6-39
G
Gauges..................................... 4-18
Glove Compartment..................5-47
H
Hazardous Driving.....................3-47
Hazard Warning Flasher............. 4-71
HeadlightsComing home light...............4-61
Flashing................................4-60
High-low beam.................... 4-60
Leaving home light............... 4-61
Leveling................................4-62
Head Restraint.......................... 2-17
High Beam Control System
(HBC)..................................... 4-101 High Beam Control System (HBC)
indicator light (green)......... 4-102
Hill Launch Assist (HLA)............. 4-87
HomeLink Wireless Control
System...................................... 4-71
Hood Release........................... 6-12
Horn........................................ 4-70
I
If a Warning Light Turns On or
Flashes......................................7-27
If the Active Driving Display Does Not
Operate.................................... 7-51
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-44
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-42
Immobilizer System................... 3-42
Inside Trunk Release Lever......... 3-24
Inspecting Brake/Clutch Fluid
Level.........................................6-20
Inspecting Coolan t Level............ 6-19
Inspecting Engine Oil Level.........6-18
Inspecting Washer Fluid Level..... 6-21
Instrument Cluster..................... 4-18 Average fuel economy...........4-26
Compass display.................. 4-28
Current fuel economy........... 4-27
Dashboard illumination........ 4-24
Deceleration regeneration charge
display................................. 4-27
10-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
