maintenance MAZDA MAZDA 2023 Owner's Guide

Engine Coolant
▼Inspecting Coolant Level
WARNING
Do not use a match or live flame in
the engine compartment. DO NOT
ADD COOLANT WHEN THE ENGINE
IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
NOTE
Changing the coolant should be done
by an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year ―at the beginning of
the winter season ―and before
traveling where temperatures may drop
below freezing.

Inspect the condition and connections
of all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the FULL and
LOW marks on the coolant reservoir
when the engine is cool.
SKYACTIV-G 2.0 and SKYACTIV-G
2.5

Maintenance and Care
Owner Maintenance
6-19
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

SKYACTIV-G 2.5T

FULL
LOW
If it is at or near LOW, add enough
coolant to the coolant reservoir to
provide freezing and corrosion
protection and to bring the level to
FULL.
Securely tighten the coolant reservoir
tank cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it off quickly if spilled.
 If the “FL22” mark is shown on or
near the cooling system cap, use of
FL-22 is recommended when
replacing engine coolant. Using
engine coolant other than FL-22 may
cause serious damage to the engine
and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult
an Authorized Mazda Dealer.
Brake/Clutch Fluid
▼ Inspecting Brake/Clutch Fluid
Level
WARNING
If the brake/clutch fluid level is low,
have the brakes inspected:
A low brake/clutch fluid level is
dangerous.
A low level could indicate brake lining
wear or a brake system leak which
could cause the brakes to fail and lead
to an accident.
The brakes and clutch draw
fluid from
the same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept between
the MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and
clutch linings. If it is excessively low,
have the brake/clutch system
inspected by an Authorized Mazda
Dealer.
Without M Hybrid
Maintenance and Care
Owner Maintenance
6-20
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

With M HybridWasher Fluid
▼Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result in
an accident.
Using Washer Fluid Without
Anti-freeze Protection in Cold
Weather:
Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is
dangerous as it could cause impaired
windshield vision and result in an
accident. In cold weather, always use
washer fluid with anti-freeze
protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.The Low Washer Fluid Level Warning
Indication/Warning Light (if
equipped) turns on.
Maintenance and Care
Owner Maintenance
6-21
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

The top of the fluid level is lower
than E (if equipped).

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold
weather to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied
from the same reservoir.
Body Lubrication
▼ Body Lubrication
All moving points of the body, such as
door and hood hinges and locks,
should be lubricated each time the
engine oil is changed. Use a
non-freezing lubricant on locks during
cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when
the primary latch is released.
Maintenance and Care
Owner Maintenance
6-22
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Wiper Blades
▼Wiper Blades
CAUTION

Hot waxes applied by automatic car
washers have been known to
affect
the wiper's ability to clean windows.
 An operation malfunction may occur
or the wiper
effectiveness may be
reduced if a water-repellent coating
is used.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 When the wiper lever is in the AUTO
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:
 If the windshield above the rain
sensor is touched.
 If the windshield above the rain
sensor is wiped with a cloth.
 If the windshield is struck with a
hand or other object.
 If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing the vehicle, make sure
the wiper lever is in the OFF
position.
 Before lifting the windshield wiper
blades
off the windshield, always
follow the procedure for moving the
windshield wiper blades. Otherwise,
a wiper blade, wiper arm, or the
hood could be damaged.
Refer to the Replacing Windshield
Wiper Blades (page 6-24) section
for the procedure on how to move
the windshield wipe r blades to the
service position.
Contamination of either the
windshield or the blades with foreign
matter can reduce wiper effectiveness.
Common sources are insects, tree sap,
and hot wax treatments used by some
commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a
good cleaner or mild detergent; then
rinse thoroughly with clean water.
Repeat if necessary.
Maintenance and Care
Owner Maintenance
6-23
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Replacing Windshield Wiper
Blades
When the wipers no longer clean well,
the blades are probably worn or
cracked.
Replace them.
CAUTION

To prevent damaging a windshield
wiper blade, wiper arm, or the hood,
perform the following procedure.
 Before lifting the windshield wiper
blades off the windshield, always
move them to the service position.
 When putting the windshield
wiper blades back on the
windshield, make sure that they
are in the service position before
switching the ignition ON and
operating the windshield wipers.
 Replace with Mazda genuine wiper
blades. If they are replaced with
wiper blades other than a Mazda
genuine product, they may not wipe
with the same
efficiency as the
genuine product.
 To prevent damage to the wiper
arms and other components, do not
try to sweep the wiper arm by hand.
 Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the
windshield wiper operation may be
adversely affected.
 Do not hold a wiper blade by its end
when raising the wiper arm.
Otherwise, the part may deform and
the wiping performance may lower.
 Forcefully lowering the wiper arms
could damage the wiper arm and
blade, and may scratch or crack the
windshield.
NOTE
You can replace the wiper blades
yourself, however you cannot replace
the wiper arms.
If you want to replace the wiper arms,
consult an Authorized Mazda Dealer.
Replace the wiper blades using the
following procedure.
1. Move the wipers to the service
positions using the following
procedure.
a) Switch the ignition ON.
b) Switch the ignition OFF.
c) Press up the wiper switch to theMIST position 2 times within 30
seconds after switching the
ignition OFF.
When the procedure is
completed, the wipers operate
and they stop at the service
positions.
2. Raise the wiper arms.
Maintenance and Care
Owner Maintenance
6-24
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

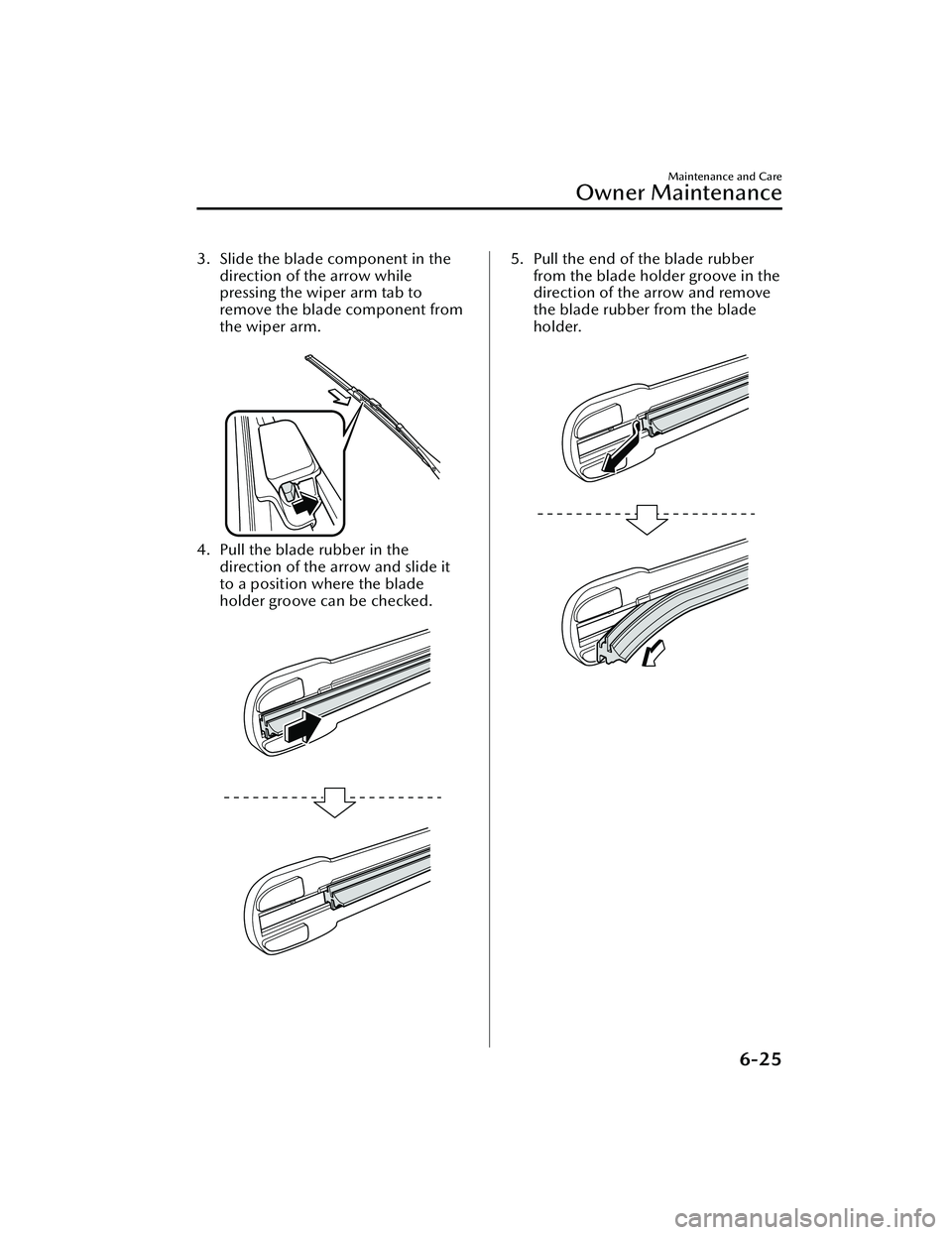

3. Slide the blade component in thedirection of the arrow while
pressing the wiper arm tab to
remove the blade component from
the wiper arm.

4. Pull the blade rubber in thedirection of the arrow and slide it
to a position where the blade
holder groove can be checked.

5. Pull the end of the blade rubber
from the blade holder groove in the
direction of the arrow and remove
the blade rubber from the blade
holder.

Maintenance and Care
Owner Maintenance
6-25
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

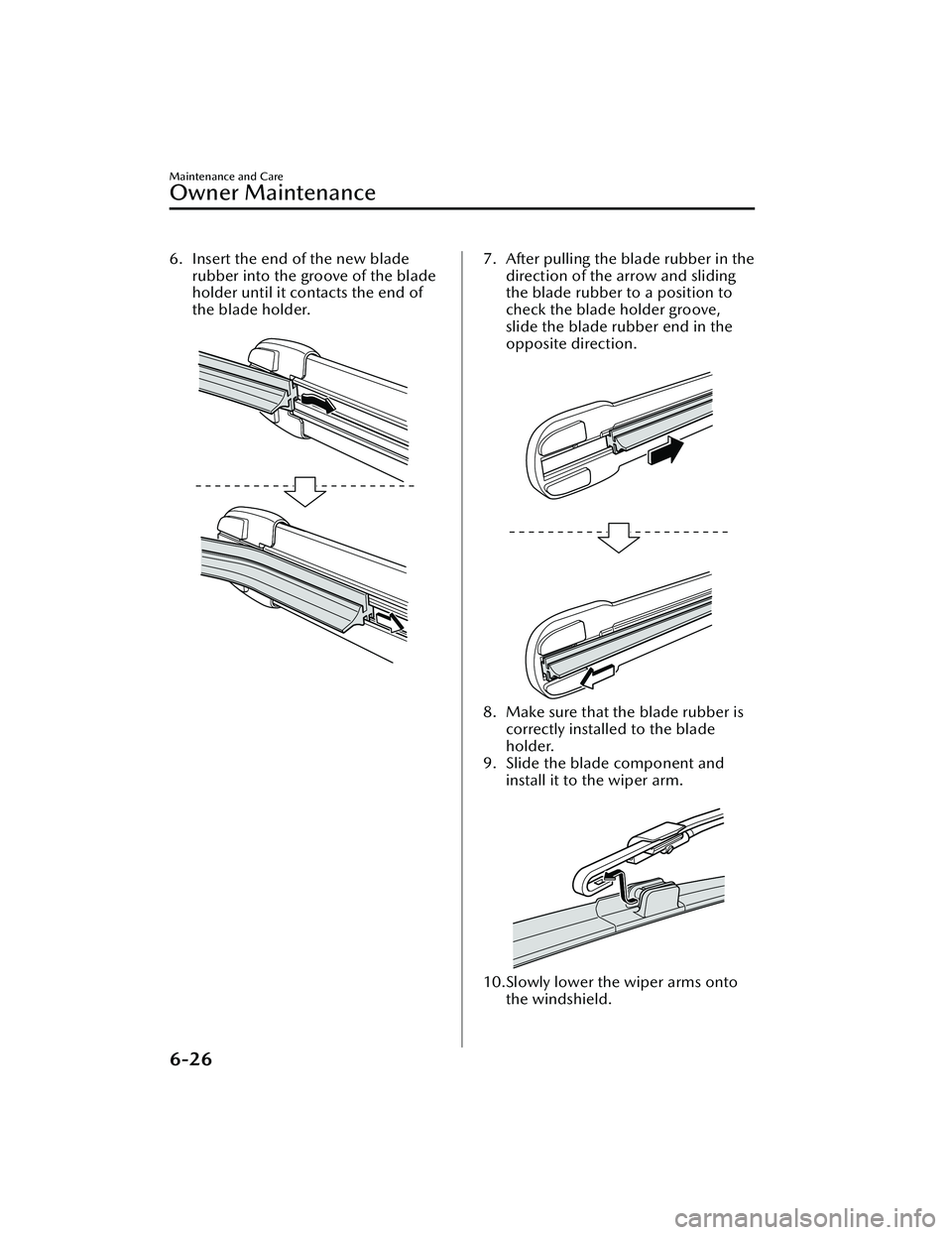

6. Insert the end of the new bladerubber into the groove of the blade
holder until it contacts the end of
the blade holder.
7. After pulling the blade rubber in thedirection of the arrow and sliding
the blade rubber to a position to
check the blade holder groove,
slide the blade rubber end in the
opposite direction.

8. Make sure that the blade rubber iscorrectly installed to the blade
holder.
9. Slide the blade component and
install it to the wiper arm.

10.Slowly lower the wiper arms ontothe windshield.
Maintenance and Care
Owner Maintenance
6-26
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

CAUTION
To prevent damage to the
windshield let the wiper arm down
easily, do not let it slap down on
the windshield.
11.Move the wipers to their initial positions using the following
procedure.
a) Make sure that the wipers are seton the windshield.
b) Switch the ignition ON.
c) Press up the wiper switch to the MIST position 1 time.
When the procedure is
completed, the wipers operate
and they stop at the initial
positions.
▼Replacing Rear
Window Wiper
Blade (5-Door)
When the wiper no longer cleans well,
the blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, do not move
the wiper by hand.
1. Remove the cover.
2. Remove the stopper and raise the
wiper arm.
3. Firmly rotate the wiper blade to theright until it unlocks, then remove
the blade.
CAUTION
To prevent damage to the rear
window, do not let the wiper arm
fall on it.
Maintenance and Care
Owner Maintenance
6-27
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

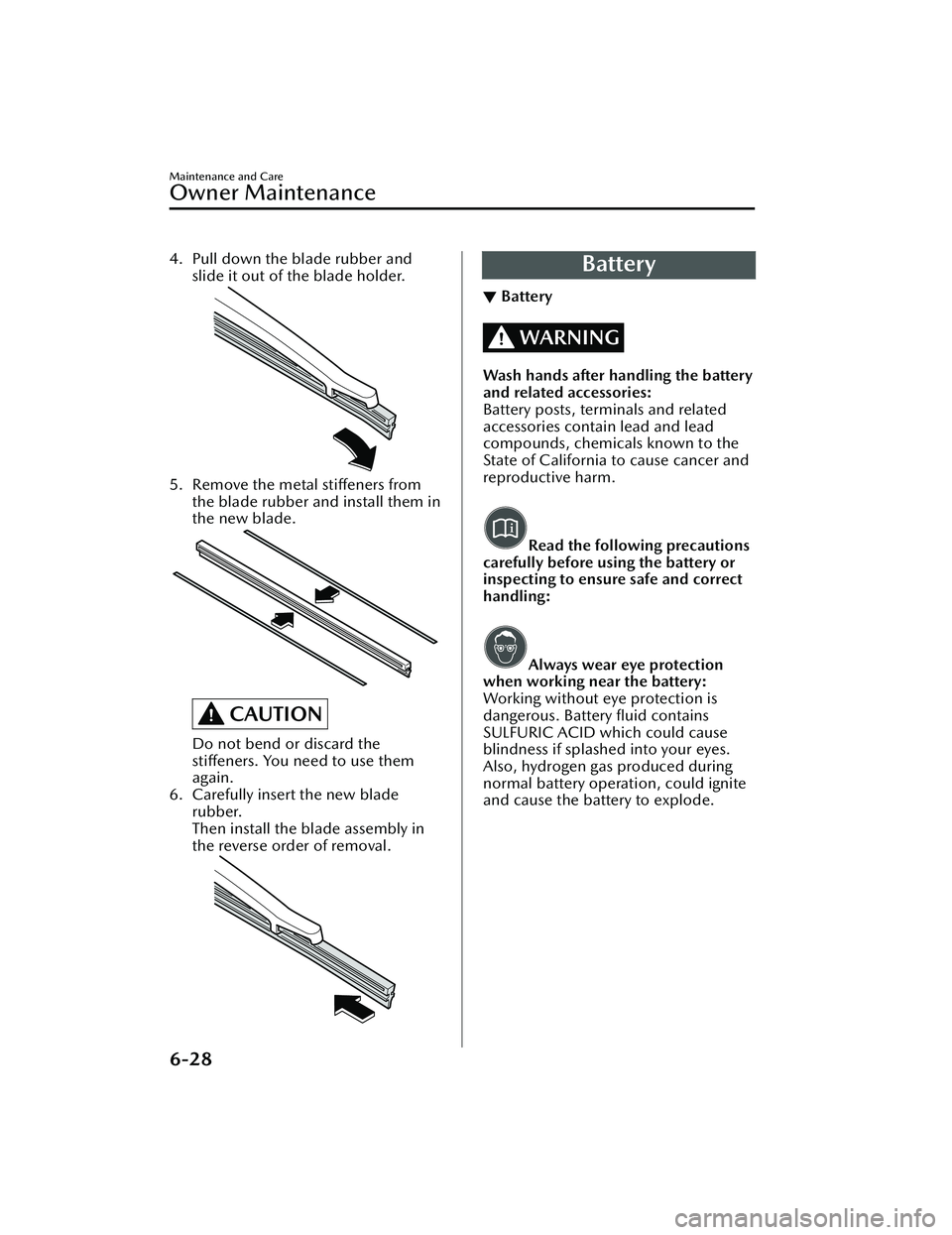

4. Pull down the blade rubber andslide it out of the blade holder.
5. Remove the metal stiffeners fromthe blade rubber and install them in
the new blade.
CAUTION
Do not bend or discard the
stiffeners. You need to use them
again.
6. Carefully insert the new blade
rubber.
Then install the blade assembly in
the reverse order of removal.
Battery
▼Battery
WARNING
Wash hands after handling the battery
and related accessories:
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the
State of California to cause cancer and
reproductive harm.
Read the following precautions
carefully before using the battery or
inspecting to ensure safe and correct
handling:
Always wear eye protection
when working near the battery:
Working without eye protection is
dangerous. Battery fluid contains
SULFURIC ACID which could cause
blindness if splashed into your eyes.
Also, hydrogen gas produced during
normal battery operation, could ignite
and cause the battery to explode.
Maintenance and Care
Owner Maintenance
6-28
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
