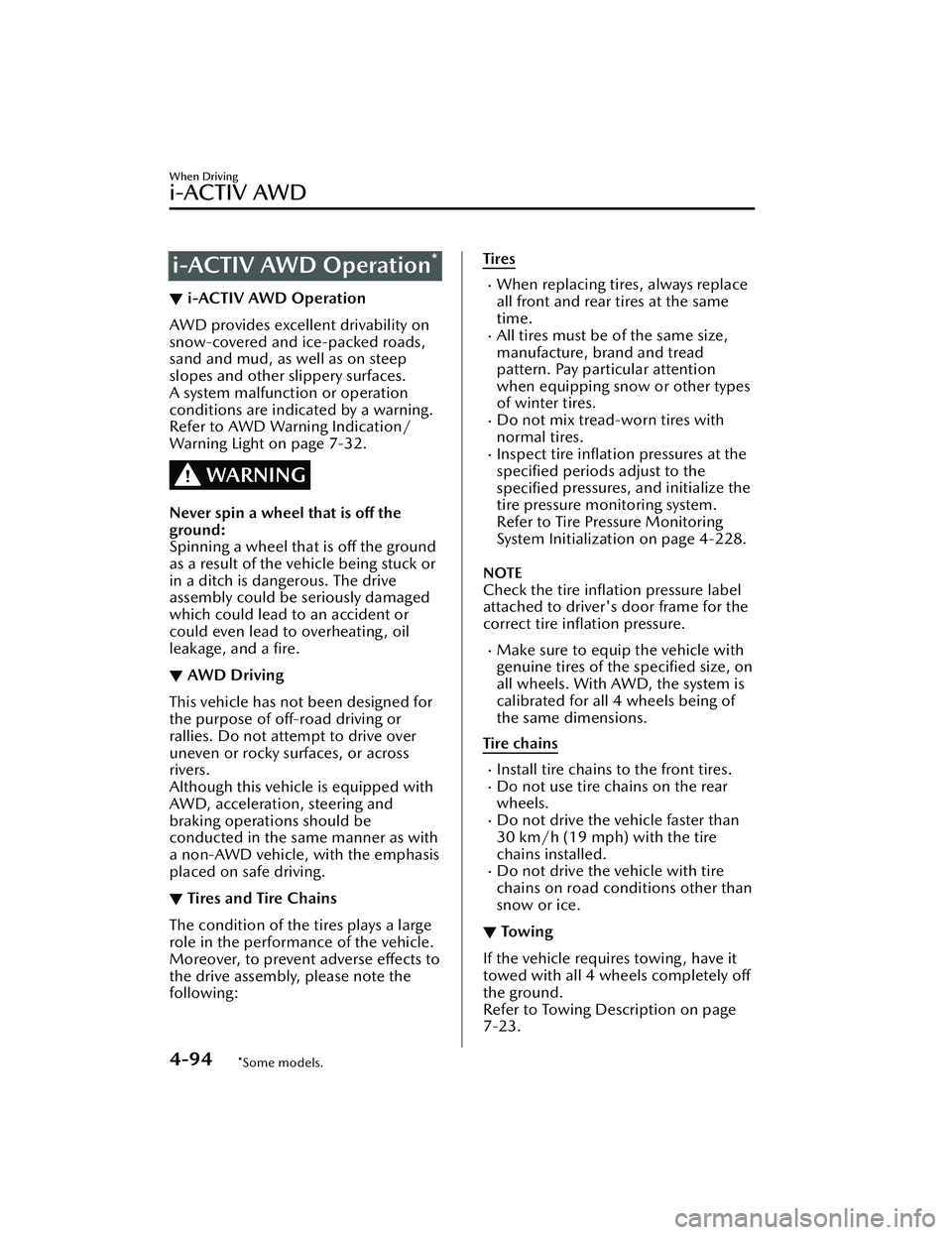

i-ACTIV AWD Operation*
▼i-ACTIV AWD Operation
AWD provides excellent drivability on
snow-covered and ice-packed roads,
sand and mud, as well as on steep
slopes and other slippery surfaces.
A system malfunction or operation
conditions are indicated by a warning.
Refer to AWD Warning Indication/
Warning Light on page 7-32.
WARNING
Never spin a wheel that is
off the
ground:
Spinning a wheel that is off the ground
as a result of the vehicle being stuck or
in a ditch is dangerous. The drive
assembly could be seriously damaged
which could lead to an accident or
could even lead to overheating, oil
leakage, and a fire.
▼AWD Driving
This vehicle has not been designed for
the purpose of off-road driving or
rallies. Do not attempt to drive over
uneven or rocky surfaces, or across
rivers.
Although this vehicl
e is equipped with
AWD, acceleration, steering and
braking operations should be
conducted in the same manner as with
a non-AWD vehicle, with the emphasis
placed on safe driving.
▼ Tires and Tire Chains
The condition of the tires plays a large
role in the performance of the vehicle.
Moreover, to prevent adverse effects to
the drive assembly, please note the
following:
Tires
When replacing tires, always replace
all front and rear tires at the same
time.
All tires must be of the same size,
manufacture, brand and tread
pattern. Pay particular attention
when equipping snow or other types
of winter tires.
Do not mix tread-worn tires with
normal tires.
Inspect tire
inflation pressures at the
specified periods adjust to the
specified pressures, and initialize the
tire pressure monitoring system.
Refer to Tire Pressure Monitoring
System Initialization on page 4-228.
NOTE
Check the tire inflation pressure label
attached to driver's door frame for the
correct tire inflation pressure.
Make sure to equip the vehicle with
genuine tires of the specified size, on
all wheels. With AWD, the system is
calibrated for all 4 wheels being of
the same dimensions.
Tire chains
Install tire chains to the front tires.Do not use tire chains on the rear
wheels.
Do not drive the vehicle faster than
30 km/h (19 mph) with the tire
chains installed.
Do not drive the vehicle with tire
chains on road conditions other than
snow or ice.
▼ To w i n g
If the vehicle requires towing, have it
towed with all 4 wheels completely
off
the ground.
Refer to Towing De scription on page
7-23.
When Driving
i-ACTIV AWD
4-94*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

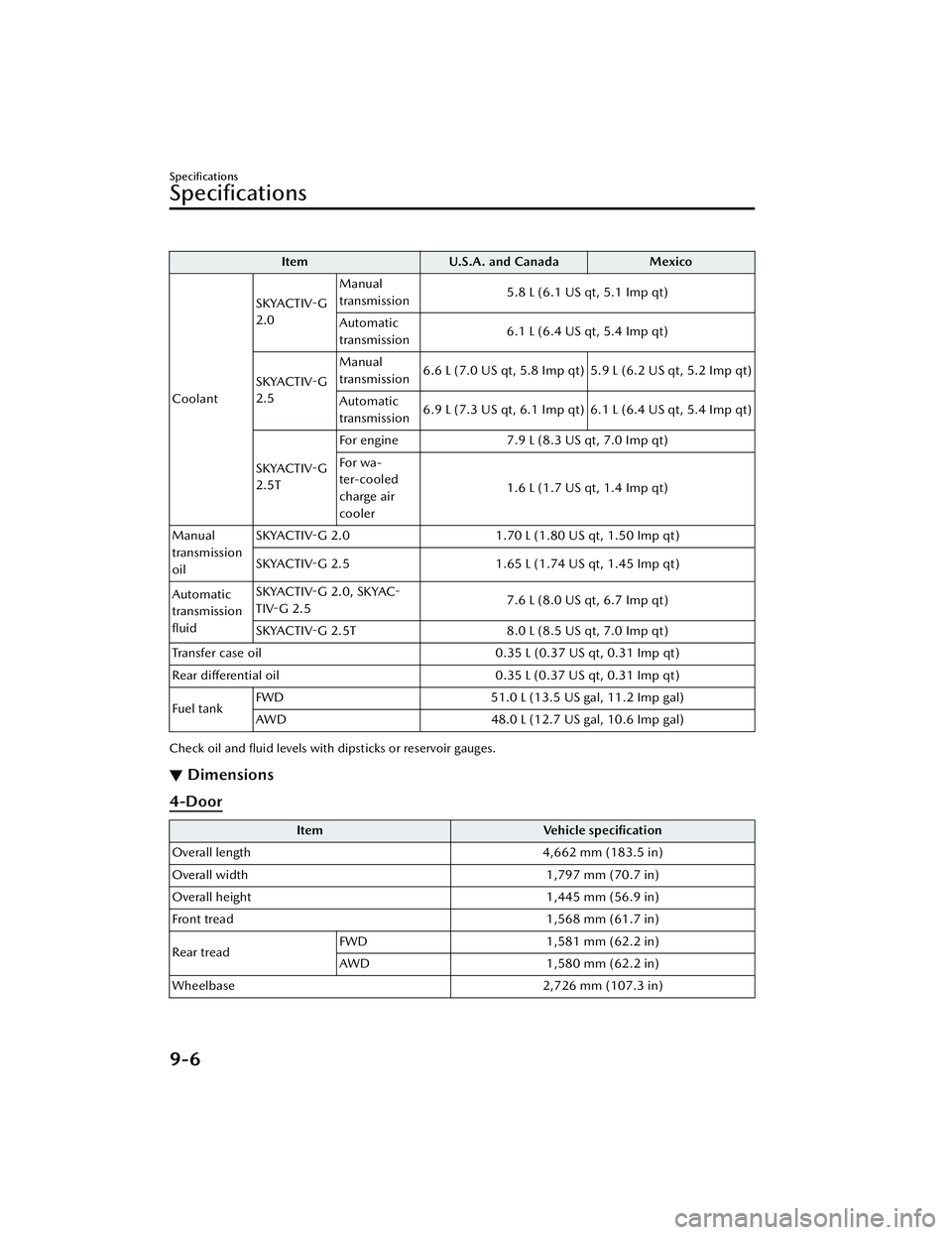

ItemU.S.A. and Canada Mexico
Coolant SKYACTIV-G
2.0
Manual
transmission
5.8 L (6.1 US qt, 5.1 Imp qt)
Automatic
transmission 6.1 L (6.4 US qt, 5.4 Imp qt)
SKYACTIV-G
2.5 Manual
transmission
6.6 L (7.0 US qt, 5.8 Imp qt) 5.9 L (6.2 US qt, 5.2 Imp qt)
Automatic
transmission 6.9 L (7.3 US qt, 6.1 Imp qt) 6.1 L (6.4 US qt, 5.4 Imp qt)
SKYACTIV-G
2.5T For engine
7.9 L (8.3 US qt, 7.0 Imp qt)
For wa-
ter-cooled
charge air
cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Manual
transmission
oil SKYACTIV-G 2.0
1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-G 2.5 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic
transmission
fluid SKYACTIV-G 2.0, SKYAC-
TIV-G
2.5 7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
51.0 L (13.5 US gal, 11.2 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
4-Door
Item
Vehicle specification
Overall length 4,662 mm (183.5 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,445 mm (56.9 in)
Front tread 1,568 mm (61.7 in)
Rear tread FWD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
Specifications
Specifications
9-6
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

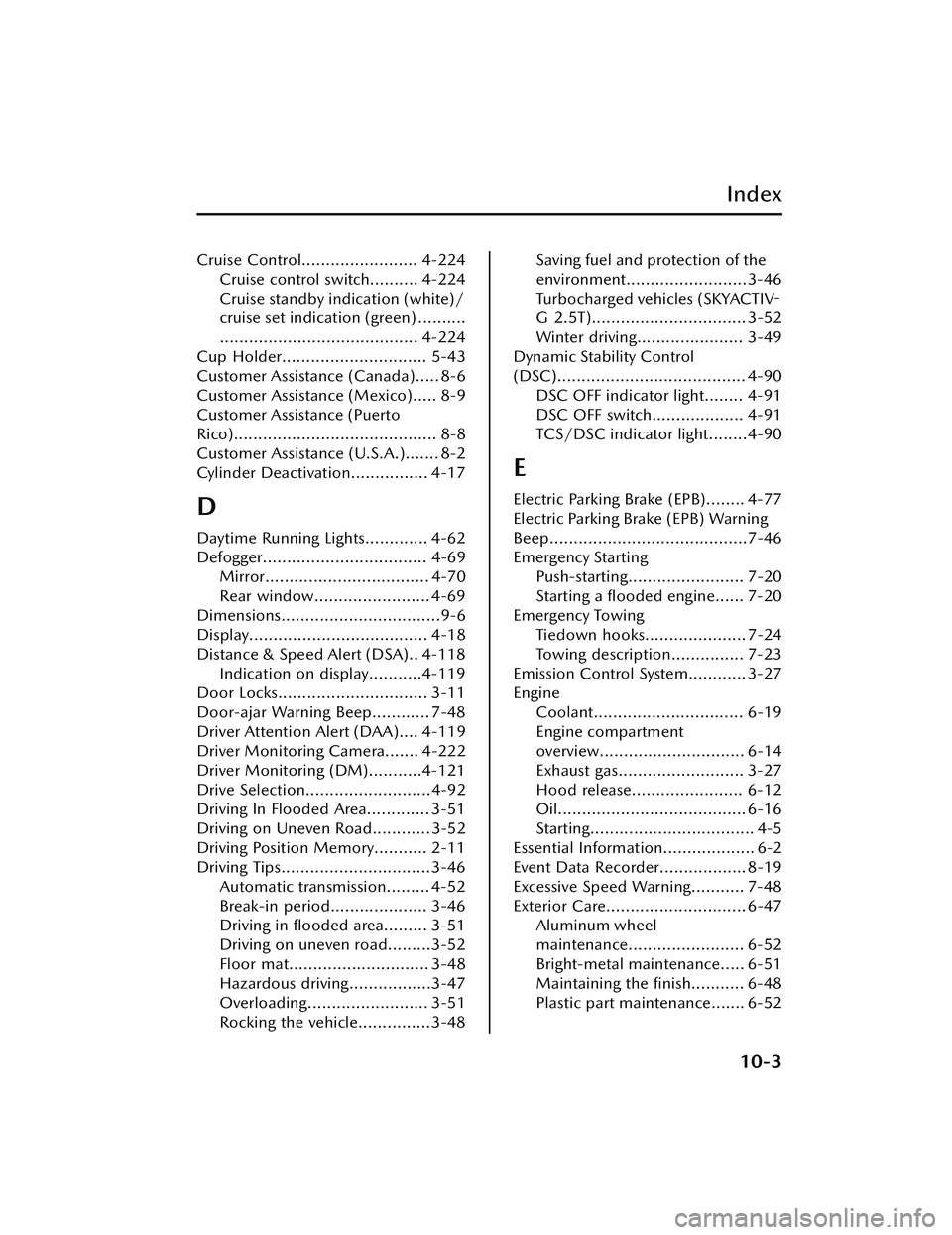

Index
Cruise Control........................ 4-224Cruise control switch.......... 4-224
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-224
Cup Holder.............................. 5-43
Customer Assistance (Canada)..... 8-6
Customer Assistance (Mexico)..... 8-9
Customer Assistance (Puerto
Rico).......................................... 8-8
Customer Assistance (U.S.A.)....... 8-2
Cylinder Deactivation................ 4-17
D
Daytime Running Lights............. 4-62
Defogger.................................. 4-69 Mirror.................................. 4-70
Rear window........................ 4-69
Dimensions.................................9-6
Display..................................... 4-18
Distance & Speed Alert (DSA).. 4-118 Indication on display...........4-119
Door Locks............................... 3-11
Door-ajar Warning Beep............ 7-48
Driver Attention Alert (DAA).... 4-119
Driver Monitoring Camera....... 4-222
Driver Monitoring (DM)...........4-121
Drive Selection..........................4-92
Driving In Flooded Area............. 3-51
Driving on Uneven Road............ 3-52
Driving Position Memory........... 2-11
Driving Tips...............................3-46 Automatic transmission......... 4-52
Break-in period.................... 3-46
Driving in flooded area......... 3-51
Driving on uneven road.........3-52
Floor mat............................. 3-48
Hazardous driving.................3-47
Overloading......................... 3-51
Rocking the vehicle...............3-48
Saving fuel and protection of the
environment.........................3-46
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-52
Winter driving...................... 3-49
Dynamic Stability Control
(DSC)....................................... 4-90 DSC OFF indicator light........ 4-91
DSC OFF switch................... 4-91
TCS/DSC indicator light........4-90
E
Electric Parking Brake (EPB)........ 4-77
Electric Parking Brake (EPB) Warning
Beep.........................................7-46
Emergency StartingPush-starting........................ 7-20
Starting a flooded engine...... 7-20
Emergency Towing Tiedown hooks..................... 7-24
Towing description............... 7-23
Emission Control System............ 3-27
Engine Coolant............................... 6-19
Engine compartment
overview.............................. 6-14
Exhaust gas.......................... 3-27
Hood release....................... 6-12
Oil....................................... 6-16
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-19
Excessive Speed Warning........... 7-48
Exterior Care............................. 6-47 Aluminum wheel
maintenance........................ 6-52
Bright-metal maintenance..... 6-51
Maintaining the finish........... 6-48
Plastic part maintenance....... 6-52
10-3
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

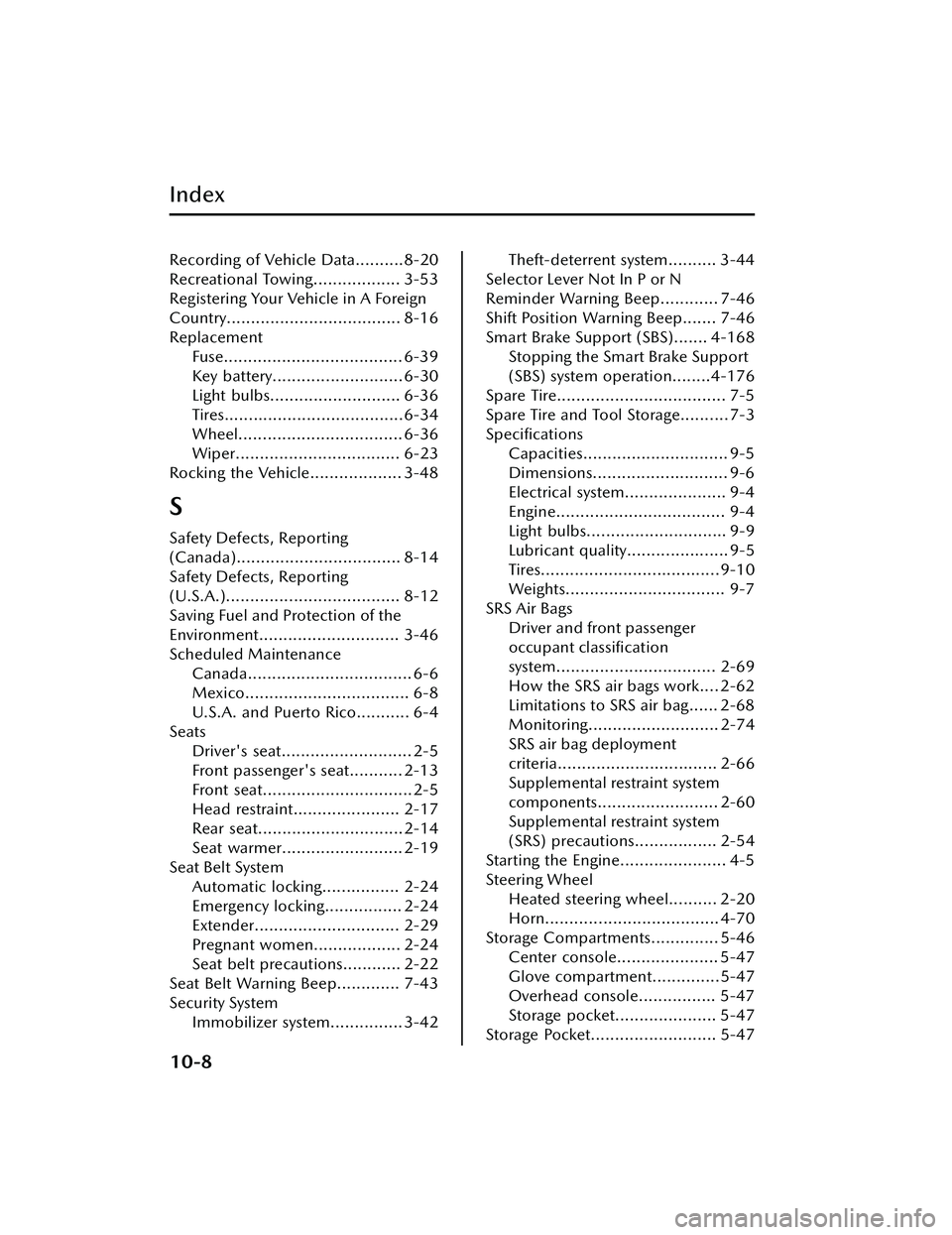

Index
Recording of Vehicle Data..........8-20
Recreational Towing.................. 3-53
Registering Your Vehicle in A Foreign
Country.................................... 8-16
ReplacementFuse..................................... 6-39
Key battery........................... 6-30
Light bulbs........................... 6-36
Tires.....................................6-34
Wheel.................................. 6-36
Wiper.................................. 6-23
Rocking the Vehicle................... 3-48
S
Safety Defects, Reporting
(Canada).................................. 8-14
Safety Defects, Reporting
(U.S.A.).................................... 8-12
Saving Fuel and Protection of the
Environment............................. 3-46
Scheduled Maintenance Canada.................................. 6-6
Mexico.................................. 6-8
U.S.A. and Puerto Rico........... 6-4
Seats Driver's seat........................... 2-5
Front passenger's seat........... 2-13
Front seat............................... 2-5
Head restraint...................... 2-17
Rear seat.............................. 2-14
Seat warmer......................... 2-19
Seat Belt System Automatic locking................ 2-24
Emergency locking................ 2-24
Extender.............................. 2-29
Pregnant women.................. 2-24
Seat belt precautions............ 2-22
Seat Belt Warning Beep............. 7-43
Security System Immobilizer system............... 3-42
Theft-deterrent system.......... 3-44
Selector Lever Not In P or N
Reminder Warning Beep............ 7-46
Shift Position Warning Beep....... 7-46
Smart Brake Support (SBS)....... 4-168 Stopping the Smart Brake Support
(SBS) system operation........4-176
Spare Tire................................... 7-5
Spare Tire and Tool Storage.......... 7-3
Specifications Capacities.............................. 9-5
Dimensions............................ 9-6
Electrical system..................... 9-4
Engine................................... 9-4
Light bulbs............................. 9-9
Lubricant quality..................... 9-5
Tires.....................................9-10
Weights................................. 9-7
SRS Air Bags Driver and front passenger
occupant classification
system................................. 2-69
How the SRS air bags work.... 2-62
Limitations to SRS air bag...... 2-68
Monitoring........................... 2-74
SRS air bag deployment
criteria................................. 2-66
Supplemental restraint system
components......................... 2-60
Supplemental restraint system
(SRS) precautions................. 2-54
Starting the Engine...................... 4-5
Steering Wheel Heated steering wheel.......... 2-20
Horn.................................... 4-70
Storage Compartments.............. 5-46 Center console..................... 5-47
Glove compartment..............5-47
Overhead console................ 5-47
Storage pocket..................... 5-47
Storage Pocket.......................... 5-47
10-8
