child seat MAZDA MAZDA 2023 Owners Manual

Table of Contents
Pictorial Index
Interior, exterior views and part identification of your Mazda.1
Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.2
Before Driving
Use of various features, including keys, doors, mirrors and windows.3
When Driving
Information concerning safer driving and stopping.4
Interior Features
Use of various features for ride
comfort, including air-conditioning
system and audio system.5
Maintenance and Care
How to keep your Mazda in top condition.6
If Trouble Arises
Helpful information on what to do if a problem arises with the
vehicle.7
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on
equipment.8
Specifications
Technical information about your Mazda.9
Index10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Interior Equipment (View D)
▼Interior Equipment (View D)
ƒ
Push knob (5-door)........................................................................... page 2-14
„ Head restraint................................................................................... page 2-17
… Child safety lock................................................................................page 3-19
† Rear coat hook..................................................................................page 5-46
‡ Power window switch........................................................................page 3-35
ˆ Overhead light (rear)......................................................................... page 5-40
‰ Door-lock knob................................................................................ page 3-18
Š Assist grip......................................................................................... page 5-45
‹ Center console................................................................................. page 5-47
ΠAccessory socket............................................................................... page 5-42
External input terminal.......................................................................page 5-15
Ž Bottle holder.....................................................................................page 5-45
Rear seat.......................................................................................... page 2-14
Cup holder....................................................................................... page 5-43
‘ Armrest............................................................................................ page 2-17
’ ISOFIX lower anchors (Mexico)/LATCH lower anchors (Except Mexico) ...............
........................................................................................................page 2-49
“ Seat belt........................................................................................... page 2-22
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-5
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

2Essential Safety Equipment
Important information about safety equipment, including seats,
seat belt system, child-restraint systems and SRS air bags.
Seats....................................... 2-2 Seat Precautions.................... 2-2
Front Seat..............................2-5
Rear Seat.............................2-14
Head Restraints................... 2-17
Seat Warmer/Heated Steering
Wheel................................... 2-19 Seat Warmer
*...................... 2-19

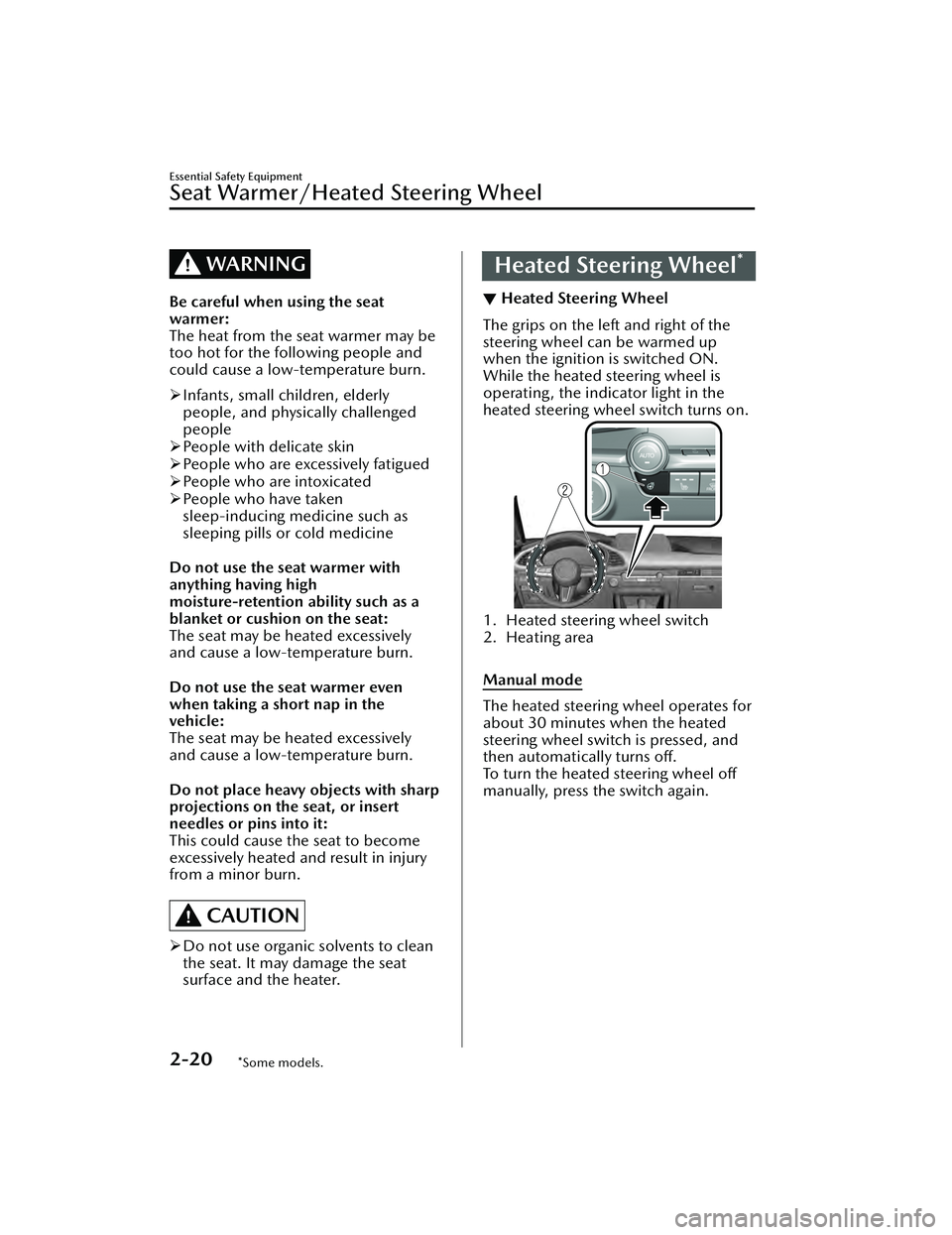

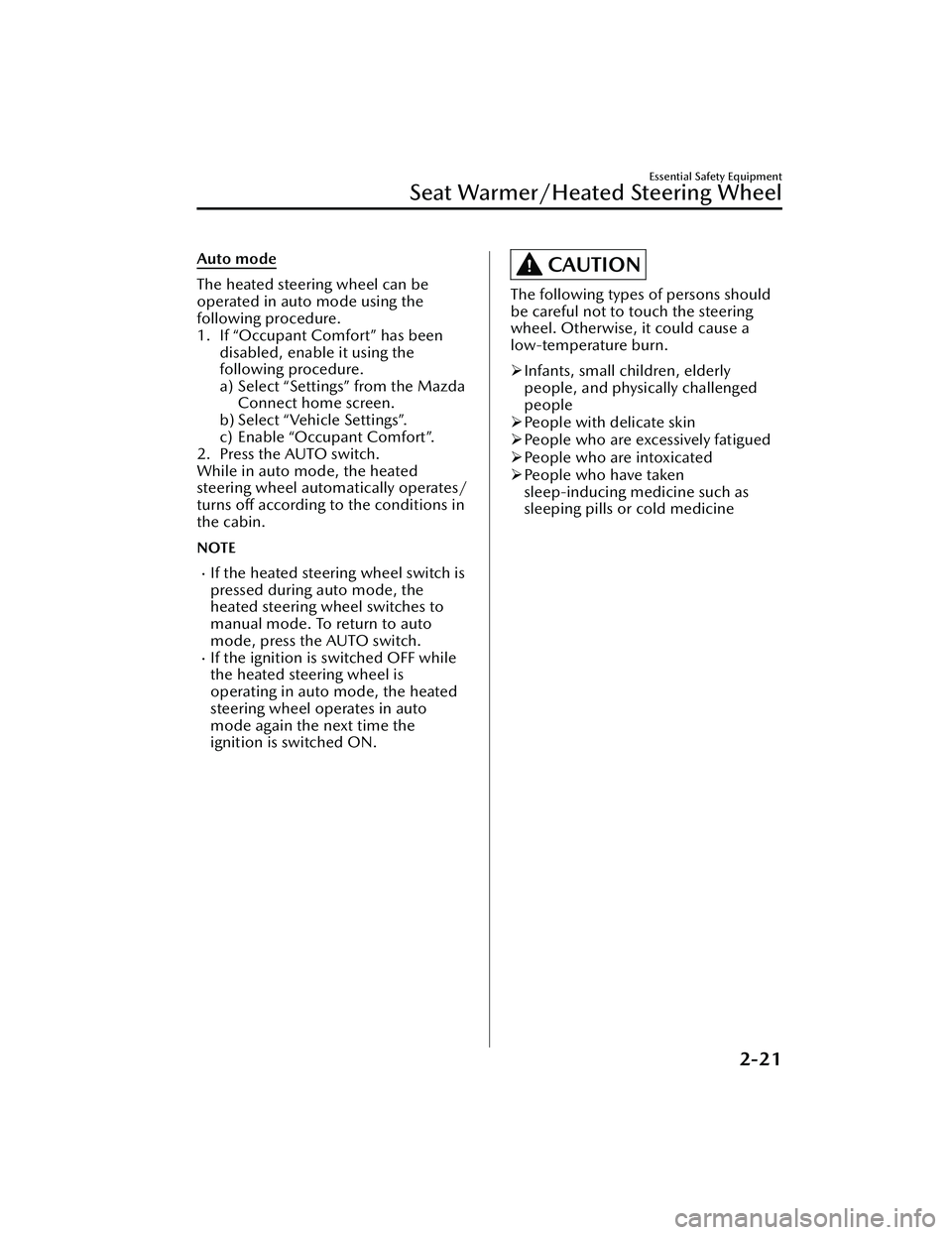

Heated Steering Wheel
*........2-20
Seat Belt Systems.................... 2-22 Seat Belt Precautions............ 2-22
Seat Belt..............................2-25
Seat Belt Warning Systems.... 2-26
Seat Belt Pretensioner and Load
Limiting Systems.................. 2-27
Seat Belt Extender................ 2-29
Child Restraint........................2-31 Child-Restraint Precautions..........
.......................................... 2-31
Child-Restraint System
Installation.......................... 2-36
Child-Restraint System Suitability
for Various Seat Positions
Table...................................2-38
Installing Child-Restraint
Systems............................... 2-41
SRS Air Bags........................... 2-54 Supplemental Restraint System
(SRS) Precautions.................2-54
Supplemental Restraint System
Components....................... 2-60
How the SRS Air Bags
Work.................................. 2-62
SRS Air Bag Deployment
Criteria............................... 2-66
Limitations to SRS Air Bag..... 2-68
Driver and Front Passenger
Occupant Classification
System
*............................... 2-69
Constant Monitoring............ 2-74
*Some models.2-1
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Seat Precautions
▼Seat Precautions
WARNING
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that are
not securely locked are dangerous. In a
sudden stop or collision, the seat or
seatback could move, causing injury.
Make sure the adjustable components
of the seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is
dangerous as it could result in serious
injury if a child's hands or feet become
caught in the seat.
Do not drive with the seatback
unlocked:
All of the seatbacks play an important
role in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Adjust a seat only when the vehicle is
stopped:
If the seat is adjusted while the vehicle
is being driven, the seating posture
may become unstable and the seat
could move unexpectedly resulting in
injury.
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag components
essential to the supplemental restraint
system. Such modifications could
damage the supplemental restraint
system and result in serious injury.
Consult an Authorized Mazda Dealer if
there is any need to remove or reinstall
the front seats.
Do not drive with damaged front
seats:
Driving with damaged front seats, such
as seat cushions torn or damaged
down to the urethane, is dangerous. A
collision, even one not strong enough
to inflate the air bags, could damage
the front seats which contain essential
air bag components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Essential Safety Equipment
Seats
2-2
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Do not drive with either front seats
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous because
you do not get the full protection from
seat belts. During sudden braking or a
collision, you can slide under the lap
belt and suffer serious internal injuries.
For maximum protection, sit well back
and upright.
Do not place an object such as a
cushion between the seatback and
your back:
Putting an object such as a cushion
between the seatback and your back is
dangerous because you will be unable
to maintain a safe driving posture and
the seat belt cannot function at its full
capacity in a collision, which could
result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause
the seat to not be fixed securely, and
result in an accident.
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo higher
than the seatbacks is dangerous.
During sudden braking or a collision,
objects can fly around and become
projectiles that may hit and injure
passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Additionally, if the air bags deploy, the
cargo may scatter which could result in
serious injury or death.Never allow a passenger to sit or
stand on the folded seatback while
the vehicle is moving:
Driving with a passe nger on the folded
seatback is dangerous. Allowing a child
to sit up on the folded seatback while
the vehicle is moving is particularly
dangerous. In a sudden stop or even a
minor collision, a child not in a proper
seat or child-restraint system and seat
belt could be thrown forward, back or
even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown into
other occupants and cause serious
injury.
Never give the car keys to children
and do not allow them to play in the
vehicle (4–Door):
Playing with the folding rear seats is
dangerous. Once the seatbacks are
back up, a child in the trunk would not
be able to get out the way they had
entered. If you have small children,
keep the seatbacks locked.
Always leave your car locked and
keep the car keys safely away from
children (4–Door):
Leaving your car unlocked or the keys
in reach of children is dangerous.
Children who find their way into the
trunk through an unlocked rear
seatback or an open trunk can become
accidentally locked in the trunk. This
could result in death or brain damage
from heat prostration, particularly in
the summer. Always lock the doors and
the trunk, and as an added measure,
keep the rear seatbacks locked,
whether you have children in your
home or not.
Essential Safety Equipment
Seats
2-3
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Rear Seat
▼Split Folding the Seatbacks
By lowering the rear seatbacks the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with
occupants on folded down seatbacks
or in the luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision.
Do not allow children to play inside
the vehicle with the seatbacks
lowered.
Allowing children to play in the vehicle
with the seatbacks folded down is
dangerous. If a child enters the luggage
compartment and the seatbacks were
raised back up, the child may become
trapped in the luggage compartment
which could lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or a
collision resulting in an unexpected
accident.
When transporting cargo, do not
allow the cargo to exceed the height
of the seatbacks.
Transporting cargo stacked higher than
the seatbacks is dangerous as visibility
to the rear and sides of the vehicle is
reduced which could interfere with
driving operations and lead to an
accident.
Lowering the seatbacks
CAUTION

(5–Door)
When folding the seatback forward,
always support the seatback with
your hand. If it is not supported by a
hand, fingers or the hand pressing
the push knob could be injured.
 Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a
rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Lower or remove the head restraint
on the rear outboard seat if
necessary.
Essential Safety Equipment
Seats
2-14
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for the following people and
could cause a low-temperature burn.
Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high
moisture-retention ability such as a
blanket or cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even
when taking a short nap in the
vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
 Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Heated Steering Wheel*
▼ Heated Steering Wheel
The grips on the left and right of the
steering wheel can be warmed up
when the ignition is switched ON.
While the heated steering wheel is
operating , the indicator light in the
heated steering wheel switch turns on.
1. Heated steering wheel switch
2. Heating area

Manual mode
The heated steering wheel operates for
about 30 minutes when the heated
steering wheel switch is pressed, and
then automatically turns off.
To turn the heated steering wheel off
manually, press the switch again.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-20*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Auto mode
The heated steering wheel can be
operated in auto mode using the
following procedure.
1. If “Occupant Comfort” has beendisabled, enable it using the
following procedure.
a) Select “Settings” from the MazdaConnect home screen.
b) Select “Vehicle Settings”.
c) Enable “Occupant Comfort”.
2. Press the AUTO switch.
While in auto mode, the heated
steering wheel automatically operates/
turns off according to the conditions in
the cabin.
NOTE
If the heated steering wheel switch is
pressed during auto mode, the
heated steering wheel switches to
manual mode. To return to auto
mode, press the AUTO switch.
If the ignition is switched OFF while
the heated steering wheel is
operating in auto mode, the heated
steering wheel operates in auto
mode again the next time the
ignition is switched ON.

CAUTION
The following types of persons should
be careful not to touch the steering
wheel. Otherwise, it could cause a
low-temperature burn.
 Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 Pe o pl e w h o have ta ke n
sleep-inducing medicine such as
sleeping pills or cold medicine
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
2-21
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Seat Belt Precautions
▼Seat Belt Precautions
Seat belts help to decrease the
possibility of severe injury during
accidents and sudden stops. Mazda
recommends that the driver and all
passengers always wear seat belts.
(Mexico)
All the seats have lap/shoulder belts.
These belts have retractors with inertia
locks that keep them out of the way
when not in use. The locks allow the
belts to remain comfortable on users,
but they will lock in position during a
collision.

(Except Mexico)
All of the seat belt retractors are
designed to keep the lap/shoulder
belts out of the way when not in use.
The driver's seat belt has no provisions
for child-restraint systems and has only
an emergency locking mode. The
driver may wear it comfortably, and it
will lock during a collision.
However, the front passenger's seat
and all rear lap/shoulder belt
retractors operate in two modes:
emergency locking mode, and for
child-restraint systems, automatic
locking mode. While we recommend
you put all children in the rear seats, if
you must use the front passenger seat
for a child, slide the front passenger
seat as far back as possible and make
sure any child-restraint system is
secured properly.
WARNING
Always wear your seat belt and make
sure all occupants are properly
restrained:
Not wearing a seat belt is extremely
dangerous. During a collision,
occupants not wearing seat belts could
hit someone or things inside the
vehicle or even be thrown out of the
vehicle. They could be seriously injured
or even killed. In the same collision,
occupants wearing seat belts would be
much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a
collision, the full width of the belt is
not available to absorb the impact.
This puts more force on the bones
beneath the belt, which could cause
serious injury or death. So, if your seat
belt is twisted, you must straighten the
seat belt to remove any twists and to
allow the full width of the belt to be
used.
Never use one seat belt on more than
one person at a time:
Using one seat belt for more than one
person at a time is dangerous. A seat
belt used in this way cannot spread the
impact forces properly and the two
passengers could be crushed together
and seriously injured or even killed.
Never use one belt for more than one
person at a time and always operate
the vehicle with each occupant
properly restrained.
Essential Safety Equipment
Seat Belt Systems
2-22
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Pregnant Women and Persons with
Serious Medical Conditions
Pregnant women should always wear
seat belts. Ask your doctor for
specific
recommendations.
The lap belt should be worn SNUGLY
AND AS LOW AS POSSIBLE OVER THE
HIPS.
The shoulder belt should be worn
across your shoulder properly, but
never across the stomach area.
Persons with serious medical
conditions also should wear seat belts.
Check with your doctor for any special
instructions regarding specific medical
conditions.
▼ Emergency Locking Mode
When the seat belt is fastened, it will
always be in the emergency locking
mode.
In the emergency locking mode, the
belt remains comfortable on the
occupant and the retractor will lock in
position during a collision.
If the belt is locked and cannot be
pulled out, retract the belt once, and
then try pulling it out slowly. If this
fails, pull the belt strongly 1 time and
loosen, then pull it out again slowly.
(Seat Belt with Automatic Locking
Mode)
When the seat belt is fastened, it will
always be in the emergency locking
mode until it is switched to automatic
locking mode by pulling it all the way
out to its full length. If the belt feels
tight and hinders comfortable
movement while the vehicle is stopped
or in motion, it may be in the
automatic locking mode because the
belt has been pulled too far out. To
return the belt to the more
comfortable emergency locking mode,
wait until the vehicle has stopped in a
safe, level area, retract the belt fully to
convert it back to emergency locking
mode and then extend it around you
again.
▼
Automatic Locking Mode (Except
Mexico)
Always use the automatic locking
mode to keep the child-restraint
system from shifting to an unsafe
position in the event of an accident. To
enable seat belt automatic locking
mode, pull it all the way out and
connect it as instructed on the
child-restraint system. It will retract
down to the child-restraint system and
stay locked on it. See the section on
child restraint (page 2-43).
Essential Safety Equipment
Seat Belt Systems
2-24
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10
