No.Item Explanation
3 SOURCE SOURCE button:
The audio source can be switched each time the button is pressed.
In addition, when the button is pressed and held, the current au-
dio source is muted and the audio source selection screen is displayed.

(During Apple CarPlay™ or Android Auto™ playback)
Press and hold the SOURCE button to mute the current audio source.
4
Hang-up button:
(During a call)
Press the button to end the call.

(While receiving a call)
Press the button to refuse a call.
5
Talk/Pick-up button:
(While receiving a call)
Press the button to answer the call.
6
Mute button:
Press the button to mute.
Press it again to cancel the mute.
NOTE
If you press the mute button to mute an audio source which can be
paused, such as Apple CarPlay™, USB audio, or Bluetooth® audio,
while it is playing, the song play back pauses. Press the mute button
again to cancel the mute and the pause at the same time.
Interior Features
Mazda Connect
5-24
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information................. 6-2 Introduction.......................... 6-2
Scheduled Maintenance............ 6-4 Scheduled Maintenance......... 6-4
Owner Maintenance............... 6-11 Owner Maintenance
Precautions......................... 6-11
Hood.................................. 6-12
Engine Compartment
Overview............................ 6-14
Engine Oil........................... 6-16
Engine Coolant.................... 6-19
Brake/Clutch Fluid............... 6-20
Washer Fluid....................... 6-21
Body Lubrication.................. 6-22
Wiper Blades....................... 6-23
Battery................................ 6-28
Key Battery Replacement...... 6-30
Tires.................................... 6-32
Light Bulbs...........................6-36
Fuses.................................. 6-39
Appearance Care.................... 6-47 Exterior Care....................... 6-47
Interior Care........................ 6-53
6-1
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Engine Compartment Overview
▼Engine Compartment Overview
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
1. Engine coolant reservoir
2. Engine oil dipstick
3. Brake/Clutch fluid reservoir
4. Battery
5. Fuse block
6. Cooling system cap
7. Engine oil-filler cap
8. Windshield washer fluid reservoir
Maintenance and Care
Owner Maintenance
6-14
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

SKYACTIV-G 2.5T
1. Engine coolant reservoir
2. Engine oil dipstick
3. Brake fluid reservoir
4. Battery
5. Fuse block
6. Cooling system cap
7. Engine oil-filler cap
8. Windshield washer fluid reservoir
Maintenance and Care
Owner Maintenance
6-15
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

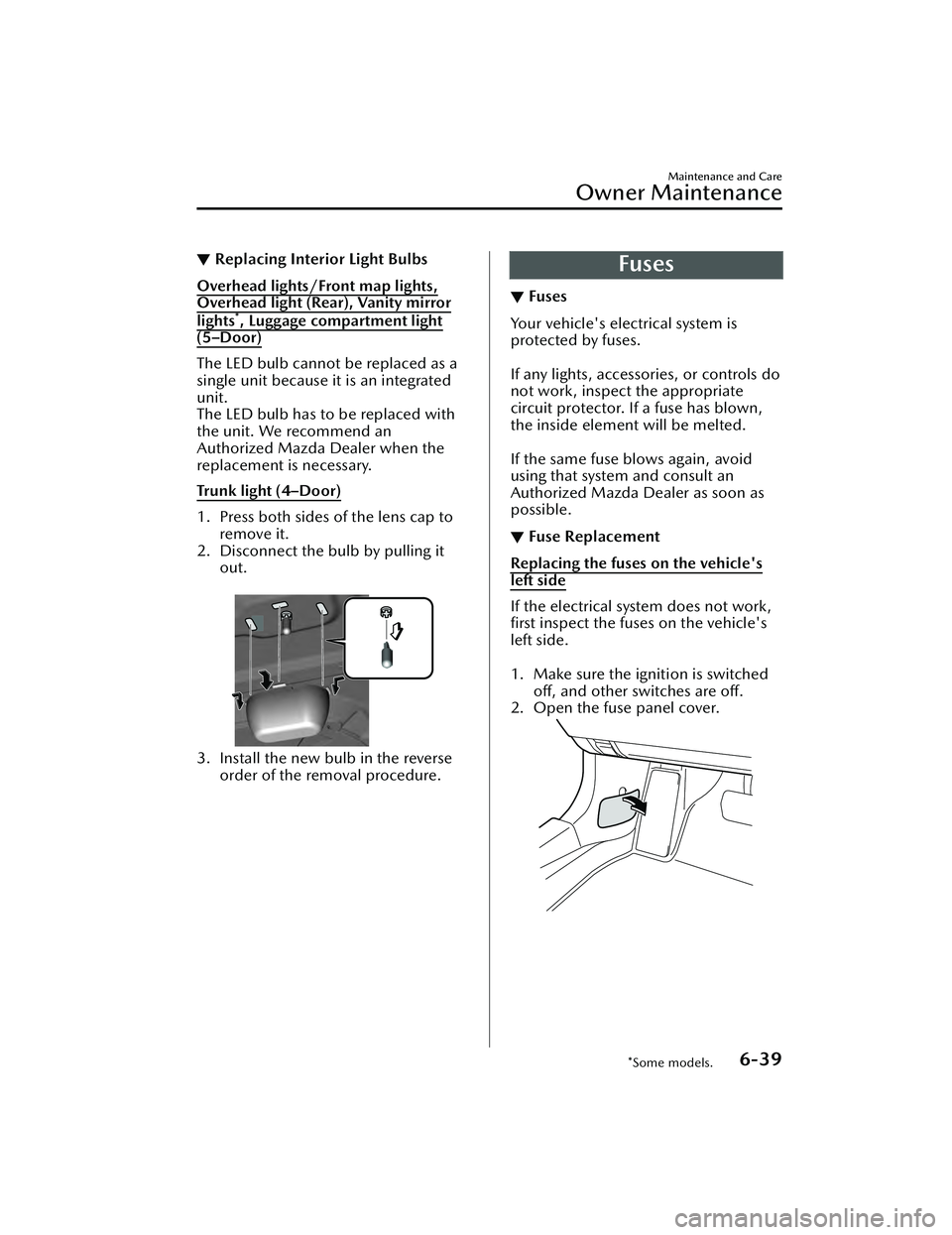

▼Replacing Interior Light Bulbs
Overhead lights/Front map lights,
Overhead light (Rear), Vanity mirror
lights*, Luggage compartment light
(5–Door)
The LED bulb cannot be replaced as a
single unit because it is an integrated
unit.
The LED bulb has to be replaced with
the unit. We recommend an
Authorized Mazda Dealer when the
replacement is necessary.
Trunk light (4–Door)
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse
order of the removal procedure.
Fuses
▼Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate
circuit protector. If a fuse has blown,
the inside element will be melted.

If the same fuse
blows again, avoid
using that system and consult an
Authorized Mazda Dealer as soon as
possible.
▼ Fuse Replacement
Replacing the fuses on the vehicle's
left side
If the electrical system does not work,
first inspect the fuses on the vehicle's
left side.

1. Make sure the ignition is switched
off, and other switches are off.
2. Open the fuse panel cover.
Maintenance and Care
Owner Maintenance
*Some models.6-39
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

3. Pull the fuse straight out with thefuse puller provided on the fuse
block located in the engine
compartment.
4. Inspect the fuse and replace it if it is
blown.
1. Normal
2. Blown

5. Insert a new fuse of the same
amperage rating, and make sure it
fits tightly. If it does not
fit tightly,
have an expert install it. Consult an
Authorized Mazda Dealer.
If you have no spare fuses, borrow
one of the same rating from a
circuit not essential to vehicle
operation, such as the audio or
accessory socket circuit.
CAUTION
Always replace a fuse with a
genuine Mazda fuse or equivalent
of the same rating. Otherwise, you
may damage the electric system.
6. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the
fuse block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched
off, and other switches are
off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of
the same amperage rating .
1. Normal
2. Blown

Maintenance and Care
Owner Maintenance
6-40
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

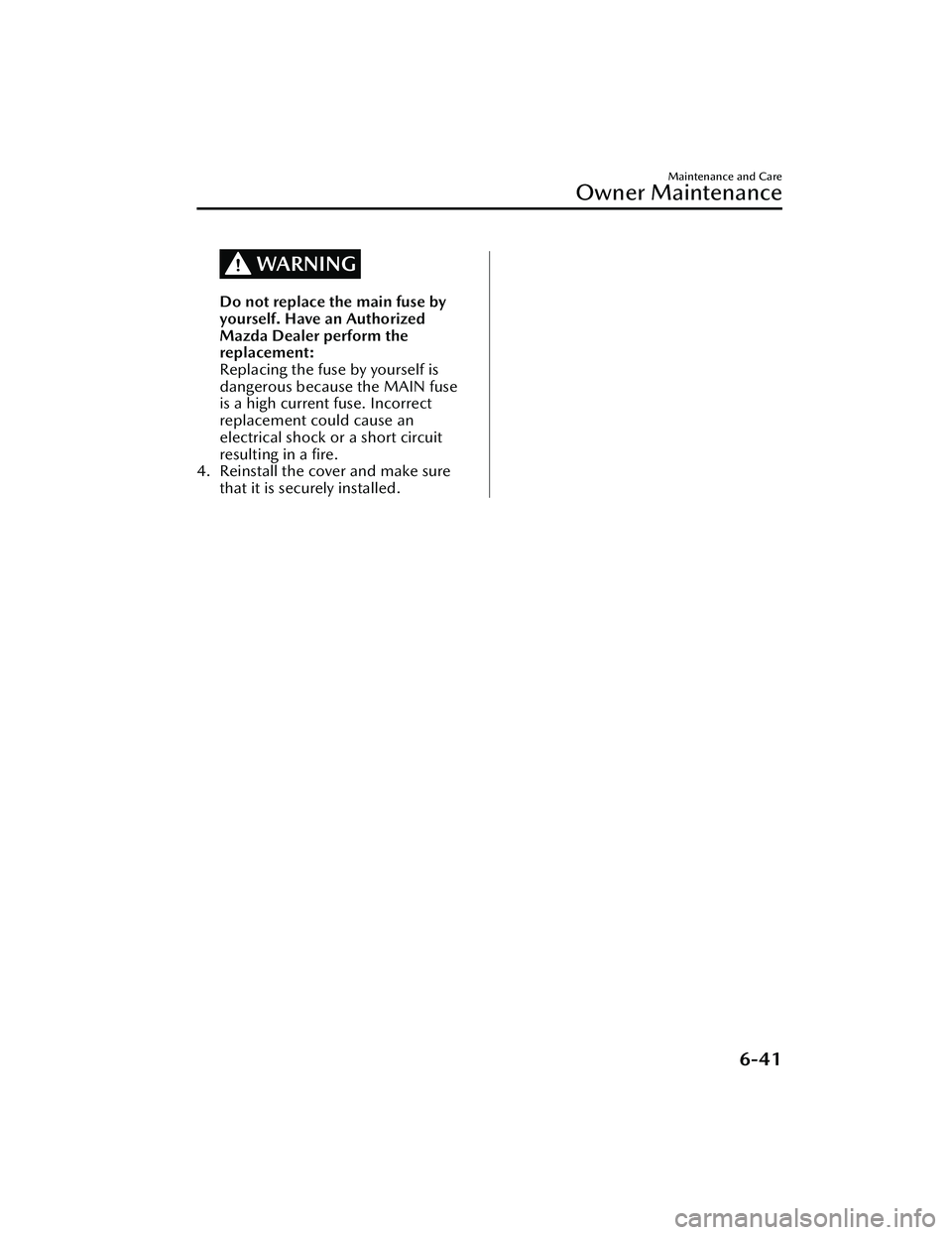

WARNING
Do not replace the main fuse by
yourself. Have an Authorized
Mazda Dealer perform the
replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse
is a high current fuse. Incorrect
replacement could cause an
electrical shock or a short circuit
resulting in a fire.
4. Reinstall the cover and make sure
that it is securely installed.
Maintenance and Care
Owner Maintenance
6-41
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Fuse Panel Description
Fuse block (Engine compartment)
No. FUSE RAT-
ING PROTECTED COMPONENT
F1 ――
F2 20 A Windshield wiper de-icer
*
F330 A Engine control system
F4 20 A S-VT
F5 40 A Engine control system
F6 ――
F7 20 A Fuel pump
Maintenance and Care
Owner Maintenance
6-42*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

No.FUSE RAT-
ING PROTECTED COMPONENT
F8 15 A Engine control system
F9 15 A
Transmission control system
*
F10 15 A Engine control system
F11 7.5 A Air conditioner
F12 15 A Engine control system
F13 ――
F14 20 A
Front seat warmer
*
F15 ――
F16 15 A For protection of various circuits
F17 ――
F18 15 A For protection of various circuits
F19 60 A Power steering system
F20 15 A Headlight (LH) 1
F21 15 A Headlight (RH) 1
F22 15 A Keyless system
F23 30 A ABS, Dynamic stability control system
F24 15 A Headlight (LH) 2
F25 15 A Headlight (RH) 2
F26 7.5 A On board diagnostics
F27 25 A For protection of various circuits
F28 25 A For protection of various circuits
F29 15 A Windshield washer
F30 15 A Accessory sockets
F31 15 A Horn
F32 ――
F33 ――
F34 ――
F35 50A ABS, Dynamic stability control system
F36 ――
F37 40 A Rear window defogger
F38 50 A For protection of various circuits
F39 ――
F40 40 A Air conditioner
Maintenance and Care
Owner Maintenance
*Some models.6-43
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

No.FUSE RAT-
ING PROTECTED COMPONENT
F41 ――
F42 20 A Windshield wipers
F43 30 A Cooling fan
*
F4430 A Starter
F45 10 A Engine control system
F46 15 A Audio
F47 15 A For protection of various circuits
F48 7.5 A Air bag
F49 15 A Instrument cluster
F50 15 A Room light
F51 25 A Audio
F52 10 A
Moonroof
*
F53 15 A Engine control system
F54 15 A i-ACTIVSENSE
F55 ――
F56 15 A
Electric water pump
*
Maintenance and Care
Owner Maintenance
6-44*Some models.
