Rear View Monitor*
▼Rear View Monitor
The rear view monitor provides visual
images of the rear of the vehicle when
reversing.
WARNING
Always drive carefully
confirming the
safety of the rear and the surrounding
conditions by looking directly with
your eyes:
Reversing the vehicle by only looking at
the screen is dangerous as it may cause
an accident or a collision with an
object. The rear view monitor is only a
visual assist device when reversing the
vehicle. The images on the screen may
be different from the actual conditions.
CAUTION

Do not use the rear view monitor
under the following conditions:
Using the rear view monitor under
the following conditions is
dangerous and could result in injury
or vehicle damage or both.
 Icy or snow-covered roads.
 Tire chains or a temporary spare
tire is installed.
 The vehicle is on a road incline.
 Bumpy roads.
 When the display is cold, images
may course across the monitor or the
screen and may be dimmer than
usual, which could cause
difficulty in
confirming the surrounding
conditions of the vehicle. Always
drive carefully confirming the safety
of the rear and the surrounding
conditions by looking directly with
your eyes.
 Do not apply excessive force to the
camera. The camera position and
angle may deviate.
 Do not disassemble, modify, or
remove it as it may no longer be
waterproof.
 The camera cover is made of plastic.
Do not apply degreasing agents,
organic solvents, wax, or glass
coating agents to the camera cover.
If any are spilled on the cover, wipe
off with a soft cloth immediately.
 Do not rub the camera cover
forcefully with an abrasive or hard
brush. The camera cover or lens may
be scratched which might affect the
images.
 If a camera lens is severely damaged
by flying gravel, have the camera
replaced. For camera replacement,
consult an Authorized Mazda Dealer.
NOTE
If water, snow, or mud is stuck on
the camera lens, wipe it off using a
soft cloth. If it cannot be wiped off,
use a mild detergent.
If the camera temperature changes
rapidly (Hot to cold, cold to hot), the
rear view monitor may not operate
correctly.
When replacing the tires, consult an
Authorized Mazda Dealer. Replacing
the tires could result in deviation of
the guide lines which appear on the
display.
If the vehicle's front, side, or rear has
been involved in a collision, the
alignment of the rear view parking
camera (location, installation angle)
may have deviated. Always consult
an Authorized Mazda Dealer to have
the vehicle inspected.
When Driving
Rear View Monitor
4-232*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

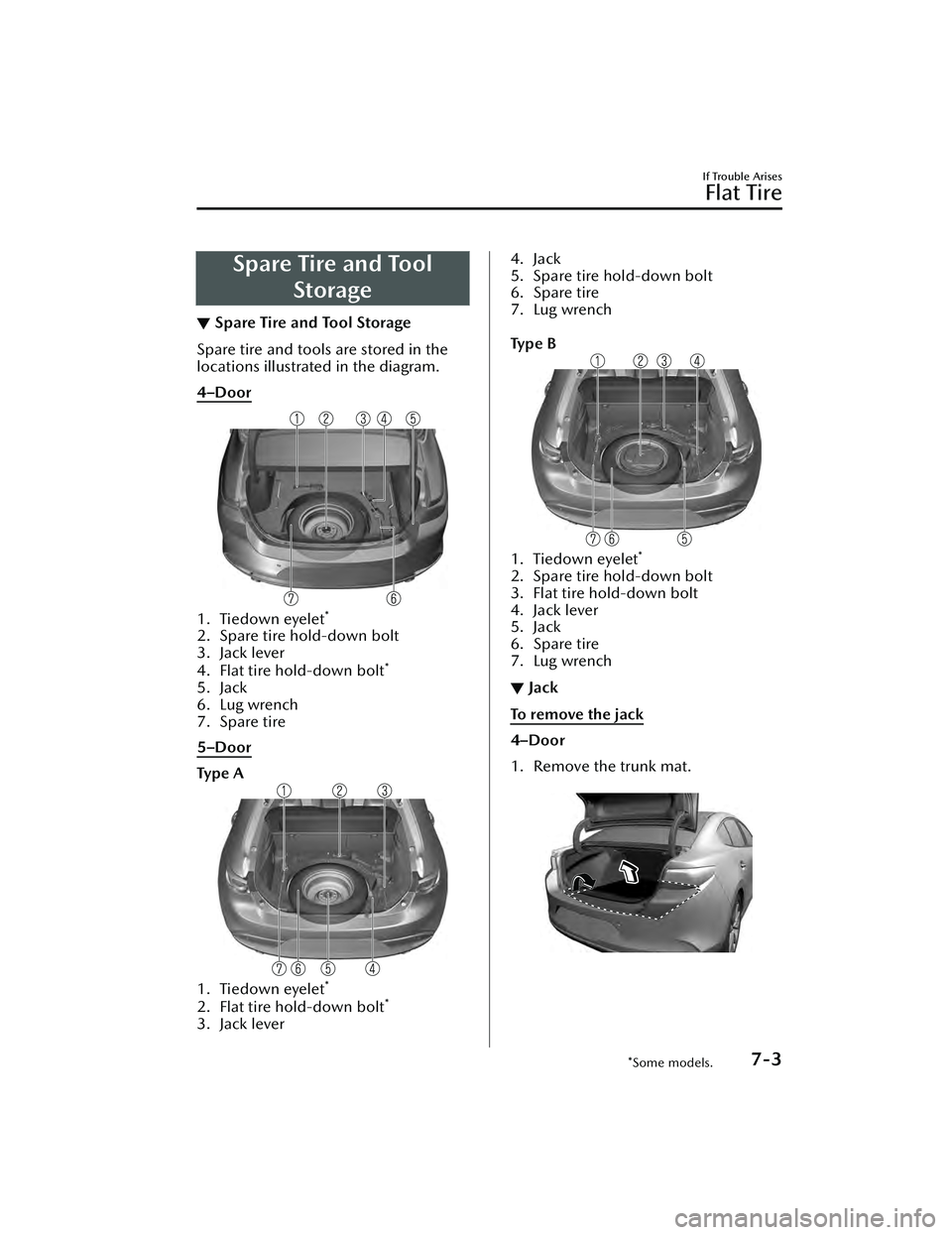

Spare Tire and ToolStorage
▼Spare Tire and Tool Storage
Spare tire and tools are stored in the
locations illustrated in the diagram.
4–Door
1. Tiedown eyelet*
2. Spare tire hold-down bolt
3. Jack lever
4. Flat tire hold-down bolt
*
5. Jack
6. Lug wrench
7. Spare tire
5–Door
Ty p e A
1. Tiedown eyelet*
2. Flat tire hold-down bolt*
3. Jack lever
4. Jack
5. Spare tire hold-down bolt
6. Spare tire
7. Lug wrench

Ty p e B
1. Tiedown eyelet*
2. Spare tire hold-down bolt
3. Flat tire hold-down bolt
4. Jack lever
5. Jack
6. Spare tire
7. Lug wrench
▼Jack
To r e m o v e t h e j a c k
4–Door
1. Remove the trunk mat.

If Trouble Arises
Flat Tire
*Some models.7-3
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
Sunshade.................................. 3-41
Sunvisors.................................. 5-39
T
Theft-Deterrent System.............. 3-44
Three-flash Turn Signal...............4-63
Tiedown Hook.......................... 7-24
Tires......................................... 6-32Replacing a tire.................... 6-34
Replacing a wheel................ 6-36
Snow tires............................ 3-49
Specifications....................... 9-10
Temporary spare tire............. 6-35
Tire chains............................3-50
Tire inflation pressure............6-33
Tire rotation......................... 6-33
Uniform tire quality grading
system (UTQGS)................... 8-21
Tire Information Location of the tire label
(placard).............................. 8-27
Steps for determining the correct
load limit............................. 8-34
Tire labeling......................... 8-23
Tire maintenance.................. 8-29
Vehicle loading.....................8-31
Tire Pressure Monitoring
System.................................... 4-228
Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)...................................7-45
To w i n g Recreational towing.............. 3-53
Trailer towing....................... 3-53
Towing Description................... 7-23
Traction Control System (TCS).... 4-89 TCS/DSC indicator light........4-89
Traffic Jam Assist (TJA).............. 4-150 Close proximity warning...... 4-155
Display indication............... 4-154
Setting the system...............4-156
Shift-up/shift-down request
display............................... 4-163
Stop hold control............... 4-163
Tra ffi c Sign Recognition System
(TSR)...................................... 4-112
Trouble Battery runs out.................... 7-17
Emergency starting................7-20
Flat tire.................................. 7-7
Overheating......................... 7-21
Parking in an emergency......... 7-2
When liftgate/trunk lid cannot be
opened................................ 7-49
Trunk Lid...................................3-20 Inside trunk release lever....... 3-24
When liftgate/trunk lid cannot be
opened................................ 7-49
Trunk Light................................ 5-40
Turn and Lane-Change Signals.... 4-63
Turn Signals.............................. 4-63
U
Ultrasonic Sensor.................... 4-221
V
Vehicle Information Labels Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
Ve h i c l e identification
number..................................9-2
Vehicle Problem Warning Beep...7-47
W
Warning Sound is Activated........7-48
10-9
