spark plugs replace MAZDA MAZDA 2023 Owners Manual

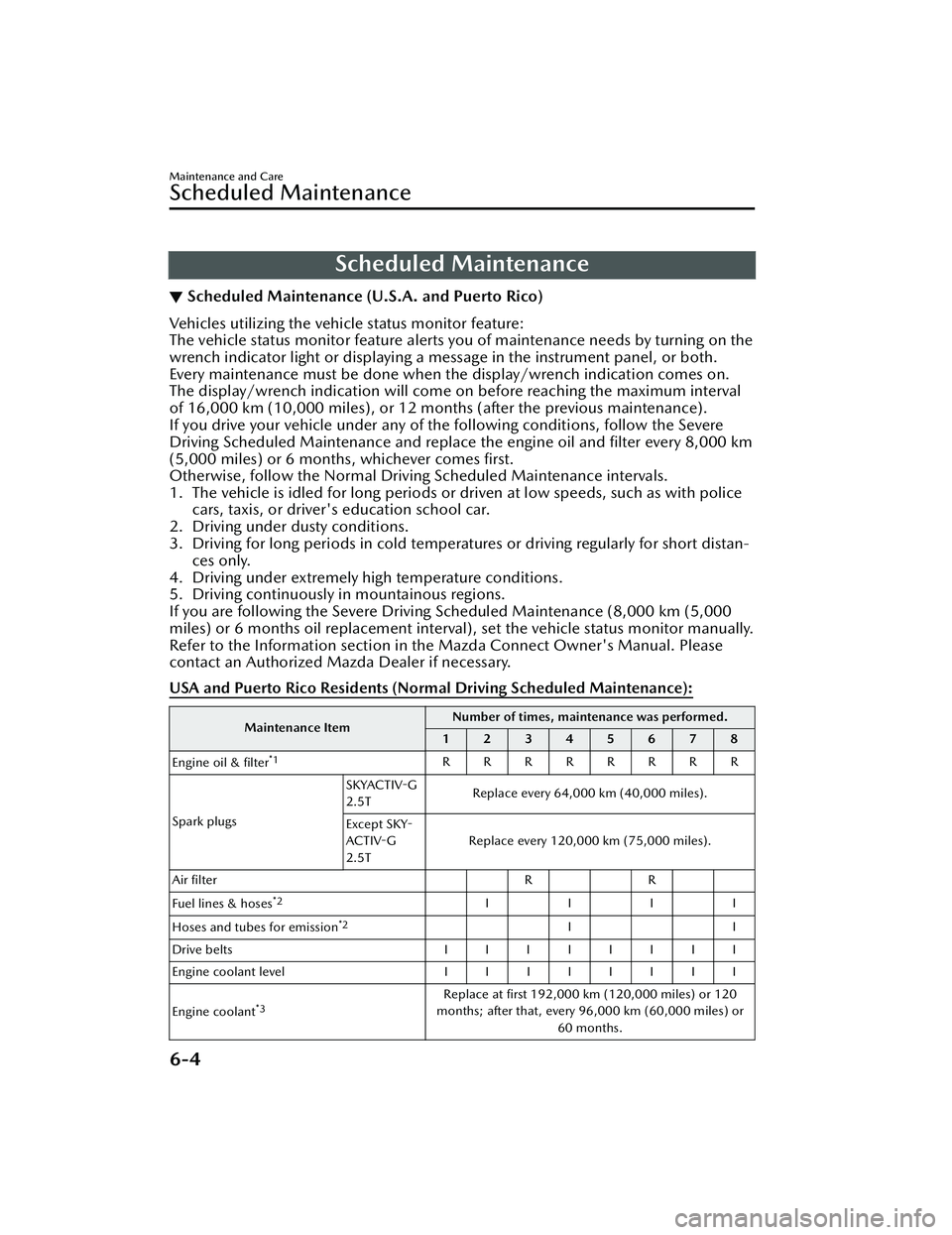

Scheduled Maintenance
▼Scheduled Maintenance (U.S.A. and Puerto Rico)
Vehicles utilizing the vehicle status monitor feature:
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
Every maintenance must be done when the display/wrench indication comes on.
The display/wrench indication will come
on before reaching the maximum interval
of 16,000 km (10,000 miles), or 12 mont hs (after the previous maintenance).
If you drive your vehicle under any of th e following conditions, follow the Severe
Driving Scheduled Maintenance and replace the engine oil and filter every 8,000 km
(5,000 miles) or 6 months, whichever comes first.
Otherwise, follow the Normal Driv ing Scheduled Maintenance intervals.
1. The vehicle is idled for long periods or driven at low speeds, such as with police cars, taxis, or driver's education school car.
2. Driving under dusty conditions.
3. Driving for long periods in cold temperatures or driving regularly for short distan- ces only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
If you are following the Severe Driving Scheduled Maintenance (8,000 km (5,000
miles) or 6 months oil replacement interval), set the vehicle status monitor manually.
Refer to the Information section in the Mazda Connect Owner's Manual. Please
contact an Authorized Mazda Dealer if necessary.
USA and Puerto Rico Residents (Nor mal Driving Scheduled Maintenance):
Maintenance ItemNumber of times, maintenance was performed.
12345678
Engine oil & filter
*1RRRRRRRR
Spark plugs SKYACTIV-G
2.5T
Replace every 64,000 km (40,000 miles).
Except SKY-
ACTIV-G
2.5T Replace every 120,000 km (75,000 miles).
Air filter RR
Fuel lines & hoses
*2IIII
Hoses and tubes for emission
*2II
Drive belts IIIIIIII
Engine coolant level IIIIIIII
Engine coolant
*3Replace at first 192,000 km (120,000 miles) or 120
months; after that, every 96,000 km (60,000 miles) or 60 months.
Maintenance and Care
Scheduled Maintenance
6-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

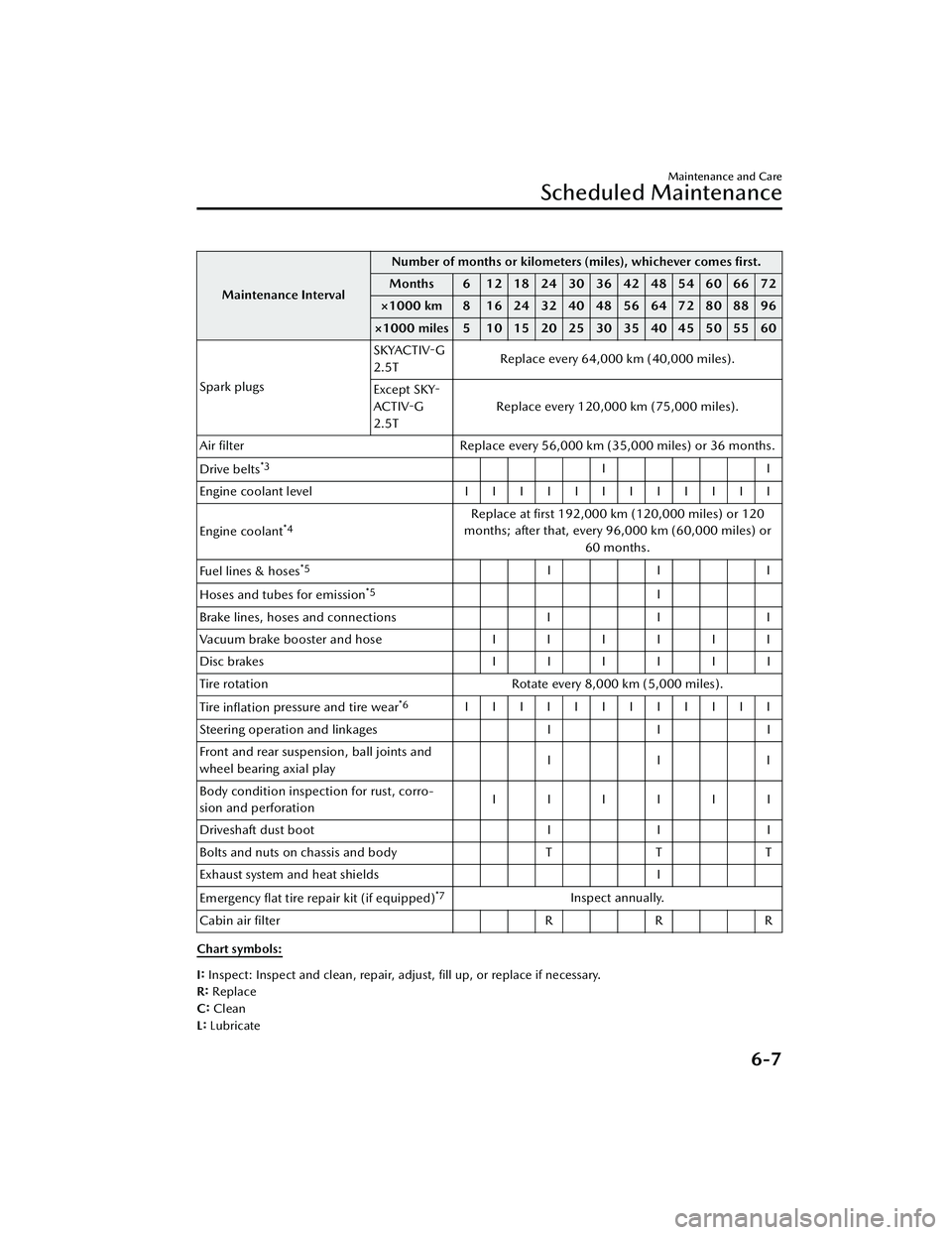

Maintenance IntervalNumber of months or kilometers
(miles), whichever comes first.
Months 6 1218243036424854606672
×1000 km 8 1624324048566472808896
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Spark plugs SKYACTIV-G
2.5T
Replace every 64,000 km (40,000 miles).
Except SKY-
ACTIV-G
2.5T Replace every 120,000 km (75,000 miles).
Air filter Replace every 56,000 km (35,000 miles) or 36 months.
Drive belts
*3II
Engine coolant level IIIIIIIIIIII
Engine coolant
*4Replace at first 192,000 km (120,000 miles) or 120
months; after that, every 96,000 km (60,000 miles) or
60 months.
Fuel lines & hoses
*5III
Hoses and tubes for emission
*5I
Brake lines, hoses and connections III
Vacuum brake booster and hose IIIIII
Disc brakes IIIIII
Tire rotation Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear
*6IIIIIIIIIIII
Steering operation and linkages III
Front and rear suspension, ball joints and
wheel bearing axial play III
Body condition inspection for rust, corro-
sion and perforation IIIIII
Driveshaft dust boot III
Bolts and nuts on chassis and body TTT
Exhaust system and heat shields I
Emergency flat tire repair kit (if equipped)
*7Inspect annually.
C ab in a ir fi lt e r RRR
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
C: Clean
L: Lubricate
Maintenance and Care
Scheduled Maintenance
6-7
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

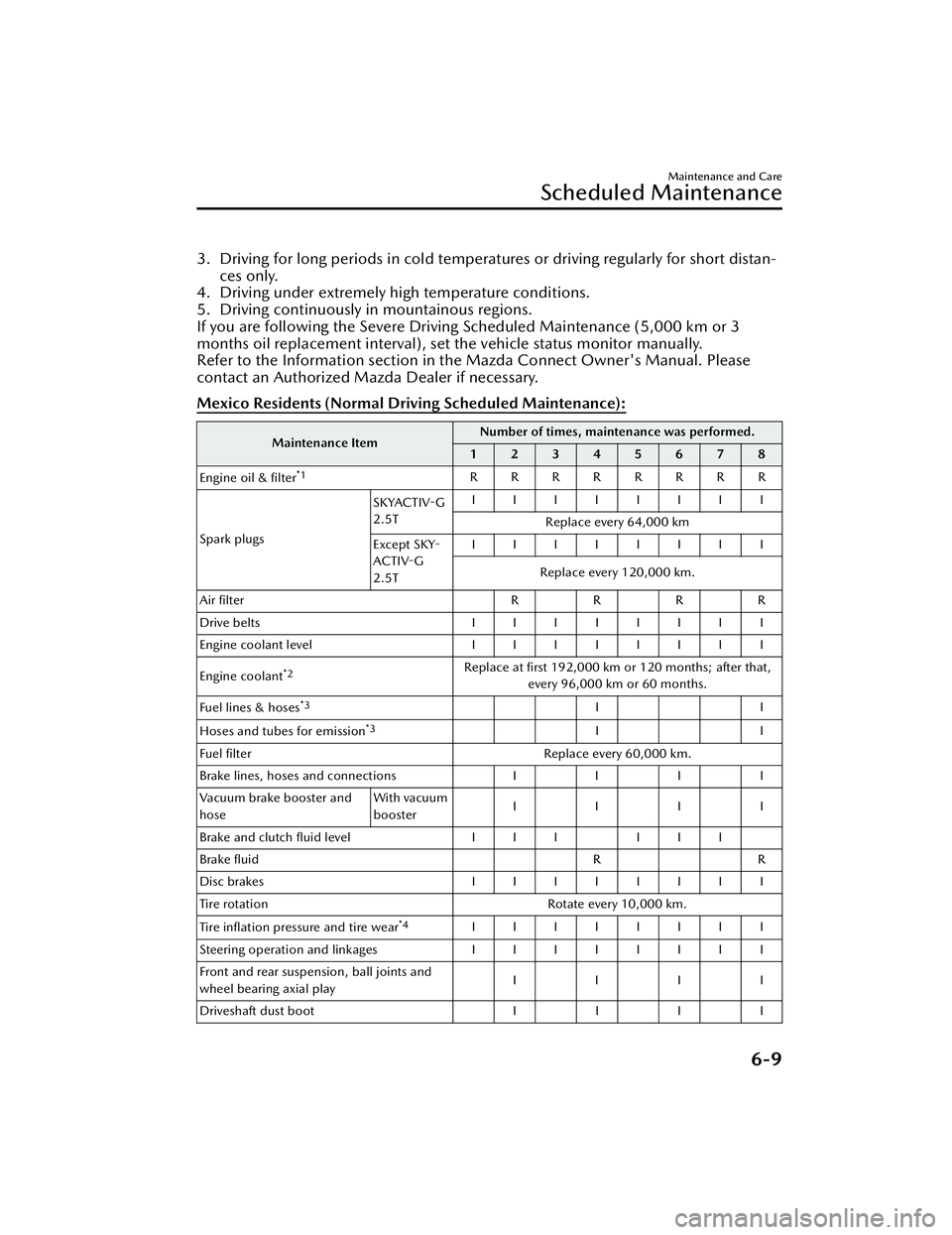

3. Driving for long periods in cold temperatures or driving regularly for short distan-
ces only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
If you are following the Severe Driving Scheduled Maintenance (5,000 km or 3
months oil replacement interval), set the vehicle status monitor manually.
Refer to the Information section in th e Mazda Connect Owner's Manual. Please
contact an Authorized Mazda Dealer if necessary.
Mexico Residents (Normal Driv ing Scheduled Maintenance):
Maintenance Item Number of times, maintenance was performed.
12345678
Engine oil & filter
*1RRRRRRRR
Spark plugs SKYACTIV-G
2.5T
IIIIIIII
Replace every 64,000 km
Except SKY-
ACTIV-G
2.5T IIIIIIII
Replace every 120,000 km.
Air filter RR RR
Drive belts IIIIIIII
Engine coolant level IIIIIIII
Engine coolant
*2Replace at first 192,000 km or 120 months; after that, every 96,000 km or 60 months.
Fuel lines & hoses
*3II
Hoses and tubes for emission
*3II
Fuel filter Replace every 60,000 km.
Brake lines, hoses and connections II II
Vacuum brake booster and
hose With vacuum
booster
IIII
Brake and clutch fluid level III III
Brake fluid RR
Disc brakes IIIIIIII
Tire rotation Rotate every 10,000 km.
Tire inflation pressure and tire wear
*4IIIIIIII
Steering operation and linkages IIIIIIII
Front and rear suspension, ball joints and
wheel bearing axial play IIII
Driveshaft dust boot I I I I
Maintenance and Care
Scheduled Maintenance
6-9
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

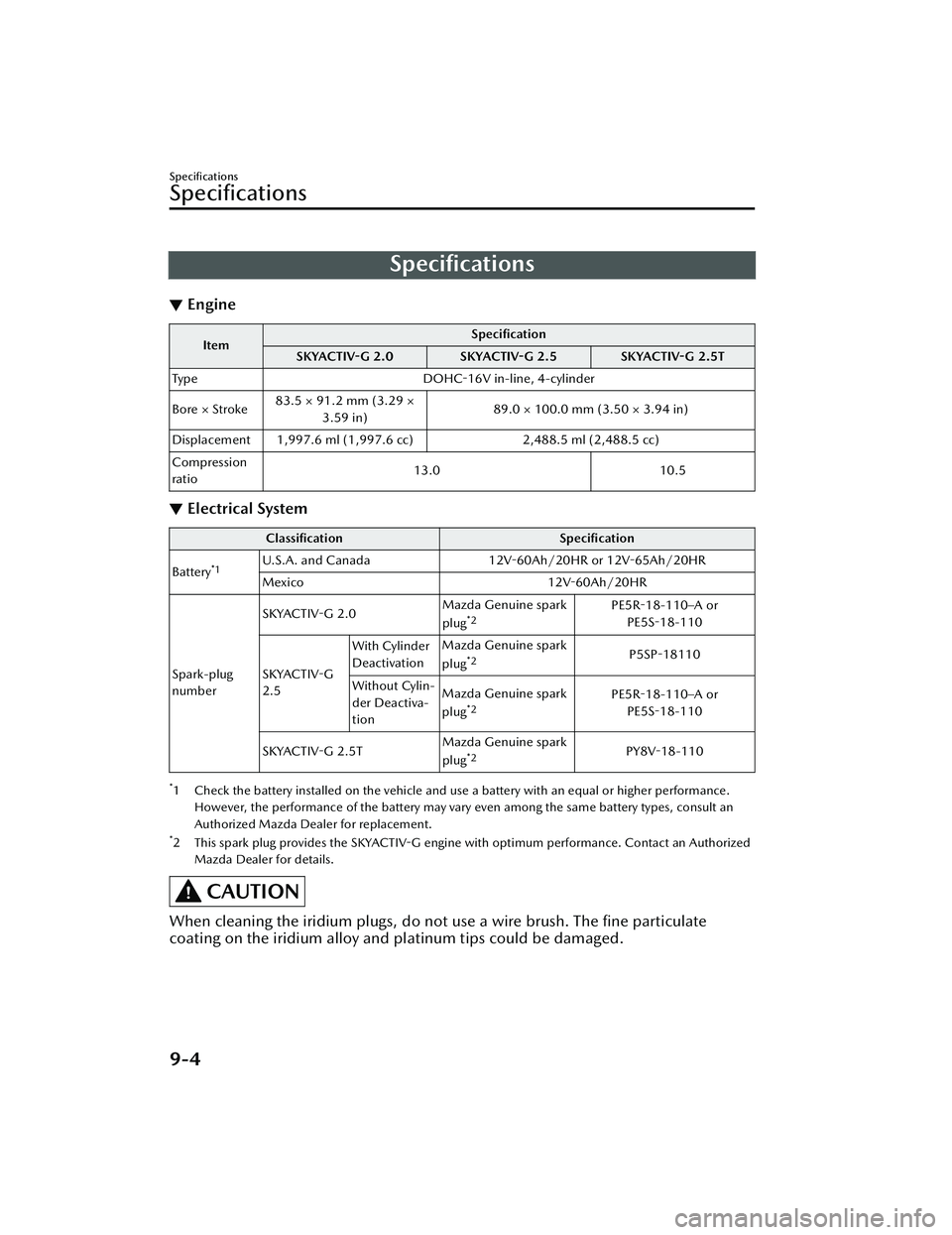

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100.0 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0
10.5
▼Electrical System
Classification
Specification
Battery
*1U.S.A. and Canada 12V-60Ah/20HR or 12V-65Ah/20HR
Mexico 12V-60Ah/20HR
Spark-plug
number SKYACTIV-G 2.0
Mazda Genuine spark
plug
*2PE5R-18-110–A or
PE5S-18-110
SKYACTIV-G
2.5 With Cylinder
Deactivation
Mazda Genuine spark
plug
*2P5SP-18110
Without Cylin-
der Deactiva-
tion Mazda Genuine spark
plug
*2PE5R-18-110–A or
PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark
plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do no t use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
