Interior Equipment (View A)
Door-lock knob .................................................................................................... page 3-9
DSC OFF switch ............................................................................................... page 5-21
Lighting control ................................................................................................. page 5-50
Turn and lane-change signals ............................................................................ page 5-53
Instrument cluster .............................................................................................. page 5-29
Wiper and washer lever ..................................................................................... page 5-54
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-26
Outside mirror switch ........................................................................................ page 3-26
Power window switches .................................................................................... page 3-16
Power window lock switch ................................................................................ page 3-18
1-2
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Interior Overview
Mazda2_8CC7-EA-11H_Edition2 Page8
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 28 of 346
Black plate (28,1)
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.
Properly dispose of the pretensioner
system: Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. It will not activate in most
rollovers, side or rear impacts.
In addition, the pretensioner system for the
front passenger is designed to only deploy
in accordance with the total seated weight
on the front passenger seat.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs: Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda2_8CC7-EA-11H_Edition2 Page28
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 31 of 346
Black plate (31,1)
Seat Belt Warning Light
Driver's seat
Front passenger's seat
The seat belt warning light illuminates if
the driver or front passenger's seat is
occupied and the seat belt is not fastened
with the ignition switched ON.
Seat Belt Reminder
NOTE
Consult an Authorized Mazda Dealer to
deactivate or restore the belt reminder. Though
the belt reminder can be deactivated, doing so
will defeat the purpose of the system to warn
the driver and the front passenger in the event
that their seat belts are not fastened. For the
safety of the driver and front passenger, Mazda
recommends not deactivating the belt
reminder.
If the vehicle is driven with the driver or
front passenger's seat belt unfastened, the
seat belt warning light illuminates and a
warning chime sounds.
If the driver or front passenger's seat belt
is unfastened (only when the front
passenger seat is occupied) and the
vehicle is driven at a speed faster than
about 20 km/h (12 mph), the warning
light will flash and a beep sound will be
heard. After a short time, the warning
light stops flashing, but remains
illuminated, and the beep sound stops.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed
falls below 20 km/h (12 mph).
Essential Safety Equipment
Seat Belt Systems
2-19
Mazda2_8CC7-EA-11H_Edition2 Page31
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 32 of 346
Black plate (32,1)
NOTElThe warning light flashes and a beep sound
will be heard for about 6 seconds if the
driver's seat belt is not fastened when the
ignition is switched ON.
lIf a driver or front passenger's seat belt is
unfastened after the beep sound turns off
(warning light remains illuminated), and
the vehicle speed exceeds 20 km/h (12
mph), the warning light flashes and beep
sound activates again.
lPlacing heavy items on the front passenger
seat may cause the front passenger seat belt
warning function to operate depending on
the weight of the item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that the
warning light will not operate.
2-20
Essential Safety Equipment
Seat Belt Systems
Mazda2_8CC7-EA-11H_Edition2 Page32
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 42 of 346
Black plate (42,1)
Do not allow a child or anyone to lean
over or against the side window of a
vehicle with side and curtain air bags:It is dangerous to allow anyone to
lean over or against the side window,
the area of the front passenger seat,
the front and rear window pillars and
the roof edge along both sides from
which the side and curtain air bags
deploy, even if a child-restraint
system is used. The impact of
inflation from a side or curtain air
bag could cause serious injury or
death to an out of position child.
Furthermore, leaning over or against
the front door could block the side
and curtain air bags and eliminate
the advantages of supplemental
protection. With the front air bag and
the additional side air bag that
comes out of the front seat, the rear
seat is always a better location for
children. Take special care not to
allow a child to lean over or against
the side window, even if the child is
seated in a child-restraint system.
qFront Passenger's Seat Child-
Restraint System Installation
1. Switch the ignition ON.
2. Slide the seat as far back as possible.
3. Place the child-restraint system on the
seat without putting your weight on the
seat and fasten the seat belt. See the
manufacturer's instructions on the
child-restraint system for belt routing
instructions.
4. To get the retractor into the automatic locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
5. Push the child-restraint system firmly into the vehicle seat. Be sure the belt
retracts as snugly as possible. A
clicking noise from the retractor will be
heard during retraction if the system is
in automatic locking mode. If the belt
does not lock the seat down tight,
repeat the previous step and also this
one.
NOTE
lInspect this function before each use of the
child-restraint system. You should not be
able to pull the shoulder belt out of the
retractor while the system is in the
automatic locking mode. When you remove
the child-restraint system, be sure the belt
fully retracts to return the system to
emergency locking mode before occupants
use the seat belts.
lFollow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-restraint
system, it may not employ seat belts which
are in automatic locking mode.
6. Seat your child safely in the child- restraint system and secure the child
according to the instructions from the
child-restraint system manufacturer.
2-30
Essential Safety Equipment
Child Restraint
Mazda2_8CC7-EA-11H_Edition2 Page42
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 43 of 346
Black plate (43,1)
7. Make sure the front passenger air bagdeactivation indicator light illuminates
after installing a child-restraint system
on the front passenger seat.
If the front passenger air bag
deactivation indicator light does not
illuminate, remove the child-restraint
system, switch the ignition to OFF or
ACC, and then re-install the child-
restraint system.
Refer to Front Passenger Seat Weight
Sensors on page 2-50.WARNING
Do not seat a child in a child-restraint
system on the front passenger seat if
the front passenger air bag
deactivation indicator light does not
illuminate:
While it is always better to install any
child-restraint system on the rear
seat, it is imperative that a child-
restraint system ONLYbe used on the
front passenger seat if the
deactivation indicator light
illuminates when the child is seated
in the child-restraint system (page
2-50). Seating a child in a child-
restraint system installed on the front
passenger seat with the front
passenger air bag deactivation
indicator light not illuminated is
dangerous. If this indicator light does
not illuminate, this means that the
front passenger front and side air
bags, and seat belt pretensioner are
ready for deployment. If an accident
were to deploy an air bag, a child in
a child-restraint system sitting in the
front passenger seat could be
seriously injured or killed. If the
indicator light does not illuminate
after seating a child in a child-
restraint system on the front
passenger seat, seat a child in a
child-restraint system on the rear
seat and consult an Authorized
Mazda Dealer as soon as possible.
Essential Safety Equipment
Child Restraint
2-31
Mazda2_8CC7-EA-11H_Edition2 Page43
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 49 of 346
Black plate (49,1)
If your vehicle is also equipped with a driver and front passenger occupant
classification system, refer to the Driver and Front Passenger Occupant Classification
System (page 2-50) for details.
If your vehicle is equipped with a driver and front passenger occupant classification
system, the front passenger air bag deactivation indicator light illuminates for a specified
time after the ignition is switched ON.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-21).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
WARNING
Seat belts must be worn in air bag equipped vehicles:Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in the first accident, such as frontal, near frontal, side
collisions that are at least moderate. Vehicle occupants should always wear seat
belts.
Children should not ride in the front passenger seat: Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. Even if the front
passenger air bag deactivation indicator light illuminates, always move the front
passenger seat as far back as possible. A sleeping child is more likely to lean against
the door and be hit by the side air bag in a moderate collision to the front-passenger
side of the vehicle. Whenever possible, always secure a child 12 years and under on
the rear seat with an appropriate child-restraint system for the child's age and size.
Essential Safety Equipment
SRS Air Bags
2-37
Mazda2_8CC7-EA-11H_Edition2 Page49
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 57 of 346
Black plate (57,1)
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on
that side only to inflate.
The side and curtain air bags will deploy only on the
side the vehicle receives the force of the impact.
In an angled collision:
During a collision, driver/front passenger air bag and the curtain air bag will deploy.
qAir Bag/Front Seat Belt Pretensioner System Warning Light
If the air bag/front seat belt pretensioner system is working properly, the warning light
illuminates when the ignition is switched ON or after the engine is cranked. The warning
light turns off after a specified period of time.
Essential Safety Equipment
SRS Air Bags
2-45
Mazda2_8CC7-EA-11H_Edition2 Page57
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 58 of 346
Black plate (58,1)

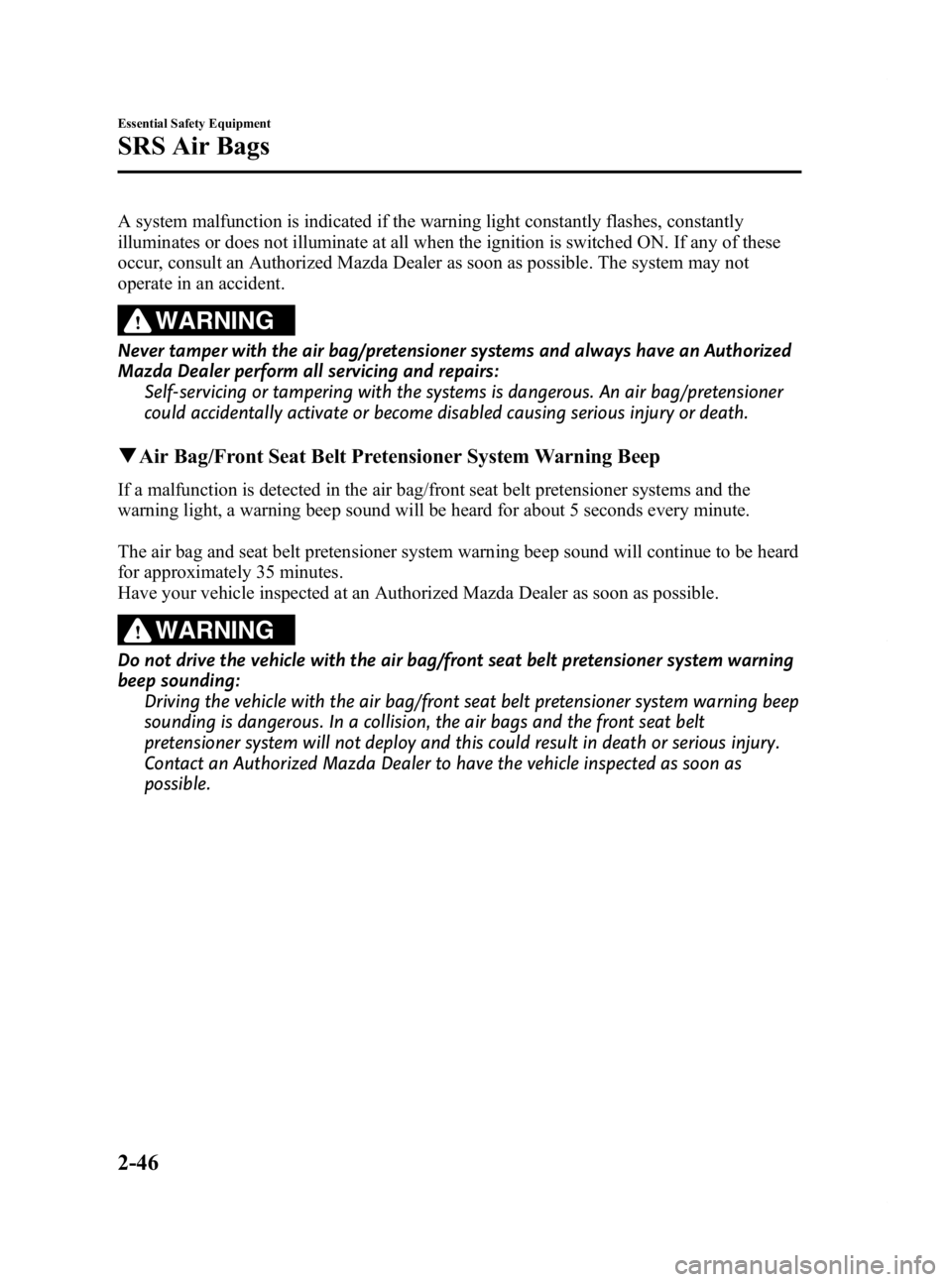

A system malfunction is indicated if the warning light constantly flashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized
Mazda Dealer perform all servicing and repairs:Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
qAir Bag/Front Seat Belt Pretensioner System Warning Beep
If a malfunction is detected in the air bag/front seat belt pretensioner systems and the
warning light, a warning beep sound will be heard for about 5 seconds every minute.
The air bag and seat belt pretensioner system warning beep sound will continue to be heard
for approximately 35 minutes.
Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible.
WARNING
Do not drive the vehicle with the air bag/front seat belt pretensioner system warning
beep sounding:
Driving the vehicle with the air bag/front seat belt pretensioner system warning beep
sounding is dangerous. In a collision, the air bags and the front seat belt
pretensioner system will not deploy and this could result in death or serious injury.
Contact an Authorized Mazda Dealer to have the vehicle inspected as soon as
possible.
2-46
Essential Safety Equipment
SRS Air Bags
Mazda2_8CC7-EA-11H_Edition2 Page58
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
Page 63 of 346
Black plate (63,1)
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds.
The front passenger air bag deactivation indicator light illuminates or is off under the following conditions:Condition detected by the
front passenger occupant
classification system Front passenger air bag
deactivation indicator light Front passenger front and
side air bags Front passenger seat
belt pretensioner
system
Empty (Not occupied)
*1Off Deactivated Deactivated
Child or child-restraint
system
*2On Deactivated Deactivated
Adult
*3Off ReadyReady
*1 : If the front passenger seat belt is buckled, the front passenger air bag deactivation indicator light illuminates, however this does not indicate a malfunction.
*2 : If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending on the child's physique.
*3 : If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child
depending on the person's physique.
The curtain air bag is ready for inflating despite the chart above.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the above chart, do not
allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as
soon as possible. The system may not work properly in an accident.
Essential Safety Equipment
SRS Air Bags
2-51
Mazda2_8CC7-EA-11H_Edition2 Page63
Monday, September 26 2011 1:54 PM
Form No.8CC7-EA-11H
