MAZDA MODEL 2 2014 Owners Manual

Black plate (91,1)
NOTElIf the security indicator light illuminates
and stays on or flashes when the ignition is
switched ON, the engine will not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it does not start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Knowing Your Mazda
Security System
3-23
Mazda2_8DB2-EA-13G_Edition4 Page91
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (92,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qTilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, pull the tilt wheel release
lever under the steering column up, adjust
the wheel, then push the release lever
down to lock the column.
Tilt wheel release
lever
After adjusting, push the wheel up and
down to be certain it's locked before
driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition must be switched to ACC or
ON.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
3-24
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda2_8DB2-EA-13G_Edition4 Page92
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (93,1)

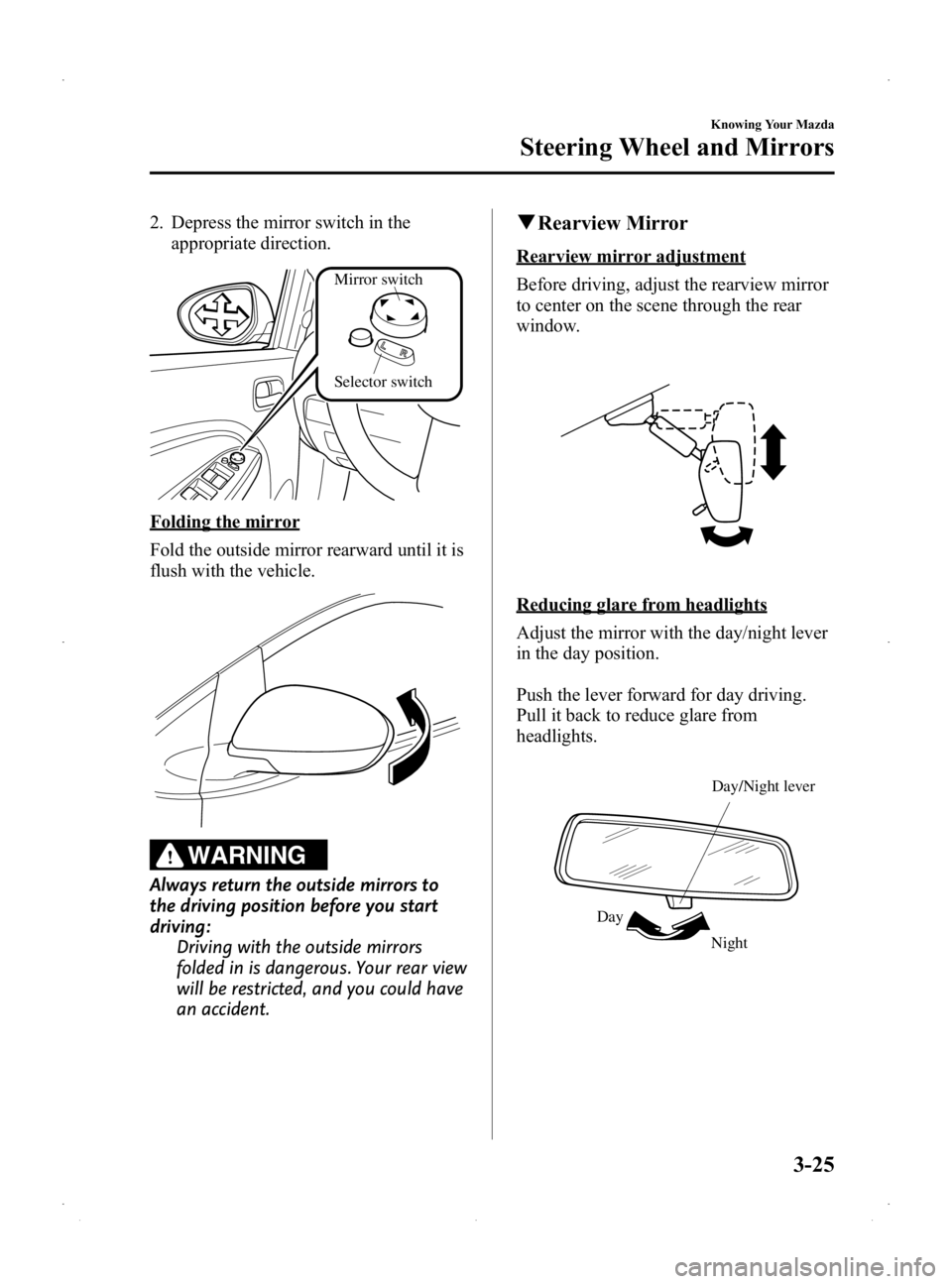

2. Depress the mirror switch in theappropriate direction.
Selector switchMirror switch
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Adjust the mirror with the day/night lever
in the day position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night
Day Day/Night lever
Knowing Your Mazda
Steering Wheel and Mirrors
3-25
Mazda2_8DB2-EA-13G_Edition4 Page93
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (94,1)
WARNING
Do not stack cargo or objects higher
than the seatbacks:Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
3-26
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda2_8DB2-EA-13G_Edition4 Page94
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (95,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-4
Before Starting the Engine ........................................................... 4-5 Before Getting In ...................................................................... 4-5
After Getting In ......................................................................... 4-5
Driving Tips ................................................................................... 4-6 Break-In Period ......................................................................... 4-6
Money-Saving Suggestions ...................................................... 4-6
Hazardous Driving .................................................................... 4-7
Floor Mat .................................................................................. 4-7
Rocking the Vehicle .................................................................. 4-8
Winter Driving .......................................................................... 4-8
Driving In Flooded Area ......................................................... 4-10
Overloading ............................................................................ 4-10
Driving on Uneven Road ........................................................ 4-11
Towing ......................................................................................... 4-12 Trailer Towing ......................................................................... 4-12
4-1
Mazda2_8DB2-EA-13G_Edition4 Page95
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (96,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Otherwise, the emission control system could be
damaged. Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda2_8DB2-EA-13G_Edition4 Page96
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (97,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
Ø Do not drive your Mazda with any sign of engine malfunction.
Ø Do not coast with the ignition switched off.
Ø Do not descend steep grades in gear with the ignition switched off.
Ø Do not operate the engine at high idle for more than 5 minutes.
Ø Do not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
Ø Do not push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
Mazda2_8DB2-EA-13G_Edition4 Page97
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (98,1)

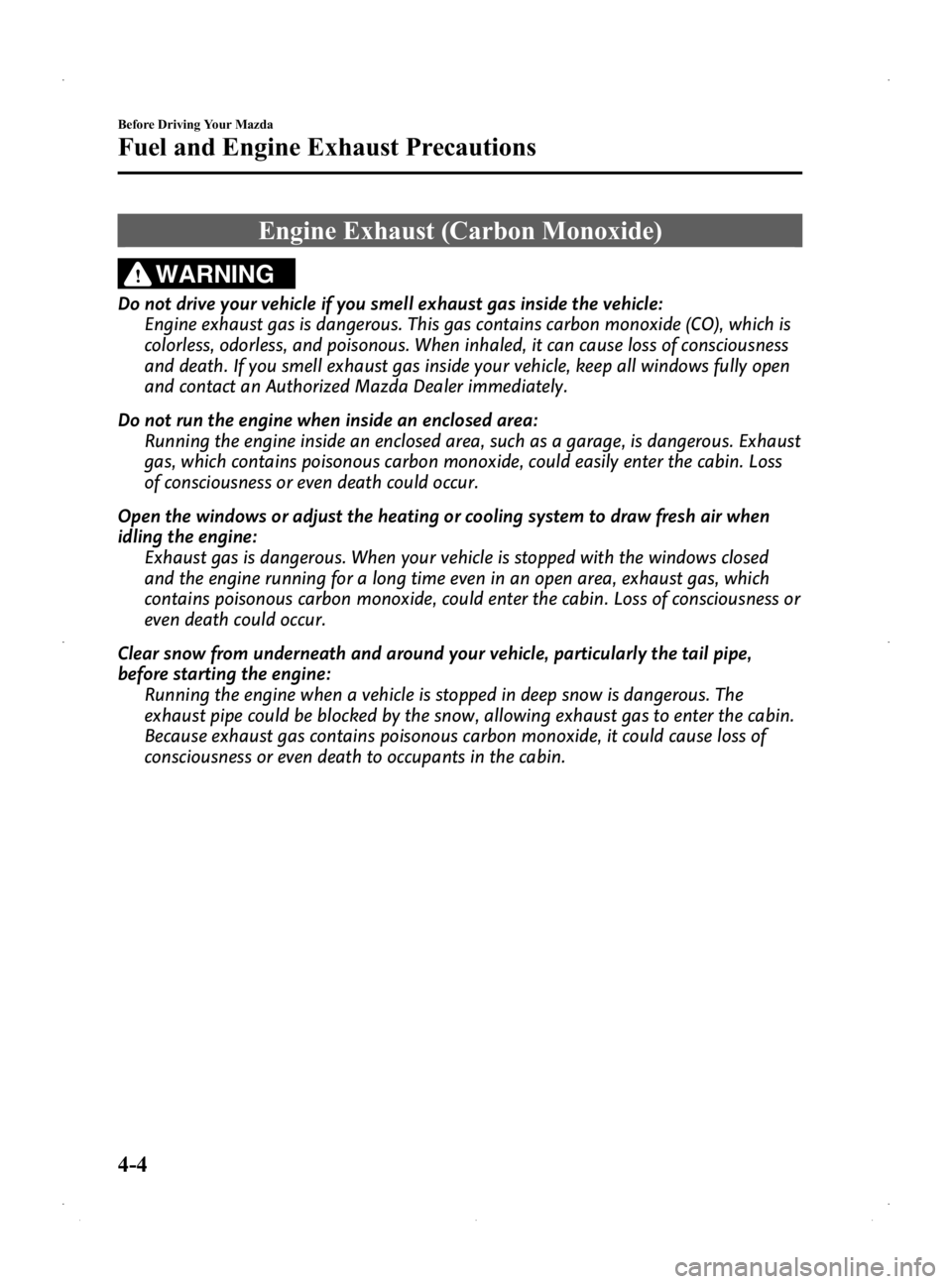

Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda2_8DB2-EA-13G_Edition4 Page98
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (99,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch fluid,
washer fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs the steering wheel adjusted properly?lIs everyone's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition is switched ON.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-5
Mazda2_8DB2-EA-13G_Edition4 Page99
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G

Black plate (100,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm for extended
periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-4) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
4-6
Before Driving Your Mazda
Driving Tips
Mazda2_8DB2-EA-13G_Edition4 Page100
Thursday, May 15 2014 1:37 PM
Form No.8DB2-EA-13G
