MAZDA MODEL 2 2017 Owners Manual (in English)

3–13
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Key
All doors and the liftgate/boot lid lock
automatically when the driver's door is
locked using the auxiliary key. They all
unlock when the driver's door is unlocked
using the auxiliary key.
Turn the auxiliary key toward the front to
lock, toward the back to unlock.

LockUnlock

Double Locking System *
The double locking system is designed
to prevent someone who has broken into
your vehicle from opening the door from
the inside.

If you have any problems with the double
locking system, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
WARNING
Never activate the double locking
system with passengers, especially
children, still inside the vehicle:
Activating the system with passengers,
especially children, still inside the
vehicle is dangerous. The passengers
cannot open the doors from inside.
They would be trapped and subjected to
extreme temperatures. This could result
in serious injuries or even death.
How to Activate the system
1. Close all the windows.
2. Switch the ignition off and take the key
with you.
3. Close all doors and the liftgate/boot lid.
4. Insert the auxiliary key in the driver's
door, turn the auxiliary key to the lock
position, and return it to the centre
position. Then turn it to the lock
position again within 3 seconds.


Centre
position
Lock
position

3–14
Before Driving
Doors and Locks
NOTE
  You can also activate the system
by pressing the lock button on the
transmitter twice within 3 seconds.
  (With the advanced keyless
function)
 You can also activate the system by
pressing the request switch twice
within 3 seconds.
5. The indicator light illuminates for
about 3 seconds to indicate that the
system has been activated.



NOTE
The system cannot be activated when
any door or the liftgate is open.
How to Deactivate the System
Unlock the driver's door or switch the
ignition ON.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the system can only be deactivated by
unlocking a door with the auxiliary key.
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
All doors and the liftgate/boot lid can be
locked/unlocked by pressing the request
switch while the key is being carried.

Request switch

To lock
To lock the doors and the liftgate/boot lid,
press the request switch and the hazard
warning lights will À ash once.
(Except European models)
A beep sound will be heard once.
To unlock
To unlock the doors and the liftgate/boot
lid, press the request switch and the hazard
warning lights will À ash twice.
(Except European models)
A beep sound will be heard twice.

3–15
Before Driving
Doors and Locks
NOTE
  Con¿ rm that all doors and the
liftgate/boot lid are securely locked.
 For the liftgate/boot lid, move it
without pressing the electric liftgate/
boot lid opener to verify that the
liftgate/boot lid has not been left ajar.
  (European models)  All doors and the liftgate/boot lid
cannot be locked when any door is
open.
 (Except European models)  All doors and the liftgate/boot lid
cannot be locked when any door or
the liftgate is open.
  It may require a few seconds for
the doors to unlock after the request
switch is pressed.
  (European models)  The setting can be changed so that a
beep sound is heard for con¿ rmation
when the doors and the liftgate/
boot lid are locked/unlocked using a
request switch.
 (Except European models)  A beep sound is heard for
con¿ rmation when the doors and the
liftgate/boot lid are locked/unlocked
using the request switch. If you
prefer, the beep sound can be turned
off.
 The volume of the beep sound
can also be changed. Refer to
Personalisation Features on page
9-13 .
NOTE
 Use the following procedure to
change the setting.

1. Switch the ignition off and close
all of the doors and the liftgate/
boot lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate/
boot lid lock and the beep sound
activates at the currently set
volume. The setting changes each
time the LOCK button on the key
is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:



 Switching the ignition to ACC
or ON.



 Closing the driver's door.



 Opening the liftgate/boot lid.



 Not operating the key for 10
seconds.



 Pressing any button except the
LOCK button on the key.



 Pressing a request switch.



 (With theft-deterrent system)  The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
 Refer to Theft-Deterrent System on
page 3-44 .

3–16
Before Driving
Doors and Locks
NOTE
  (With double locking system)  The double locking system can
be activated/deactivated using the
request switch.
 Refer to Double Locking System on
page 3-13 .
  The setting can be changed so that
the doors and the liftgate/boot lid
are locked automatically without
pressing the request switch.
 Refer to Personalisation Features on
page 9-13 .
 (Auto-lock function)  A beep sound is heard when all
doors and the liftgate are closed
while the advanced key is being
carried. All doors and the liftgate/
boot lid are locked automatically
after about three seconds when
the advanced key is out of the
operational range. Also, the hazard
warning lights À ash once. (Even
if the driver is in the operational
range, all doors and the liftgate/boot
lid are locked automatically after
about 30 seconds.) If you are out
of the operational range before the
doors and the liftgate/boot lid are
completely closed or another key
is left in the vehicle, the auto-lock
function will not work. Always make
sure that all doors and the liftgate/
boot lid are closed and locked before
leaving the vehicle. The auto-lock
function does not close the power
windows.
NOTE
  Auto re-lock function  After unlocking with the request
switch, all doors and the liftgate/boot
lid will automatically lock if any
of the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 Opening a door or the liftgate/boot
lid.



 Switching the ignition to any
position other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate/boot lid can be
locked/unlocked by operating the keyless
entry system transmitter, refer to Keyless
Entry System (page 3-3 ).

3–17
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Door-
Lock Switch *
All doors and the liftgate/boot lid lock
automatically when the lock side is
pressed with all doors and the liftgate
closed.
They all unlock when the unlock side is
pressed.

UnlockLock

NOTE
The doors and the liftgate/boot lid
cannot be locked while any other door
or the liftgate is open.
Auto Lock/Unlock Function *
WARNING
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front
door while the vehicle is moving
is dangerous. Passengers can fall
out of the vehicle if the door opens
accidentally , which could result in
death or serious injury.



 When the vehicle speed exceeds
20 km/h (12 mph), all doors and the
liftgate/boot lid lock automatically.



 When the ignition is switched off, all
doors and the liftgate/boot lid unlock
automatically.

These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch (With
door-lock switch)
The doors and the liftgate/boot lid can
be set to lock or unlock automatically by
selecting any one of the functions from the
following table and using the door-lock
switch on the interior door panel.
NOTE
  Function number 3 in the following
table is the factory setting for your
vehicle.
  There are only a total of six auto
lock/unlock settings available for
automatic transaxle vehicles, and
three for manual transaxle vehicles.
Be sure to press the unlock side of
the door-lock switch the correct
number of times according to the
selected function number. If the
switch is mistakenly pressed seven
times on an automatic transaxle
vehicle or four times on a manual
transaxle, the procedure will be
cancelled. If this occurs, start the
procedure from the beginning.

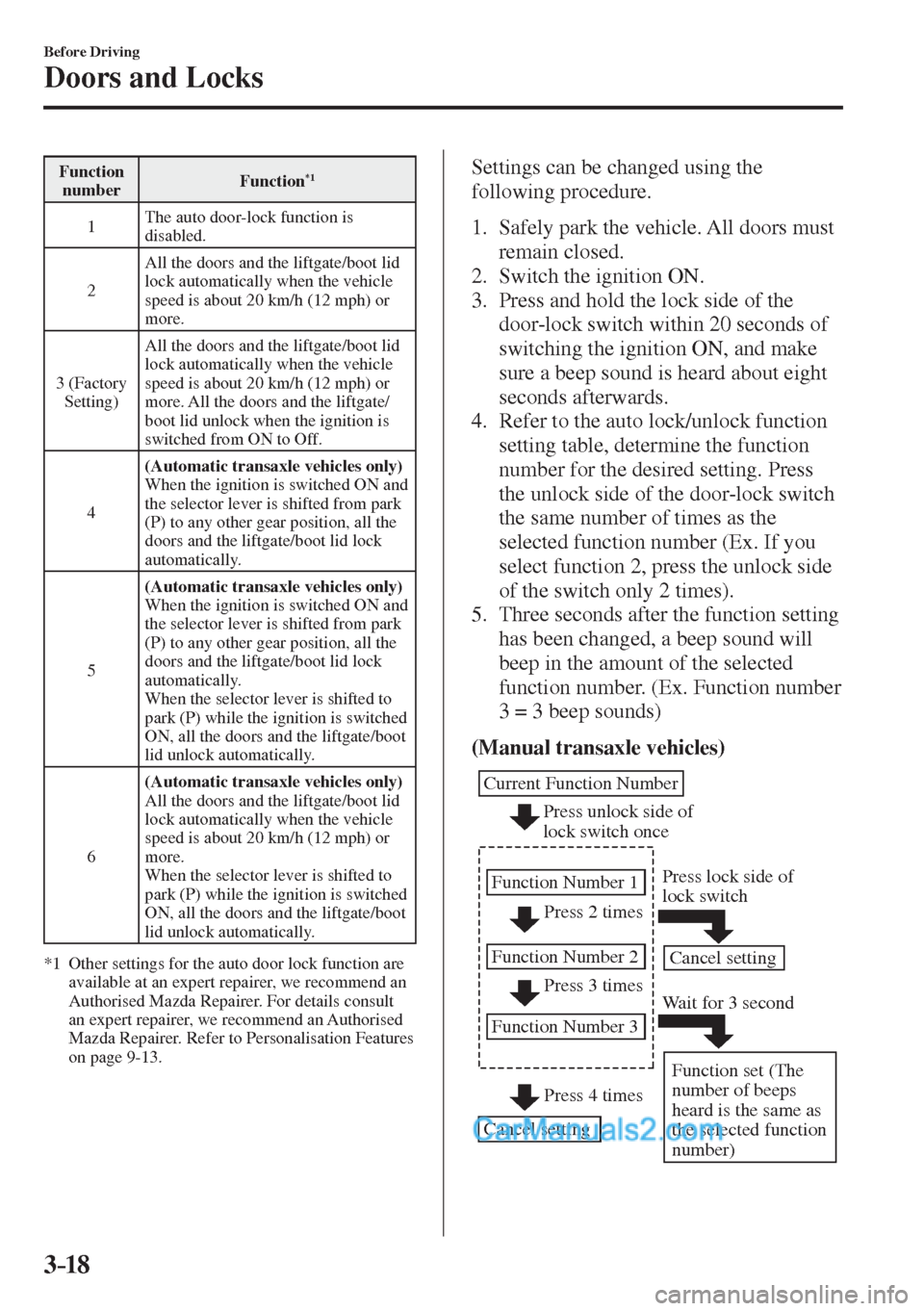

3–18
Before Driving
Doors and Locks
Function
number Function *1
1 The auto door-lock function is
disabled.
2 All the doors and the liftgate/boot lid
lock automatically when the vehicle
speed is about 20 km/h (12 mph) or
more.
3 (Factory
Setting) All the doors and the liftgate/boot lid
lock automatically when the vehicle
speed is about 20 km/h (12 mph) or
more. All the doors and the liftgate/
boot lid unlock when the ignition is
switched from ON to Off.
4 (Automatic transaxle vehicles only)
When the ignition is switched ON and
the selector lever is shifted from park
(P) to any other gear position, all the
doors and the liftgate/boot lid lock
automatically.
5 (Automatic transaxle vehicles only)
When the ignition is switched ON and
the selector lever is shifted from park
(P) to any other gear position, all the
doors and the liftgate/boot lid lock
automatically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate/boot
lid unlock automatically.
6 (Automatic transaxle vehicles only)
All the doors and the liftgate/boot lid
lock automatically when the vehicle
speed is about 20 km/h (12 mph) or
more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate/boot
lid unlock automatically.
*1 Other settings for the auto door lock function are
available at an expert repairer, we recommend an
Authorised Mazda Repairer. For details consult
an expert repairer, we recommend an Authorised
Mazda Repairer. Refer to Personalisation Features
on page 9-13 .

Settings can be changed using the
following procedure.

1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
door-lock switch within 20 seconds of
switching the ignition ON, and make
sure a beep sound is heard about eight
seconds afterwards.
4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the door-lock switch
the same number of times as the
selected function number (Ex. If you
select function 2, press the unlock side
of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function number
3 = 3 beep sounds)

(Manual transaxle vehicles)

Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Function Number 3
Press 4 times Press unlock side of
lock switch once
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second

3–19
Before Driving
Doors and Locks
(Automatic transaxle vehicles)

Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 7 times Function Number 5
Press 6 times
Function Number 6
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second

NOTE
  The doors cannot be locked or
unlocked while the setting function is
being performed.
  The procedure can be cancelled by
pressing the lock side of the door-
lock switch.
Locking, Unlocking with Door-
Lock Knob
Operation from inside
(With door-lock switch)
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
(Without door-lock switch)
All doors and the liftgate/boot lid lock
automatically when the driver's door-lock
knob is pressed. They all unlock when the
driver's door-lock knob is pulled out.


Lock
Unlock

NOTE
The red indication can be seen when the
door-lock knob is unlocked.

Red indication

3–20
Before Driving
Doors and Locks
Operation from outside
To lock the rear and front passenger
doors with the door-lock knob from the
outside, press the door-lock knob to the
lock position and close the door (holding
the door handle in the open position is not
required).
This does not operate the other door locks.


Door-lock knob

NOTE
When locking the door this way:
 Be careful not to leave the key inside
the vehicle.
  The driver's door lock knob cannot
be used while the driver's door is
open.
Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.

If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can only be opened by pulling
the outside handle.


Unlock
Lock

3–21
Before Driving
Doors and Locks
Liftgate/Boot Lid
WARNING
Never allow a person to ride in the
luggage compartment/boot:
Allowing a person to ride in the
luggage compartment/boot is
dangerous. The person in the luggage
compartment/boot could be seriously
injured or killed during sudden braking
or a collision.

Do not drive with the liftgate/boot lid
open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate/boot lid
in a moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colourless, odourless, and
highly poisonous, and it can cause loss
of consciousness and death. Moreover,
an open liftgate/boot lid could cause
occupants to fall out in an accident.

Do not stack or leave loaded
luggage unsecured in the luggage
compartment:
Otherwise, the luggage may move
or collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear ¿ eld of view.
CAUTION

 Before opening the liftgate/boot
lid, remove any snow and ice
accumulation on it. Otherwise, the
liftgate/boot lid could close under the
weight of the snow and ice resulting
in injury.
  Be careful when opening/closing
the liftgate/boot lid during strong
winds. If a strong gust blows against
the liftgate/boot lid, it could close
suddenly resulting in injury.
  Fully open the liftgate/boot lid and
make sure that it stays open. If the
liftgate/boot lid is only opened
partially, it could slam shut by
vibration or wind gusts resulting in
injury.
  When loading or unloading luggage
in the luggage compartment/boot,
turn off the engine. Otherwise, you
could get burned by the heat of the
exhaust gas.
  Be careful not to apply excessive
force to the damper stay on the
liftgate such as by putting your hand
on the stay. Otherwise, the damper
stay may bend and affect the liftgate
operation.
Damper stay

3–22
Before Driving
Doors and Locks
*Some models.
CAUTION
  Do not modify or replace the
liftgate damper stay. Consult an
expert repairer, we recommend an
Authorised Mazda Repairer if a
liftgate damper stay is deformed
or damaged for reasons such as a
collision or if there is some other
problem.
Opening and Closing the Liftgate/
Boot Lid
Opening the boot lid
Using the remote release button
*

Push the remote release button.



Opening the liftgate/boot lid with
Electric liftgate/boot lid opener
Unlock the doors and liftgate/boot lid,
then press the electric liftgate/boot lid
opener on the liftgate/boot lid and raise the
liftgate/boot lid when the latch releases.
(Hatchback)


Electric liftgate
opener

(Saloon) *


Electric boot lid
opener
