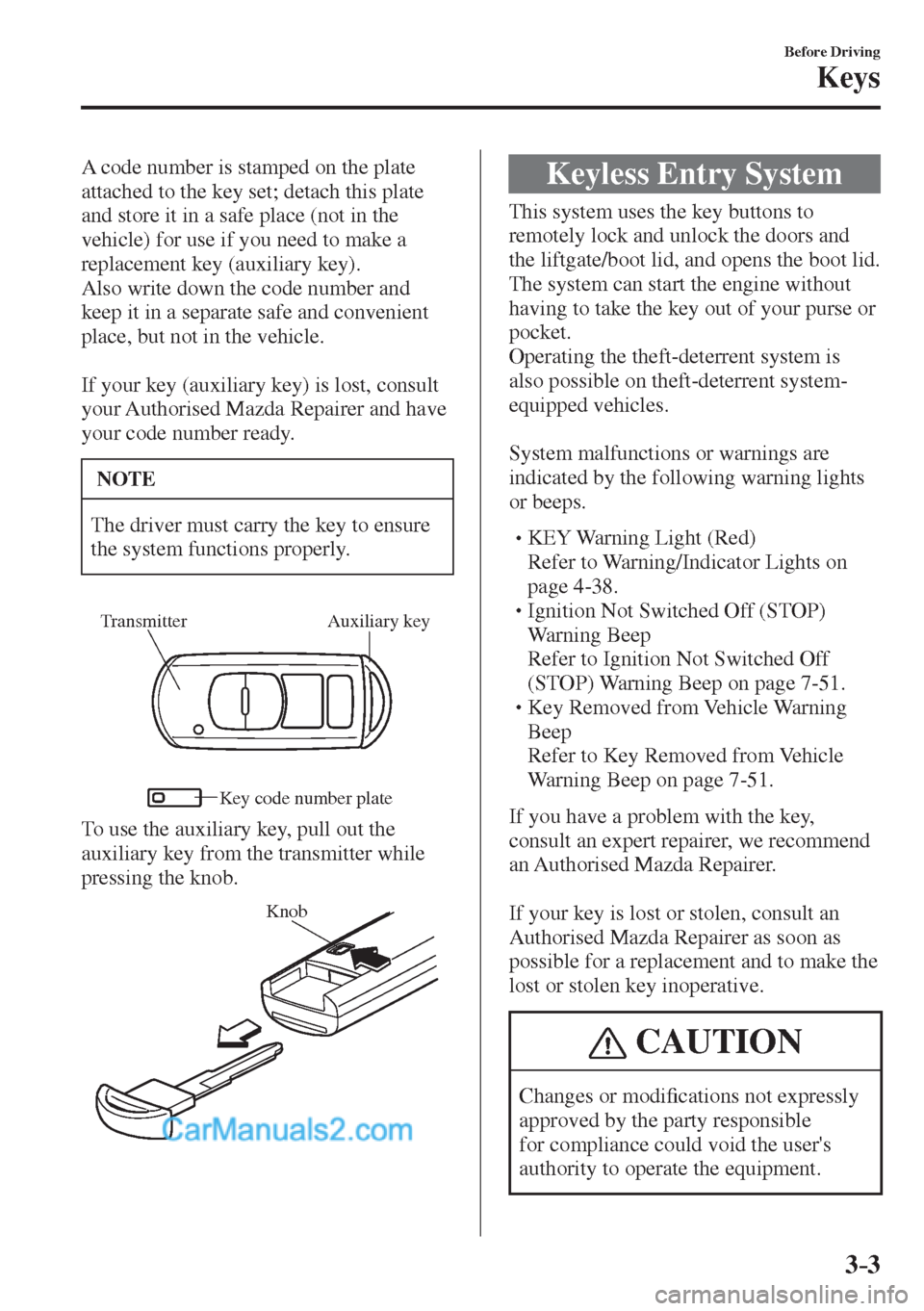

3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.

If your key (auxiliary key) is lost, consult
your Authorised Mazda Repairer and have
your code number ready.
NOTE
The driver must carry the key to ensure
the system functions properly.

Auxiliary key Transmitter
Key code number plate

To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.

Knob

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate/boot lid, and opens the boot lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.



 KEY Warning Light (Red)
 Refer to Warning/Indicator Lights on
page 4-38 .



 Ignition Not Switched Off (STOP)
Warning Beep
  Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-51 .



 Key Removed from Vehicle Warning
Beep
  Refer to Key Removed from Vehicle
Warning Beep on page 7-51 .

If you have a problem with the key,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.

If your key is lost or stolen, consult an
Authorised Mazda Repairer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Changes or modi¿ cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.

3–4
Before Driving
Keys
NOTE
  The keyless entry system operation
may vary due to local conditions.
  The keyless entry system is fully
operational (door/liftgate/boot lid
lock/unlock) when the ignition is
switched off. The system does not
operate if the ignition is switched to
any position other than off.
  If the key does not operate when
pressing a button or the operational
range becomes too small, the
battery may be weak. To install a
new battery, refer to Key Battery
Replacement (page 6-41 ).

 Battery life is about one year.
Replace the battery with a new one
if the KEY indicator light (green)
À ashes in the instrument cluster.
Replacing the battery about once
a year is recommended because
the KEY warning light/indicator
light may not illuminate or À ash
depending on the rate of battery
depletion.
  Additional keys can be obtained at
an Authorised Mazda Repairer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorised Mazda Repairer
when additional keys are required.
Transmitter

Operation buttons Operation indicator light

NOTE
  (European models)  The headlights turn on/off by
operating the transmitter. Refer
to Leaving Home Light on page
4-67 .
  (With theft-deterrent system)  The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
 Refer to Theft-Deterrent System on
page 3-44 .
  (With the advanced keyless
function (European models))
 The setting can be changed so that a
beep sound is heard for con¿ rmation
when the doors and the liftgate/boot
lid are locked/unlocked using the
key.
 (With the advanced keyless
function (Except European
models))
 A beep sound can be heard for
con¿ rmation when the doors and the
liftgate/boot lid are locked/unlocked
using the key. If you prefer, the beep
sound can be turned off.
 The volume of the beep sound can
also be changed.
 Refer to Personalisation Features on
page 9-13 .

3–5
Before Driving
Keys
NOTE
 Use the following procedure to
change the setting.

1. Switch the ignition off and close
all of the doors and the liftgate/
boot lid.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate/
boot lid lock and the beep sound
activates at the currently set
volume. The setting changes each
time the LOCK button on the key
is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:




 Switching the ignition to ACC
or ON.



 Closing the driver's door.



 Opening the liftgate/boot lid.



 Not operating the key for 10
seconds.



 Pressing any button except the
LOCK button on the key.



 Pressing a request switch.
The operation indicator light À ashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate/boot
lid, press the lock button and the hazard
warning lights will À ash once.
(With the advanced keyless function
(Except European models))
A beep sound will be heard once.

3–6
Before Driving
Keys
NOTE
  (European models)  The doors and the liftgate/boot lid
cannot be locked by pressing the lock
button while any other door is open.
The hazard warning lights will also
not À ash.
 (Except European models)  The doors and the liftgate/boot lid
cannot be locked by pressing the lock
button while any other door or the
liftgate is open. The hazard warning
lights will also not À ash.

 (With the i-stop function
(European models))
 Removing the key from the vehicle,
closing all the doors and pressing the
LOCK button on the key while the
i-stop function is operating (engine
is stopped) will switch the ignition
OFF and lock all the doors (Steering
wheel also locks).
 Refer to i-stop on page 4-13 .   Make sure all doors and the liftgate/
boot lid are locked after pressing the
button.
  (With double locking system)  Pressing the lock button twice within
3 seconds will activate the double
locking system.
 Refer to Double Locking System on
page 3-13 .
  (With theft-deterrent system)  When the doors are locked by
pressing the lock button on the key
while the theft-deterrent system is
armed, the hazard warning lights will
À ash once to indicate that the system
is armed.
Unlock button
To unlock the doors and the liftgate/boot
lid, press the unlock button and the hazard
warning lights will À ash twice.
(With the advanced keyless function
(Except European models))
A beep sound will be heard twice.


NOTE
  (Auto re-lock function)  After unlocking with the key, all
doors and the liftgate/boot lid
will automatically lock if any of
the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 A door or the liftgate/boot lid is
opened.



 The ignition is switched to any
position other than off.

 (With theft-deterrent system)  When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is
turned off, the hazard warning lights
will À ash twice to indicate that the
system is turned off.

3–7
Before Driving
Keys
*Some models.
Boot button (Saloon)
To open the boot lid, press and hold the
boot button until the boot lid opens.

Type A Type B

Intrusion sensor cancel button
*
To cancel the intrusion sensor (part of
the theft-deterrent system), press the
intrusion sensor cancel button within 20
seconds after pressing the lock button and
the hazard warning lights will À ash three
times.
Refer to Theft-Deterrent System on page
3-44 .


Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
  Starting the engine may be possible
even if the key is outside of the
vehicle and extremely close to a door
and window, however, always start
the engine from the driver's seat.
 If the vehicle is started and the key
is not in the vehicle, the vehicle will
not restart after it is shut off and the
ignition is switched to off.
  The luggage compartment/boot is
out of the assured operational range,
however, if the key (transmitter) is
operable the engine will start.
With the advanced keyless function


Interior aerial
Operational range

3–8
Before Driving
Keys
Without the advanced keyless function


Interior aerial
Operational range

NOTE
The engine may not start if the key is
placed in the following areas:

 Around the instrument panel
 In the storage compartments or the
centre console
  On the rear parcel shelf (saloon)
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.

3–9
Before Driving
Advanced Keyless Entry System
*Some models.
Advanced Keyless Entry
System
*
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.
The advanced keyless function allows you
to lock/unlock the door and the liftgate/
boot lid, or open the liftgate/boot lid while
carrying the key.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.



 Request switch Inoperable Warning
Beep
  Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-51 .



 Key Left-in-luggage Compartment/Boot
Warning Beep
  Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-52 .



 Key Left-in-vehicle Warning Beep
 Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-52 .

NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated,
you will be unable to start the engine
by carrying the key. Consult an expert
repairer, we recommend an Authorised
Mazda Repairer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-10 .

3–10
Before Driving
Advanced Keyless Entry System
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in
places where there are high-intensity
radio waves or noise, the operational
range may become narrower or
the system may not operate. For
determining battery replacement, Refer
to Keyless Entry System on page
3-3 .
Locking, Unlocking the Doors and
the Liftgate/Boot Lid

Exterior aerial
80 cm(31in) 80 cm(31in)
Operational range

NOTE
  The system may not operate if you
are too close to the windows or door
handles, or liftgate/boot lid.
  If the key is left in the following
areas and you leave the vehicle, the
doors may be locked depending on
the radio wave conditions even if the
key is left in the vehicle.



 Around the instrument panel



 In the storage compartments such
as the glove compartment or the
centre console



 On the rear parcel shelf (saloon)



 Next to a communication device
such as a mobile phone
Opening the Liftgate/Boot Lid

Exterior aerial
80 cm(31in)
Operational range

3–11
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.

Do not leave the key in your vehicle
with children and keep them in a place
where your children will not ¿ nd or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.

Always close all the windows, lock the
doors and the liftgate/boot lid and take
the key with you when leaving your
vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.

WARNING
After closing the doors and the liftgate/
boot lid, always verify that they are
securely closed:
Doors and the liftgate/boot lid not
securely closed are dangerous, if the
vehicle is driven with a door and the
liftgate/boot lid not securely closed,
the door and the liftgate/boot lid could
open unexpectedly resulting in an
accident.

Always con¿ rm the safety around the
vehicle before opening a door and the
liftgate/boot lid:
Suddenly opening a door and the
liftgate/boot lid is dangerous. A passing
vehicle or a pedestrian could be hit and
cause an accident.
CAUTION
Always con¿ rm the conditions around
the vehicle before opening/closing the
doors and the liftgate/boot lid and use
caution during strong winds or when
parked on an incline. Not being aware
of the conditions around the vehicle is
dangerous because ¿ ngers could get
caught in the door and the liftgate/boot
lid or a passing pedestrian could be hit,
resulting in an unexpected accident or
injury.

3–12
Before Driving
Doors and Locks
*Some models.
NOTE
  Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside
the cabin.
  If the key is left in the following
areas and you leave the vehicle, the
doors may be locked depending on
the radio wave conditions even if the
key is left in the vehicle.



 Around the instrument panel



 In the storage compartments such
as the glove compartment or the
centre console



 On the rear parcel shelf (saloon)



 Next to a communication device
such as a mobile phone

 The vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
 (European models)  All doors and the liftgate/boot lid
will automatically unlock if they are
locked using the power door locks
with any door open.
 If all the doors are closed even
though the liftgate/boot lid is open,
all the doors will lock.
 (Except European models)  All doors and the liftgate/boot lid
will automatically unlock if they are
locked using the power door locks
with any door or the liftgate open.
NOTE

 (Door unlock (control) system with
collision detection) *  This system automatically unlocks
the doors and the liftgate/boot lid in
the event the vehicle is involved in
an accident to allow passengers to
get out of the vehicle immediately
and prevent being trapped inside.
While the ignition is switched ON
and in the event the vehicle receives
an impact strong enough to inÀ ate
the air bags, all the doors and the
liftgate/boot lid are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
 The doors and the liftgate/boot lid
may not unlock depending on how
an impact is applied, the force of the
impact, and other conditions of the
accident.
 If door-related systems or the battery
is malfunctioning, the doors and the
liftgate/boot lid will not unlock.
