light MAZDA MODEL 2 2017 Owners Manual (in English)

5–156
Interior Features
Interior Equipment
Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.

Sunvisor

Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
NOTE
Do not leave the lights on for long
periods while the engine is turned off.
Otherwise the battery power could be
depleted.
Overhead Lights
Switch
Position Overhead Lights


Light off


Light is on when any door is open
Light is on or off when the
illuminated entry system is on


Light on

Front

With Map Lights

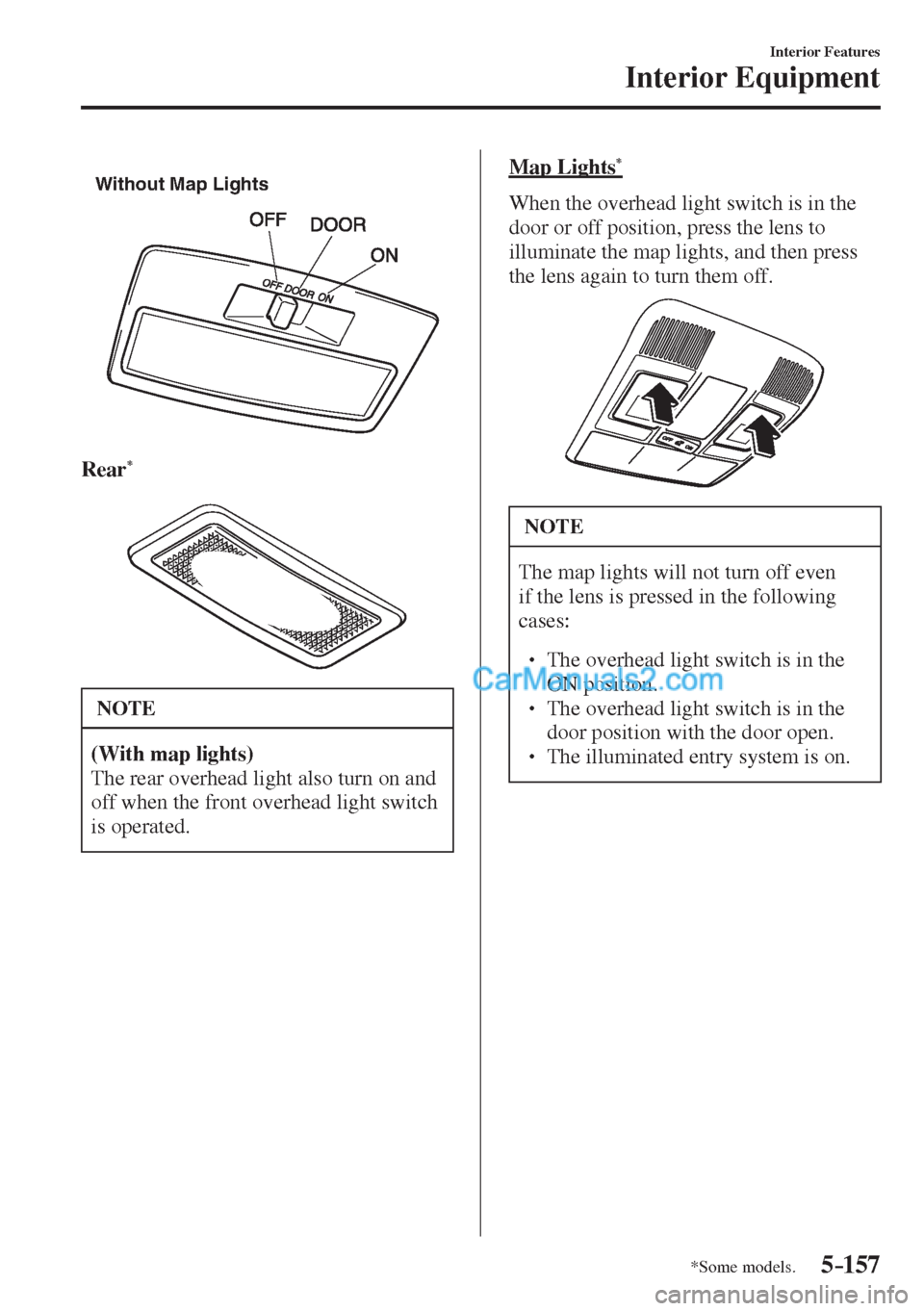

5–157
Interior Features
Interior Equipment
*Some models.

Without Map Lights

Rear
*


NOTE
(With map lights)
The rear overhead light also turn on and
off when the front overhead light switch
is operated.
Map Lights *
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.


NOTE
The map lights will not turn off even
if the lens is pressed in the following
cases:

 The overhead light switch is in the
ON position.
  The overhead light switch is in the
door position with the door open.
  The illuminated entry system is on.

5–158
Interior Features
Interior Equipment
Luggage Compartment Lights
(Hatchback)


Switch
Position Luggage Compartment Light


Light off


Light on when the liftgate is open

Boot Light (Saloon)
The boot light is on when the lid is open
and off when it's closed.


NOTE
To prevent the battery from being
discharged, do not leave the boot open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights and the
courtesy lights turn on in the following
conditions:



 The driver's door is unlocked after the
ignition is switched OFF.



 The ignition is switched OFF with all
doors closed.

NOTE
  The illuminated entry system
operates when the overhead light
switch is in the DOOR position.
  The illumination time differs
depending on the operation.
  Battery saver  If an interior light is left on with
the ignition switched OFF, the light
is turned off automatically after
about 30 minutes to prevent battery
depletion.
  The operation of the illuminated
entry system can be changed.
 Refer to Personalisation Features on
page 9-13 .

5–159
Interior Features
Interior Equipment
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.



CAUTION
  To prevent accessory socket damage
or electrical failure, pay attention to
the following:



 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).



 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.



 Close the cover when the
accessory socket is not in use to
prevent foreign objects and liquids
from getting into the accessory
socket.



 Correctly insert the plug into the
accessory socket.



 Do not insert the cigarette lighter
into the accessory socket.


 Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
  Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning
light to illuminate. Disconnect the
connected device and make sure
that the problem is resolved. If the
problem is resolved, disconnect the
device from the socket and switch
the ignition off. If the problem is not
resolved, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with
the engine off or idling.

5–161
Interior Features
Interior Equipment
*Some models.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
Overhead Console *
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.


Glove Compartment
To open the glove compartment, pull the
latch toward you.


To close the glove compartment,
¿ rmly press in the centre of the glove
compartment lid.

6–1 6–1
6Maintenance and Care
How to keep your Mazda in top condition.

Essential Information ........................................................................ 6-2
Introduction ................................................................................... 6-2

Scheduled Maintenance ..................................................................... 6-3
Scheduled Maintenance ................................................................ 6-3
Maintenance Monitor .................................................................. 6-15

Owner Maintenance ......................................................................... 6-17
Owner Maintenance Precautions ................................................ 6-17
Bonnet ......................................................................................... 6-19
Engine Compartment Overview ................................................. 6-21
Engine Oil ................................................................................... 6-23
Engine Coolant ............................................................................ 6-29
Brake/Clutch Fluid ...................................................................... 6-31
Window and Headlight Washer Fluid ......................................... 6-32
Body Lubrication ........................................................................ 6-33
Wiper Blades ............................................................................... 6-33
Battery ......................................................................................... 6-38
Key Battery Replacement ........................................................... 6-41
Tyres ............................................................................................ 6-44
Light Bulbs .................................................................................. 6-48
Fuses ........................................................................................... 6-61

Appearance Care.............................................................................. 6-66
Exterior Care ............................................................................... 6-66
Interior Care ................................................................................ 6-72

6–5
Maintenance and Care
Scheduled Maintenance
Maintenance 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th 11th 12th
Emergency À at tyre repair kit (if
installed)
*13 I I I I I I I I I I I I
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain
Remarks:
*1 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 12 months before replacing
them at the said interval.
Albania, Bosnia and Herzegovina, Bulgaria, Croatia, Latvia, Macedonia, Moldova, Montenegro, Romania,
Serbia, Slovakia, Ukraine
*2 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*3 Implement the fuel injection amount correction.
*4 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts at every
20,000 km (12,500 miles) or 12 months.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*5 Flexible setting is factory preset for some countries in Europe. Consult an Authorised Mazda Repairer for
details. Flexible setting can be set if the vehicle is operated mainly where none of the following conditions
apply.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
Once the À exible maintenance is selected, the vehicle calculates the remaining oil life based on engine
operating conditions and lets you know when an oil change is due by illuminating the wrench indicator light in
the instrument cluster.
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*6 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter at
every 10,000 km (6,250 miles) or shorter.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*7 For SKYACTIV-D 1.5, reset the engine oil data whenever replacing the engine oil regardless of the message/
wrench indicator light display.
*8 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.

6–14
Maintenance and Care
Scheduled Maintenance
Remarks:
*1 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 12 months before replacing
them at the said interval.
Algeria, Armenia, Angola, Bahrain, Bolivia, Burundi, B.Virgin, Cambodia, Cameroon, Chile, Costa Rica, Cote
d'Ivoire, Curacao, El Salvador, Gabon, Ghana, Georgia, Guatemala, Haiti, Honduras, Hong Kong, Iran, Jordan,
Kenya, Macau, Malaysia, Mongolia, Mozambique, Myanmar, Nigeria, Nicaragua, Oman, Panama, Papua
New Guinea, Peru, Philippines, Senegal, Seychelles, Syria, Tanzania, United Arab Emirates, Vietnam, Zaire,
Zimbabwe
*2 Implement the fuel injection amount correction.
*3 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts more often
than the recommended intervals.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*4 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter
more often than the recommended intervals.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*5 For SKYACTIV-D 1.5, Reset the engine oil data whenever replacing the engine oil regardless of the message/
wrench indicator light display.
*6 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*7 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*8 Inspect the battery electrolyte level, speci¿ c gravity and outer appearance. If the vehicle is operated in
extremely hot and cold areas, inspect the battery electrolyte level, speci¿ c gravity and appearance every
10,000 km (6,250 miles) or 6 months. The sealed battery only requires an outer appearance inspection.
*9 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, replace the brake À uid annually.
*10 The Tyre Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*11 Check the tyre repair À uid expiration date every year when performing the periodic maintenance. Replace the
tyre repair À uid bottle with new one before the expiration date.

6–15
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
Maintenance Monitor (Type A audio)
“Oil Change” with À exible setting *1 is available. Consult an Authorised Mazda Repairer for
details *2 . When the engine oil À exible maintenance setting is selected, the wrench indicator
light in the instrument cluster will be illuminated when remaining oil life becomes less than
1,000 km (600 mile), or remaining days are less than 15 (Whichever comes ¿ rst).
Reset method
Press and hold the selector with the ignition switched off, then switch it on. Keep pressing
the selector for more than 5 seconds. The master warning light will À ash for a few seconds
when the reset is completed.

Selector

*1 The engine oil À exible maintenance setting is available (only some models). Based on
the engine operating conditions, the onboard computer in your vehicle calculates the
remaining oil life.
*2 When the engine oil À exible maintenance setting is selected, the system must be reset
whenever replacing the engine oil regardless of the wrench indicator light display.

Maintenance Monitor (Type B audio)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor”.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change.

6–16
Maintenance and Care
Scheduled Maintenance
You can customize settings in the setup display as follows:
Tab Item Explanation
Scheduled Setting Noti¿ cation can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indicator light in the instrument cluster will be
illuminated when the remaining distance is less than 1,000 km
or 600 mile, or the remaining number of days is less than 15
(whichever comes ¿ rst). Distance (km or mile)
Reset Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tyre Rotation Setting Noti¿ cation can be switched on/off.
Distance (km or mile) Displays the distance until tyre rotation is due.
Select this item to set the tyre rotation distance.
The wrench indicator light in the instrument cluster will be
illuminated when the remaining distance is less than 1,000 km or
600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tyres.
Oil Change Setting
*1 N o t i¿ cation can be switched on/off.
Distance (km or mile) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indicator light in the instrument cluster will be
illuminated when the remaining distance is less than 1,000 km or
600 mile.
Reset
*2 Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever replacing
the engine oil.
*1 The engine oil À exible maintenance setting is available (only some models). Consult an Authorised Mazda
Repairer for details.
When the engine oil À exible maintenance setting is selected, you will see the following items in the display. The
vehicle calculates the remaining oil life based on the engine operating conditions and lets you know when an oil
change is due by illuminating the wrench indicator light in the instrument cluster.
*2 Whenever the engine oil is replaced, the vehicle engine control unit reset is necessary for SKYACTIV-D 1.5.
Your Authorised Mazda Repairer will be able to reset the engine control unit or refer to the vehicle engine
control unit reset procedure on page 6-27 .


Tab Item Explanation
Oil Change Oil life (%) Displays the engine oil life until the oil replacement is due.
The wrench indicator light in the instrument cluster will be
illuminated when remaining oil life distance is less than 1,000
km (600 mile), or remaining days are less than 15 (whichever
comes ¿ rst).
Reset Resets the remaining oil life to 100 %.
The system must be reset whenever replacing the engine oil.
