5–85
Interior Features
Audio Set [Type B (touchscreen)]
Home screen

Icon Function

Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.

Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the icon displayed at the bottom of the screen.

Communication
Bluetooth ® related functions are available.

Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or travelling
at a slow speed.

Settings
Overall setting menu (Such as display, sound, Bluetooth ® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.

5–139
Interior Features
Audio Set [Type B (touchscreen)]
Applications
NOTE
Depending on the grade and
speci¿ cation, the screen display may
differ.
Select the
icon on the home screen to
display the Applications screen. The
following information can be veri¿ ed.

Top screen Item Function
Fuel Economy
Monitor Fuel
Consumption
Display
Control Status
Display
Effectiveness
Display
Ending Screen
Display Refer
to Fuel
Economy
Monitor
on page
4-93 .
Vehicle
Status
Monitor
Maintenance
Scheduled
Maintenance
Tyre Rotation
Oil Change Refer to
Maintenance
Monitor
on page
6-15 .
Warning
Guidance Warnings
currently
active can be
veri¿ ed. Refer to If
a Warning
Light
Turns On
or Flashes
on page
7-35 .

5–14 4
Interior Features
Appendix
T h i n g s Y o u N e e d t o K n o w
WARNING
Always adjust the audio while the
vehicle is stopped:
Do not adjust the audio control
switches while driving the vehicle.
Adjusting the audio while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep your
maximum attention on the road while
driving the vehicle.
CAUTION
For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the vehicle
including car horns and particularly
emergency vehicle sirens.
NOTE
  To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time
when the engine is not running.
  If a cellular phone or CB radio is
used in or near the vehicle, it could
cause noise to occur from the audio
system, however, this does not
indicate that the system has been
damaged.
Do not spill any liquid on the audio
system.


Do not insert any objects, other than CDs,
into the slot.

5–159
Interior Features
Interior Equipment
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.



CAUTION
  To prevent accessory socket damage
or electrical failure, pay attention to
the following:



 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).



 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.



 Close the cover when the
accessory socket is not in use to
prevent foreign objects and liquids
from getting into the accessory
socket.



 Correctly insert the plug into the
accessory socket.



 Do not insert the cigarette lighter
into the accessory socket.


 Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
  Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning
light to illuminate. Disconnect the
connected device and make sure
that the problem is resolved. If the
problem is resolved, disconnect the
device from the socket and switch
the ignition off. If the problem is not
resolved, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with
the engine off or idling.

5–160
Interior Features
Interior Equipment

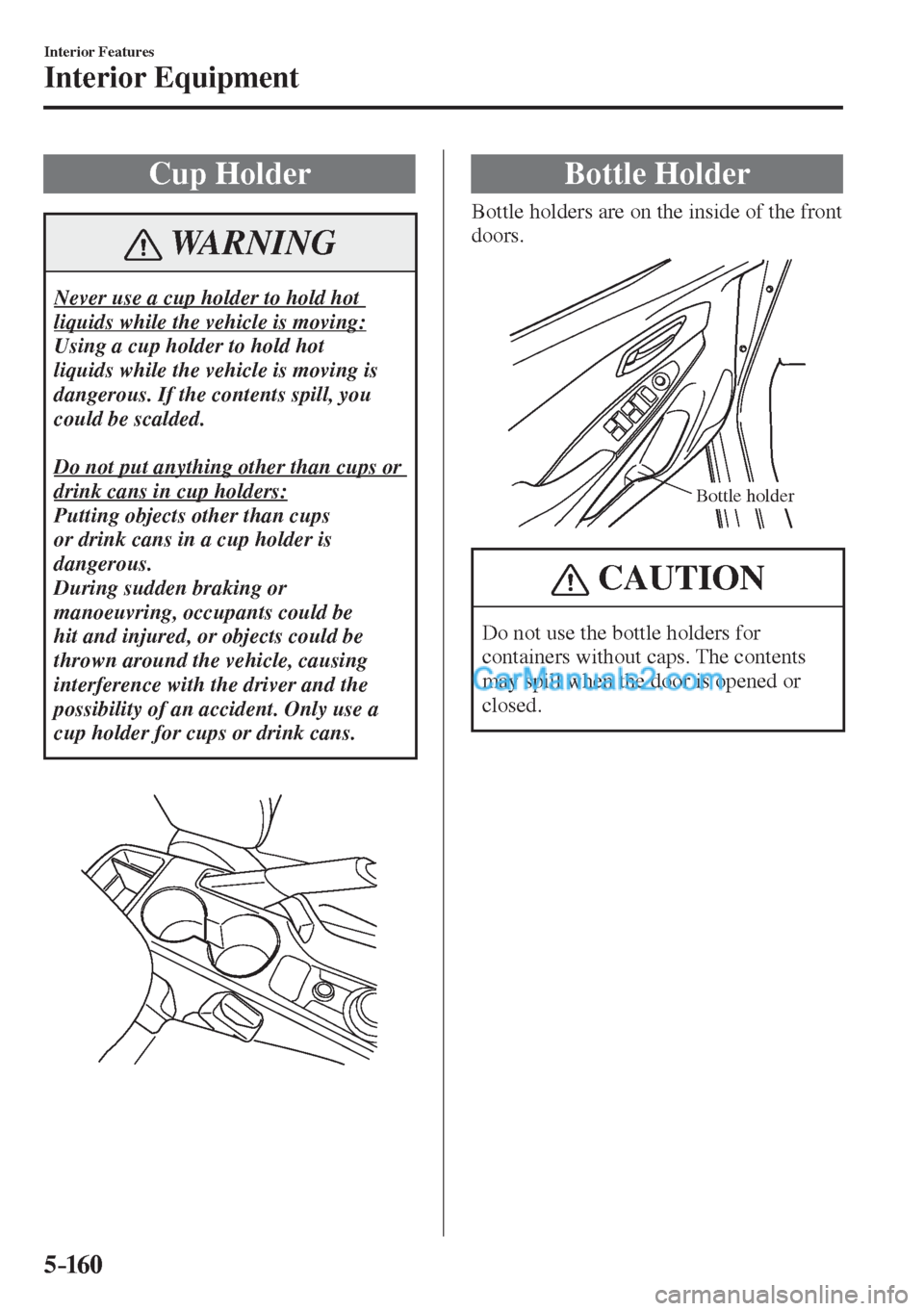

Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.

Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
manoeuvring, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.


Bottle Holder
Bottle holders are on the inside of the front
doors.

Bottle holder

CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.

5–161
Interior Features
Interior Equipment
*Some models.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

Do not put articles in storage spaces
with no lid:
Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
Overhead Console *
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.


Glove Compartment
To open the glove compartment, pull the
latch toward you.


To close the glove compartment,
¿ rmly press in the centre of the glove
compartment lid.

5–162
Interior Features
Interior Equipment
*Some models.

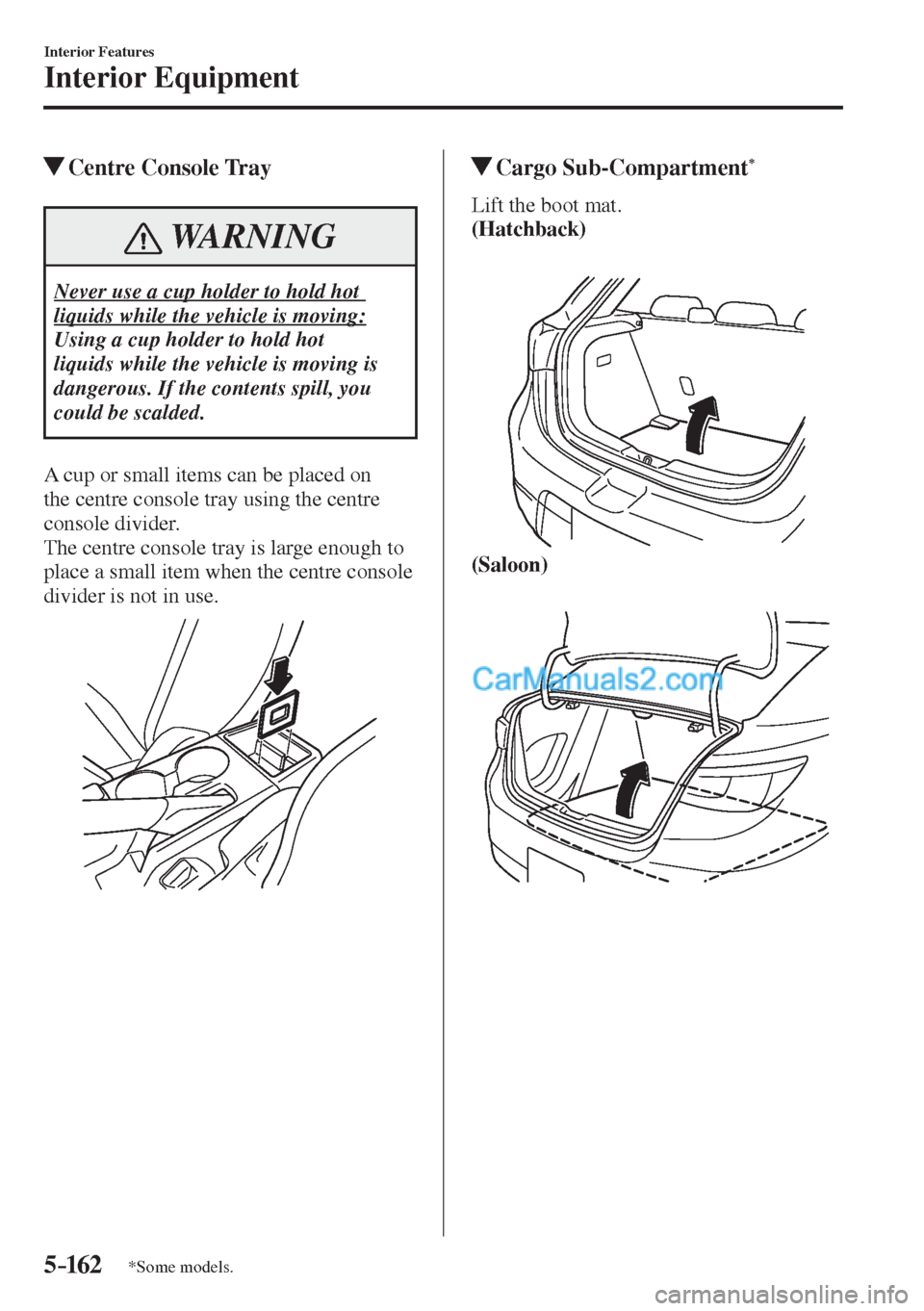

Centre Console Tray
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
A cup or small items can be placed on
the centre console tray using the centre
console divider.
The centre console tray is large enough to
place a small item when the centre console
divider is not in use.


Cargo Sub-Compartment *
Lift the boot mat.
(Hatchback)



(Saloon)

5–163
Interior Features
Interior Equipment

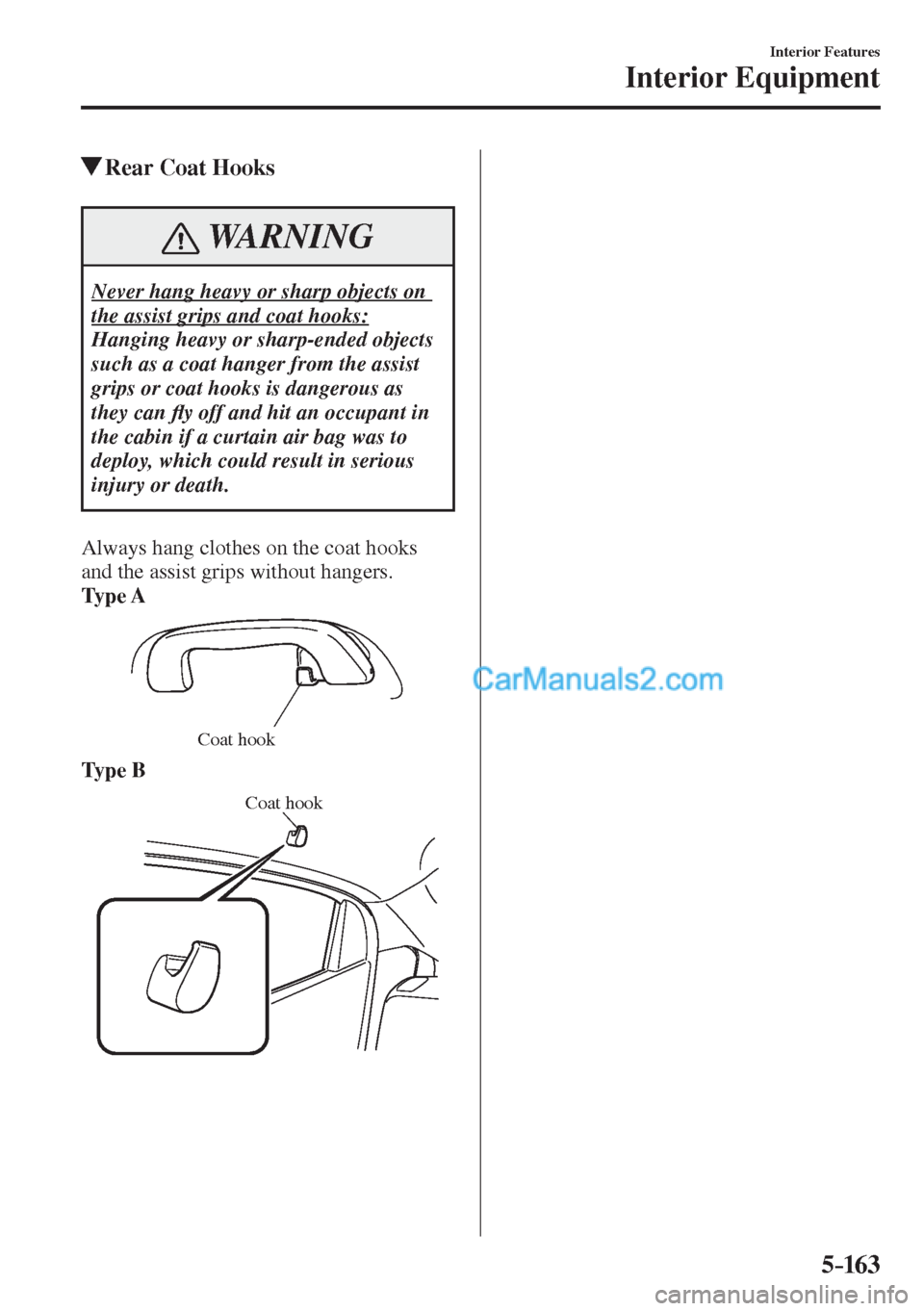

Rear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can À y off and hit an occupant in
the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Ty p e A

Coat hook
Ty p e B

Coat hook

6–15
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
Maintenance Monitor (Type A audio)
“Oil Change” with À exible setting *1 is available. Consult an Authorised Mazda Repairer for
details *2 . When the engine oil À exible maintenance setting is selected, the wrench indicator
light in the instrument cluster will be illuminated when remaining oil life becomes less than
1,000 km (600 mile), or remaining days are less than 15 (Whichever comes ¿ rst).
Reset method
Press and hold the selector with the ignition switched off, then switch it on. Keep pressing
the selector for more than 5 seconds. The master warning light will À ash for a few seconds
when the reset is completed.

Selector

*1 The engine oil À exible maintenance setting is available (only some models). Based on
the engine operating conditions, the onboard computer in your vehicle calculates the
remaining oil life.
*2 When the engine oil À exible maintenance setting is selected, the system must be reset
whenever replacing the engine oil regardless of the wrench indicator light display.

Maintenance Monitor (Type B audio)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor”.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change.

6–18
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suf¿ cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
quali¿ ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures.

If you must run the engine while working under the bonnet, make certain that you
remove all jewellery (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the bonnet with the engine running is dangerous. It becomes even more
dangerous when you wear jewellery or loose clothing.
Either can become entangled in moving parts and result in injury.

Pull over to a safe location, then switch the ignition off and make sure the fan is
not running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running inde¿ nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.

Do not leave items in the engine compartment:
After you have ¿ nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a ¿ re
leading to an unexpected accident.
