5–4
Interior Features
Air-Conditioning System
O p e r a t i n g T i p s













 Operate the air-conditioning system with
the engine running.



 To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



 (With i-stop)
 The airÀ ow amount may decrease
slightly while the i-stop function is
operating.



 Clear all obstructions such as leaves,
snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef¿ ciency.




 Use the air-conditioning system to defog
the windows and dehumidify the air.



 The recirculate mode should be used
when driving through tunnels or while in
a traf¿ c jam, or when you would like to
shut off outside air for quick cooling of
the interior.



 Use the outside air position for
ventilation or windscreen defrosting.



 If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.

(With A/C switch)





 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.



 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef¿ cient.

 The refrigerant speci¿ cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before re¿ lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
  For details, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.


Label

5–16
Interior Features
Air-Conditioning System
Air intake selector
Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.
Recirculated air position (indicator light
illuminated)
Outside air is shut off. Use this position
when going through tunnels, driving in
congested traf¿ c (high engine exhaust
areas) or when quick cooling is desired.
Outside air position (indicator light
turned off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.
WARNING
Do not use the position in cold or
rainy weather:
Using the
position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
Rear window defogger switch
Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-78 .
Operation of Automatic Air-
conditioning
1. Set the mode selector dial to the AUTO
position.
2. Set the air intake selector to the outside
air position (indicator light turned off).
NOTE
If the recirculated air position is used
for long periods in cold weather or high
humidity, the windscreen may fog up
more easily.
3. Set the fan control dial to the AUTO
position.
4. Press the A/C switch to operate the air-
conditioning (turn indicator light on).
5. Set the temperature control dial to the
desired position.
6. To turn off the system, set the fan
control dial to the 0 position.

NOTE
  Setting the temperature to maximum
hot or cold will not provide the
desired temperature at a faster rate.
  When selecting heat, the system will
restrict airÀ ow until it has warmed to
prevent cold air from blowing out of
the vents.

5–17
Interior Features
Air-Conditioning System
Windscreen Defrosting and
Defogging
Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windscreen and side windows (page
5-6 ). AirÀ ow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
( position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air À ow temperature and
defog the windscreen more quickly.
Sunlight/Temperature Sensor
Sunlight sensor
Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.

Sunlight sensor

Interior temperature sensor
Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.

Interior temperature sensor

5–14 8
Interior Features
Appendix



 CDs bearing the logo shown in the
illustration can be played. No other discs
can be played.




 Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system may
not operate properly.



 Be sure never to touch the signal surface
when handling the CDs. Pick up a CD
by grasping the outer edge or the edge of
the hole and the outer edge.




 Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.



 Dust, ¿ nger smudges, and dirt can
decrease the amount of light reÀ ected
from the signal surface, thus affecting
sound quality. If the CD should become
soiled, gently wipe it with a soft cloth
from the centre of the CD to the edge.



 Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.



 The CD player ejects the CD if the CD
is inserted upside down. Also dirty and/
or defective CDs may be ejected.



 Do not insert cleaning discs in the CD
player.



 Do not insert any disc with a peel-off
seal af¿ xed to it.




 This unit may not be able to play certain
CD-R/CD-RWs made using a computer
or music CD recorder due to disc
characteristics, scratches, smudges, dirt,
etc., or due to dust or condensation on
the lens inside the unit.



 Storing CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.



 CD-R/CD-RW exceeding 700 MB
cannot be played.



 This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)



 It is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical data
(CD-DA) is playing.



 The period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.



 Completely read the instruction manual
and cautions for CD-R/CD-RWs.



 Do not use discs with cellophane tape
adhering, partially peeled off labels,
or adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label af¿ xed. The disc may not
eject resulting in a malfunction.

5–152
Interior Features
Appendix



 Be sure never to touch the signal surface
when handling the DVDs. Pick up a
DVD by grasping the outer edge or the
edge of the hole and the outer edge.




 Do not stick paper or tape on the DVD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.



 Dust, ¿ nger smudges, and dirt can
decrease the amount of light reÀ ected
from the signal surface, thus affecting
sound quality. If the DVD should
become soiled, gently wipe it with a soft
cloth from the centre of the DVD to the
edge.



 Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface
of the DVD and must not be used.
Anything that can damage, warp, or fog
plastic should never be used to clean
DVDs.



 The DVD player ejects the DVD if the
DVD is inserted upside down. Also dirty
and/or defective DVDs may be ejected.



 Do not insert cleaning discs in the DVD
player.



 Do not insert any disc with a peel-off
seal af¿ xed to it.




 This unit may not be able to play certain
DVD-R/DVD
R/DVD-RW/DVD
RWs made using a computer or DVD
recorder due to disc characteristics,
scratches, smudges, dirt, etc., or due to
dust or condensation on the lens inside
the unit.



 Storing DVDs in the vehicle exposed to
direct sunlight or high temperature may
damage the DVD-R/DVD
R/DVD-
RW/DVD
RWs, and make them
unplayable.



 This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)



 Completely read the instruction manual
and cautions for DVD-R/DVD
R/
DVD-RW/DVD
RW s .


 Do not use discs with cellophane tape
adhering, partially peeled off labels,
or adhesive material exuding from the
edges of the DVD label. Also, do not
use discs with a commercially-available
DVD-R label af¿ xed. The disc may not
eject resulting in a malfunction.



 The conditions in which a DVD video
can be played may be pre-determined
depending on the intentions of the disc
software creator. Functions may not
operate as the user intends because
this DVD player operates according to
the design intentions of the software
creator. Always refer to the instructions
accompanying the disc to be played.



 Manufactured under license by Dolby
Labouratories, Inc.. Dolby and the
double-D symbol are trademarks of
Dolby Labouratories.

6–49
Maintenance and Care
Owner Maintenance
*Some models.

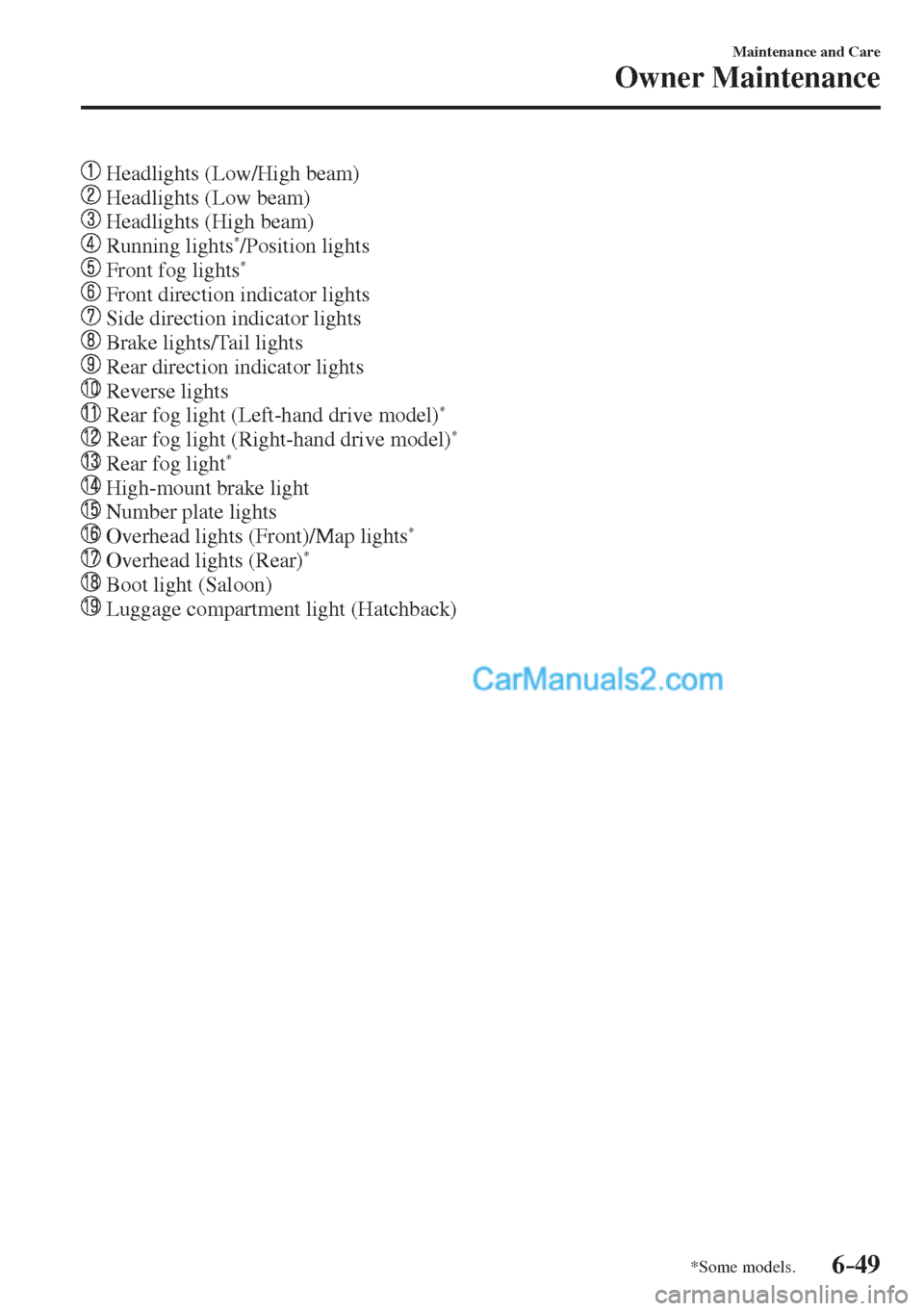

Headlights (Low/High beam)

Headlights (Low beam)

Headlights (High beam)

Running lights * /Position lights

Front fog lights *

Front direction indicator lights

Side direction indicator lights

Brake lights/Tail lights

Rear direction indicator lights

Reverse lights

Rear fog light (Left-hand drive model) *

Rear fog light (Right-hand drive model) *

Rear fog light *

High-mount brake light

Number plate lights

Overhead lights (Front)/Map lights *

Overhead lights (Rear) *

Boot light (Saloon)

Luggage compartment light (Hatchback)

6–53
Maintenance and Care
Owner Maintenance
*Some models.
6. Disconnect the bulb from the socket.
Front direction indicator lights


Running lights/Position lights (With
halogen headlights)
*

Position lights (With halogen
headlights)
*

7. Install the new bulb in the reverse order
of the removal procedure.

Front fog lights * , Side direction
indicator lights, High-mount brake light
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Rear direction indicator lights, Brake
lights/Tail lights
S a l o o n
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.



3. Turn the socket and bulb assembly
anticlockwise and remove it.

6–57
Maintenance and Care
Owner Maintenance
*Some models.
Rear fog light *
S a l o o n
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
anticlockwise and remove it.
3. Disconnect the bulb from the socket.



4. Install the new bulb in the reverse order
of the removal procedure.

Hatchback
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Turn the screw anticlockwise and
remove it, and then partially peel back
the mudguard.



3. Turn the socket and bulb assembly
anticlockwise and remove it.
4. Disconnect the bulb from the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

6–64
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
16 AT PUMP 15 A Transaxle control system
*
17 AT 15 A Transaxle control system *
18 D.LOCK 25 A Power door locks
19 H/L RH 20 A Headlight (RH)
20

7.5 A Engine control system
21 TAIL 20 A Tail lights, Number plate lights, Position lights
22 ST.HEATER 15 A —
— — —
23 ROOM 25 A Overhead light
24 FOG 15 A Front fog lights
*
25 H/CLEAN 20 A Headlight washer *
26 STOP 10 A Brake lights, Rear fog light *
27 HORN 15 A Horn
28 H/L LH 20 A Headlight (LH)
29 ABS/DSC S 30 A ABS, Dynamic stability control system
*
30 HAZARD 15 A Hazard warning À ashers, Direction indicator lights
31 FUEL PUMP 15 A Fuel system
*
32 FUEL WARM 25 A Fuel warmer *
33 WIPER 20 A Front window wiper
34

50 A For protection of various circuits
35 FAN2 30 A Cooling fan
*
36 FUEL PUMP 30 A —
37 ABS/DSC M 50 A ABS, Dynamic stability control system
*
38 EVVT 20 A Engine control system *
39 — — —
40 FAN1 30 A Cooling fan
*
41 FAN3 40 A Cooling fan *
42 ENG.MAIN 40 A Engine control system
43 EPS 60 A Power steering system
*
44 DEFOG 40 A Rear window defogger
45 IG2 30 A For protection of various circuits
46 INJECTOR 30 A Engine control system
*
47 HEATER 40 A Air conditioner
48 P.WINDOW1 30 A Power windows
49 DCDC DE 40 A For protection of various circuits
*

7–41
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning


(Flashing)
Tyre Pressure
Monitoring System
Warning Light
* If the tyre pressure monitoring system has a malfunction, the tyre pressure warning
light À ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an expert repairer, we recommend an
Authorised Mazda Repairer as soon as possible.
WARNING
If the tyre pressure monitoring system warning light illuminates or À ashes, or the tyre
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden manoeuvring and braking:
If the tyre pressure monitoring system warning light illuminates or À ashes, or the
tyre pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden manoeuvring or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a À at, pull over to a safe position where you
can check the visual condition of the tyre and determine if you have enough air
to proceed to a place where air may be added and the system monitored again by
an expert repairer, we recommend an Authorised Mazda Repairer or a tyre repair
station.

Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is
illuminated. Have the problem taken care of as soon as possible before it develops
into a more serious situation that could lead to tyre failure and a dangerous accident.


(Red)
(Turns on)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) À ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected at
an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-11 .


Security Indicator
Light If the engine does not start with the correct key, and the security indicator light remains
illuminated or À ashing, try the following:
Make sure the key is within the operational range for signal transmission. Switch the
ignition off, and then restart the engine. If the engine does not start after 3 or more tries,
contact an expert repairer, we recommend an Authorised Mazda Repairer.


(Amber)
High Beam Control
System (HBC)
Warning Light
* The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
