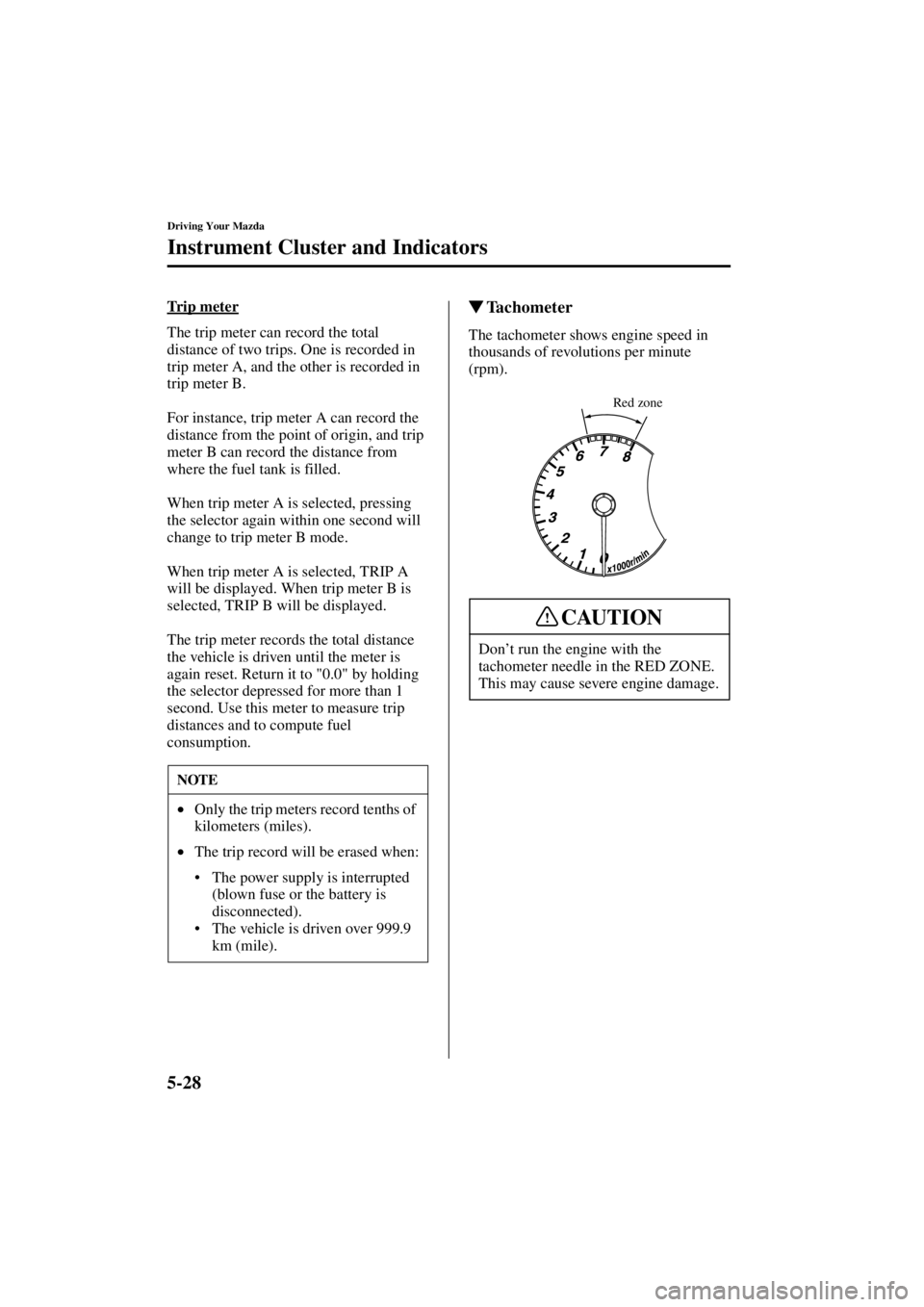

5-28
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8S18-EA-03I
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
NOTE
• Only the trip meters record tenths of
kilometers (miles).
• The trip record will be erased when:

The power supply is interrupted
(blown fuse or the battery is
disconnected).
 The vehicle is driven over 999.9
km (mile).
Don ’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Red zone
CAUTION
