headlights MAZDA MODEL 3 4-DOOR 2009 User Guide

Black plate (342,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
18 AUDIO 30AAudio system
(BOSE
®Sound System-equipped model)
19 ABS IG 10A ABSí, DSCí
20 FOG 15A Front fog lightsí
21HORN 15A Horn
22 DRL 10A DRLí
23 H/CLEAN ――
24 F/PUMP 15A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
í
27 ALT/TCM 15A TCMí
28 GLOW SIG ――
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ENG BAR 4 10A O
2sensorsí
33 ENG BAR 3 10A O2sensors
34 EGI INJ 10A Injector
35 ENG BAR 1 10A For protection of various circuits
36 ENG BAR 2 10A PCM , Fuel pump
With turbocharger DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 70A Cooling fan
2 ―― ―
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 F/PUMP 30A Fuel pump
6 ―― ―
7 ABS 1 30A ABS, DSC
8 ABS 2 20A ABS, DSC
9 ENGINE 30A For protection of various circuits
10 INJECTOR 30A Fuel injector 11 IG KEY1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY2 30A Ignition switch
14 ―― ―
15 HEATER 40A Blower motor
16 ―― ―
17 DEFOG 40A Rear window defroster
18 AUDIO 30A Audio system
(BOSE
®Sound System-equipped model)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition2 Page342
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (409,1)

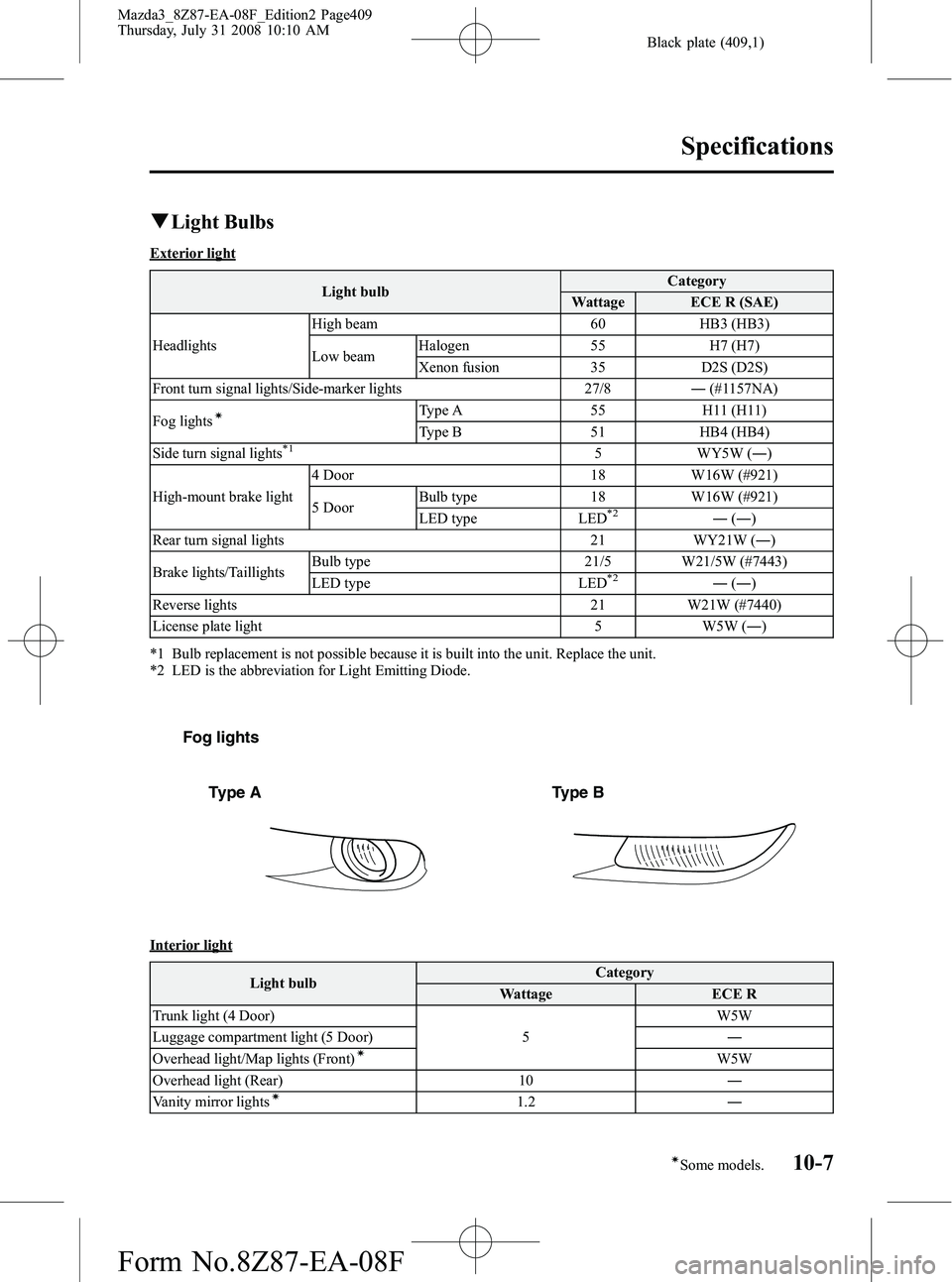

qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam 60 HB3 (HB3)
Low beam
Halogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Side-marker lights 27/8 ―(#1157NA)
Fog lights
íType A 55H11 (H11)
Type B 51HB4 (HB4)
Side turn signal lights
*15 WY5W (―)
High-mount brake light 4 Door
18W16W (#921)
5 Door Bulb type
18W16W (#921)
LED type LED
*2―(― )
Rear turn signal lights 21 WY21W ( ―)
Brake lights/Taillights Bulb type 21/5 W21/5W (#7443)
LED type LED
*2―
(― )
Reverse lights 21 W21W (#7440)
License plate light 5 W5W ( ―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Fog lights
Type A Type B
Interior light Light bulb Category
Wattage ECE R
Trunk light (4 Door) 5W5W
Luggage compartment light (5 Door) ―
Overhead light/Map lights (Front)
íW5W
Overhead light (Rear) 10 ―
Vanity mirror lights
í1.2 ―
Specifications
10-7íSome models.
Mazda3_8Z87-EA-08F_Edition2 Page409
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (413,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-54
DefrosterMirror ......................................... 5-60
Rear window .............................. 5-60
Dimensions ....................................... 10-5
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving ............................ 4-10
Dynamic Stability Control (DSC) ..... 5-24 DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-25
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-4
E
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-22
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher Hazard warning .......................... 5-61
Headlights .................................. 5-51
Flat Tire ............................................... 7-3 Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-74
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-55
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-21
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
Mazda3_8Z87-EA-08F_Edition2 Page413
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F

Black plate (414,1)
F
Fuses ................................................. 8-50Panel description ........................ 8-53
Replacement ............................... 8-50
G
Glove Box ......................................... 6-72
H
Hazard Warning Flasher .................... 5-61
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-53
High-low beam .......................... 5-53
Leveling ..................................... 5-53
On reminder ............................... 5-53
Hood Release .................................... 3-22
Horn .................................................. 5-61
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-62
Immobilizer System .......................... 3-27
Indicator Lights ................................. 5-38 Cruise ......................................... 5-48
DSC OFF .................................... 5-48
Headlight high-beam .................. 5-47
Power steering malfunction ........ 5-49
Security ...................................... 5-47
Shift position .............................. 5-47
TCS/DSC ................................... 5-48
Turn-signal/hazard warning ....... 5-49
I
Information Display .......................... 6-65Ambient temperature display ..... 6-66
Audio display ............................. 6-67
Climate control display .............. 6-67
Clock .......................................... 6-66
Information display functions .... 6-65
Trip computer ............................. 6-67
Inside Trunk Release Lever ............... 3-17
Instrument Cluster ............................. 5-33
Instrument Cluster Dimmer Select
Button ............................................... 5-36
Interior Care ...................................... 8-63
Interior Lights ................................... 6-62
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-54
Liftgate .............................................. 3-12 Luggage compartment ............... 3-13
Light Bulbs Replacement ............................... 8-39
Specifications ............................. 10-7
Lighter ............................................... 6-70
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-63
11-4
Index
Mazda3_8Z87-EA-08F_Edition2 Page414
Thursday, July 31 2008 10:10 AM
Form No.8Z87-EA-08F
