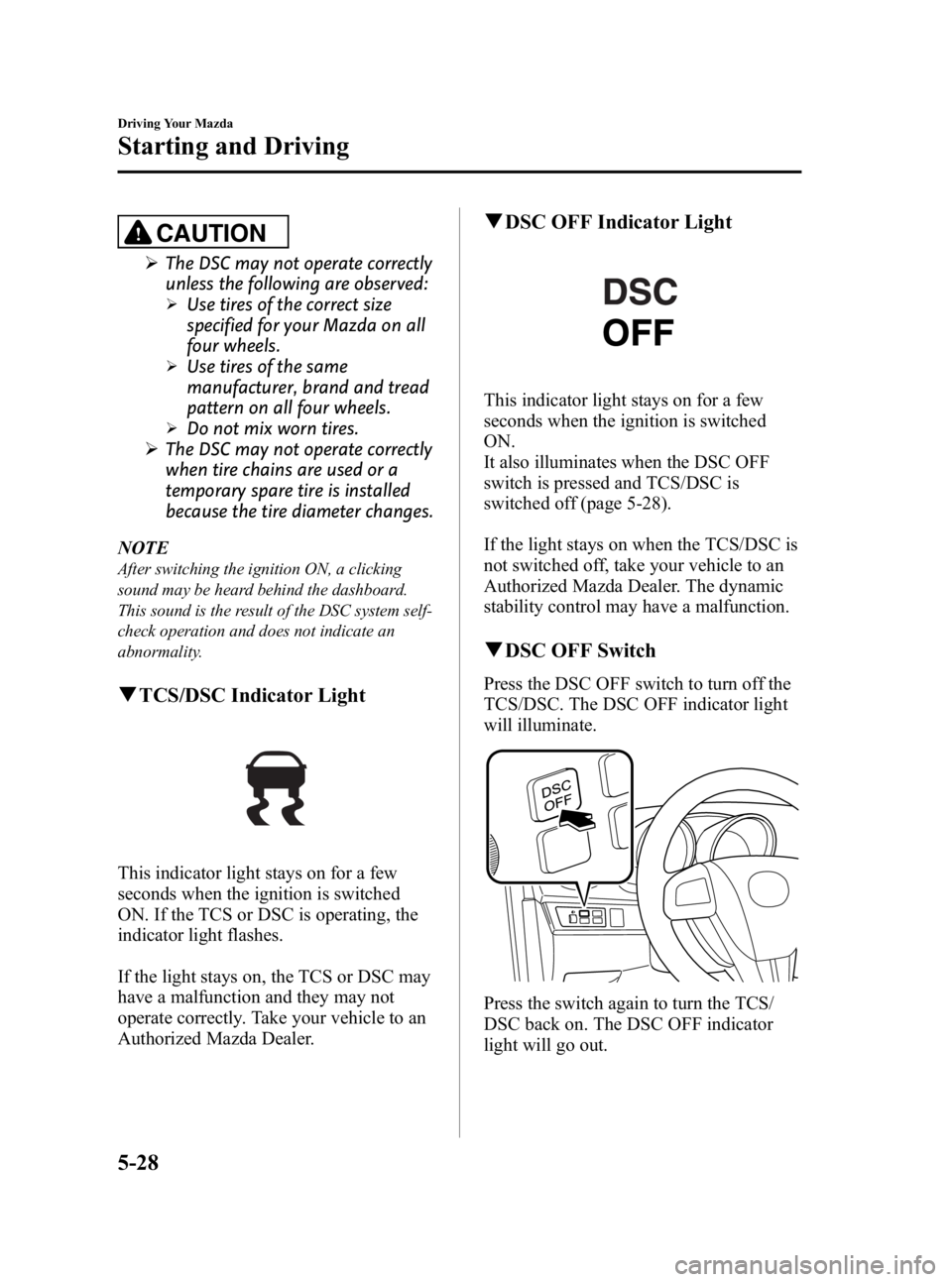

Black plate (188,1)
CAUTION
ØThe DSC may not operate correctly
unless the following are observed:
ØUse tires of the correct size
specified for your Mazda on all
four wheels.
ØUse tires of the same
manufacturer, brand and tread
pattern on all four wheels.
ØDo not mix worn tires.
Ø The DSC may not operate correctly
when tire chains are used or a
temporary spare tire is installed
because the tire diameter changes.
NOTE
After switching the ignition ON, a clicking
sound may be heard behind the dashboard.
This sound is the result of the DSC system self-
check operation and does not indicate an
abnormality.
q TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
qDSC OFF Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-28).
If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.
qDSC OFF Switch
Press the DSC OFF switch to turn off the
TCS/DSC. The DSC OFF indicator light
will illuminate.
Press the switch again to turn the TCS/
DSC back on. The DSC OFF indicator
light will go out.
5-28
Driving Your Mazda
Starting and Driving
Mazda3_8BG3-EA-09J_Edition2 Page188
Tuesday, December 8 2009 1:28 PM
Form No.8BG3-EA-09J

Black plate (196,1)
Meters and Gauges
(Black-out meter)
When the ignition is switched ON, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-37
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-37
Tachometer ........................................................................................................ page 5-38
Fuel Gauge ........................................................................................................ page 5-38
Boost Gauge (2.3-liter turbocharged engine) ..................................................... page 5-39
Dashboard Illumination ..................................................................................... page 5-40
5-36
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8BG3-EA-09J_Edition2 Page196
Tuesday, December 8 2009 1:28 PM
Form No.8BG3-EA-09J

Black plate (200,1)
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
l(Black-out meter)
The brightness of the instrument cluster
illumination can be adjusted when the
headlight switch is in any position.
Bright
Dim
Canceling the illumination dimmer
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity. To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the illumination dimmer is cancelled, the
instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again.
5-40
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8BG3-EA-09J_Edition2 Page200
Tuesday, December 8 2009 1:28 PM
Form No.8BG3-EA-09J

Black plate (215,1)
The following conditions could indicate
that the system is malfunctioning. If one
of the following conditions occurs,
consult an Authorized Mazda Dealer.
lThe AFS OFF indicator light does not
illuminate even though the ignition is
switched ON.
lThe AFS OFF indicator light flashes
continuously.
NOTE
Even if the AFS is not operating due to some
malfunction, the normal headlight function is
still operable.
q Cruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
í
The indicator light has two colors.
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON switch is pressed and the
cruise control system is activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qLights-On Indicator Light
(Black-out meter)
This indicator light illuminates when the
exterior lights and dashboard illumination
are on.
qPower Steering Malfunction
Indicator Light
This indicator light illuminates when the
ignition is switched ON, and turns off
when the engine is started.
If the light remains illuminated after the
engine is started, or illuminates while
driving, turn off the engine after parking
in a safe place, and then start the engine
again.
If the light does not illuminate after
restarting the engine, this indicates that
the power steering is restored and normal
steering is possible.
If the light remains illuminated, the power
steering is still inoperable. Consult an
Authorized Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-55íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page215
Tuesday, December 8 2009 1:28 PM
Form No.8BG3-EA-09J

Black plate (218,1)
Lighting Control
qHeadlights
NOTE
To prevent discharging the battery, do not
leave the lights on while the engine is off
unless safety requires them.
Type A (Without AUTO position)
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illumination Off On On
Type B (With AUTO position)
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
Switch Position
Headlights Off
AutoOff On
Taillights
Parking lights
License lights
Side-marker
lights
Dashboard
illumination Off On On
AUTO(Auto-light control)
When the headlight is in the AUTO
position and the ignition is switched ON,
the light sensor senses the surrounding
lightness or darkness and automatically
turns on or off the headlights, other
exterior lights and dashboard illumination
(see chart above).
NOTE
The dashboard illumination can be adjusted by
rotating the knob in the instrument cluster.
Also, the day/night mode can be changed by
pressing the knob.
To adjust the brightness of the dashboard
illumination:
Refer to Dashboard Illumination on page 5-40.
5-58
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page218
Tuesday, December 8 2009 1:28 PM
Form No.8BG3-EA-09J

Black plate (219,1)
CAUTION
ØDo not shade the light sensor by
adhering a sticker or a label on
the windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
ØThe light sensor also works as a
rain sensor for the auto-wiper
control. Keep hands and scrapers
clear of the windshield when the
wiper lever is in the AUTO position
and the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically. If you are going to
clean the windshield, be sure the
wipers are turned off
completely ―this is particularly
important when clearing ice and
snow ―when it is particularly
tempting to leave the engine
running. NOTE
lThe headlights, other exterior lights and
dashboard illumination may not turn off
immediately even if the surrounding area
becomes well-lit because the light sensor
determines that it is nighttime if the
surrounding area is continuously dark for
several minutes such as inside long tunnels,
traffic jams inside tunnels, or in indoor
parking lots.
In this case, the light turns off if the light
switch is turned to the OFF position.
lWhen the headlight switch is in the AUTO
position and the ignition is switched to
ACC or off (LOCK), the headlights, other
exterior lights and dashboard illumination
will turn off.
lThe timing for turning on the headlights,
other exterior lights and dashboard
illumination can be delayed by adjusting
the sensitivity of the light sensor. Consult an
Authorized Mazda Dealer regarding sensor
adjustment.
lThe sensitivity of the AUTO lights may be
changed.
Refer to Personalization Features on page
10-10.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Driving Your Mazda
Switches and Controls
5-59íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page219
Tuesday, December 8 2009 1:28 PM
Form No.8BG3-EA-09J

Black plate (222,1)
Pressing the AFS OFF switch again turns
off the AFS OFF indicator light and turns
on the AFS.
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.
NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn
Right lane change
Left lane change OFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
5-62
Driving Your Mazda
Switches and Controls
Mazda3_8BG3-EA-09J_Edition2 Page222
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (223,1)
NOTElIf an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.
lA personalized function is available to
change the number of flashes.Refer to
Personalization Features on page 10-10.
lA personalized function is available to
change the turn indicator sound
volume.Refer to Personalization Features
on page 10-10.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position to turn on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
Driving Your Mazda
Switches and Controls
5-63íSome models.
Mazda3_8BG3-EA-09J_Edition2 Page223
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (234,1)
qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda3_8BG3-EA-09J_Edition2 Page234
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (286,1)
Audio Control Switch
Operation
í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned off under
the following conditions, the switches will be
inoperable.
lWhen the ignition is turned off (LOCK).lWhen the power button on the audio unit is
pressed and the audio unit is turned off.
Without Bluetooth Hands-Free
With Bluetooth Hands-Free
Talk buttonPick-up buttonTalk button
Hang-up button
Pick-up button
NOTElThe talk button, pick-up button, and hang-
up button are operable with the audio unit
turned off.
lMazda has installed this system to prevent
distraction while driving the vehicle and
using audio controls on the dashboard.
Always make safe driving your first priority.
q
Adjusting the Volume
To increase the volume, pull up the
volume switch.
To decrease the volume, press down the
volume switch.
Without Bluetooth Hands-Free
With Bluetooth Hands-Free
6-56
Interior Comfort
íSome models.
Audio System
Mazda3_8BG3-EA-09J_Edition2 Page286
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J
