dimensions MAZDA MODEL 3 4-DOOR 2011 Owners Manual

Black plate (497,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil 2.0-liter engine
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engine With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engine With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil 2.0-liter engine
2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 2.0-liter engine
55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8BM5-EA-10F_Edition3 Page497
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

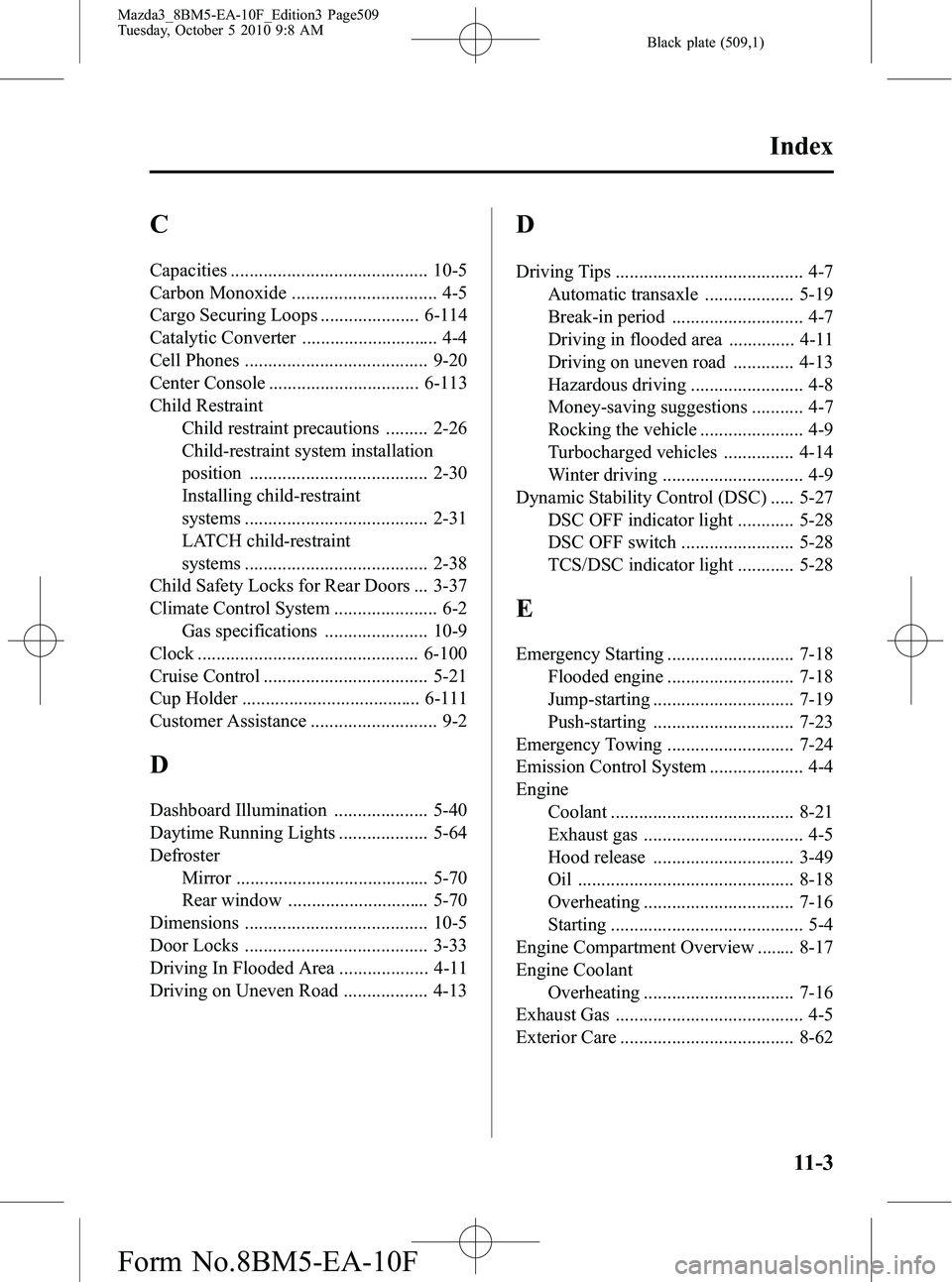

Black plate (509,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-114
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-113
Child RestraintChild restraint precautions ......... 2-26
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-38
Child Safety Locks for Rear Doors ... 3-37
Climate Control System ...................... 6-2 Gas specifications ...................... 10-9
Clock ............................................... 6-100
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-111
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-40
Daytime Running Lights ................... 5-64
Defroster Mirror ......................................... 5-70
Rear window .............................. 5-70
Dimensions ....................................... 10-5
Door Locks ....................................... 3-33
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
D
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-19
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27 DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-28
TCS/DSC indicator light ............ 5-28
E
Emergency Starting ........................... 7-18Flooded engine ........................... 7-18
Jump-starting .............................. 7-19
Push-starting .............................. 7-23
Emergency Towing ........................... 7-24
Emission Control System .................... 4-4
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-49
Oil .............................................. 8-18
Overheating ................................ 7-16
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-16
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-62
Index
11-3
Mazda3_8BM5-EA-10F_Edition3 Page509
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
