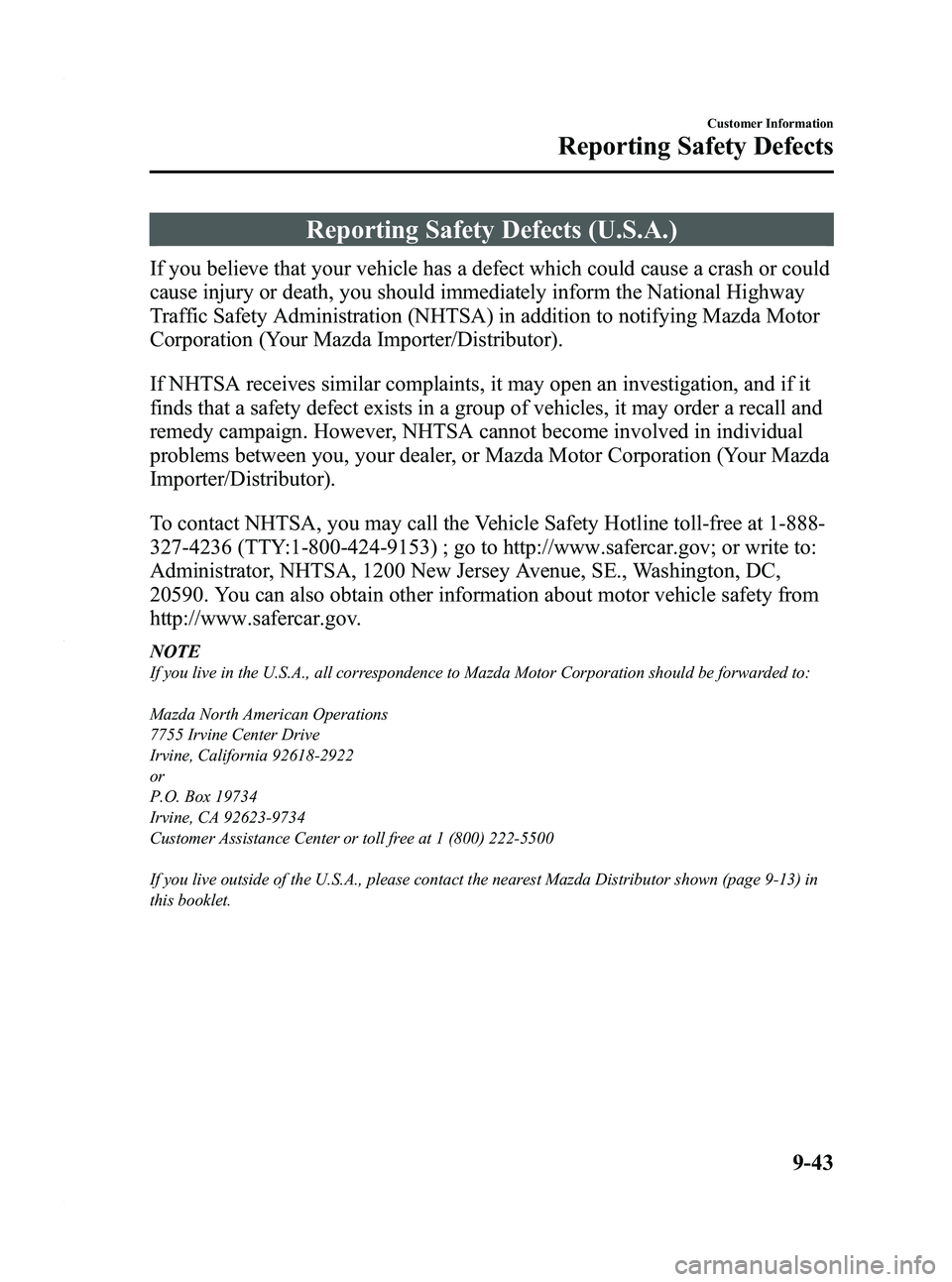

Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY:1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC,
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-13) in
this booklet.
Customer Information
Reporting Safety Defects
9-43
Mazda3_8BY6-EA-11F_Edition3 Page501
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (502,1)

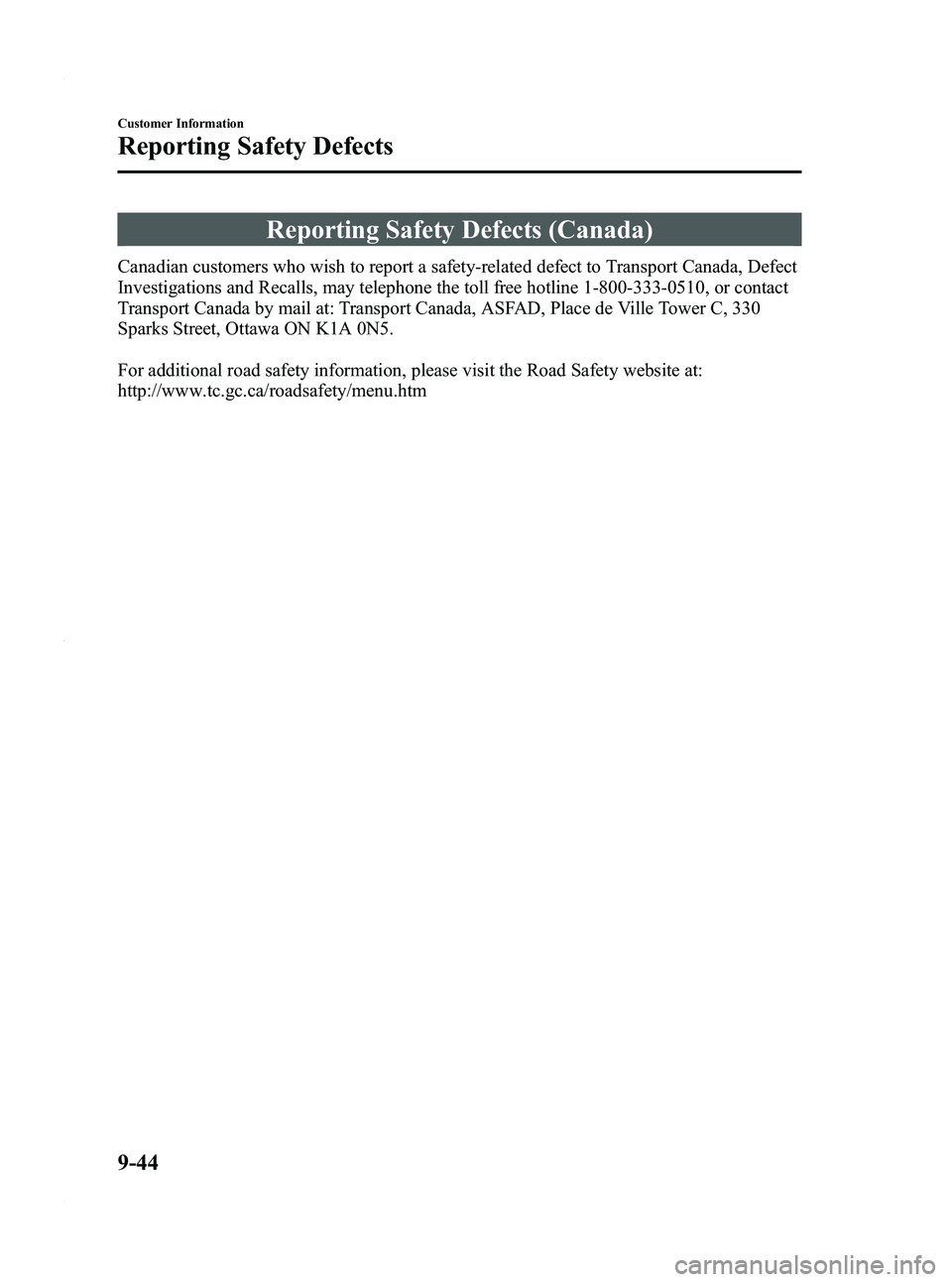

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
9-44
Customer Information
Reporting Safety Defects
Mazda3_8BY6-EA-11F_Edition3 Page502
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (503,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-017B-12 2012 WORKSHOP MANUAL (English)
9999-MX-017B-12 2012 WORKSHOP MANUAL (Spanish)
9999-95-019G-12 2012 WIRING DIAGRAM (English)
9999-MX-019G-12 2012 WIRING DIAGRAM (Spanish)
9999-95-038C-12 (U.S.A. only) 2012 OWNER'S MANUAL
9999-EC-038C-12 (Canada only) 2012 OWNER'S MANUAL
9999-PR-038C-12 (Puerto Rico, Mexico only) 2012 OWNER'S MANUAL
9999-95-064F-12 2012 SERVICE HIGHLIGHTS
9999-95-038C-12NAV (U.S.A. only) 2012 NAVIGATION SYSTEM OWNER'S MANUAL
9999-EC-038C-12NAV (Canada only) 2012 NAVIGATION SYSTEM OWNER'S MANUAL
9999-PR-038C-12NAV (Puerto Rico, Mexico only) 2012 NAVIGATION SYSTEM OWNER'S MANUAL
q WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
Customer Information
Service Publications
9-45
Mazda3_8BY6-EA-11F_Edition3 Page503
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (504,1)
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
9-46
Customer Information
Service Publications
Mazda3_8BY6-EA-11F_Edition3 Page504
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (505,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features .......................................................... 10-12 Personalization Features ........................................................ 10-12
10-1
Mazda3_8BY6-EA-11F_Edition3 Page505
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (506,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Labelí
qTire Pressure Label
10-2íSome models.
Identification Numbers
Mazda3_8BY6-EA-11F_Edition3 Page506
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (507,1)
qEngine Number
MZR 2.0, MZR 2.5
Forward
SKYACTIV-G 2.0
Forward
MZR 2.3 DISI Turbo
Forward
Identification Numbers
10-3
Mazda3_8BY6-EA-11F_Edition3 Page507
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (508,1)
Specifications
qEngine
Item Specification
MZR 2.0 SKYACTIV-G 2.0
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 83.1 mm (3.44 × 3.27 in) 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,999 ml (1,999 cc, 122.0 cu in) 1,998 ml (1,998 cc, 121.9 cu in)
Compression ratio 10.0 12.0
Item Specification
MZR 2.3 DISI Turbo MZR 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,261 ml (2,261 cc, 138.0 cu in) 2,488 ml (2,488 cc, 151.8 cu in)
Compression ratio 9.5 9.7
q Electrical System
Item Classification
MZR 2.0 SKYACTIV-G 2.0
Battery 12V-40AH/5HR, 12V-52AH/5HR 12V-48AH/5HR, 12V-52AH/5HR
Spark-plug number NGK ILTR5A13G NGK DILKAR7F8
DENSO FC20HPR8
Spark-plug gap 1.25 ―1.35 mm (0.049 ―0.053 in) 0.75 ―0.85 mm (0.030 ―0.033 in)
Item Classification
MZR 2.3 DISI Turbo MZR 2.5
Battery 12V-48AH/5HR, 12V-52AH/5HR 12V-40AH/5HR, 12V-48AH/5HR,
12V-52AH/5HR
Spark-plug number NGK SILTR6A7G NGKILTR5A13G
Spark-plug gap 0.60―0.70 mm (0.024 ―0.027 in) 1.25 ―1.35 mm (0.049 ―0.053 in)
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
10-4
Specifications
Mazda3_8BY6-EA-11F_Edition3 Page508
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (509,1)
qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-19.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid 5-speed transaxle
Mazda Genuine ATF M-V
6-speed transaxle Mazda Genuine ATF FZ
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil MZR 2.0
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
SKYACTIV-G 2.0
With oil filter
replacement4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter
replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
MZR 2.3 DISI Turbo
With oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
MZR 2.5 With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant
SKYACTIV-G 2.0Manual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic transaxle 8.2 L (8.7 US qt, 7.2 Imp qt)
Except SKYACTIV-G 2.0 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual
transaxle oil MZR 2.0
2.77 L (2.93 US qt, 2.44 Imp qt)
SKYACTIV-G 2.0 1.65 L (1.74 US qt, 1.45 Imp qt)
MZR 2.3 DISI Turbo 2.5 L (2.6 US qt, 2.2 Imp qt)
MZR 2.5 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic
transaxle fluid 5-speed transaxle
8.14 L (8.60 US qt, 7.16 Imp qt)
6-speed transaxle 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank MZR 2.0, SKYACTIV-G 2.0
55.0 L (14.5 US gal, 12.1 Imp gal)
MZR 2.3 DISI Turbo, MZR 2.5 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
10-5
Mazda3_8BY6-EA-11F_Edition3 Page509
Thursday, March 1 2012 10:19 AM
Form No.8BY6-EA-11F

Black plate (510,1)
qDimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
5 Door
(Except MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BY6-EA-11F_Edition3 Page510
