Black plate (89,1)
l(Auto re-lock function)
After unlocking all doors and the liftgate by
pressing the request switch, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 30 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-13.
lA door or the liftgate/trunk lid is opened.lThe auxiliary key is inserted into the key
slot.
lThe push button start is in any position
except off.
qOpening the Liftgate/Trunk Lid
A locked liftgate/trunk lid can also be
opened while the advanced key is being
carried.
5 Door
Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.
Electric liftgate
opener
NOTE
When the liftgate is unlocked by pressing the
electric liftgate opener button, the liftgate
raises slightly to allow it to be opened. If the
liftgate is not operated for a certain period of
time after the electric liftgate opener button
has been pressed, the liftgate cannot be raised
any more from its slightly raised position.
Press the electric liftgate opener button again
to fully open the liftgate. To close the liftgate
from its slightly raised position, open it first by
pressing the electric liftgate opener button and
wait for 1 second or longer, then close it.
The door-ajar warning light will illuminate if
the liftgate is not fully closed.
4 Door
Raise the trunk lid by pressing the electric
trunk lid opener on trunk lid.
Electric trunk
lid opener
While the ignition is switched ON, the
liftgate/trunk lid can be opened only when
the vehicle is stopped with the parking
brake applied (manual transaxle), or with
the selector lever in the P position
(automatic transaxle).
NOTE
When using the advanced keyless function to
open the liftgate/trunk lid, it may require a few
seconds for the liftgate/trunk lid to unlock after
the electric liftgate/trunk lid opener is pressed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
Mazda3_8CV6-EA-12H_Edition3 Page89
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

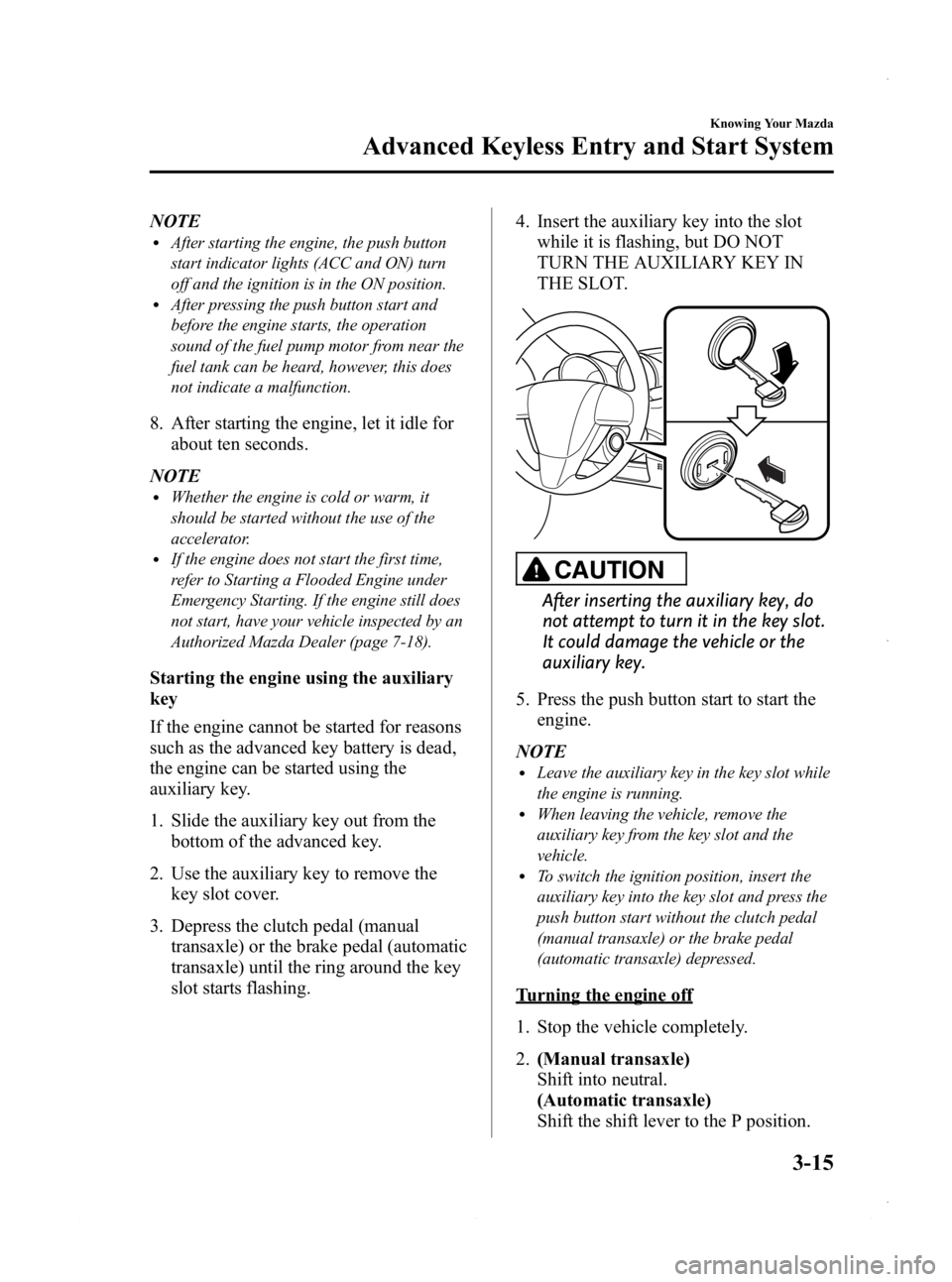

Black plate (93,1)
NOTElAfter starting the engine, the push button
start indicator lights (ACC and ON) turn
off and the ignition is in the ON position.
lAfter pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near the
fuel tank can be heard, however, this does
not indicate a malfunction.
8. After starting the engine, let it idle forabout ten seconds.
NOTE
lWhether the engine is cold or warm, it
should be started without the use of the
accelerator.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-18).
Starting the engine using the auxiliary
key
If the engine cannot be started for reasons
such as the advanced key battery is dead,
the engine can be started using the
auxiliary key.
1. Slide the auxiliary key out from the bottom of the advanced key.
2. Use the auxiliary key to remove the key slot cover.
3. Depress the clutch pedal (manual transaxle) or the brake pedal (automatic
transaxle) until the ring around the key
slot starts flashing. 4. Insert the auxiliary key into the slot
while it is flashing, but DO NOT
TURN THE AUXILIARY KEY IN
THE SLOT.
CAUTION
After inserting the auxiliary key, do
not attempt to turn it in the key slot.
It could damage the vehicle or the
auxiliary key.
5. Press the push button start to start the engine.
NOTE
lLeave the auxiliary key in the key slot while
the engine is running.
lWhen leaving the vehicle, remove the
auxiliary key from the key slot and the
vehicle.
lTo switch the ignition position, insert the
auxiliary key into the key slot and press the
push button start without the clutch pedal
(manual transaxle) or the brake pedal
(automatic transaxle) depressed.
Turning the engine off
1. Stop the vehicle completely.
2. (Manual transaxle)
Shift into neutral.
(Automatic transaxle)
Shift the shift lever to the P position.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
Mazda3_8CV6-EA-12H_Edition3 Page93
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (94,1)
3. Press the push button start to turn offthe engine.
CAUTION
When leaving the vehicle, make sure
the push button start is pressed to
off.
NOTE
lWhen the push button start is pressed to off
from ON, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery power
of the advanced key is low. Replace with a
new battery before the advanced key
becomes unusable.
Refer to Advanced Key Maintenance on
page 3-5.
l(Automatic transaxle)
If the engine is turned off while the shift
lever is in a position other than P, the
ignition switches to ACC.
Emergency engine stop
WARNING
Do not stop the engine while the
vehicle is moving: Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
braking ability due to the loss of
power braking, which could cause an
accident and serious injury.
Continuously pressing the push button
start while the engine is running and the
vehicle is stopped, or quickly pressing it
any number of times will turn the engine
off immediately.
Operation Using Advanced
Key Functions
q Keyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate, and
opens the trunk lid.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the key slot.
lThe keyless entry system is fully operational
when the push button start is switched off.
The system does not operate if the push
button start is switched to any position
other than off.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8CV6-EA-12H_Edition3 Page94
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

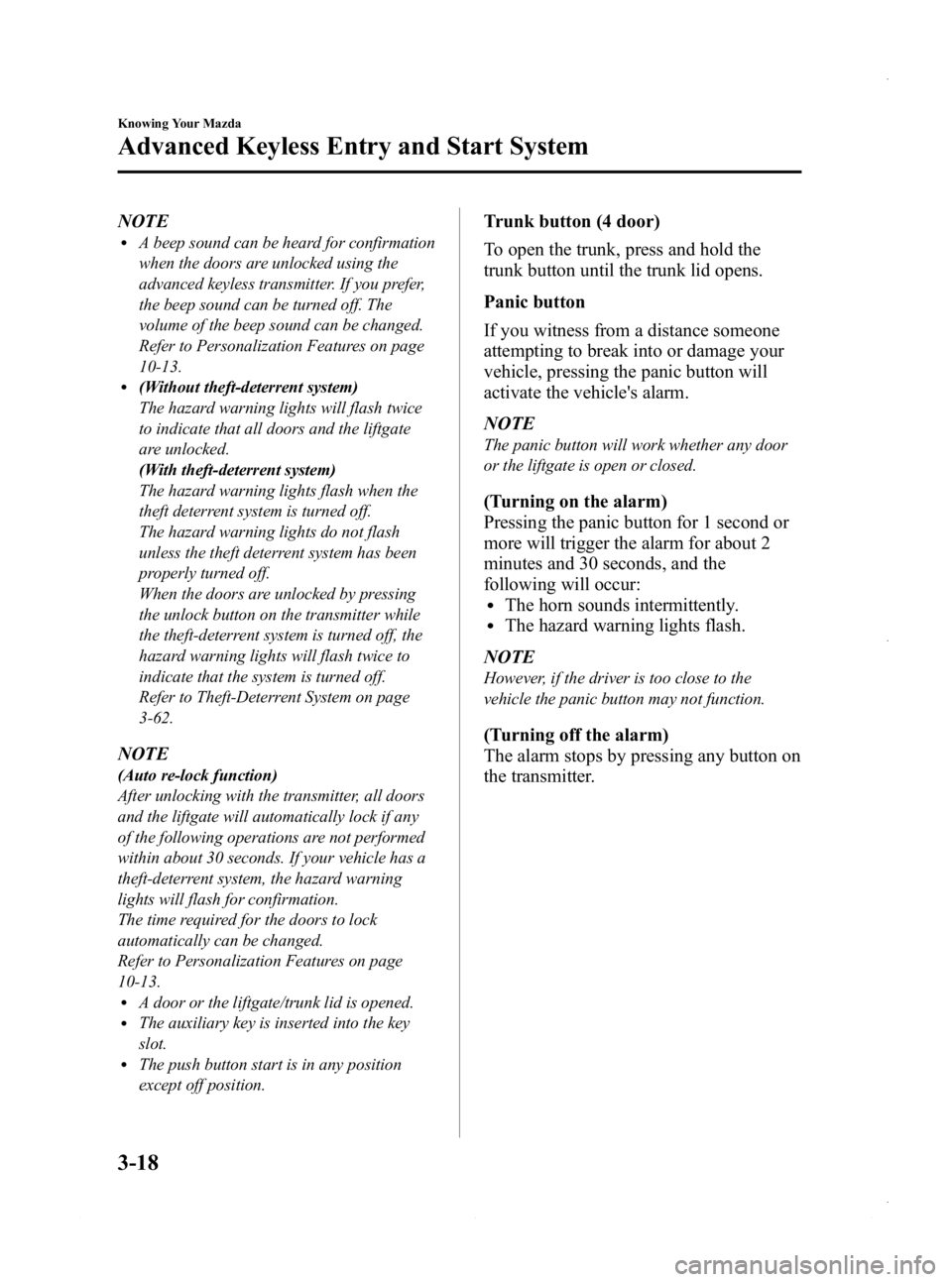

Black plate (96,1)
NOTElA beep sound can be heard for confirmation
when the doors are unlocked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off. The
volume of the beep sound can be changed.
Refer to Personalization Features on page
10-13.
l(Without theft-deterrent system)
The hazard warning lights will flash twice
to indicate that all doors and the liftgate
are unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash
unless the theft deterrent system has been
properly turned off.
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
Refer to Theft-Deterrent System on page
3-62.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if any
of the following operations are not performed
within about 30 seconds. If your vehicle has a
theft-deterrent system, the hazard warning
lights will flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-13.
lA door or the liftgate/trunk lid is opened.lThe auxiliary key is inserted into the key
slot.
lThe push button start is in any position
except off position.
Trunk button (4 door)
To open the trunk, press and hold the
trunk button until the trunk lid opens.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazda3_8CV6-EA-12H_Edition3 Page96
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

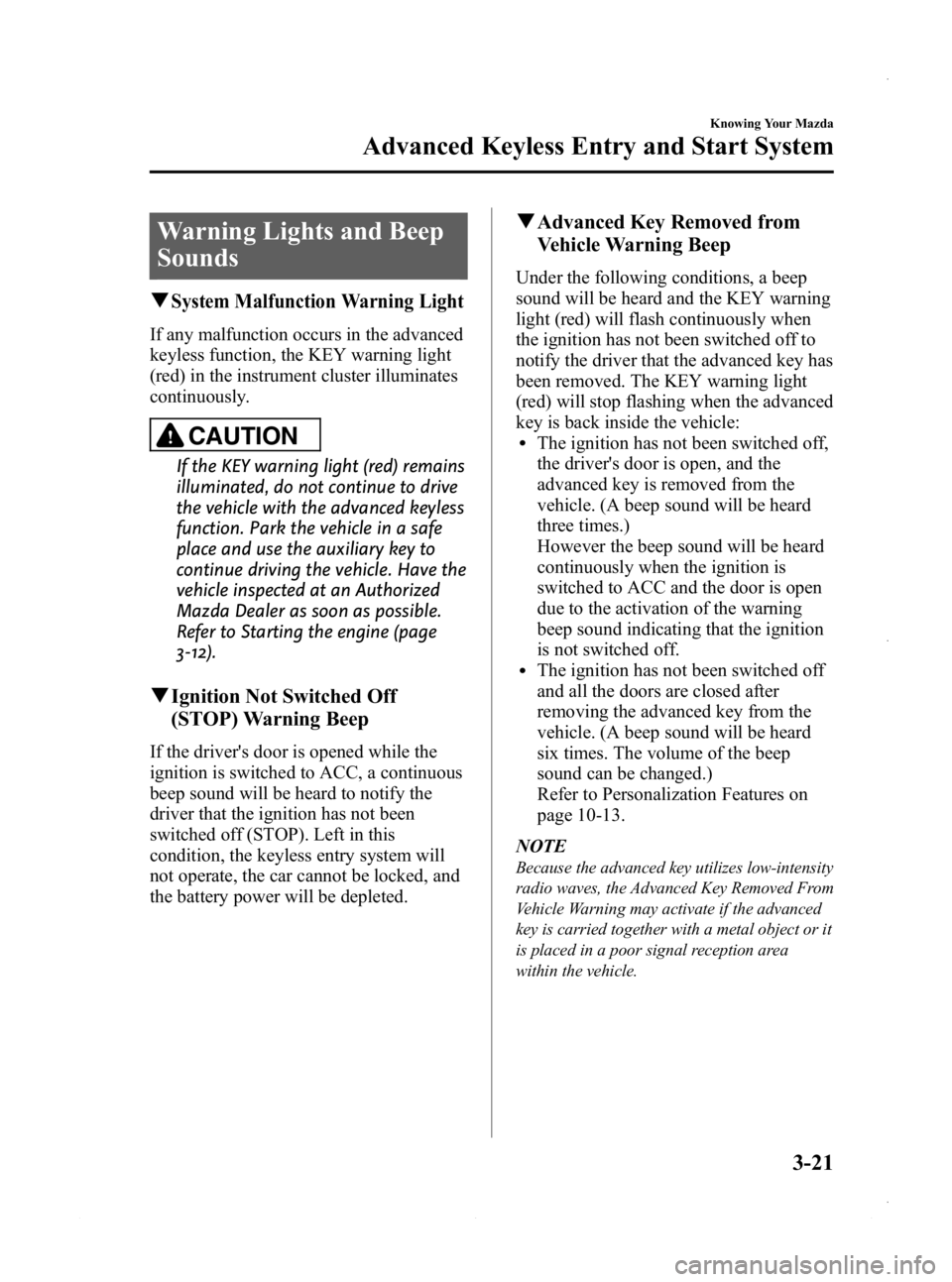

Black plate (99,1)
Warning Lights and Beep
Sounds
qSystem Malfunction Warning Light
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive
the vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Starting the engine (page
3-12).
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the advanced key has
been removed. The KEY warning light
(red) will stop flashing when the advanced
key is back inside the vehicle:
lThe ignition has not been switched off,
the driver's door is open, and the
advanced key is removed from the
vehicle. (A beep sound will be heard
three times.)
However the beep sound will be heard
continuously when the ignition is
switched to ACC and the door is open
due to the activation of the warning
beep sound indicating that the ignition
is not switched off.
lThe ignition has not been switched off
and all the doors are closed after
removing the advanced key from the
vehicle. (A beep sound will be heard
six times. The volume of the beep
sound can be changed.)
Refer to Personalization Features on
page 10-13.
NOTE
Because the advanced key utilizes low-intensity
radio waves, the Advanced Key Removed From
Vehicle Warning may activate if the advanced
key is carried together with a metal object or it
is placed in a poor signal reception area
within the vehicle.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-21
Mazda3_8CV6-EA-12H_Edition3 Page99
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (125,1)

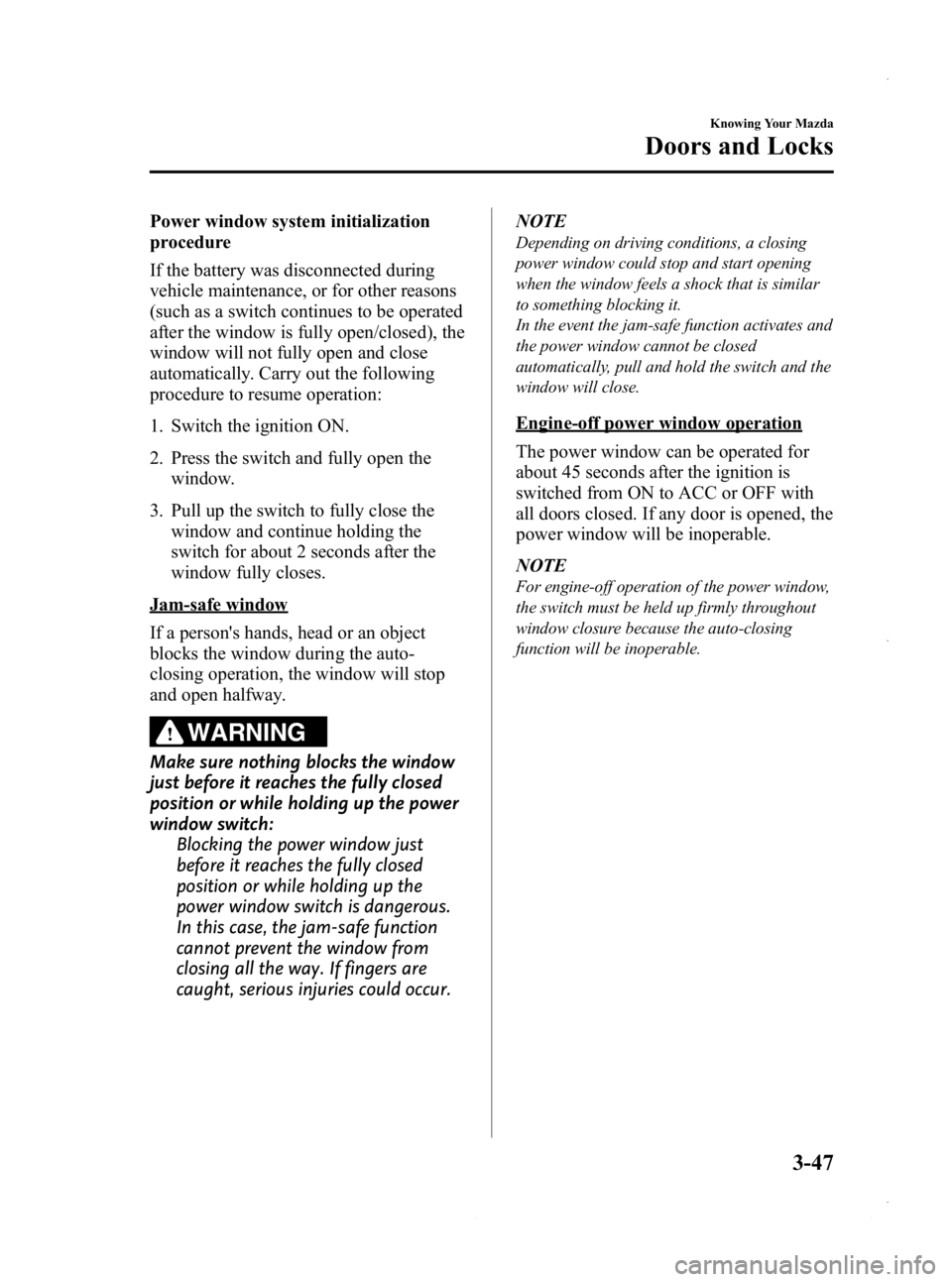

Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically. Carry out the following
procedure to resume operation:
1. Switch the ignition ON.
2. Press the switch and fully open thewindow.
3. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closes.
Jam-safe window
If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while holding up the power
window switch: Blocking the power window just
before it reaches the fully closed
position or while holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur. NOTE
Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.
Engine-off power window operation
The power window can be operated for
about 45 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.
NOTE
For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.
Knowing Your Mazda
Doors and Locks
3-47
Mazda3_8CV6-EA-12H_Edition3 Page125
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (142,1)

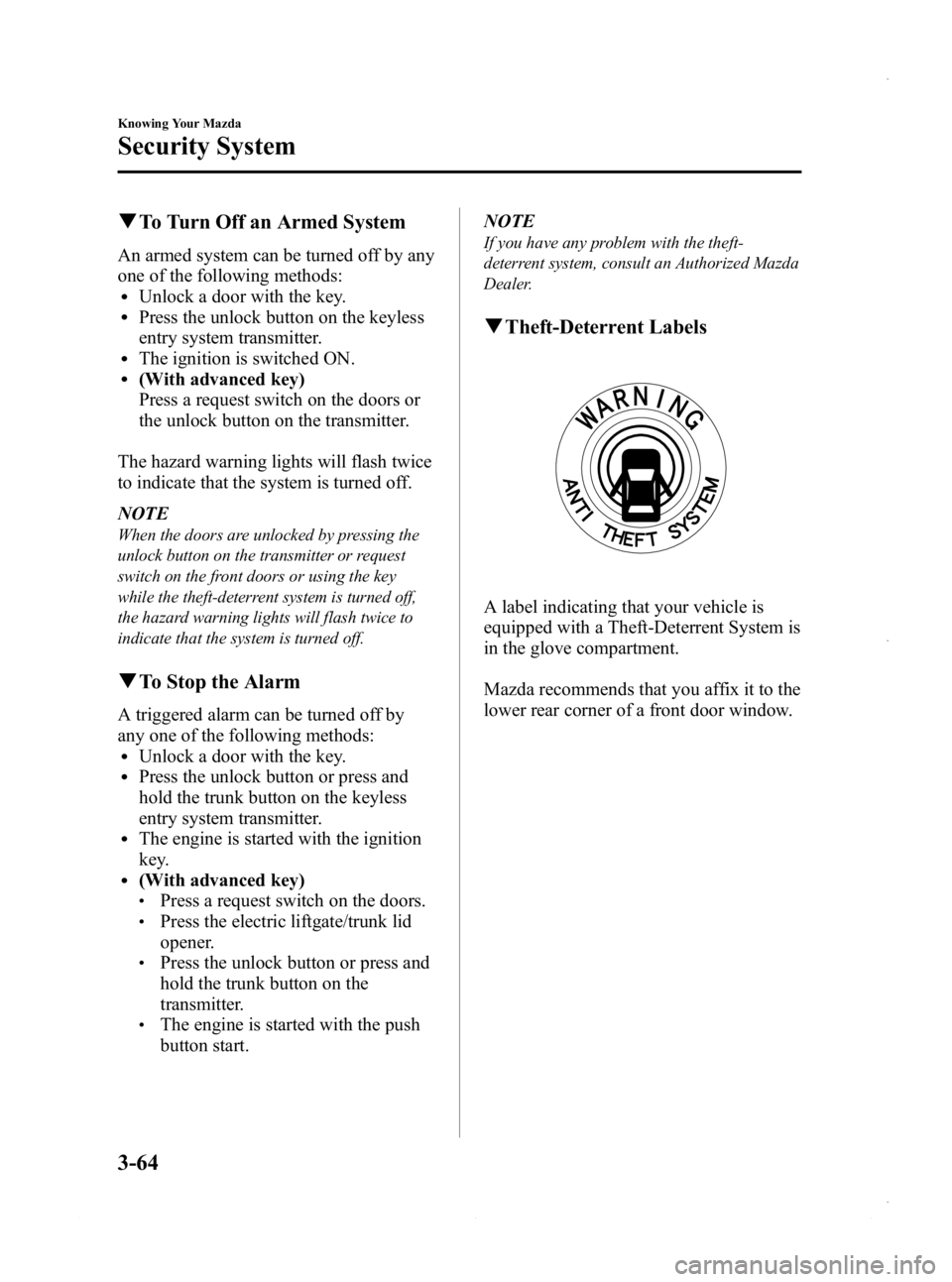

qTo Turn Off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lThe ignition is switched ON.l(With advanced key)
Press a request switch on the doors or
the unlock button on the transmitter.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or request
switch on the front doors or using the key
while the theft-deterrent system is turned off,
the hazard warning lights will flash twice to
indicate that the system is turned off.
q To Stop the Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key.
l(With advanced key)lPress a request switch on the doors.lPress the electric liftgate/trunk lid
opener.
lPress the unlock button or press and
hold the trunk button on the
transmitter.
lThe engine is started with the push
button start. NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
q
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-64
Knowing Your Mazda
Security System
Mazda3_8CV6-EA-12H_Edition3 Page142
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (151,1)
Engine Exhaust (Carbon Monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss
of consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When your vehicle is stopped with the windows closed
and the engine running for a long time even in an open area, exhaust gas, which
contains poisonous carbon monoxide, could enter the cabin. Loss of consciousness or
even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe,
before starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The
exhaust pipe could be blocked by the snow, allowing exhaust gas to enter the cabin.
Because exhaust gas contains poisonous carbon monoxide, it could cause loss of
consciousness or even death to occupants in the cabin.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-5
Mazda3_8CV6-EA-12H_Edition3 Page151
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (153,1)

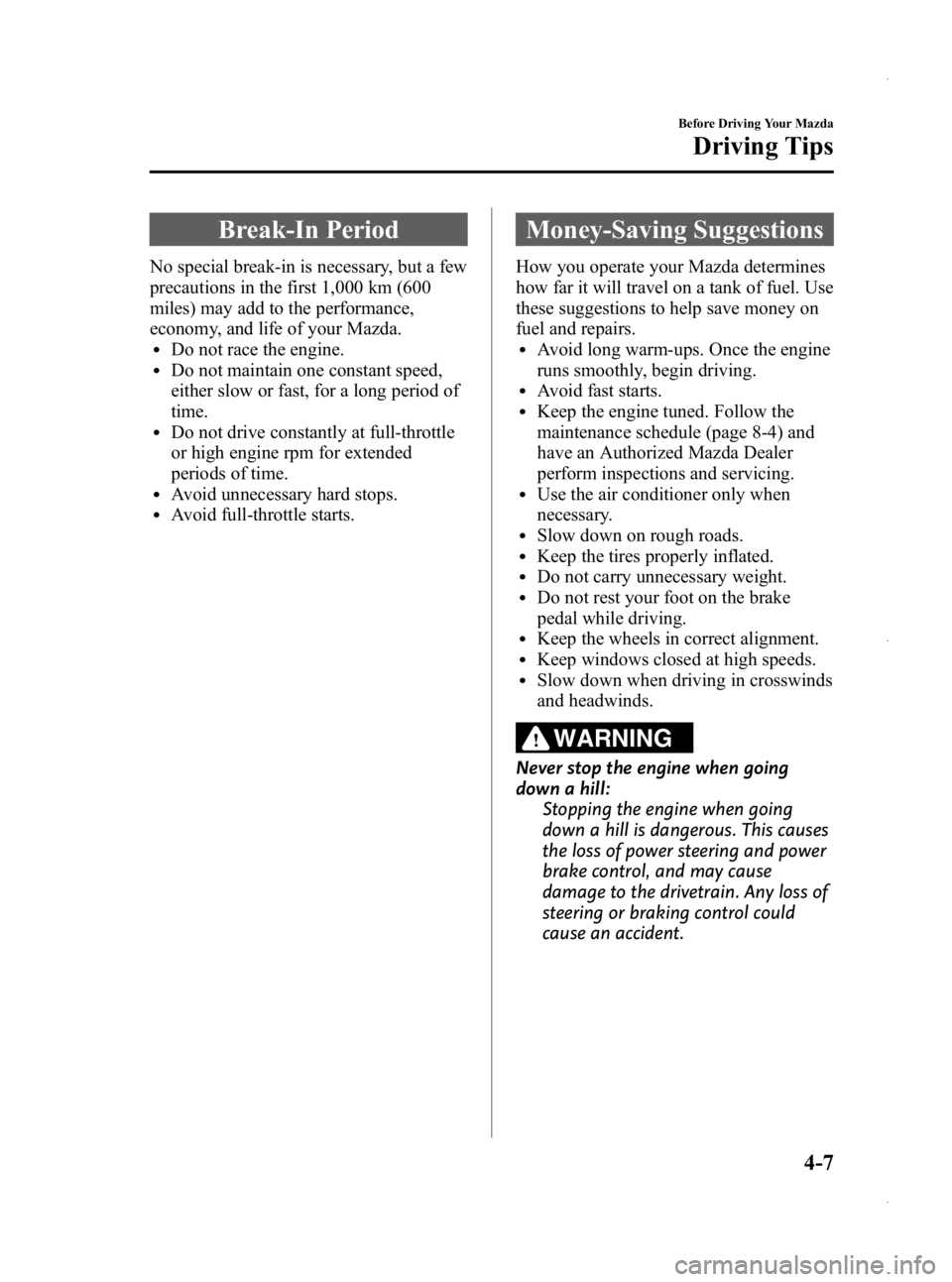

Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm for extended
periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-4) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
Before Driving Your Mazda
Driving Tips
4-7
Mazda3_8CV6-EA-12H_Edition3 Page153
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (164,1)

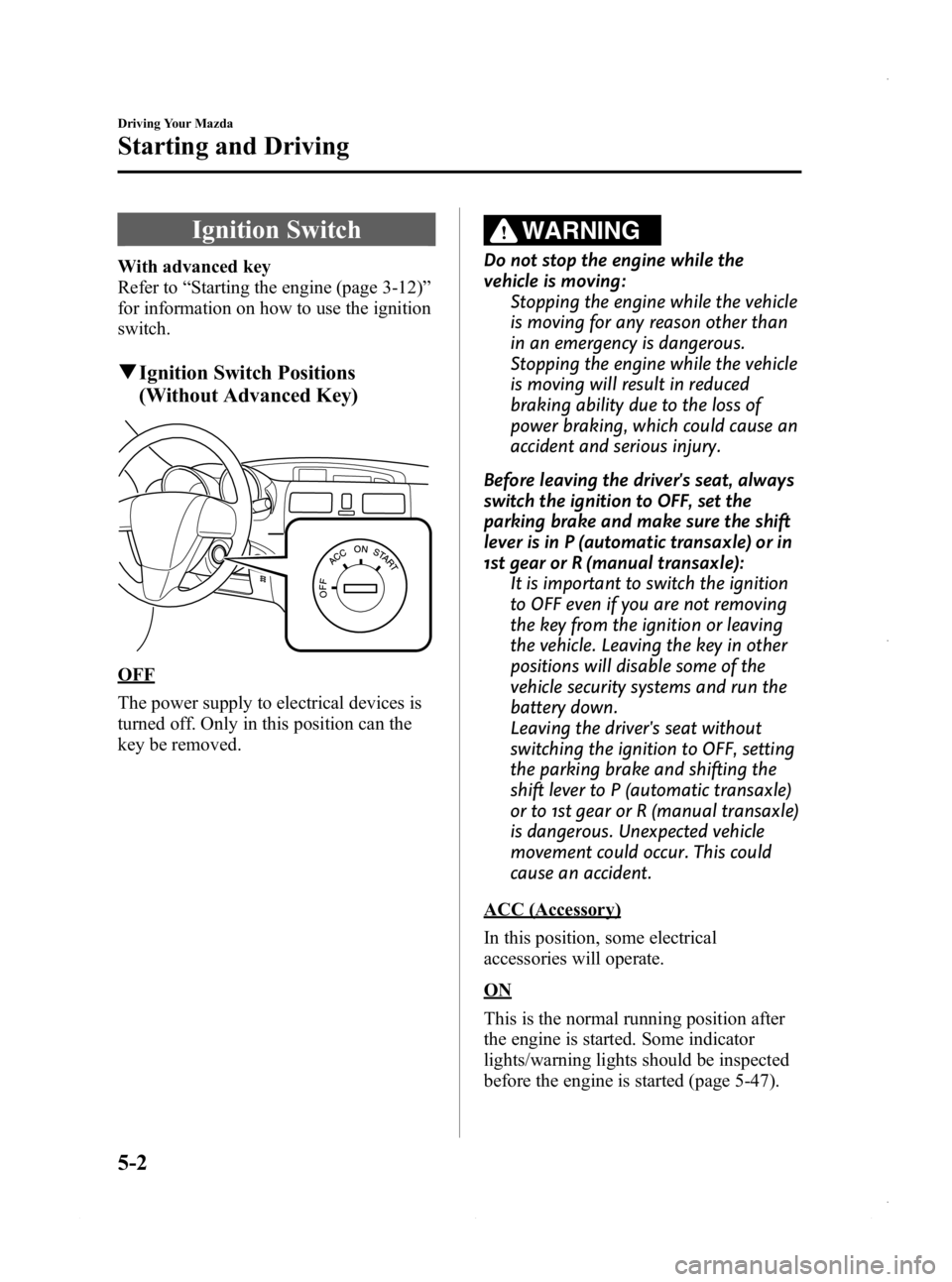

Ignition Switch
With advanced key
Refer to“Starting the engine (page 3-12) ”
for information on how to use the ignition
switch.
q Ignition Switch Positions
(Without Advanced Key)
OFF
The power supply to electrical devices is
turned off. Only in this position can the
key be removed.
WARNING
Do not stop the engine while the
vehicle is moving:
Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
braking ability due to the loss of
power braking, which could cause an
accident and serious injury.
Before leaving the driver's seat, always
switch the ignition to OFF, set the
parking brake and make sure the shift
lever is in P (automatic transaxle) or in
1st gear or R (manual transaxle): It is important to switch the ignition
to OFF even if you are not removing
the key from the ignition or leaving
the vehicle. Leaving the key in other
positions will disable some of the
vehicle security systems and run the
battery down.
Leaving the driver's seat without
switching the ignition to OFF, setting
the parking brake and shifting the
shift lever to P (automatic transaxle)
or to 1st gear or R (manual transaxle)
is dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
ACC (Accessory)
In this position, some electrical
accessories will operate.
ON
This is the normal running position after
the engine is started. Some indicator
lights/warning lights should be inspected
before the engine is started (page 5-47).
5-2
Driving Your Mazda
Starting and Driving
Mazda3_8CV6-EA-12H_Edition3 Page164
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H
