qDimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
5 Door
(Except MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-7
Mazda3_8CV6-EA-12H_Edition3 Page591
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H
Black plate (592,1)

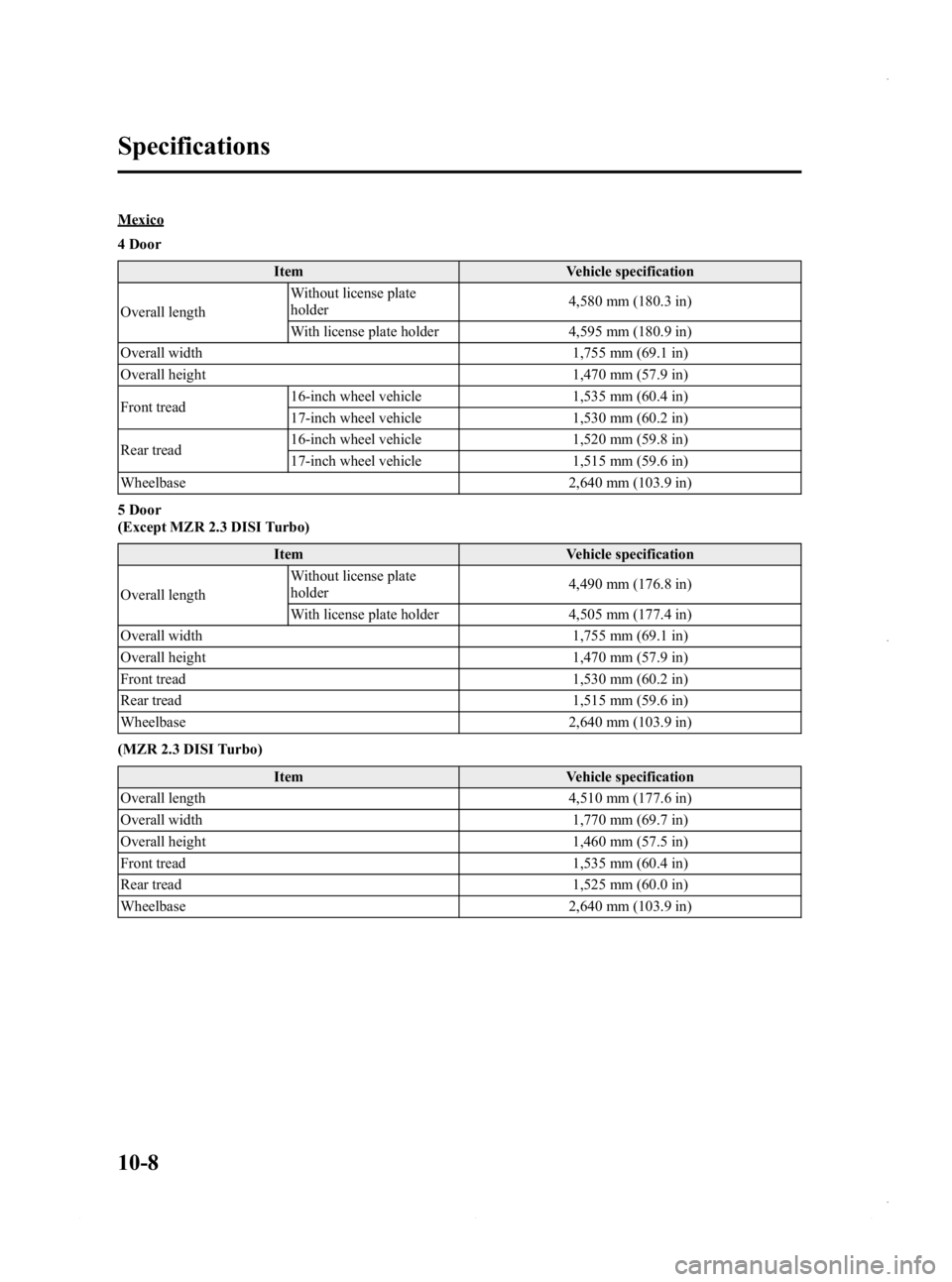

Mexico
4 DoorItem Vehicle specification
Overall length Without license plate
holder
4,580 mm (180.3 in)
With license plate holder 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch wheel vehicle 1,535 mm (60.4 in)
17-inch wheel vehicle 1,530 mm (60.2 in)
Rear tread 16-inch wheel vehicle 1,520 mm (59.8 in)
17-inch wheel vehicle 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
5 Door
(Except MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length Without license plate
holder
4,490 mm (176.8 in)
With license plate holder 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(MZR 2.3 DISI Turbo) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
