MAZDA MODEL 3 4-DOOR 2016 Owners Manual

3–25
Before Driving
Doors and Locks
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting
in possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can not
play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars or
trunks can die very quickly from heat
prostration. Do not leave your children
or pets alone in a car at any time. Do
not leave the car, the rear folding seats
or the trunk unlocked.
Opening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located on
the inside of the trunk lid.
Mazda3_8FA4-EA-15G_Edition1.indb 252015/05/11 14:00:24

3–26
Before Driving
Fuel and Emission
Fuel and Engine Exhaust Precautions
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a min\
imum.

This vehicle will perform best with fuel listed in the table.

Fuel Octane Rating * (Anti-knock index)
Regular unleaded fuel 87 [(R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline stat\
ion pumps.

Fuel with a rating lower than 87 octane (91 RON) will negatively affect the emission control
system performance and could also cause engine knocking and serious engi\
ne damage.
CAUTION
 ¾ USE ONLY UNLEADED FUEL. Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.
 ¾ This vehicle can only use oxygenated fuels containing no more than 10 % ethanol by
volume. Damage to the vehicle may occur when ethanol exceeds this recommendation, or
if the gasoline contains any methanol. Stop using gasohol of any kind if your vehicle engine
is performing poorly.
 ¾  Never add fuel system additives, otherwise the emission control system could be damaged.
Consult an Authorized Mazda Dealer for details.

Gasoline blended with oxygenates such as alcohol or ether compounds are \
generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alc\
ohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".

Vehicle damage and drivability problems resulting from the use of the fol\
lowing may not be
covered by the warranty.
 y  Gasohol containing more than 10 % ethanol. y Gasoline or gasohol containing methanol. y Leaded fuel or leaded gasohol.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










3–27
Before Driving
Fuel and Emission
Emission Control System
This vehicle is equipped with an emission control system (the catalytic converter is
part of this system) that enables the vehicle to comply with existing e\
xhaust emissions
requirements.
WARNING
Never park over or near anything flammable:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with the
engine turned off, the exhaust system remains very hot after normal use and could ignite
anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
 USE ONLY UNLEADED FUEL. Do not drive your Mazda with any sign of engine malfunction. Do not coast with the ignition switched off. Do not descend steep grades in gear with the ignition switched off. Do not operate the engine at high idle for more than 2 minutes. Do not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician. Do not push-start or pull-start your vehicle.
NOTE
 Under U.S. federal law , any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
 While the engine is off, the sound of a valve opening and closing can be\
hear d at the rear
of the vehicle, however this does not indicate an abnormality. The vehicle has a self-
checking device and it operates while the engine is off.
Mazda3_8FA4-EA-15G_Edition1.indb 272015/05/11 14:00:24

3–28
Before Driving
Fuel and Emission
Engine Exhaust (Carbon monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness and
death. If you smell exhaust gas inside the vehicle, keep all windows fully open and contact
an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine: Exhaust gas is dangerous. When the vehicle is stopped with the windows closed and
the engine running for a long time even in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even death
could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe, before
starting the engine: Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, it could cause loss of consciousness or
even death to occupants in the cabin.
Mazda3_8FA4-EA-15G_Edition1.indb 282015/05/11 14:00:24

3–29
Before Driving
Fuel and Emission
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop, then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel tank
and the fuel-filler cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in a fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically: Continuing to add fuel after the
fuel pump nozzle has shut off
automatically is dangerous because
overfilling the fuel tank may cause
fuel overflow or leakage. Fuel overflow
and leakage could damage the vehicle
and if the fuel ignites it could cause a
fire and explosion resulting in serious
injury or death.
CAUTION
Always use only a genuine Mazda fuel-
filler cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in
a serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Fuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
To close, press the fuel-filler lid until it
locks securely.
Remote fuel-filler lid release
Mazda3_8FA4-EA-15G_Edition1.indb 292015/05/11 14:00:24

3–30
Before Driving
Fuel and Emission
Fuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel-filler cap, turn it
clockwise until a click is heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may not
be properly installed. If the warning
light illuminates, park your vehicle
safely off the right-of-way, remove the
fuel-filler cap and reinstall it correctly.
After the cap has been correctly
installed, the fuel cap warning light
may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of
starting the engine (after four or more
hours with the engine off ) and driving
the vehicle on city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
Mazda3_8FA4-EA-15G_Edition1.indb 302015/05/11 14:00:25

3–31
Before Driving
Steering Wheel
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control or
an accident.
Steering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the steering
column.

Lock release le ver
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, then push the lever up to lock
the column.
3. Attempt to push the steering wheel
up and down to make sure it's locked
before driving.
Mazda3_8FA4-EA-15G_Edition1.indb 312015/05/11 14:00:25

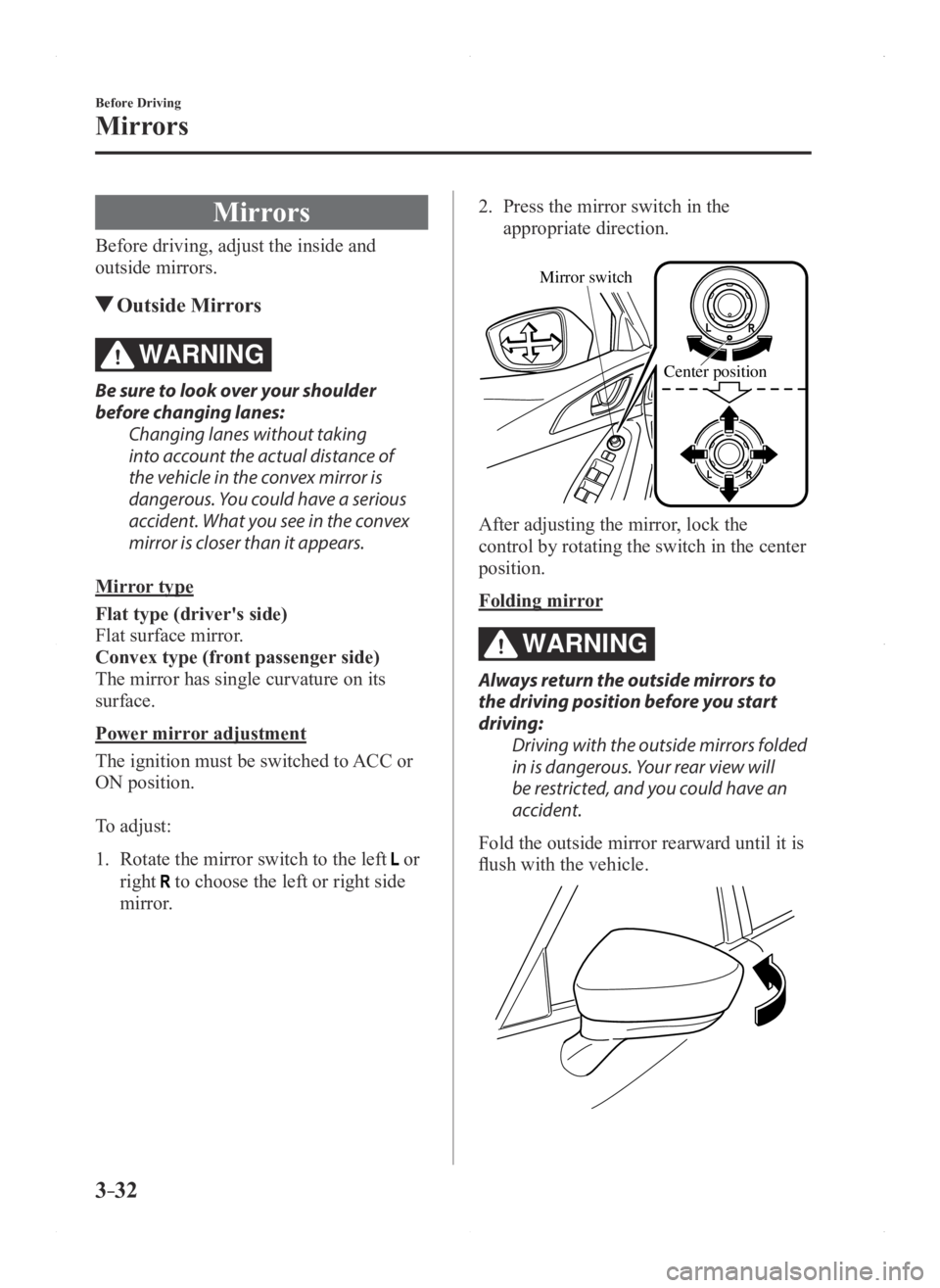

3–32
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left or
right
to choose the left or right side
mirror.
2. Press the mirror switch in the
appropriate direction.
Mirror switch
Center position
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving: Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
Mazda3_8FA4-EA-15G_Edition1.indb 322015/05/11 14:00:25

3–33
Before Driving
Mirrors
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks: Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Night
Day Day/Night le
ver
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from vehicles
at the rear when the ignition is switched
ON.
(With Homelink wireless control
system)
Press the OFF button (
) to cancel the
automatic dimming function. The indicator
light will turn off.
To reactivate the automatic dimming
function, press the ON button (
). The
indicator light will illuminate.
Indicator lightOFF button
ON button
Mazda3_8FA4-EA-15G_Edition1.indb 332015/05/11 14:00:26

3–34
Before Driving
Mirrors
(Without Homelink wireless control
system)
Press the ON/OFF button
to cancel the
automatic dimming function. The indicator
light will turn off.
To reactivate the automatic dimming
function, press the ON/OFF button
. The
indicator light will illuminate.
ON/OFF buttonIndicator light
NOTE
 Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.
(With Homelink wireless control
system)

Light sensor
(Without Homelink wireless control
system)

Light sensor
 (With Homelink wireless control
system)
For information regarding the 3 buttons
(,,) on the auto-dimming
mirror.
Refer to HomeLink W ireless Control
System on page 4-54. The auto-dimmer function is canceled
when the ignition is switched ON and
the shift lever is in reverse (R).
Mazda3_8FA4-EA-15G_Edition1.indb 342015/05/11 14:00:28
