MAZDA MODEL 3 4-DOOR 2016 Owners Manual

9–7
Specifications
Specifications
5-Door
(U.S.A. and Canada)
ItemVehicle specification
Overall length 4,460 mm (175.6 in)
Overall width 1,795 mm (70.7 in)
Overall height
*1Type A 1,470 mm (57.9 in)
Type B 1,455 mm (57.3 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
(Mexico)
ItemVehicle specification
Overall length 4,460 mm (175.6 in)
Overall width 1,795 mm (70.7 in)
Overall height
*1Type A 1,465 mm (57.7 in)
Type B 1,450 mm (57.1 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
*1 The overall height is categorized according to the antenna type as follo\
ws:
Type A
Antenna
Type B
Except above.
Mazda3_8FA4-EA-15G_Edition1.indb 72015/05/11 14:03:00

9–8
Specifications
Specifications
Weights
U.S.A. and Canada
SKYACTIV-G 2.0
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,772 kg (3,907 lbs)1,815 kg (4,001 lbs)
GAWR (Gross Axle Weight Rating) Front
925 kg (2,039 lbs) 975 kg (2,149 lbs)
Rear 855 kg (1,885 lbs) 848 kg (1,870 lbs)
SKYACTIV-G 2.5
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,815 kg (4,001 lbs)1,847 kg (4,072 lbs)
GAWR (Gross Axle Weight Rating) Front
970 kg (2,138 lbs) 997 kg (2,198 lbs)
Rear 865 kg (1,907 lbs) 854 kg (1,883 lbs)
Mexico
SKYACTIV-G 2.0
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total
1,815 kg (4,001 lbs) 1,835 kg (4,045 lbs)
Front 920 kg (2,028 lbs) 940 kg (2,072 lbs)
Rear 895 kg (1,973 lbs) 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
945 kg (2,083 lbs) 965 kg (2,127 lbs)
Rear 945 kg (2,083 lbs) 945 kg (2,083 lbs)
SKYACTIV-G 2.5
Item Weight
GVW (Gross Vehicle Weight) Total
1,865 kg (4,112 lbs)
Front 970 kg (2,138 lbs)
Rear 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
995 kg (2,194 lbs)
Rear 945 kg (2,083 lbs)
Mazda3_8FA4-EA-15G_Edition1.indb 82015/05/11 14:03:00

9–9
Specifications
Specifications
Air Conditioner
The type of refrigerant used is indicated on a label attached to the ins\
ide of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
Light Bulbs
Exterior light
Light bulbCategory
Wattage UNECE*1 (SAE)
Headlights HalogenHigh beam
65HB3 (9005)
Low beam 55H11 (H11)
Xenon fusion High/Low beam 35D4S (D4S)
Daytime running lights With halogen bulb headlights
65HB3 (9005)
With xenon fusion bulb headlights LED
*2— (—)
Parking lights (Front side-
marker lights) With halogen bulb headlights
5WY5W (—)
Front side-marker lights With xenon fusion bulb headlights 5W5W (—)
Parking lights With xenon fusion bulb headlights LED
*2— (—)
Front turn signal lights 21WY21W (7443NA)
Fog lights
*55 H11 (H11)
Side turn signal lights*LED*2— (—)
High-mount brake light LED*2— (—)
Rear turn signal lights 21WY21W (7443NA)
Brake lights/Taillights/Rear
side-marker lights LED type
LED
*2— (—)
Bulb type 21/5W21/5W (7443)
Taillights (Liftgate side/Trunk lid side)
*LED*2— (—)
Reverse lights 4–Door
18W16W (921)
5–Door 21W21W (7440)
License plate lights 5W5W (—)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Mazda3_8FA4-EA-15G_Edition1.indb 92015/05/11 14:03:00

9–10
Specifications
Specifications
Interior light
Light bulbCategory
Wattage UNECE*1
Trunk light (4–Door) 3—
Luggage compartment light (5–Door) 5—
Overhead lights (Front)/Map lights
*8 —
Overhead light (Front)*10 —
Overhead light (Rear)*10 —
Vanity mirror lights*2 —
*1 UNECE stands for United Nations Economic Commission for Europe.
Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-43.
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-126.
Mazda3_8FA4-EA-15G_Edition1.indb 102015/05/11 14:03:00

9–11
Specifications
Specifications
Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P205/60R16 91H 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89W 250 kPa (36 psi)250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
P205/60R16 91H 250 kPa (2.5 bar, 36 psi)250 kPa (2.5 bar, 36 psi)
Tire size Inflation pressure
Up to 3 persons —Full load
215/45R18 89W Front
240 kPa (2.4 bar, 35 psi) 280 kPa (2.8 bar, 41 psi)
Rear 230 kPa (2.3 bar, 33 psi) 300 kPa (3.0 bar, 44 psi)
1 person's weight: About 75 kg
Temporary spare tire
Tire size Inflation pressure
T125/70D16 96M 420 kPa (60 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N•m (12—14 kgf•m, 80—108 ft•lbf)
Fuses
Refer to Fuses on page 6-63.
Mazda3_8FA4-EA-15G_Edition1.indb 112015/05/11 14:03:00

9–12
Specifications
Personalization Features
Personalization Features
The following personalization features can be set or changed by the cust\
omer or an
Authorized Mazda Dealer.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features and settings which can be changed differ depending on the market
and specification.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-55.
B: Refer to Active Driving Display on page
4-18.
C: Refer to Fuel Economy Monitor on page
4-69.
Settings can be changed by operating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-16.
E: Refer to Transmitter on page
3-4.
F: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function) on page
3-13.
Settings can be changed by an Authorized Mazda Dealer.
Item FeatureFactory
Setting Available Settings Settings
Change
Method
Safety
Forward Obstruction
Warning (FOW)
(page
4-95) The system can be changed so
that Forward Obstruction Warning
(FOW) does not operate.
*1On
On/OffA— —
The distance at which the collision
warning activates can be changed. Near
Near/Far A— —
The volume of the collision warning
can be changed. High
High/Low/Off A— —
Smart City Brake
Support (SCBS)
(page
4-106) The system can be changed so that
Smart City Brake Support (SCBS)
does not operate.*1On
On/OffA— —
Mazda3_8FA4-EA-15G_Edition3.indb 122015/12/04 19:26:17

9–13
Specifications
Personalization Features
ItemFeatureFactory
Setting Available Settings Settings
Change
Method
Lane Departure Warning System
(LDWS) (page
4-80) The warning timing in which the
Lane Departure Warning System
(LDWS) determines that the vehicle
may be deviating from its lane can
be changed.
Before
At/Before A—
The sensitivity of the warning for the Lane Departure Warning System
(LDWS) can be changed. Low
High/Low A—
Warning beep sound*2Beep Beep/Rumbl. A—
Warning beep volumeRumbl. HighHigh/Mid/Low A—
BeepHigh High/Low A—
Blind Spot Monitoring (BSM)
system (page
4-86) Warning beep volume
*3High
High/
Low/ Off A
—
Mazda3_8FA4-EA-15G_Edition3.indb 132015/12/04 19:26:18

9–14
Specifications
Personalization Features
ItemFeatureFactory
Setting Available Settings Settings
Change
Method

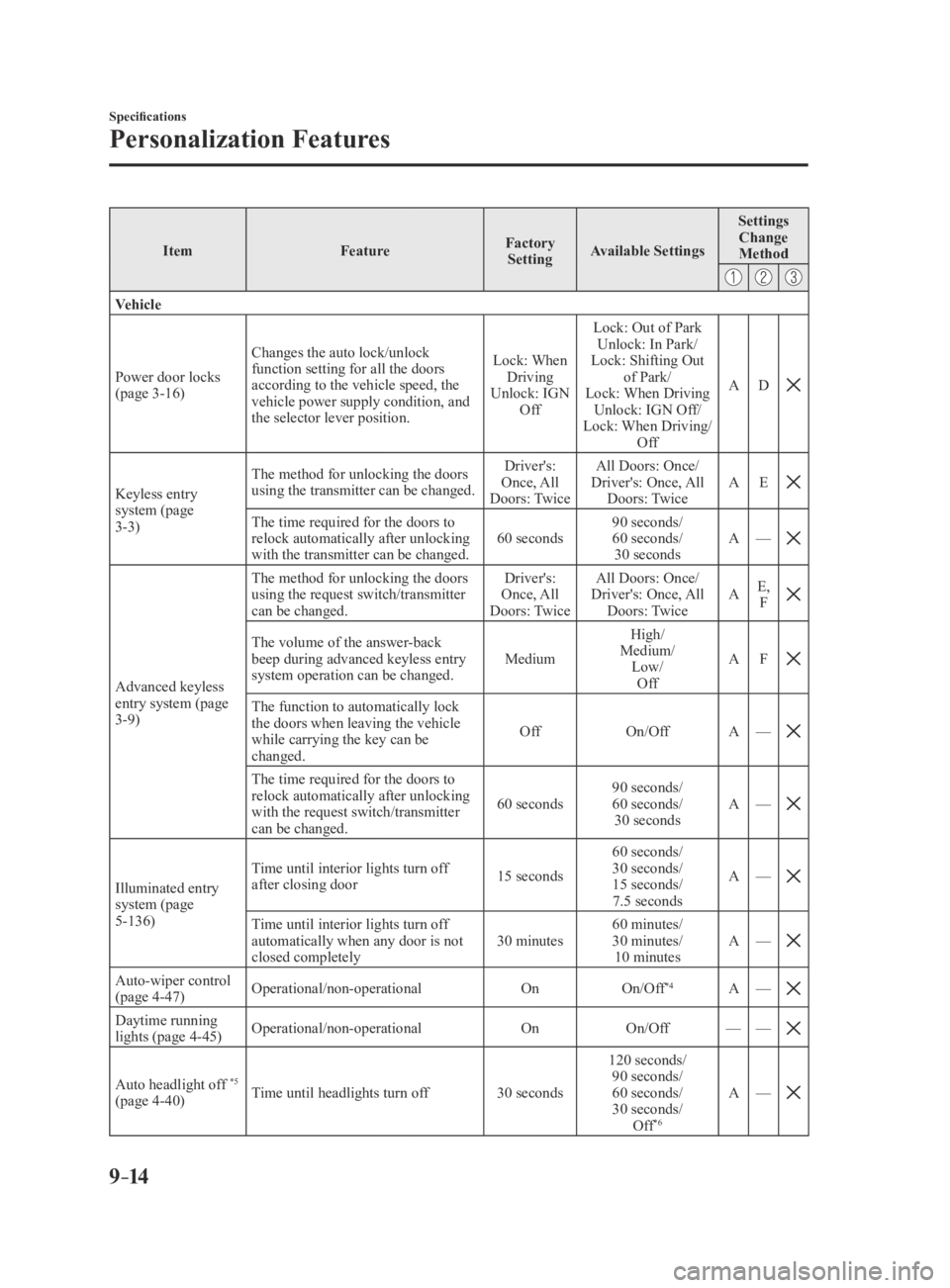

Vehicle
Power door locks
(page 3-16) Changes the auto lock/unlock
function setting for all the doors
according to the vehicle speed, the
vehicle power supply condition, and
the selector lever position. Lock: When
Driving
Unlock: IGN Off Lock: Out of Park
Unlock: In Park/
Lock: Shifting Out of Park/
Lock: When Driving Unlock: IGN Off/
Lock: When Driving/ Off A
D
Keyless entry system (page 3-3) The method for unlocking the doors
using the transmitter can be changed.
Driver's:
Once, All
Doors: Twice All Doors: Once/
Driver's: Once, All Doors: Twice A
EThe time required for the doors to relock automatically after unlocking
with the transmitter can be changed. 60 seconds90 seconds/
60 seconds/
30 seconds A
—
Advanced keyless entry system (page 3-9) The method for unlocking the doors
using the request switch/transmitter
can be changed.
Driver's:
Once, All
Doors: Twice All Doors: Once/
Driver's: Once, All Doors: Twice A
E,
F
The volume of the answer-back beep during advanced keyless entry
system operation can be changed. MediumHigh/
Medium/ Low/Off A
F
The function to automatically lock the doors when leaving the vehicle
while carrying the key can be
changed. Off
On/OffA—
The time required for the doors to relock automatically after unlocking
with the request switch/transmitter
can be changed. 60 seconds
90 seconds/
60 seconds/
30 seconds A
—
Illuminated entry system (page 5-136) Time until interior lights turn off
after closing door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A
—Time until interior lights turn off automatically when any door is not
closed completely 30 minutes60 minutes/
30 minutes/
10 minutes A
—
Auto-wiper control (page 4-47) Operational/non-operational
OnOn/Off*4A—
Daytime running lights (page 4-45) Operational/non-operational
OnOn/Off——
Auto headlight off *5
(page 4-40) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off
*6
A —
Mazda3_8FA4-EA-15G_Edition3.indb 142015/12/04 19:26:18

9–15
Specifications
Personalization Features
ItemFeatureFactory
Setting Available Settings Settings
Change
Method
Auto-light control (page 4-40) Timing by which lights turn on
MediumHigh/
Med. High/ Medium/
Med. Low/ Low A
—
High Beam Control System (HBC) (page 4-77) Operational/non-operational
*1On
On/OffA—
Lights-on reminder*7
(page 7-35) Warning beep volume
OffHigh/Low/Off A—
Turn indicator (page 4-46) Beep volume
HighHigh/Low A—
Three-flash turn signal (page 4-47) Operational/non-operational
OnOn/OffA—
Active driving display (page 4-18) Setting can be changed so that the
Turn-by-Turn (TBT) of the Active
driving display is not displayed.
On
On/OffB—
System
Language Language indicated in display EnglishDepends on market*8A—
TemperatureTemperature unit indicated in display °F or °C°F/°CA—
DistanceDistance unit indicated in display mi or kmmi/kmA—
Fuel Economy Monitor (page 4-69)
Ending display On/off OffOn/OffC—
Fuel economy resetting procedure Linkage/non-linkage with fuel
economy reset and trip meter reset
Off
On/OffC—
*1 Though these systems can be turned Of f, doing so will defeat the purpose of the system and Mazda recommends that these systems remain On.*2 For vehicles with an audio system other than the on-screen function type\
, the warning sound cannot be changed. The warning sound is only a beep.*3 Only the volume of the warning beep during Blind Spot Monitorin g (BSM) operation can be changed. The volume of the warning beep during Rear Cross Traffic Alert (RCTA) operation cannot be changed.*4 If the auto-wiper control is set to Off, the wiper lever position is set to intermittent operation.*5 If the setting is changed to Off, the following operation is performed according to the headlight switc\
h position:
 At position: Headlights turn off immediately after the ignition is switched off. At any position other than : Headlights do not turn off after the ignition is switched off.
*6 When set to Off, the lights-on reminder is operable.*7 The setting of the lights-on reminder can be changed with the time setti\
ng of auto headlight of f function set to Off. Refer to Lights-On Reminder on page 7-35.*8 Available only in display from the center display.
Mazda3_8FA4-EA-15G_Edition3.indb 152015/12/04 19:26:19

9–16
Mazda3_8FA4-EA-15G_Edition3.indb 162015/12/04 19:26:19
MEMO
