7–43
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Lights on page
4-24.
Over Rev. Buzzer*
The buzzer sounds to notify the driver if
the engine speed is about to exceed the
permissible engine speed.
CAUTION
Operate the accelerator and shift gears
according to the driving conditions so
that the buzzer does not sound. If the
engine speed exceeds the permissible
engine speed, the engine could be
damaged.
Electric Parking Brake Warning
Beep
The warning buzzer is activated under the
following conditions:
 The vehicle is driven with the electric
parking brake applied. The electric parking brake switch is
pulled while the vehicle is driven.
Mazda3_8FL6-EA-16F_Edition2.indb 432016/08/10 17:39:35

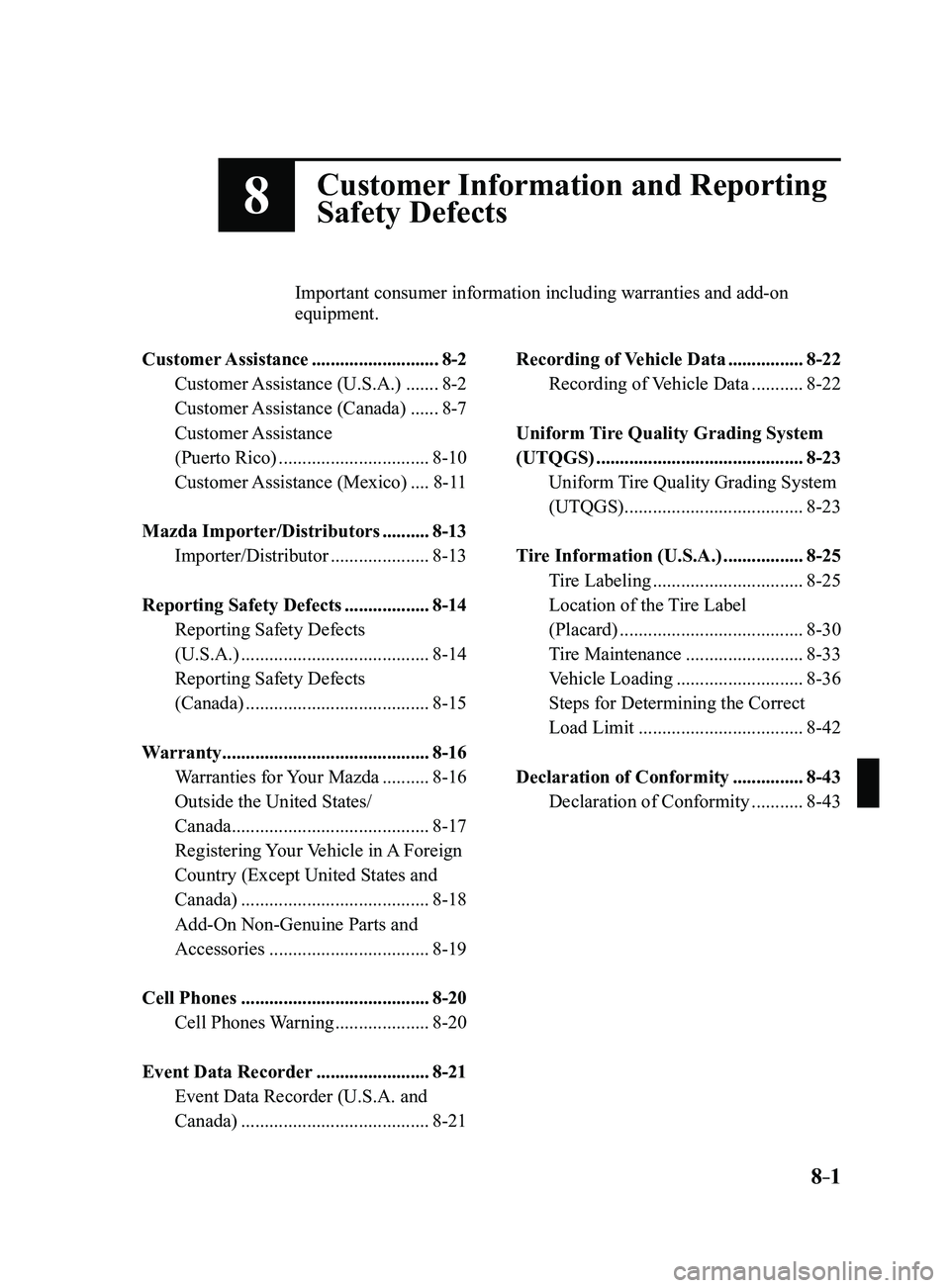

8–1

8Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on
equipment.
Customer Assistance
...........................8-2
Customer Assistance (U.S.A.) .......8-2
Customer Assistance (Canada) ......8-7
Customer Assistance
(Puerto Rico)
................................8-10
Customer Assistance (Mexico) ....8-11
Mazda Importer/Distributors ..........8-13
Importer/Distributor .....................8-13
Reporting Safety Defects ..................8-14
Reporting Safety Defects
(U.S.A.)
........................................8-14
Reporting Safety Defects
(Canada)
.......................................8-15
Warranty ............................................8-16
Warranties for Your Mazda ..........8-16
Outside the United States/
Canada
..........................................8-17
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada)
........................................8-18
Add-On Non-Genuine Parts and
Accessories
..................................8-19
Cell Phones ........................................8-20
Cell Phones Warning ....................8-20
Event Data Recorder ........................8-21
Event Data Recorder (U.S.A. and
Canada)
........................................8-21
Recording of Vehicle Data ................8-22
Recording of Vehicle Data ...........8-22
Uniform Tire Quality Grading System
(UTQGS)
............................................8-23
Uniform Tire Quality Grading System
(UTQGS)
......................................8-23
Tire Information (U.S.A.) .................8-25
Tire Labeling ................................8-25
Location of the Tire Label
(Placard)
.......................................8-30
Tire Maintenance .........................8-33
Vehicle Loading ...........................8-36
Steps for Determining the Correct
Load Limit
...................................8-42
Declaration of Conformity ...............8-43
Declaration of Conformity ...........8-43
Mazda3_8FL6-EA-16F_Edition2.indb 12016/08/10 17:39:36

8–19
Customer Information and Reporting Safety Defects
Warranty
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's
performance or safety systems; the Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Improperly designed parts or accessories could seriously affect your vehicle's performance
or safety systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-
bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Mazda3_8FL6-EA-16F_Edition2.indb 192016/08/10 17:39:39

8–20
Customer Information and Reporting Safety Defects
Cell Phones
Cell Phones Warning
WARNING
Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your country:Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing
a number on a cell phone while driving also ties-up the driver's hands. Use of these
devices will cause the driver to be distracted and could lead to a serious accident. If a
passenger is unable to use the device, pull off the right-of-way to a safe area before use.
If use of a cell phone is necessary despite this warning, use a hands-free system to at least
leave the hands free to drive the vehicle. Never use a cell phone or other electrical devices
while the vehicle is moving and, instead, concentrate on the full-time job of driving.
Mazda3_8FL6-EA-16F_Edition2.indb 202016/08/10 17:39:39

8–23
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National Highway
Traffic Safety Administration for grading tires by tread wear, traction, and temperature
performance.
Tread Wear
The tread wear grade is a comparative rating based on the wear rate of t\
he tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one-and-a-half times as well o\
n the government
course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of \
their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.
Traction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent the
tire's ability to stop on wet pavement as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is based on braking (straight ahead) traction tests
and does not include acceleration cornering (turning), hydroplaning, or peak traction
characteristics.
Temperature-A, B, C
The temperature grades A (the highest), B, and C, represent the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under c\
ontrolled conditions on
a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degener\
ate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher
levels of performance on the laboratory test wheel than the minimum required by law.
Mazda3_8FL6-EA-16F_Edition2.indb 232016/08/10 17:39:40

8–24
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
WARNING
Keep your vehicle's tires properly inflated and not overloaded:
Driving with improperly inflated or overloaded tires is dangerous. Excessive speed,
underinflation, or excessive loading, either separately or in combination, can cause heat
buildup and possible tire failure. The temperature grade for this tire is established for a
tire that is properly inflated and not overloaded.
These grades will be added to the sidewalls of passenger vehicle tires o\
ver the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND TO
ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
UNIFORM TIRE QUALITY GRADING
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
TREADWEAR 200 TRACTION AA TEMPERATURE A
UTQGS MARK (example)
Mazda3_8FL6-EA-16F_Edition2.indb 242016/08/10 17:39:40

8–25
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifies and describes the fundamental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.
Information on Passenger Vehicle Tires
Please refer to the sample below.
1. TIN: U.S. DOT tire identification number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Run-flat tire
7. Rim diameter code
8. Load index & speed symbol
9. Severe snow conditions
10. Tire ply composition and materials used
11. Max. load rating
12. Tread wear, traction and temperature grades
13. Max. permissible inflation pressure
14. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
Mazda3_8FL6-EA-16F_Edition2.indb 252016/08/10 17:39:40

8–28
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels. M\
ake
sure you purchase snow tires that are the same size and construction typ\
e as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
 EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
 TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.
Information on Temporary Tires
Please refer to the sample below.
1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index & speed symbol
T115/70D16 90M is an example of a tire size and load index rating. Here is\
an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
Mazda3_8FL6-EA-16F_Edition2.indb 282016/08/10 17:39:41

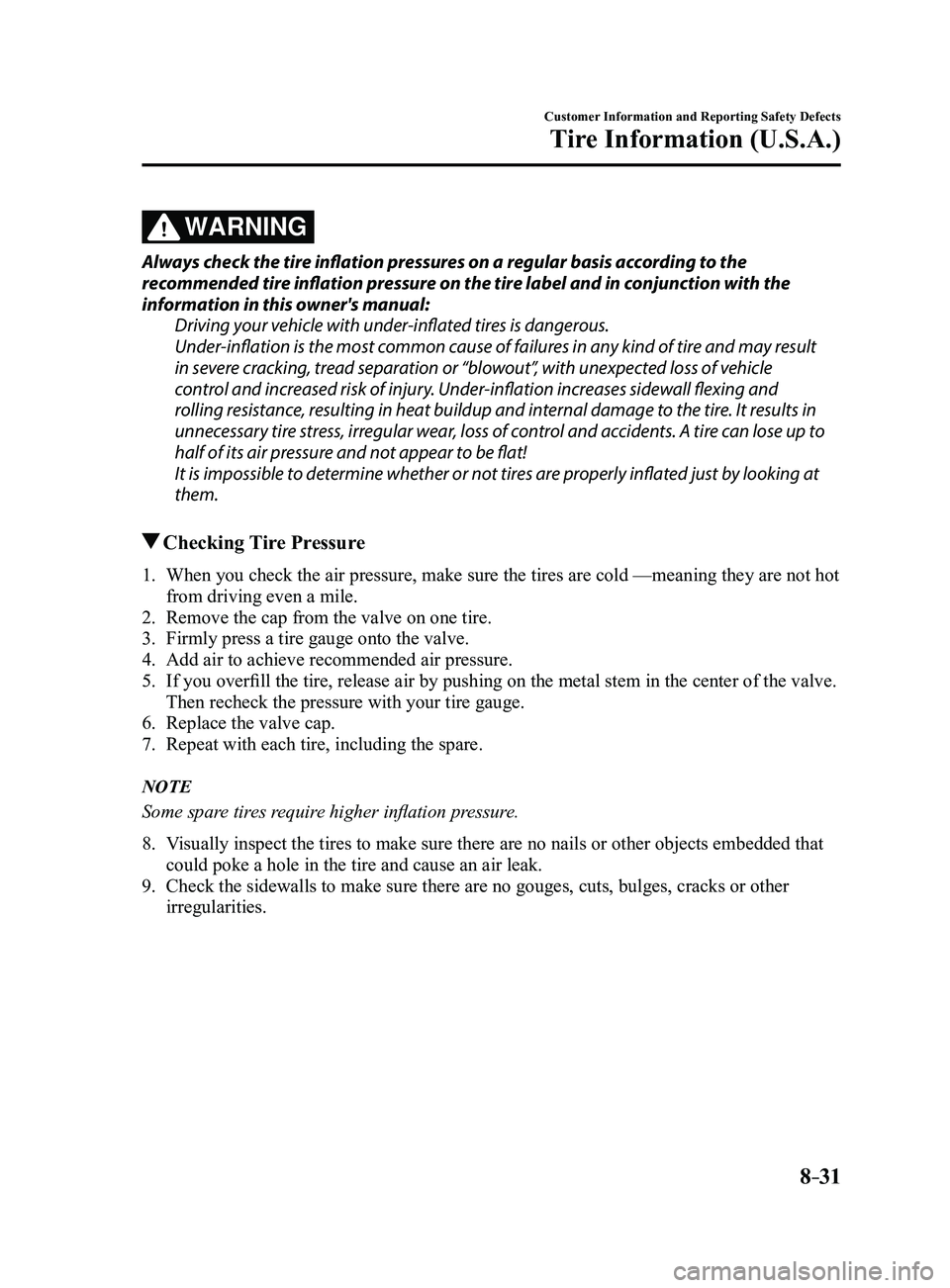

8–31
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
WARNING
Always check the tire inflation pressures on a regular basis according to the
recommended tire inflation pressure on the tire label and in conjunction with the
information in this owner's manual:Driving your vehicle with under-inflated tires is dangerous.
Under-inflation is the most common cause of failures in any kind of tire and may result
in severe cracking, tread separation or “blowout”, with unexpected loss of vehicle
control and increased risk of injury. Under-inflation increases sidewall flexing and
rolling resistance, resulting in heat buildup and internal damage to the tire. It results in
unnecessary tire stress, irregular wear, loss of control and accidents. A tire can lose up to
half of its air pressure and not appear to be flat!
It is impossible to determine whether or not tires are properly inflated just by looking at
them.
Checking Tire Pressure
1. When you check the air pressure, make sure the tires are cold — meaning they are not hot
from driving even a mile.
2. Remove the cap from the valve on one tire.
3. Firmly press a tire gauge onto the valve.
4. Add air to achieve recommended air pressure.
5. If you overfill the tire, release air by pushing on the metal stem in the center of the valve.
Then recheck the pressure with your tire gauge.
6. Replace the valve cap.
7. Repeat with each tire, including the spare.
NOTE
Some spare tires require higher inflation pressure.
8. Visually inspect the tires to make sure there are no nails or other objects embedded that
could poke a hole in the tire and cause an air leak.
9. Check the sidewalls to make sure there are no gouges, cuts, bulges, crac\
ks or other
irregularities.
Mazda3_8FL6-EA-16F_Edition2.indb 312016/08/10 17:39:42

8–34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Replacing a Tire
WARNING
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could result
in an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace the tire before the band crosses the entire tread.
(With tire pressure monitoring system)
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operate normally.
Refer to Tire Pressure Monitoring System Initialization on page
4-154.
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended
that tires generally be replaced when they are 6 years or older. Heat caused by hot climates
or frequent high loading conditions can accelerate the aging process. You should replace the
spare tire when you replace the other road tires due to the aging of the spare tire. The period
in which the tire was manufactured (both week and year) is indicated by a 4-digit number.
Refer to Tire Labeling on page
8-25.
Mazda3_8FL6-EA-16F_Edition2.indb 342016/08/10 17:39:43
