check engine MAZDA MODEL 3 4-DOOR 2017 Owner's Manual

7–30
If Trouble Arises

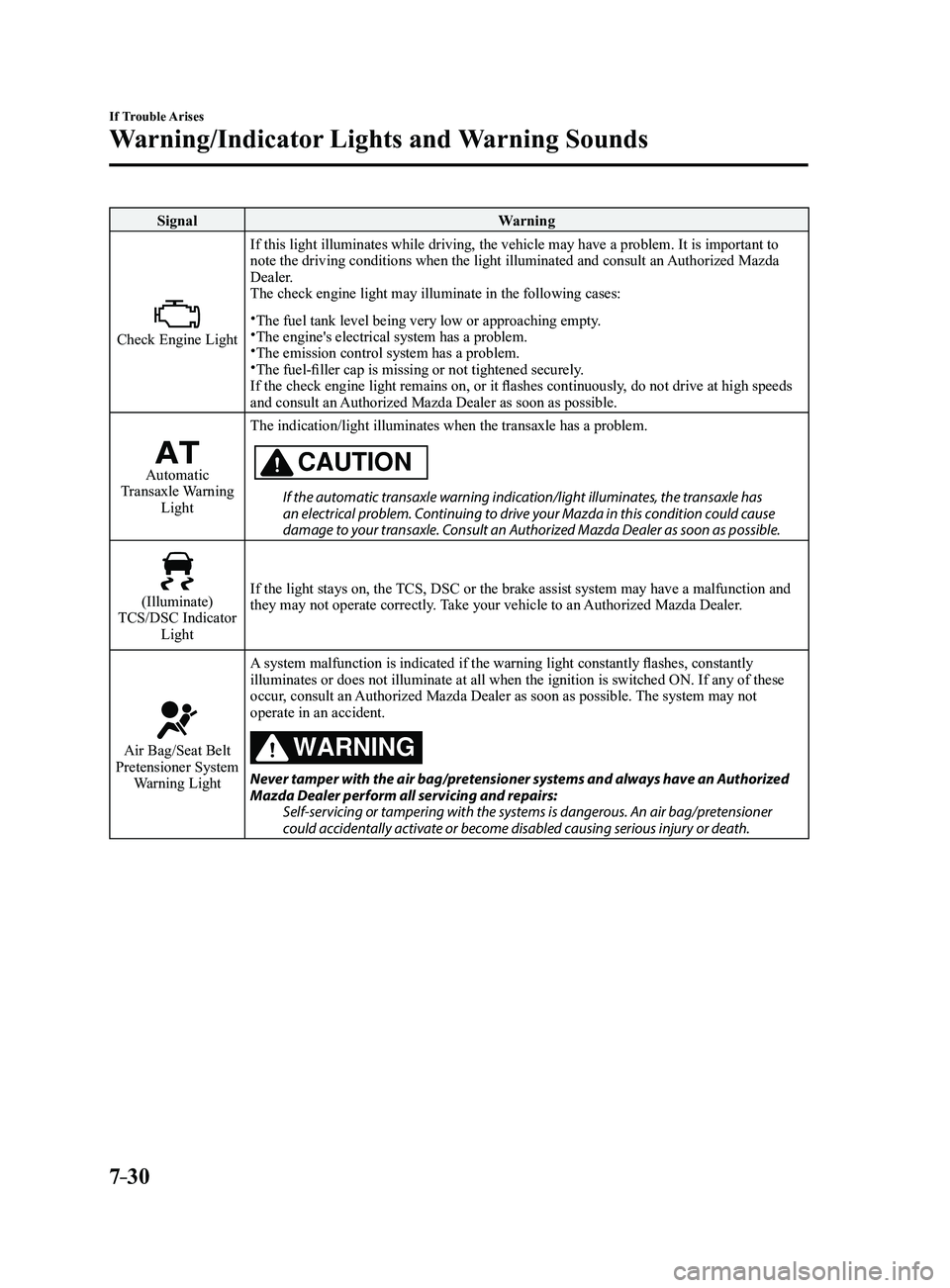

Warning/Indicator Lights and Warning Sounds
SignalWarning
Check Engine Light
If this light illuminates while driving, the vehicle may have a problem.\
It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:
The fuel tank level being very low or approaching empty.The engine's electrical system has a problem.The emission control system has a problem.The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continuously, do not drive at high speeds
and consult an Authorized Mazda Dealer as soon as possible.
Automatic
Transaxle Warning Light The indication/light illuminates when the transaxle has a problem.CAUTION
If the automatic transaxle warning indication/light illuminates, the transaxle has an electrical problem. Continuing to drive your Mazda in this condition could cause
damage to your transaxle. Consult an Authorized Mazda Dealer as soon as possible.
(Illuminate)TCS/DSC Indicator
Light If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly. Take your vehicle to an Authorized Mazda Dealer.
Air Bag/Seat Belt Pretensioner System
Warning Light A system malfunction is indicated if the warning light constantly flashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not
operate in an accident.WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner
could accidentally activate or become disabled causing serious injury or death.
Mazda3_8FL6-EA-16F_Edition2.indb 302016/08/10 17:39:26

7–31
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
(Flashing)Tire Pressure
Monitoring System Warning Light
*
If the tire pressure monitoring system has a malfunction, the tire press\
ure warning
light flashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an Authorized Mazda Dealer as soon as
possible.
WARNING
If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden maneuvering and braking: If the tire pressure monitoring system warning light illuminates or flashes, or the tire
pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed
to a place where air may be added and the system monitored again by an Authorized
Mazda Dealer or a tire repair station.
Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Have the problem taken care of as soon as possible before it develops into a more
serious situation that could lead to tire failure and a dangerous accident.
(Red)(Illuminate)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates co\
ntinuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light (amber) flashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page
4-10.
Security Indicator Light If the engine does not start with the correct key, and the security indicator light remains
illuminated or flashing, try the following:
Make sure the key is within the operational range for signal transmissio\
n. Switch the
ignition off, and then restart the engine. If the engine does not start after 3 or \
more tries,
contact an Authorized Mazda Dealer.
(Amber)High Beam Control
System (HBC)
Warning Light
*
The light remains turned on if there is a problem with the system. Have \
your vehicle
inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Mazda3_8FL6-EA-16F_Edition2.indb 312016/08/10 17:39:28

7–34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning Action to be taken
Smart Brake Support/
Smart
City Brake Support (SBS/
SCBS)Smart City Brake Support (SCBS)
Warning Light
*
The light turns on if the windshield or the radar
sensor are dirty, or there is a malfunction in the
system. The light turns on if the windshield is
dirty or there is a malfunction in the system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is
illuminated is due to a dirty windshield, clean
the windshield.
If the warning light is illuminated because of a
dirty radar sensor, clean the front emblem.
For any other reasons, have the vehicle
inspected at an Authorized Mazda Dealer.
Low Fuel Warning
Light The light turns on when the remaining fuel is
about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary because
fuel inside the fuel tank moves around according
to the driving conditions and the vehicle posture.
Add fuel.
Check Fuel Cap
Warning Light
*
If the check fuel cap warning light illuminates
while driving, the fuel-filler cap may not be
installed properly. Stop the engine and reinstall the fuel-filler cap.
Refer to Fuel-Filler Cap on page
3-32
Mazda3_8FL6-EA-16F_Edition2.indb 342016/08/10 17:39:30

9–3
Specifications

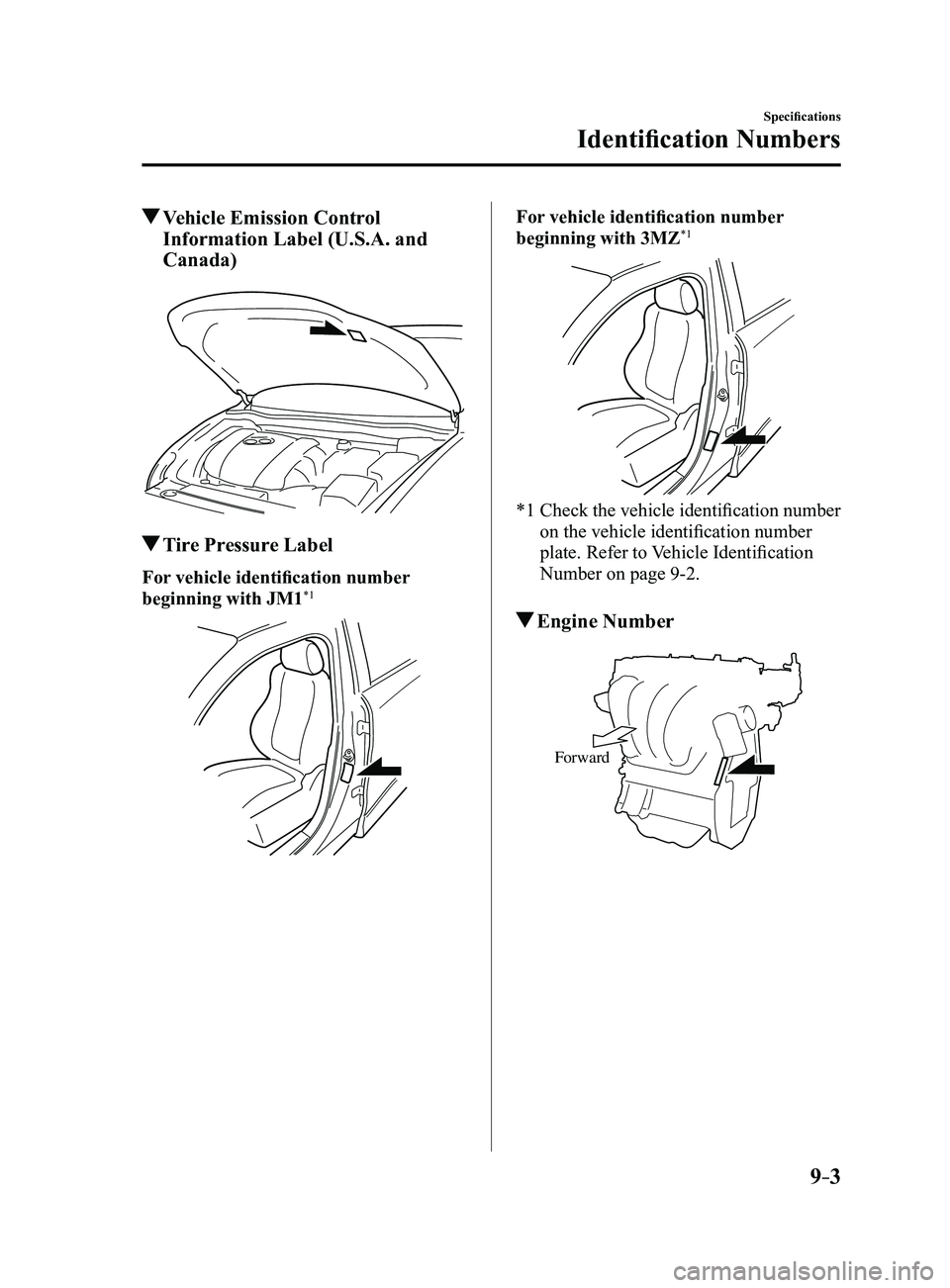

Identification Numbers
Vehicle Emission Control
Information Label (U.S.A. and
Canada)
Tire Pressure Label
For vehicle identification number
beginning with JM1*1
For vehicle identification number
beginning with 3MZ*1
*1 Check the vehicle identification number
on the vehicle identification number
plate. Refer to Vehicle Identification
Number on page
9-2.
Engine Number
Forward
Mazda3_8FL6-EA-16F_Edition2.indb 32016/08/10 17:39:51

9–5
Specifications
Specifications

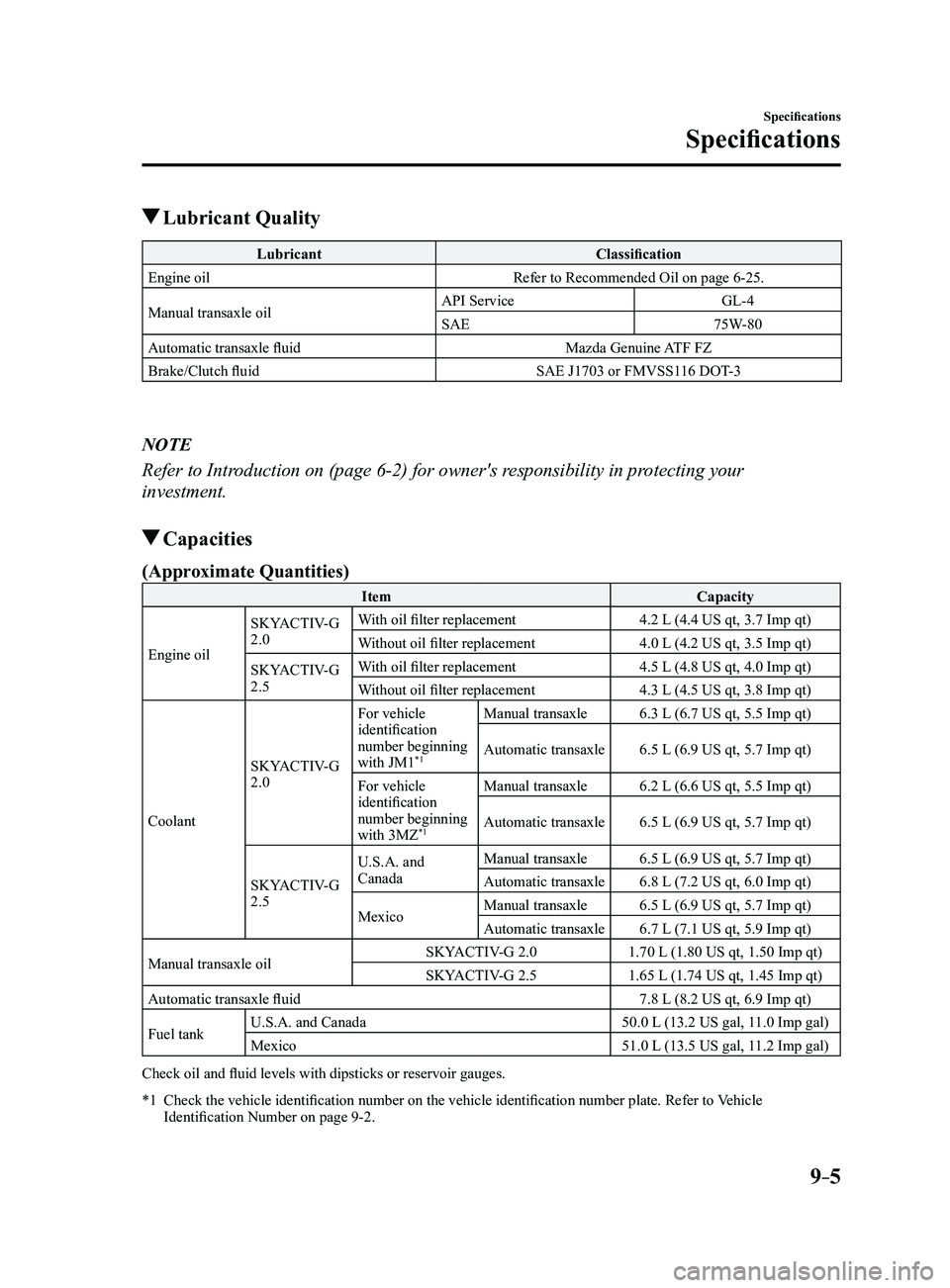

Lubricant Quality
LubricantClassification
Engine oil Refer to Recommended Oil on page
6-25.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF FZ
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
Capacities
(Approximate Quantities)
Item Capacity
Engine oil SKYACTIV-G
2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G
2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
Coolant SKYACTIV-G
2.0 For vehicle
identification
number beginning
with JM1
*1
Manual transaxle
6.3 L (6.7 US qt, 5.5 Imp qt)
Automatic transaxle 6.5 L (6.9 US qt, 5.7 Imp qt)
For vehicle
identification
number beginning
with 3MZ
*1
Manual transaxle 6.2 L (6.6 US qt, 5.5 Imp qt)
Automatic transaxle 6.5 L (6.9 US qt, 5.7 Imp qt)
SKYACTIV-G
2.5 U.S.A. and
Canada
Manual transaxle
6.5 L (6.9 US qt, 5.7 Imp qt)
Automatic transaxle 6.8 L (7.2 US qt, 6.0 Imp qt)
Mexico Manual transaxle
6.5 L (6.9 US qt, 5.7 Imp qt)
Automatic transaxle 6.7 L (7.1 US qt, 5.9 Imp qt)
Manual transaxle oil SKYACTIV-G 2.0
1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-G 2.5 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank U.S.A. and Canada
50.0 L (13.2 US gal, 11.0 Imp gal)
Mexico 51.0 L (13.5 US gal, 11.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
*1 Check the vehicle identification number on the vehicle identifica tion number plate. Refer to Vehicle Identification Number on page 9-2.
Mazda3_8FL6-EA-16F_Edition2.indb 52016/08/10 17:39:52

9–8
Specifications
Specifications
Mexico
SKYACTIV-G 2.0
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total
1,815 kg (4,001 lbs) 1,835 kg (4,045 lbs)
Front 920 kg (2,028 lbs) 940 kg (2,072 lbs)
Rear 895 kg (1,973 lbs) 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
945 kg (2,083 lbs) 965 kg (2,127 lbs)
Rear 945 kg (2,083 lbs) 945 kg (2,083 lbs)
SKYACTIV-G 2.5
Item Weight
GVW (Gross Vehicle Weight) Total
1,865 kg (4,112 lbs)
Front 970 kg (2,138 lbs)
Rear 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
995 kg (2,194 lbs)
Rear 945 kg (2,083 lbs)
Air Conditioner
The type of refrigerant used is indicated on a label attached to the ins\
ide of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page
5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
Mazda3_8FL6-EA-16F_Edition2.indb 82016/08/10 17:39:53
