MAZDA MODEL 3 4-DOOR 2017 Owners Manual

5–109
Interior Features
Bluetooth®
Other problems
SymptomCauseSolution method
The indication for the remaining
battery is different between the
vehicle and the device The indication method is different
between the vehicle and the device.
—
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appear The number has not been registered
into the phonebook.If the number has been registered
into the phonebook, the incoming/
outgoing call record is updated by
the name in the phonebook when the
engine is restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call record Some types of cell phones do not
synchronize automatically.
Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is
required.
—
Mazda3_8FL6-EA-16F_Edition2.indb 1092016/08/10 17:38:20

5–110
Interior Features
Interior Equipment
*Some models.
Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor
Side Extension Sunvisors*
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract the
visor extender to its original position.
Otherwise, the visor extender could hit
the rearview mirror.
Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown in the
figure.
off
off
on
Mazda3_8FL6-EA-16F_Edition2.indb 1102016/08/10 17:38:21

5–111
Interior Features
Interior Equipment
*Some models.
Interior Lights
NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.
Overhead Lights
Switch
Position Overhead Lights
Light off
Light is on when any door is openLight is on or off when the
illuminated entry system is on
Light on
With Map Lights
Front
Rear
Without Map Lights
NOTE
(With map lights)
The rear overhead light also turn on and
off when the front overhead light switch is
operated.
Map Lights
*
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.
NOTE
The map lights will not turn off even if the
lens is pressed in the following cases:
 The overhead light switch is in the ON
position. The overhead light switch is in the door
position with the door open. The illuminated entry system is on.
Mazda3_8FL6-EA-16F_Edition2.indb 1112016/08/10 17:38:23

5–112
Interior Features
Interior Equipment
Luggage Compartment Lights (5–door)
Switch
Position Luggage Compartment Light
Light off
Light on when the liftgate is open
Trunk Light (4–door)
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights turn on in the
following conditions:
 The driver's door is unlocked after the
ignition is switched OFF. The ignition is switched OFF with all
doors closed.
NOTE
 The illuminated entry system operates
when the overhead light switch is in the
DOOR position.
 The illumination time differs depending
on the operation. Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.
 The operation of the illuminated entry
system can be changed.
Refer to Personalization Featur
es on
page 9-12.
Mazda3_8FL6-EA-16F_Edition2.indb 1122016/08/10 17:38:23

5–113
Interior Features
Interior Equipment
*Some models.
Accessory Sockets
Only use genuine Mazdaaccessories or the
equivalent requiring no greater than 120 W
(DC 12 V, 10 A).
Type A
*
The accessory sockets can be used
regardless of whether the ignition is on or
off.
Type B
The ignition must be switched to ACC or
ON.With CD Player
With Electric Parking Brake
Without Electric P
arking Brake
Mazda3_8FL6-EA-16F_Edition2.indb 1132016/08/10 17:38:24

5–114
Interior Features
Interior Equipment
Without CD Player
With Electric Parking Brake
Without Electric Parking Brake
CAUTION
 To prevent accessory socket damage or
electrical failure, pay attention to the
following:
 Do not use accessories that require
more than 120 W (DC 12 V, 10 A). Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
 Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.
 Correctly insert the plug into the
accessory socket. Do not insert the cigarette lighter into
the accessory socket.
 Noise may occur on the audio playback
depending on the device connected to
the accessory socket.
 Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the
problem is not resolved, consult an
Authorized Mazda Dealer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.
Mazda3_8FL6-EA-16F_Edition2.indb 1142016/08/10 17:38:24

5–115
Interior Features
Interior Equipment
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord through
the cutout of the console and insert the
plug into the accessory socket.
With Electric Parking Brake
Without Electric Parking Brake
Plug
Plug
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Front
With electric parking brake
To use the cup holder, slide the cover and
open it.
Mazda3_8FL6-EA-16F_Edition2.indb 1152016/08/10 17:38:25

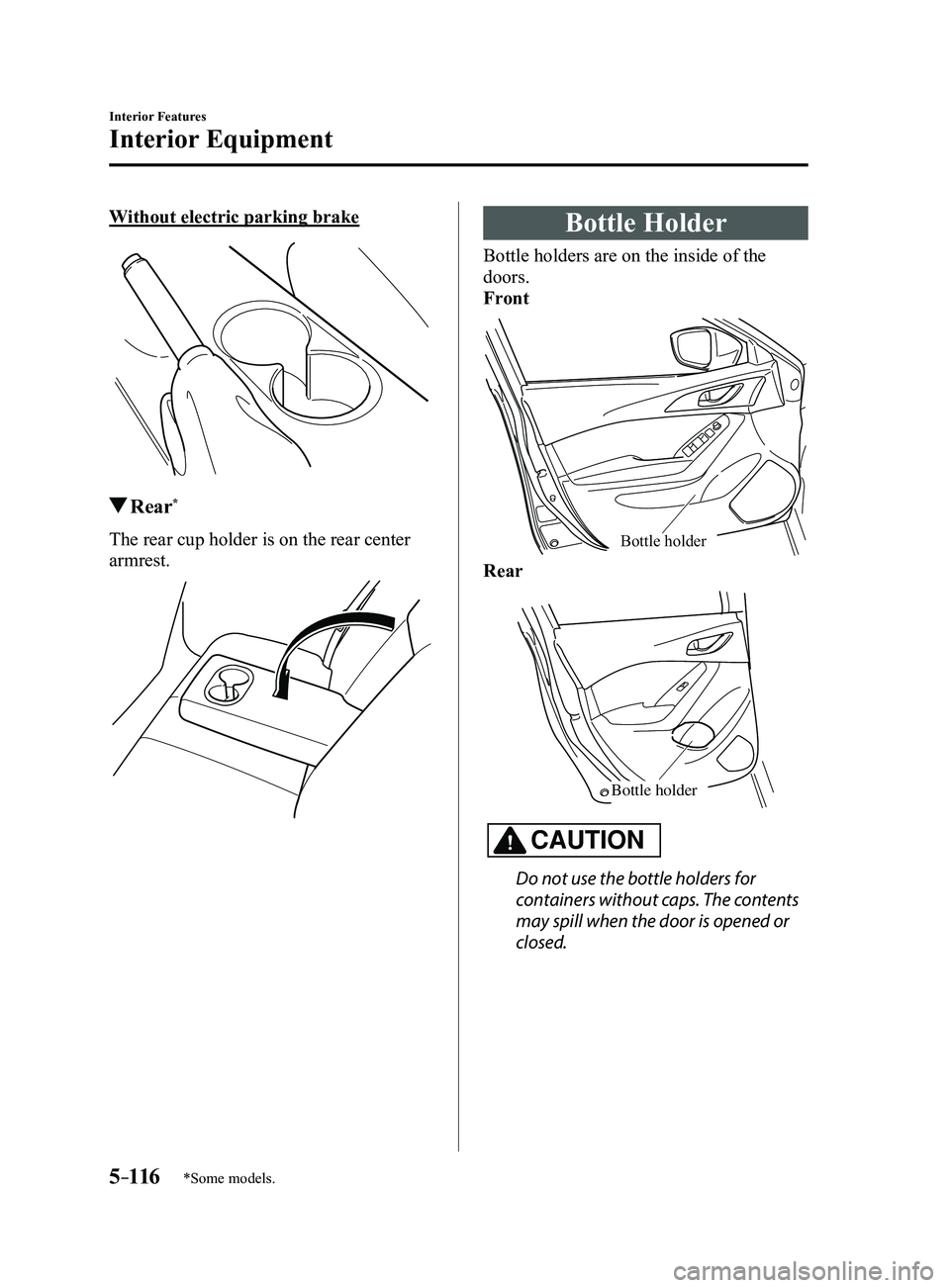

5–116
Interior Features
Interior Equipment
*Some models.
Without electric parking brake
Rear*
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
doors.
Front
Bottle holder
Rear
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Mazda3_8FL6-EA-16F_Edition2.indb 1162016/08/10 17:38:26

5–117
Interior Features
Interior Equipment
*Some models.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
Do not put articles in storage spaces
with no lid: Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
Overhead Console*
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment,
firmly press in the center of the glove
compartment lid.
Mazda3_8FL6-EA-16F_Edition2.indb 1172016/08/10 17:38:27

5–118
Interior Features
Interior Equipment
Center Console
To open, pull the release latch.
With Electric Parking Brake
Without Electric Parking Brake
Storage tray
The storage tray can be removed.
With Electric Parking Brake
Without Electric P
arking Brake
Storage tray
Storage tray
Mazda3_8FL6-EA-16F_Edition2.indb 1182016/08/10 17:38:28
