Interior Features
Interior Equipment
*Some models.
Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor
Side Extension Sunvisors*
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract the
visor extender to its original position.
Otherwise, the visor extender could hit
the rearview mirror.
Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown in the
figure.
off
off
on
Mazda3_8FL6-EA-16F_Edition2.indb 1102016/08/10 17:38:21

5–111
Interior Features
Interior Equipment
*Some models.
Interior Lights
NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.
Overhead Lights
Switch
Position Overhead Lights
Light off
Light is on when any door is openLight is on or off when the
illuminated entry system is on
Light on
With Map Lights
Front
Rear
Without Map Lights
NOTE
(With map lights)
The rear overhead light also turn on and
off when the front overhead light switch is
operated.
Map Lights
*
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.
NOTE
The map lights will not turn off even if the
lens is pressed in the following cases:
 The overhead light switch is in the ON
position. The overhead light switch is in the door
position with the door open. The illuminated entry system is on.
Mazda3_8FL6-EA-16F_Edition2.indb 1112016/08/10 17:38:23

5–112
Interior Features
Interior Equipment
Luggage Compartment Lights (5–door)
Switch
Position Luggage Compartment Light
Light off
Light on when the liftgate is open
Trunk Light (4–door)
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights turn on in the
following conditions:
 The driver's door is unlocked after the
ignition is switched OFF. The ignition is switched OFF with all
doors closed.
NOTE
 The illuminated entry system operates
when the overhead light switch is in the
DOOR position.
 The illumination time differs depending
on the operation. Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.
 The operation of the illuminated entry
system can be changed.
Refer to Personalization Featur
es on
page 9-12.
Mazda3_8FL6-EA-16F_Edition2.indb 1122016/08/10 17:38:23

5–114
Interior Features
Interior Equipment
Without CD Player
With Electric Parking Brake
Without Electric Parking Brake
CAUTION
 To prevent accessory socket damage or
electrical failure, pay attention to the
following:
 Do not use accessories that require
more than 120 W (DC 12 V, 10 A). Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
 Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.
 Correctly insert the plug into the
accessory socket. Do not insert the cigarette lighter into
the accessory socket.
 Noise may occur on the audio playback
depending on the device connected to
the accessory socket.
 Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the
problem is not resolved, consult an
Authorized Mazda Dealer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.
Mazda3_8FL6-EA-16F_Edition2.indb 1142016/08/10 17:38:24

6–1
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information
........................................................................\
6-2
Introduction ........................................................................\
...........6-2
Scheduled Maintenance .....................................................................6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) ........6-4
Scheduled Maintenance (Mexico) ..............................................6-11
Maintenance Monitor ..................................................................6-18
Owner Maintenance ........................................................................\
.6-20
Owner Maintenance Precautions ................................................6-20
Hood ........................................................................\
....................6-22
Engine Compartment Overview .................................................6-24
Engine Oil ........................................................................\
...........6-25
Engine Coolant ........................................................................\
....6-28
Brake/Clutch Fluid ......................................................................6-30
Washer Fluid ........................................................................\
.......6-30
Body Lubrication ........................................................................\
6-31
Wiper Blades ........................................................................\
.......6-32
Battery ........................................................................\
.................6-36
Key Battery Replacement ...........................................................6-38
Tires........................................................................\
.....................6-41
Light Bulbs ........................................................................\
..........6-45
Fuses ........................................................................\
...................6-60
Appearance Care ........................................................................\
......6-66
Exterior Care ........................................................................\
.......6-66
Interior Care ........................................................................\
........6-72
Mazda3_8FL6-EA-16F_Edition2.indb 12016/08/10 17:38:29

6–3
Maintenance and Care
Essential Information
Claims against the warranty resulting from lack of maintenance, as oppos\
ed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period (page
6-18).
The malfunction diagnosis connector is designed exclusively for connecti\
ng the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction\
diagnosis devices
for servicing. If any device other than the malfunction diagnosis device\
is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery \
depletion.
Malfunction
diagnosis
connector
Mazda3_8FL6-EA-16F_Edition2.indb 32016/08/10 17:38:29

6–24
Maintenance and Care
Owner Maintenance
Engine Compartment Overview
Windshield washer fluid reservoirBrake/Clutch fluid reservoir
Engine oil dipstickBatteryFuse block
Cooling system cap Engine coolant reservoir
Engine oil-filler cap
Mazda3_8FL6-EA-16F_Edition2.indb 242016/08/10 17:38:36

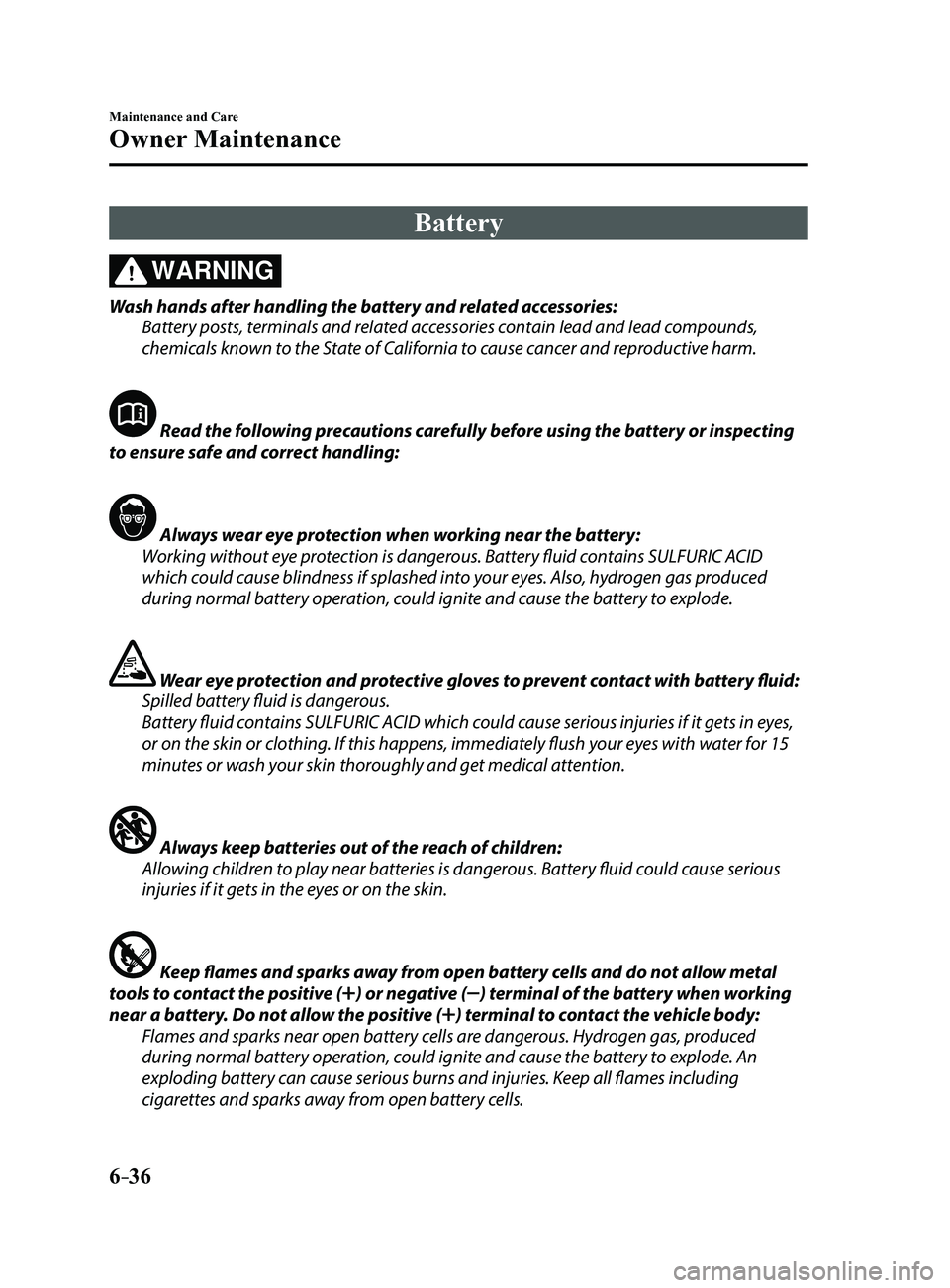

6–36
Maintenance and Care
Owner Maintenance
Battery
WARNING
Wash hands after handling the battery and related accessories:
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and reproductive harm.
Read the following precautions carefully before using the battery or inspecting
to ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes,
or on the skin or clothing. If this happens, immediately flush your eyes with water for 15
minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause serious
injuries if it gets in the eyes or on the skin.
Keep flames and sparks away from open battery cells and do not allow metal
tools to contact the positive () or negative () terminal of the battery when working
near a battery. Do not allow the positive (
) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Mazda3_8FL6-EA-16F_Edition2.indb 362016/08/10 17:38:44

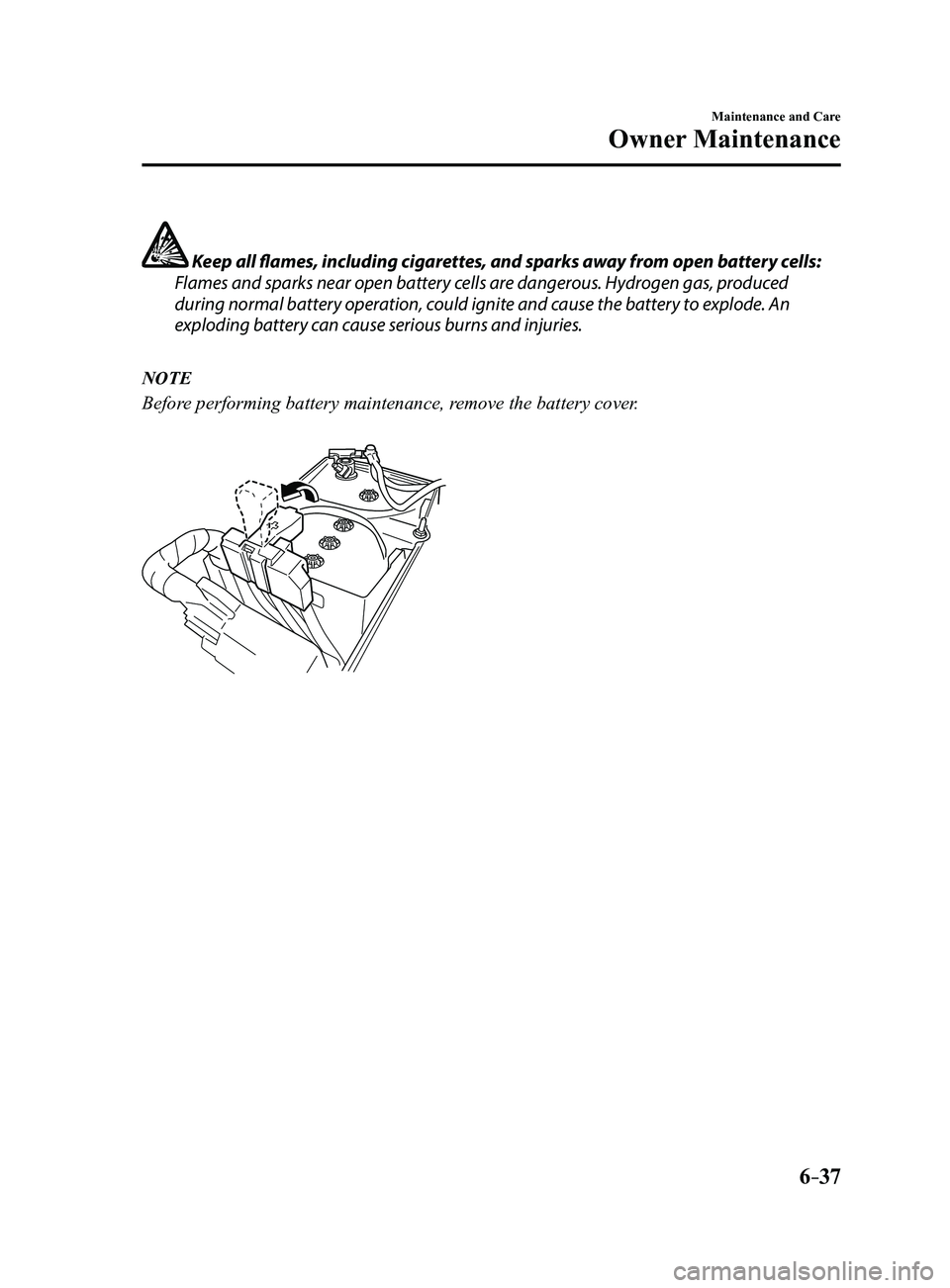

6–37
Maintenance and Care
Owner Maintenance
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
NOTE
Before performing battery maintenance, remove the battery cover.
Mazda3_8FL6-EA-16F_Edition2.indb 372016/08/10 17:38:45

6–38
Maintenance and Care
Owner Maintenance
Battery Maintenance
To get the best service from a battery:
 Keep it securely mounted. Keep the top clean and dry. Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.
 Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.
 If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every six
weeks.
Battery Replacement
Contact an Authorized Mazda Dealer for a
battery replacement purchase.
Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
 Make sure the battery is installed
correctly. Battery leakage could occur if it
is not installed correctly.
 When replacing the battery, be careful
not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.
 There is the danger of explosion if the
battery is not correctly replaced. Dispose of used batteries according to
the following instructions.
 Insulate the plus and minus terminals
of the battery using cellophane or
equivalent tape.
 Never disassemble. Never throw the battery into fire or
water. Never deform or crush.
 Replace only with the same type battery
(CR2025 or equivalent).
Mazda3_8FL6-EA-16F_Edition2.indb 382016/08/10 17:38:45
