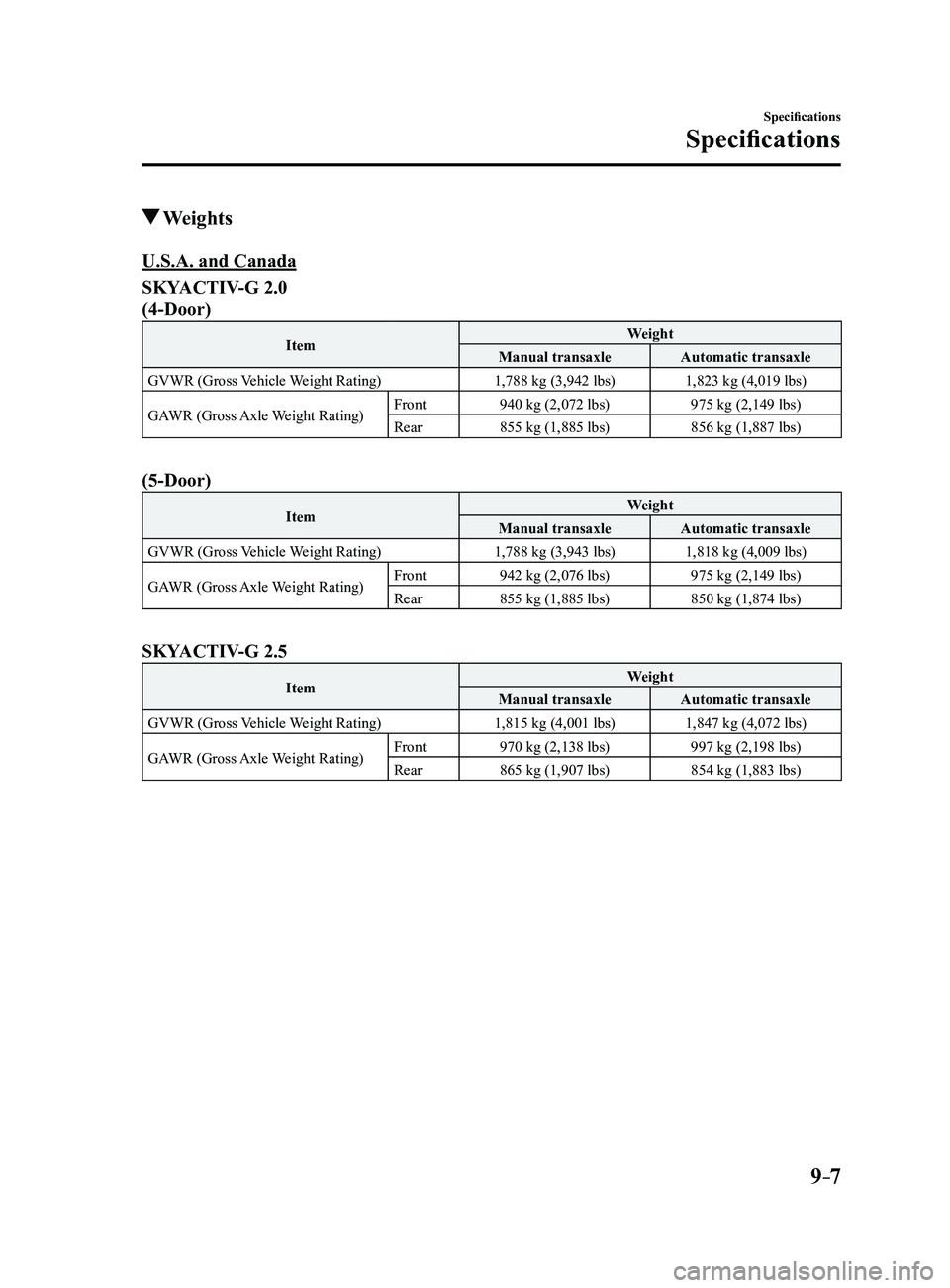

MAZDA MODEL 3 4-DOOR 2017 Owners Manual

9–7
Specifications
Specifications
Weights
U.S.A. and Canada
SKYACTIV-G 2.0
(4-Door)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,788 kg (3,942 lbs)1,823 kg (4,019 lbs)
GAWR (Gross Axle Weight Rating) Front
940 kg (2,072 lbs) 975 kg (2,149 lbs)
Rear 855 kg (1,885 lbs) 856 kg (1,887 lbs)
(5-Door)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,788 kg (3,943 lbs)1,818 kg (4,009 lbs)
GAWR (Gross Axle Weight Rating) Front
942 kg (2,076 lbs) 975 kg (2,149 lbs)
Rear 855 kg (1,885 lbs) 850 kg (1,874 lbs)
SKYACTIV-G 2.5
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,815 kg (4,001 lbs)1,847 kg (4,072 lbs)
GAWR (Gross Axle Weight Rating) Front
970 kg (2,138 lbs) 997 kg (2,198 lbs)
Rear 865 kg (1,907 lbs) 854 kg (1,883 lbs)
Mazda3_8FL6-EA-16F_Edition2.indb 72016/08/10 17:39:53

9–8
Specifications
Specifications
Mexico
SKYACTIV-G 2.0
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total
1,815 kg (4,001 lbs) 1,835 kg (4,045 lbs)
Front 920 kg (2,028 lbs) 940 kg (2,072 lbs)
Rear 895 kg (1,973 lbs) 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
945 kg (2,083 lbs) 965 kg (2,127 lbs)
Rear 945 kg (2,083 lbs) 945 kg (2,083 lbs)
SKYACTIV-G 2.5
Item Weight
GVW (Gross Vehicle Weight) Total
1,865 kg (4,112 lbs)
Front 970 kg (2,138 lbs)
Rear 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
995 kg (2,194 lbs)
Rear 945 kg (2,083 lbs)
Air Conditioner
The type of refrigerant used is indicated on a label attached to the ins\
ide of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page
5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
Mazda3_8FL6-EA-16F_Edition2.indb 82016/08/10 17:39:53

9–9
Specifications
Specifications
*Some models.
Light Bulbs
Exterior light
Light bulbCategory
Wattage UNECE*1 (SAE)
Headlights Halogen High beam
65HB3 (9005)
Low beam 55H11 (H11)
LED High/Low beam LED
*2— (—)
Daytime
running lights With halogen bulb headlights
65HB3 (9005)
With LED headlights LED
*2— (—)
Parking lights
(Front side-
marker lights) With halogen bulb headlights
5WY5W (—)
Front side-
marker lights With LED headlights
LED
*2— (—)
Parking lights With LED headlights LED
*2— (—)
Front turn signal lights 21WY21W
(7443NA)
Fog lights
*LED*2— (—)
Side turn signal lights*LED*2— (—)
High-mount brake light LED*2— (—)
Rear turn signal lights 21WY21W
(7443NA)
Brake lights/
Taillights/Rear
side-marker
lights LED type
LED
*2— (—)
Bulb type 21/5W21/5W (7443)
Taillights (Liftgate side/Trunk lid side)
*LED*2— (—)
Reverse lights 4–Door
18W16W (921)
5–Door 21W21W (7440)
License plate lights 5W5W (—)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:39:54

9–10
Specifications
Specifications
*Some models.
Interior light
Light bulbCategory
Wattage UNECE*1
Trunk light (4–Door) 3—
Luggage compartment light (5–Door) 5—
Overhead lights (Front)/Map lights
*8 —
Overhead light (Front)*10 —
Overhead light (Rear)*10 —
Vanity mirror lights*2 —
*1 UNECE stands for United Nations Economic Commission for Europe.
Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page
6-41.
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page
4-154.
Mazda3_8FL6-EA-16F_Edition2.indb 102016/08/10 17:39:54

9–11
Specifications
Specifications
Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P205/60R16 91H 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89W 250 kPa (36 psi)250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
P205/60R16 91H 250 kPa (2.5 bar, 36 psi)250 kPa (2.5 bar, 36 psi)
Tire size Inflation pressure
Up to 3 persons —Full load
215/45R18 89W Front
240 kPa (2.4 bar, 35 psi) 280 kPa (2.8 bar, 41 psi)
Rear 230 kPa (2.3 bar, 33 psi) 300 kPa (3.0 bar, 44 psi)
1 person's weight: About 75 kg
Temporary spare tire
Tire size Inflation pressure
T125/70D16 96M 420 kPa (60 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)
Fuses
Refer to Fuses on page 6-60.
Mazda3_8FL6-EA-16F_Edition2.indb 112016/08/10 17:39:54

9–12
Specifications
Personalization Features
Personalization Features
The following personalization features can be set or changed by the cust\
omer or an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features and settings which can be changed differ depending on the market
and specification.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-53.
B: Refer to Fuel Economy Monitor on page
4-75.
C: Refer to Active Driving Display on page
4-21.
Settings can be changed by operating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-18.
E: Refer to Transmitter on page
3-5.
F: Refer to Locking, Unlocking with Request Switch (W ith the advanced keyless function)
on page 3-14.
Settings can be changed by an Authorized Mazda Dealer.
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Safety
Smart City
Brake Support
(SCBS) (page
4-128)
Smart Brake
Support (SBS)
(page
4-133) The system can be changed so that Smart City
Brake Support (SCBS)/Smart Brake Support
(SBS) does not operate.
*1On
On/Off A—
The distance at which the collision warning activates can be changed. Med.
Far/Med./Near A—
The volume of the collision warning can be changed. High
High/Low/Off A—
Mazda3_8FL6-EA-16F_Edition2.indb 122016/08/10 17:39:55

9–13
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Lane-keep Assist System
(LAS) & Lane
Departure
Warning System
(LDWS) (page
4-117) The system can be changed so that the steering
wheel assist does not operate.
On
On/Off A—
When the steering wheel operation assistance is
turned on The cancel
sensitivity of the
steering assistance
for the Lane-keep
Assist System
(LAS) & Lane
Departure Warning
System (LDWS)
can be changed.
High
High/Low A—
The system can be changed so that the
Lane Departure
Warning does not
activate. On
On/Off A—
When the steering wheel operation assistance is
turned off The warning timing
in which the Lane-
keep Assist System
(LAS) & Lane
Departure Warning
System (LDWS)
system determines
that the vehicle
may be deviating
from its lane can be
changed.
At
At/Before A—
The sensitivity of the warning for the
Lane-keep Assist
System (LAS) &
Lane Departure
Warning System
(LDWS) can be
changed. Often
Often/Rare A—
The type of Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
warning can be changed. Beep
Vibration/Beep/
Rumble A
—
The warning intensity/volume of the Lane-keep
Assist System (LAS) &
Lane Departure Warning
System (LDWS) system
can be changed. Vibration
HighHigh/Low A—RumbleHigh High/Mid/Low A—
BeepHigh High/Low A—
Mazda3_8FL6-EA-16F_Edition2.indb 132016/08/10 17:39:55

9–14
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Blind Spot Monitoring
(BSM) (page
4-88) The system can be changed so that Blind Spot
Monitoring (BSM) does not operate.
*1On
On/Off A—
Warning beep volume*2High High/
Low/ Off A
—
Distance Recognition
Support System
(DRSS) (page
4-101) The system can be changed so that Distance
Recognition Support System (DRSS) does not
operate.
*1On
On/Off A—
The distance at which the vehicle ahead and your vehicle indicated in the display flashes in
white can be changed. Near
Far/Med./Near A—
Traffic Sign Recognition
System (TSR)*3
(page 4-94) The Traffic Sign Recognition System (TSR)
can be set to inoperable.
*1On
On/Off A—
The warning pattern of the excessive speed warning can be changed. OffOff/
Visual/
Audio & Visual A
—
The activation timing for the excessive speed warning can be changed.00/5/10A—
Mazda3_8FL6-EA-16F_Edition2.indb 142016/08/10 17:39:56

9–15
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Vehicle
Door locks
(page 3-18) Operation condition of auto lock/unlock
function Lock:
When
Driving, Unlock:
IGN OFF OFF/
Lock: When Driving/
Lock: When Driving,
Unlock: IGN OFF/
Lock: When Driving,
Unlock: In Park/
Lock: Shifting out of Park
Lock: Out of
Park, Unlock: In Park A
D
Keyless entry system (page 3-3) Method for unlocking door using transmitter
Once:
Driver's,
Twice: All Doors Touch Once:
All Doors/
Once: Driver's, Twice: All Doors A
E
Time for locking door automatically60 seconds 90 seconds/
60 seconds/
30 seconds A
—
Advanced keyless entry
system (page
3-10) Method for unlocking door using request
switch/transmitter
Driver's:
Once, All Doors: Twice All Doors:
Once/
Driver's: Once, All Doors: Twice A
E,
F
Time for locking door automatically60 seconds 90 seconds/
60 seconds/
30 seconds A
—
Auto-lock function operation/non-operationalOff On/Off A—
Beep volume when locking/unlockingMedium High/
Medium/ Low/Off A
E,
F
Illuminated entry system
(page 5-112) Time until interior lights turn off after closing
door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A
—Time until interior lights turn off automatically when any door is not closed completely 30 minutes60 minutes/
30 minutes/
10 minutes A
—
Mazda3_8FL6-EA-16F_Edition2.indb 152016/08/10 17:39:56

9–16
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Auto-wiper control (page 4-50) Operational/non-operational
OnOn/Off
*4A—
Daytime running lights
(page 4-48) Operational/non-operational
OnOn/Off ——
Auto headlight off*5 (page 4-43) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off*6
A —
Auto-light control (page 4-43) Timing by which lights turn on
MediumHigh/
Med. High/ Medium/
Med. Low/ Low A
—
High Beam Control System
(HBC) (page
4-85) Operational/non-operational
*1On
On/Off A—
Adaptive Front Lighting System
(AFS) (page
4-84) Operational/non-operational
*1On
On/Off A—
Lights-on reminder*7 (page 7-39) Warning beep volume
OffHigh/Low/Off A—
Coming home light (page 4-47) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A
—
Leaving home light (page 4-47) Operational/non-operational
OnOn/Off A—
Turn signal indicator (page 4-49) Beep volume
HighHigh/Low A—
Three-flash turn signal (page 4-49) Operational/non-operational
OnOn/Off A—
Rear window defogger (page 4-54) The operation time for the rear window
defogger can be changed.
15 minutes15 minutes/
Continuous*8— —
Mazda3_8FL6-EA-16F_Edition2.indb 162016/08/10 17:39:56
