dashboard MAZDA MODEL 3 4-DOOR 2017 Owners Manual

1–3
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle
Audio control switches........................................................................\
..................page 5-55
Instrument cluster ........................................................................\
..........................page 4-12
Dashboard illumination knob ........................................................................\
........page 4-18
Cruise control switches ........................................................................\
....page 4-110, 4-146
Hazard warning flasher switch ........................................................................\
......page 4-56
Seat warmer switches ........................................................................\
......................page 2-7
Heated steering wheel switch ........................................................................\
........page 3-33
Push button start ........................................................................\
..............................page 4-4
Steering shift switches ........................................................................\
..................page 4-37
Lock release lever ........................................................................\
.........................page 3-33
Hood release handle ........................................................................\
......................page 6-22
Remote fuel-filler lid release ........................................................................\
.........page 3-31
Mazda3_8FL6-EA-16F_Edition2.indb 32016/08/10 17:34:47

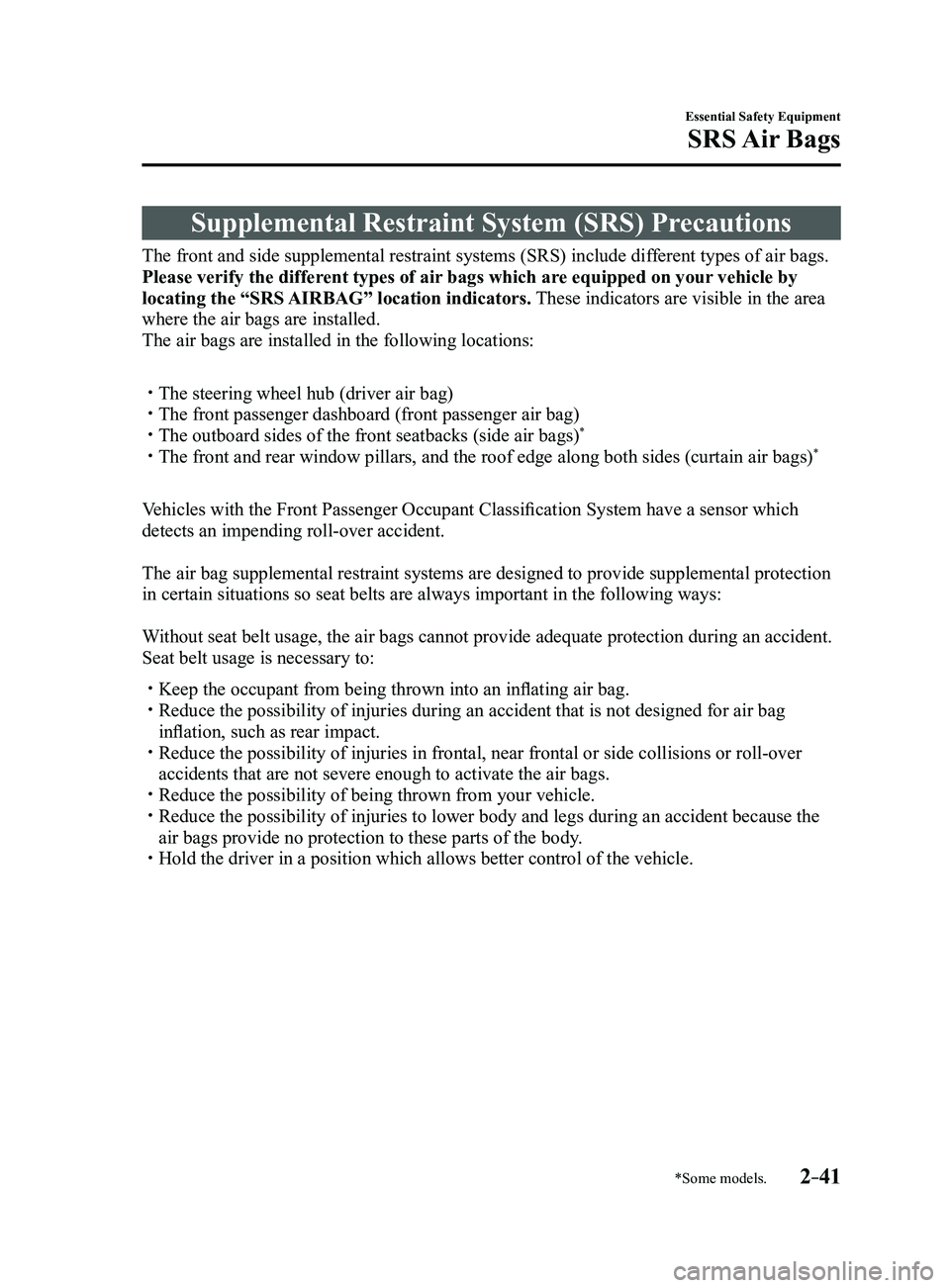

2–41
Essential Safety Equipment
SRS Air Bags
*Some models.
Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include different types of air bags.
Please verify the different types of air bags which are equipped on your vehicle by
locating the “SRS AIRBAG” location indicators. These indicators are visible in the area
where the air bags are installed.
The air bags are installed in the following locations:
 The steering wheel hub (driver air bag) The front passenger dashboard (front passenger air bag) The outboard sides of the front seatbacks (side air bags)*
 The front and rear window pillars, and the roof edge along both sides (\
curtain air bags)*
Vehicles with the Front Passenger Occupant Classification System have a sensor which
detects an impending roll-over accident.
The air bag supplemental restraint systems are designed to provide suppl\
emental protection
in certain situations so seat belts are always important in the followin\
g ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
 Keep the occupant from being thrown into an inflating air bag. Reduce the possibility of injuries during an accident that is n ot designed for air bag
inflation, such as rear impact. Reduce the possibility of injuries in frontal, near frontal or side collisions or roll-over
accidents that are not severe enough to activate the air bags. Reduce the possibility of being thrown from your vehicle. Reduce the possibility of injuries to lower body and legs durin g an accident because the
air bags provide no protection to these parts of the body. Hold the driver in a position which allows better control of the vehicle\
.
Mazda3_8FL6-EA-16F_Edition2.indb 412016/08/10 17:35:06

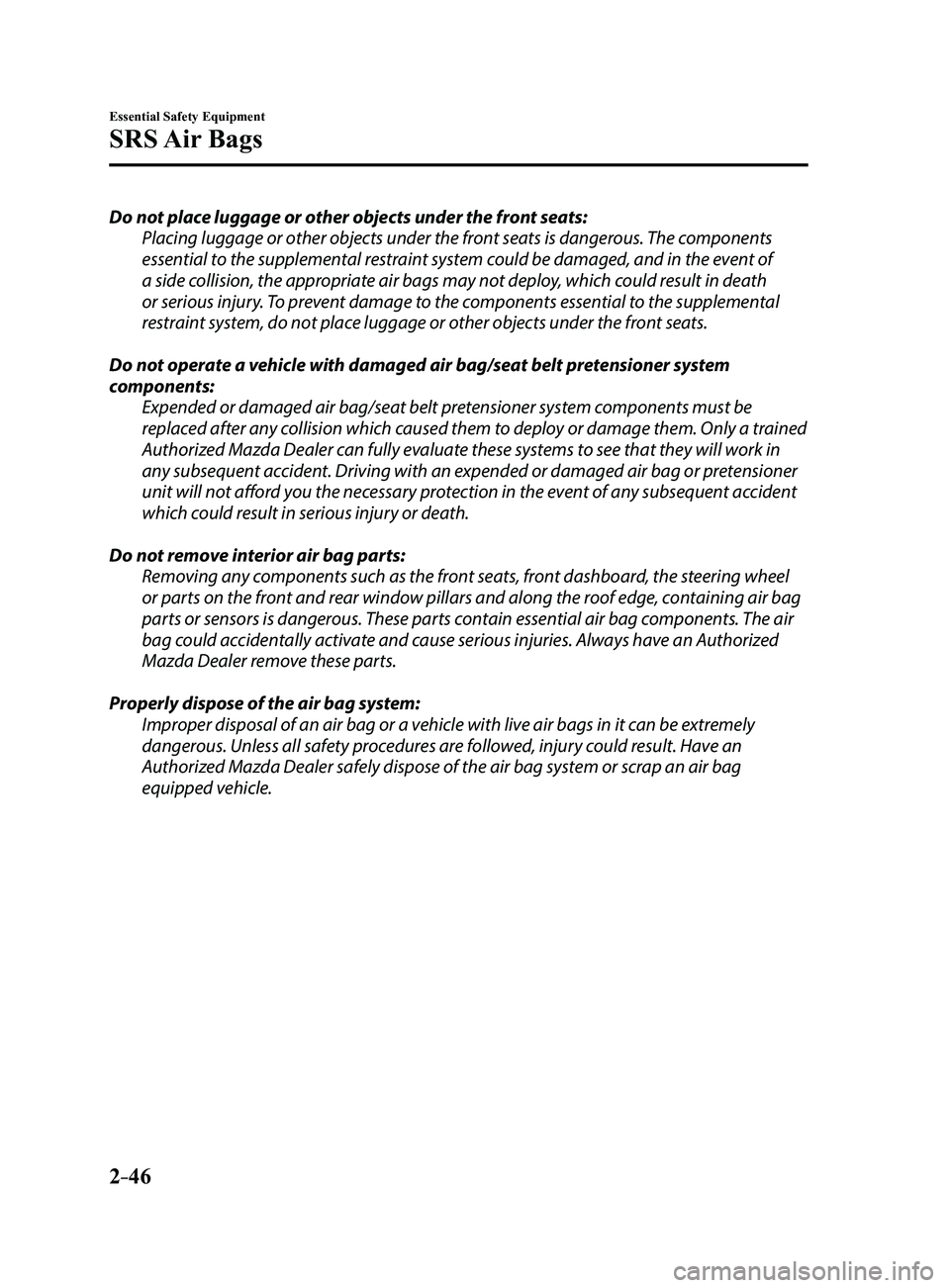

2–46
Essential Safety Equipment
SRS Air Bags
Do not place luggage or other objects under the front seats:Placing luggage or other objects under the front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of
a side collision, the appropriate air bags may not deploy, which could result in death
or serious injury. To prevent damage to the components essential to the supplemental
restraint system, do not place luggage or other objects under the front seats.
Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components: Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a trained
Authorized Mazda Dealer can fully evaluate these systems to see that they will work in
any subsequent accident. Driving with an expended or damaged air bag or pretensioner
unit will not afford you the necessary protection in the event of any subsequent accident
which could result in serious injury or death.
Do not remove interior air bag parts: Removing any components such as the front seats, front dashboard, the steering wheel
or parts on the front and rear window pillars and along the roof edge, containing air bag
parts or sensors is dangerous. These parts contain essential air bag components. The air
bag could accidentally activate and cause serious injuries. Always have an Authorized
Mazda Dealer remove these parts.
Properly dispose of the air bag system: Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury could result. Have an
Authorized Mazda Dealer safely dispose of the air bag system or scrap an air bag
equipped vehicle.
Mazda3_8FL6-EA-16F_Edition2.indb 462016/08/10 17:35:07

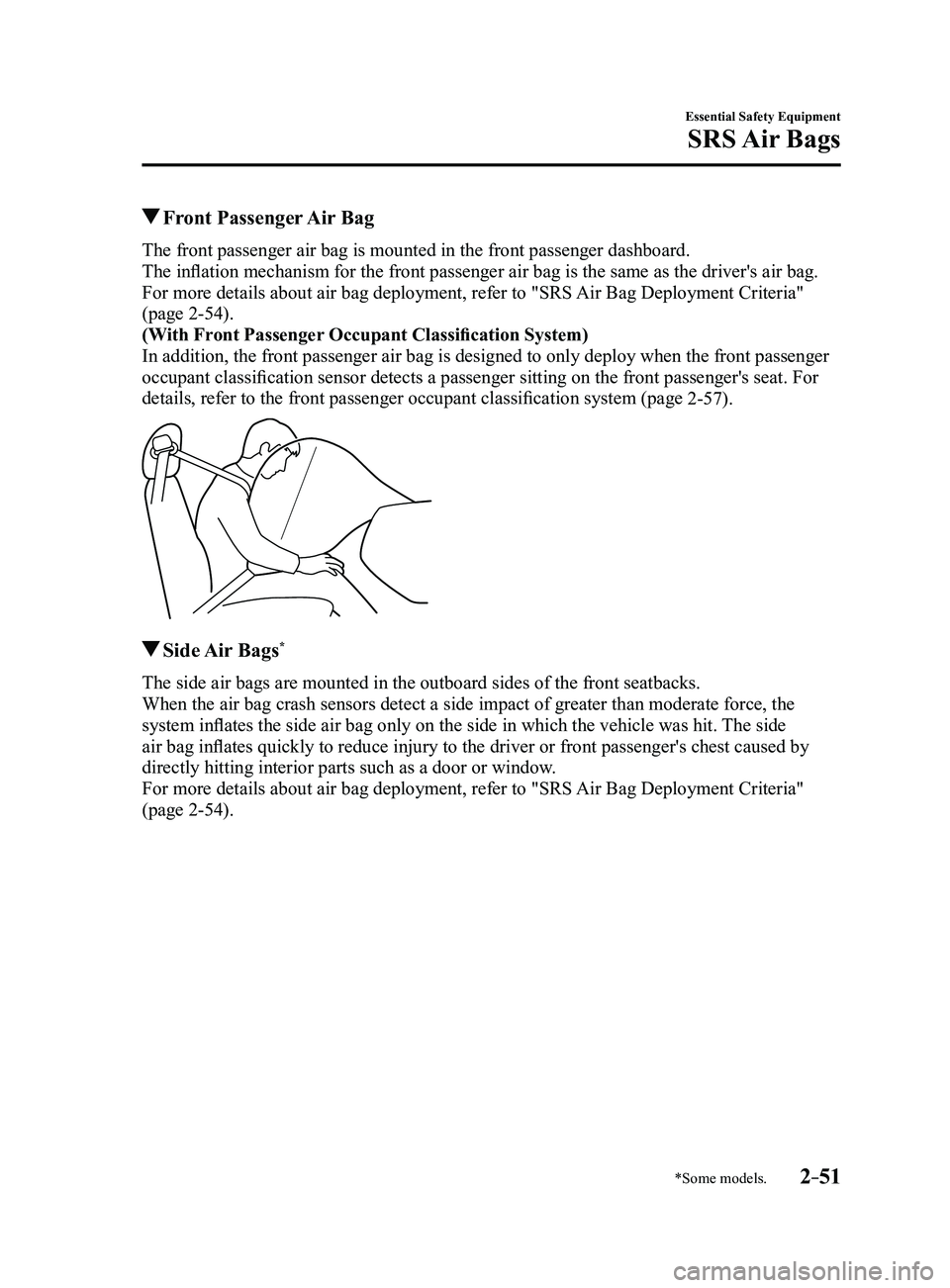

2–51
Essential Safety Equipment
SRS Air Bags
*Some models.
Front Passenger Air Bag
The front passenger air bag is mounted in the front passenger dashboard.\
The inflation mechanism for the front passenger air bag is the same as the driver's air bag.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page
2-54).
(With Front Passenger Occupant Classification System)
In addition, the front passenger air bag is designed to only deploy when\
the front passenger
occupant classification sensor detects a passenger sitting on the front passenger's seat. For
details, refer to the front passenger occupant classification system (page
2-57).
Side Air Bags*
The side air bags are mounted in the outboard sides of the front seatbac\
ks.
When the air bag crash sensors detect a side impact of greater than mode\
rate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side
air bag inflates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria"
(page
2-54).
Mazda3_8FL6-EA-16F_Edition2.indb 512016/08/10 17:35:09

3–2
Before Driving
Keys
Keys
WARNING
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these keys to
be an interesting toy to play with and
could cause the power windows or
other controls to operate, or even make
the vehicle move.
CAUTION
 Because the key (transmitter) uses
low-intensity radio waves, it may not
function correctly under the following
conditions:
 The key is carried with
communication devices such as
cellular phones.
 The key contacts or is covered by a
metal object. The key is near electronic devices such
as personal computers. Non-Mazda genuine electronic
equipment is installed in the vehicle. There is equipment which discharges
radio waves near the vehicle.
 The key (transmitter) may consume
battery power excessively if it receives
high-intensity radio waves. Do not place
the key near electronic devices such as
televisions or personal computers.
 To avoid damage to the key
(transmitter), DO NOT:
 Drop the key. Get the key wet. Disassemble the key. Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 Expose the key to any kind of
magnetic field. Place heavy objects on the key. Put the key in an ultrasonic cleaner. Put any magnetized objects close to
the key.
Mazda3_8FL6-EA-16F_Edition2.indb 22016/08/10 17:35:15

3–9
Before Driving
Keys
Without the advanced keyless function
Operational range
Interior antenna
NOTE
The engine may not start if the key is
placed in the following areas:
 Around the dashboard In the storage compartments such as
the glove compartment or the center
console
 On the rear parcel shelf (4–door)
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.
Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:35:18

3–11
Before Driving
Advanced Keyless Entry System
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in
places where there are high-intensity radio
waves or noise, the operational range
may become narrower or the system may
not operate. For determining battery
replacement, Refer to Keyless Entry
System on page
3-3.
Locking, Unlocking the Doors and
the Liftgate/Trunk Lid
Exterior antennaLocking only
(5-door)
Operational range 80cm (31in)
80cm (31in)
NOTE
 The system may not operate if you
are too close to the windows or door
handles, or liftgate.
 If the key is left in the following ar
eas
and you leave the vehicle, the doors
may be locked depending on the radio
wave conditions even if the key is left in
the vehicle.
 Around the dashboard In the storage compartments such as
the glove compartment or the center
console
 Next to a communication device such
as a mobile phone
Opening the Liftgate/Trunk Lid
Exterior antenna
Operational range80cm (31in)
Mazda3_8FL6-EA-16F_Edition2.indb 112016/08/10 17:35:19

3–13
Before Driving
Doors and Locks
NOTE
 Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside the
cabin.
 If the key is left in the following areas
and you leave the vehicle, the doors
may be locked depending on the radio
wave conditions even if the key is left in
the vehicle.
 Around the dashboard In the storage compartments such as
the glove compartment or the center
console
 Next to a communication device such
as a mobile phone
 When the ignition is switched to ACC
or ON, the vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
All doors and the liftgate/trunk lid will
automatically unlock if they are locked
using the power door locks with any
door open.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened fr om the
outside while the key is inside the
vehicle, the closed doors are locked. All
the doors are automatically unlocked by
closing the open door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key
has been left in the vehicle.
(Without the advanced keyless
function)
The horn sound is hear d twice to notify
the driver that the key has been left in
the vehicle.
 (Door unlock (control) system with
collision detection)
This system automatically unlocks
the doors and the liftgate/trunk lid in
the event the vehicle is involved in an
accident to allow passengers to get
out of the vehicle immediately and
prevent being trapped inside. While
the ignition is switched ON and in the
event the vehicle receives an impact
strong enough to inflate the air bags,
all the doors and the liftgate/trunk lid
are automatically unlocked after about
6 seconds have elapsed from the time of
the accident.
The doors and the liftgate/trunk lid may
not unlock depending on how an impact
is applied, the force of the impact, and
other conditions of the accident.
If door-related systems or the battery
is malfunctioning, the doors and the
liftgate/trunk lid will not unlock.
Mazda3_8FL6-EA-16F_Edition2.indb 132016/08/10 17:35:19

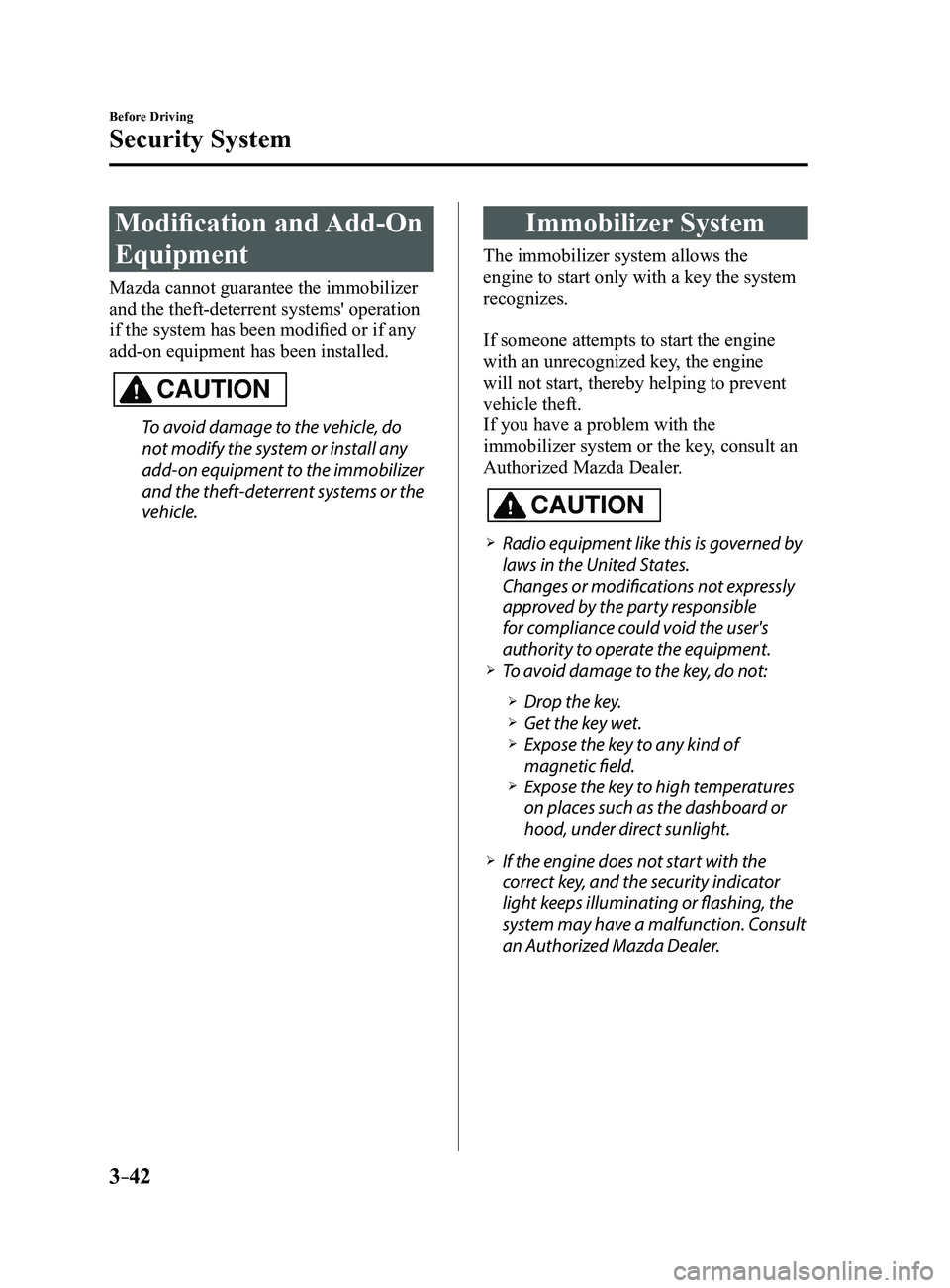

3–42
Before Driving
Security System
Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
 Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key. Get the key wet. Expose the key to any kind of
magnetic field. Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Mazda3_8FL6-EA-16F_Edition2.indb 422016/08/10 17:35:36

3–43
Before Driving
Security System
NOTE
 The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
 Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
 If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
Operation
NOTE
 The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.
 Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
NOTE
 If the security indicator light flashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
 Because the electr onic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
Mazda3_8FL6-EA-16F_Edition2.indb 432016/08/10 17:35:37
