light MAZDA MODEL 3 5-DOOR 2004 Owners Manual

1-2
Your Vehicle at a Glance
Form No. 8S18-EA-03I
Dashboard Overview
Climate control systemGlove box
Parking brakeLighter
Shift lever
Audio system
Passenger-side air bag
Hazard warning flasher
Wiper and washer lever
Ashtray
Information display
Fog light switch*
Power door lock switch Lighting control/Turn signals Instrument cluster
Power window switches* Driver-side air bag
Ignition switch
Hood release handle
Audio control switch* Cup holder
Steering column release lever
(page 6-38)
(page 2-36)
(page 5-26)
(page 5-44)
(page 5-48)
(page 3-8)
(page 3-16)
(page 3-20)
(page 6-32)
(page 3-29) (page 5-53)
(page 6-10)
(page 6-2)
(page 5-9)
(page 2-36)
(page 6-42)
(page 6-41)
(page 5-5)
(page 6-40)
(page 6-40) (page 5-2)
(page 5-48)
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 2 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

1-3
Your Vehicle at a Glance
Form No. 8S18-EA-03I
Interior Overview
Seat belts Interior light
Sunvisors
Rear seat Vanity mirror
Rearview mirror
Front seats
Curtain air bags*
Side air bags* Map Lights
(page 6-35)
(page 2-36)
(page 6-35)
(page 2-5)
(page 2-9) (page 6-37)
(page 3-27)
(page 6-35)
(page 2-2)
(page 2-36)
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 3 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

1-4
Your Vehicle at a Glance
Form No. 8S18-EA-03I
Exterior Overview (4 Door)
Doors and keys
Outside mirrors
Side turn signal lights
Headlights
Fuel-filler lid
Child safety locks Tires
Reverse light
Windshield wiper blades
Hood
Front turn signal lights/Side-marker lights
Fog lights* Rear turn signal lights
Brake lights/Taillights Power windows*
Rear window defroster
Trunk lid
High-mount brake light
License plate light
Antenna
Moonroof*
(page 8-37) (page 6-10)
(page 3-13)
(page 8-37)
(page 8-37)
(page 8-37)
(page 8-24)
(page 3-20)
(page 8-37) (page 5-52)
(page 3-16)
(page 8-31)
(page 3-18)
(page 8-37)
(page 8-37)
(page 3-21)
(page 3-9)
(page 3-2)
(page 3-29)
(page 8-37)
(page 8-37)
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 4 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

1-5
Your Vehicle at a Glance
Form No. 8S18-EA-03I
Exterior Overview (5 Door)
Doors and keys
Outside mirrors
Side turn signal lights
Headlights
Fuel-filler lid
Child safety lock Tires
Reverse light
Windshield wiper blades
Hood
Front turn signal lights/Side-marker lights
Fog lights* Rear turn signal lights
Brake lights/Taillights
Power windows*
Rear window defroster
Liftgate High-mount brake light
License plate light Antenna
Moonroof*
(page 3-10) (page 6-10)
(page 8-37)
(page 8-37)
(page 8-37)
(page 8-37)
(page 8-24)
(page 3-20)
(page 8-37) (page 5-52)
(page 8-37)
(page 8-31)
(page 3-18)
(page 8-37)
(page 3-21)
(page 3-9)
(page 3-2)
(page 3-29)
(page 8-37)
(page 8-37) (page 3-16)
*Some models.
J48C_8S18-EA-03I_Edition3.book Page 5 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

2-1
Form No. 8S18-EA-03I
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air
bags and child-restraint systems.
Seats ................................................................................................ 2-2
Front Seats ................................................................................. 2-2
Rear Seat .................................................................................... 2-5
Seat Belt Systems ........................................................................... 2-9
Seat Belt Precautions ................................................................. 2-9
3-Point Type Seat Belt ............................................................. 2-12
Front Seat Belt Pretensioner and Load Limiting Systems ...... 2-14
Rear Center Position Seat Belt ................................................ 2-16
Seat Belt Extender ................................................................... 2-18
Seat Belt Warning Light/Beep ................................................. 2-19
Child Restraint ............................................................................ 2-21
Child Restraint Precautions ..................................................... 2-21
Installing Child-Restraint Systems .......................................... 2-25
LATCH Child-Restraint Systems ............................................ 2-32
SRS Air Bags ............................................................................... 2-36
Supplemental Restraint Systems (SRS) Precautions ............... 2-36
Supplemental Restraint System Components .......................... 2-41
How the Air Bags Work .......................................................... 2-44
J48C_8S18-EA-03I_Edition3.book Page 1 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

2-3
Essential Safety Equipment
Seats
Form No. 8S18-EA-03I

Seat ReclineTo change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don
’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
WARNING
When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Lever
CAUTION
J48C_8S18-EA-03I_Edition3.book Page 3 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

2-15
Essential Safety Equipment
Seat Belt Systems
Form No. 8S18-EA-03I

Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light illuminates or doesn
’t
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
• The pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
• Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
WARNING
J48C_8S18-EA-03I_Edition3.book Page 15 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

2-16
Essential Safety Equipment
Seat Belt Systems
Form No. 8S18-EA-03I

Air Bag/Front Seat Belt
Pretensioner System Warning
Beep

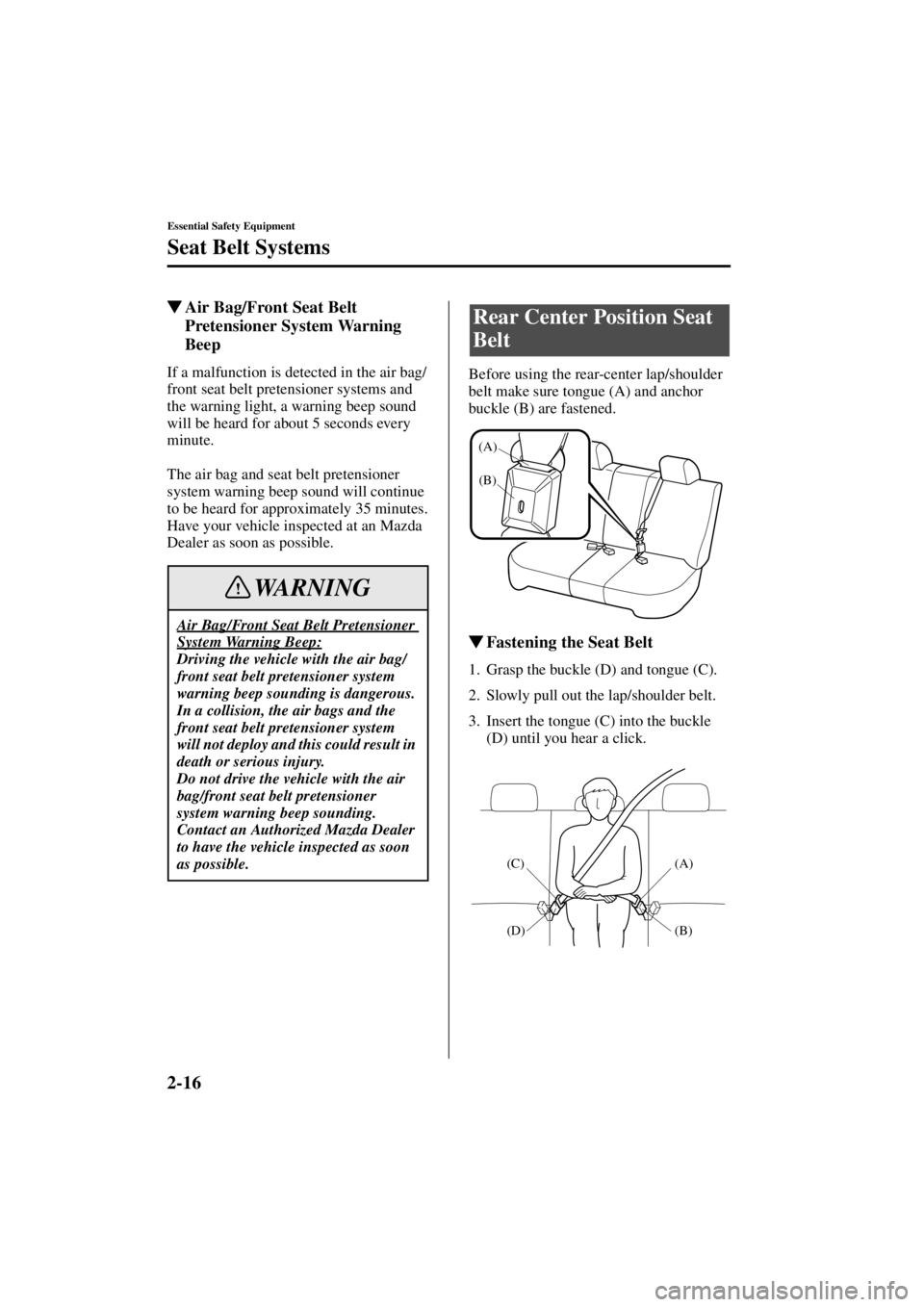

If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an Mazda
Dealer as soon as possible. Before using the rear-center lap/shoulder
belt make sure tongue (A) and anchor
buckle (B) are fastened.


Fastening the Seat Belt
1. Grasp the buckle (D) and tongue (C).
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue (C) into the buckle
(D) until you hear a click.
Air Bag/Front Seat Belt Pretensioner
System Warning Beep:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result in
death or serious injury.
Do not drive the vehicle with the air
bag/front seat belt pretensioner
system warning beep sounding.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
WARNING
Rear Center Position Seat
Belt
(A)
(B)
(A)
(B)
(C)
(D)
J48C_8S18-EA-03I_Edition3.book Page 16 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

2-19
Essential Safety Equipment
Seat Belt Systems
Form No. 8S18-EA-03I
The seat belt warning light illuminates
and a beep sound will be heard if the
driver’s seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don ’t use the extender or choose one
shorter in length if the distance
between the extender ’s buckle and the
center of the user ’s body is less than
15cm (6 in).
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If
the seat belt extender is left connected,
the seat belt warning light will not
illuminate and function properly.
WARNINGSeat Belt Warning Light/
Beep
Condition Result

The driver ’s seat belt is
not fastened when the
ignition switch is turned
to the ON position. The warning light
illuminates for about
1 minute and a beep
sound will be heard
for about 6 seconds.
The driver ’s seat belt is
fastened while the
warning light and the
beep are activated. The warning light
turns off and the
beep sound stops.
The driver ’s seat belt is
fastened before the
ignition switch is turned
to the ON position. The warning light
will not illuminate
and the beep sound
will not be heard.
J48C_8S18-EA-03I_Edition3.book Page 19 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI

2-20
Essential Safety Equipment
Seat Belt Systems
Form No. 8S18-EA-03I

Belt Minder
The belt minder is a supplemental
warning to the seat belt warning function.
This feature provides additional
reminders to the driver that the driver
’s
seat belt is not fastened by intermittently
sounding a beep sound and flashing the
seat belt warning light in the instrument
cluster.
Condition Result

The driver ’s seat belt is
not fastened when the
vehicle speed reaches 8
km/h (5 mph) and about 1
minute has elapsed since
the ignition switch was
turned to the ON position. The warning light
flashes and the beep
sound will be heard
for about 6 seconds
every 30 seconds,
for a period of about
5 minutes.
The driver ’s seat belt is
fastened while the
warning light and the
beep are activated. The warning light
turns off and the
beep sound stops.
The driver ’s seat belt is
fastened before the
ignition switch is turned
to the ON position. The warning light
will not illuminate
and the beep sound
will not be heard.
NOTE
The belt minder can be deactivated by
the following methods.
•
(Temporary deactivation)

To temporarily deactivate the belt
minder, turn the ignition switch to
the ON position, fasten the driver’ s
seat belt for about 2 seconds or
longer, and then unfasten it within
20 seconds. The belt minder will be
deactivated until the ignition switch
is turned to the ON position again.
• (Long-term deactivation)

To deactivate the belt minder over
the long term, consult an
Authorized Mazda Dealer. If the
belt minder is long-term
deactivated, the belt minder will not
activate until it is restored at the
Authorized Mazda Dealer.
J48C_8S18-EA-03I_Edition3.book Page 20 Monday, February 9, 2004 8:41 PM
Black process 45.0 ° 240.0 LPI
