Black plate (341,1)

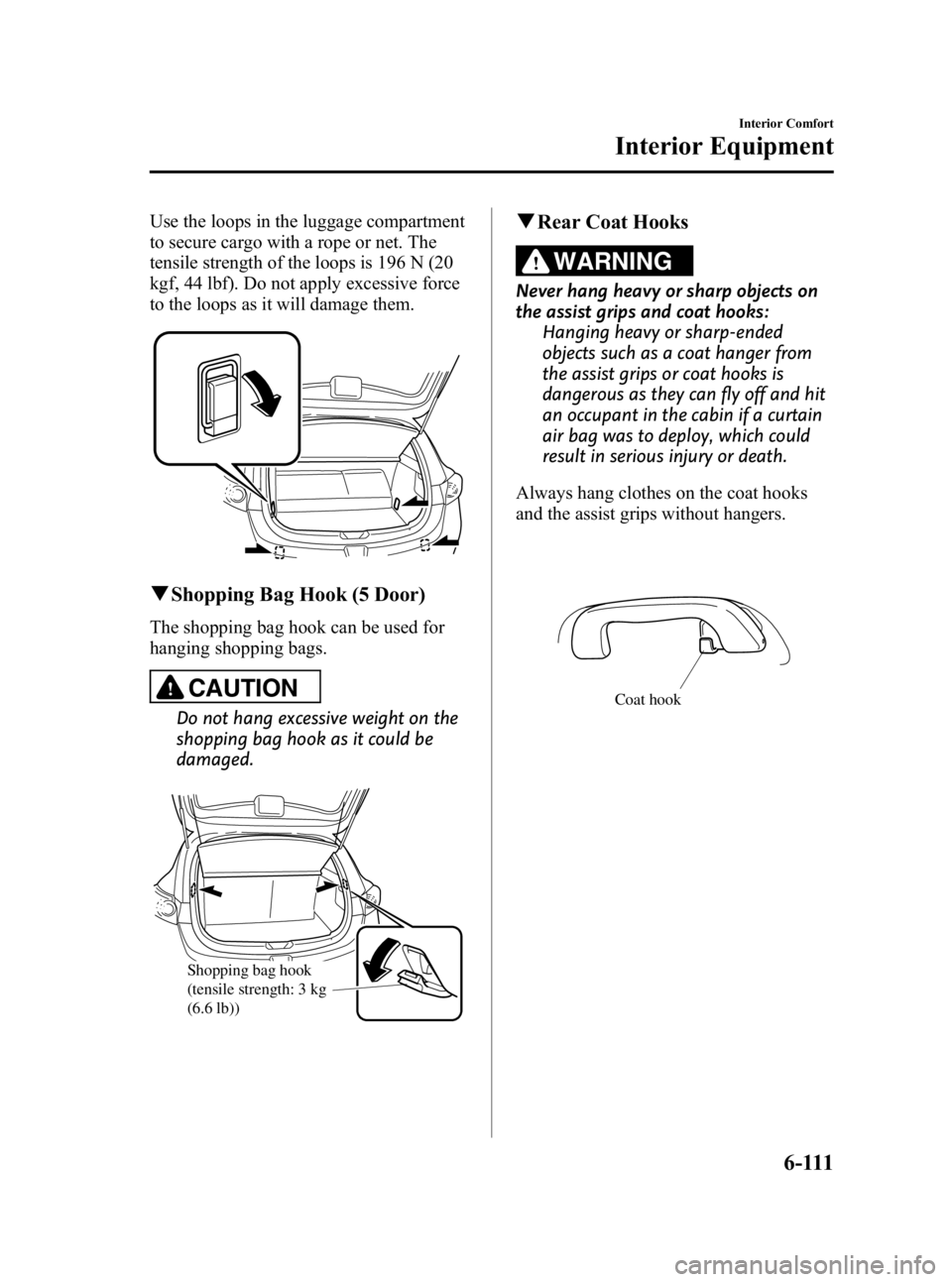

Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
qShopping Bag Hook (5 Door)
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Shopping bag hook
(tensile strength: 3 kg
(6.6 lb))
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
Interior Comfort
Interior Equipment
6-111
Mazda3_8BG3-EA-09J_Edition2 Page341
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (342,1)

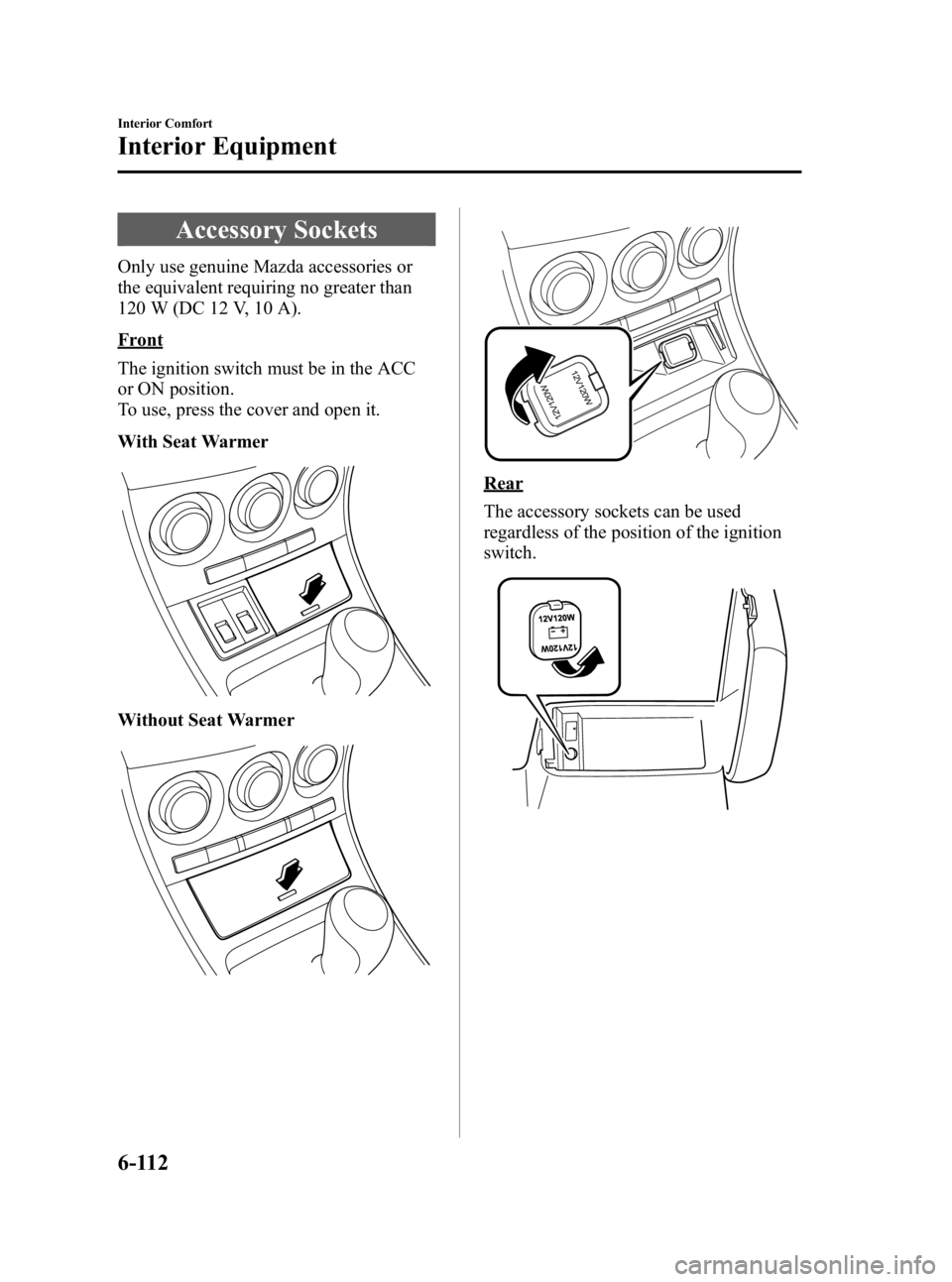

Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition switch must be in the ACC
or ON position.
To use, press the cover and open it.
With Seat Warmer
Without Seat Warmer
Rear
The accessory sockets can be used
regardless of the position of the ignition
switch.
6-112
Interior Comfort
Interior Equipment
Mazda3_8BG3-EA-09J_Edition2 Page342
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (343,1)
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
ØDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
Ø Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
Ø Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
Ø Correctly insert the plug into the
accessory socket.
Ø Do not insert the cigarette lighter
into the accessory socket.
Noise may occur on the audio
playback or TV reception depending
on the device connected to the
accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Connecting the accessory socket
1. Open the lid. 2. Pass the connection plug cord through
the cutout of the console and insert the
plug into the accessory socket.
Plug
Interior Comfort
Interior Equipment
6-113
Mazda3_8BG3-EA-09J_Edition2 Page343
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (344,1)
6-114
Mazda3_8BG3-EA-09J_Edition2 Page344
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (345,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-15 Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17 Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-22
Emergency Towing ..................................................................... 7-23 Towing Description ................................................................. 7-23
Tiedown Hook ........................................................................ 7-24
Recreational Towing ............................................................... 7-27
7-1
Mazda3_8BG3-EA-09J_Edition2 Page345
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (346,1)

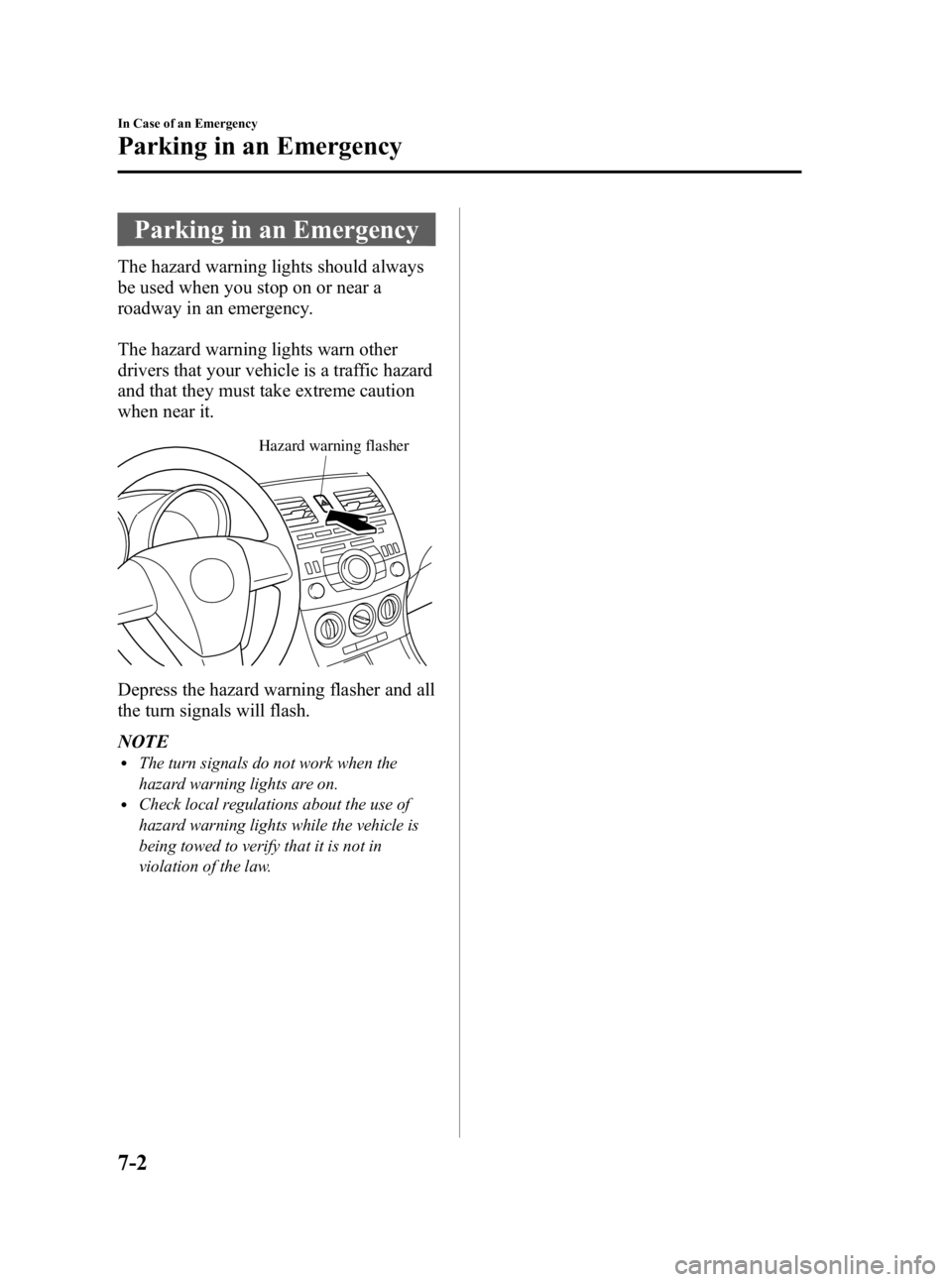

Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8BG3-EA-09J_Edition2 Page346
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (347,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare tire
Jack Jack handleTiedown eyelet
Lug wrench
Bolt for flat tire
4 Door
In Case of an Emergency
Flat Tire
7-3
Mazda3_8BG3-EA-09J_Edition2 Page347
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (348,1)

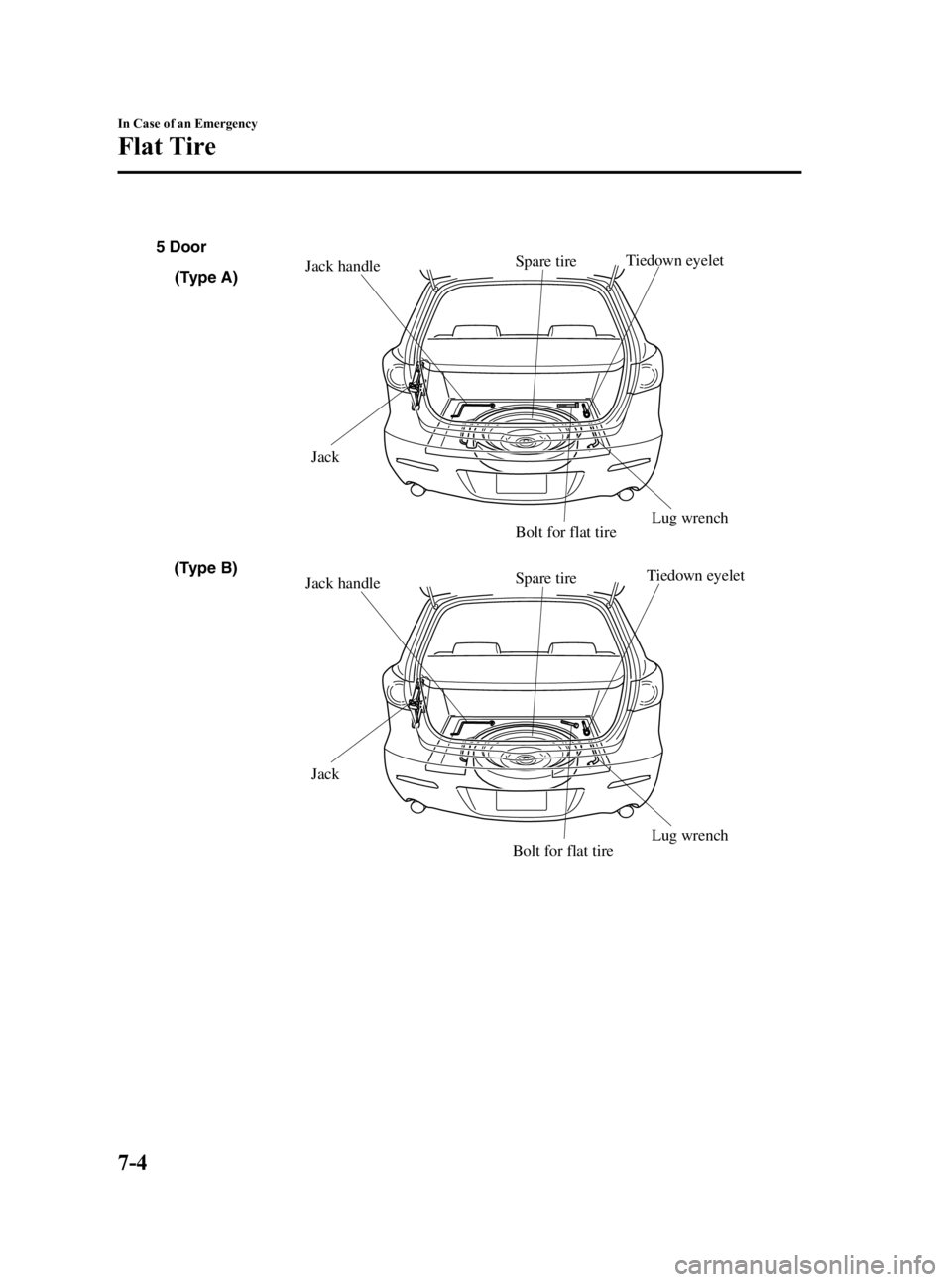

Spare tire
Jack
Jack handle
Lug wrenchTiedown eyelet
Spare tire
Jack
Jack handle
Lug wrenchTiedown eyelet
Bolt for flat tire Bolt for flat tire
5 Door
(Type A)
(Type B)
7-4
In Case of an Emergency
Flat Tire
Mazda3_8BG3-EA-09J_Edition2 Page348
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (349,1)

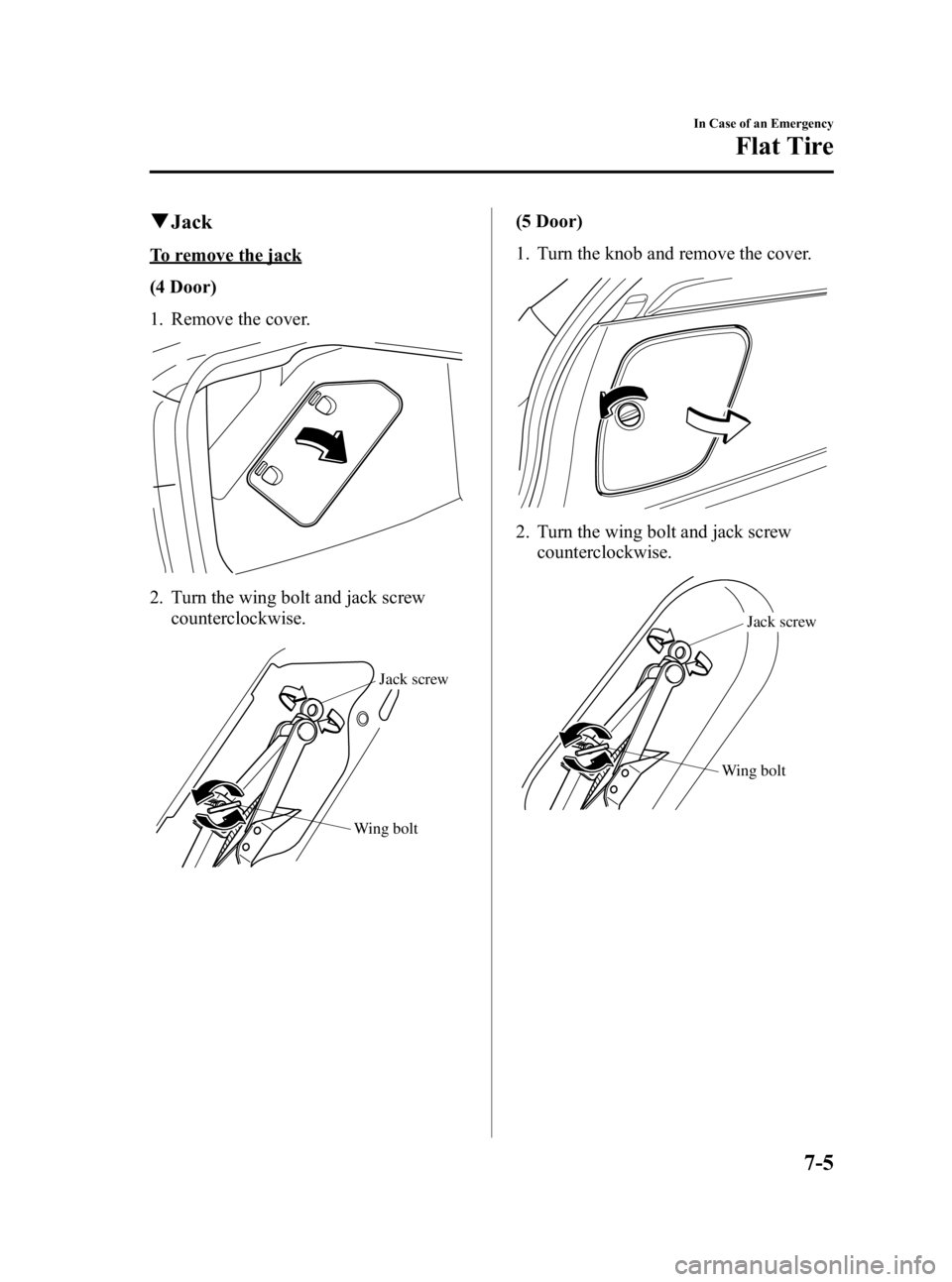

qJack
To remove the jack
(4 Door)
1. Remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt Jack screw
(5 Door)
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt Jack screw
In Case of an Emergency
Flat Tire
7-5
Mazda3_8BG3-EA-09J_Edition2 Page349
Tuesday, December 8 2009 1:29 PM
Form No.8BG3-EA-09J

Black plate (350,1)

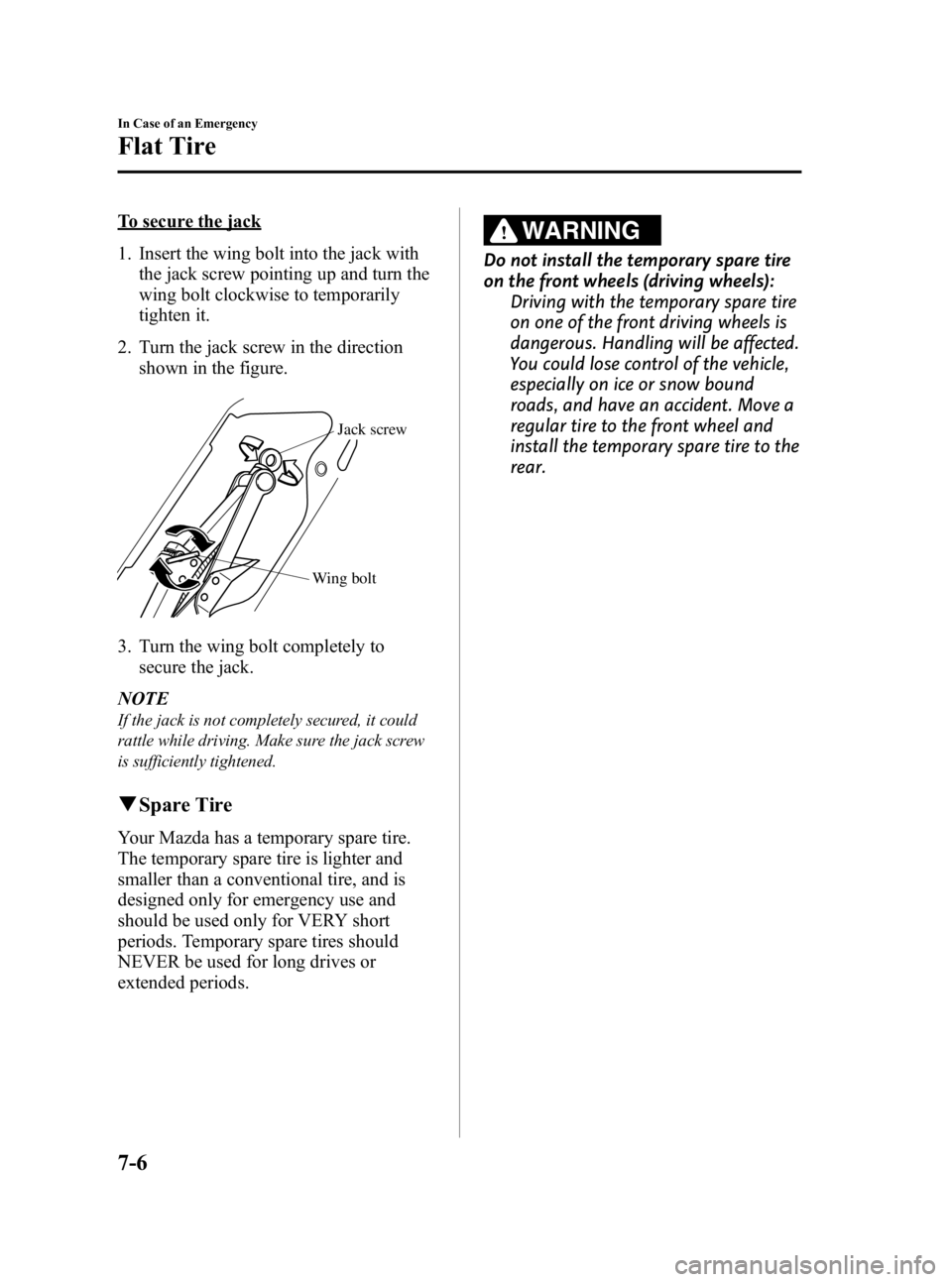

To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing up and turn the
wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt Jack screw
3. Turn the wing bolt completely to
secure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
q Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
on the front wheels (driving wheels):
Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.
7-6
In Case of an Emergency
Flat Tire
