Page 421 of 504

Black plate (421,1)
2. Remove the cover.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
High-mount brake light
(4 Door)
1. Make sure the ignition is switched off,and the headlight switch is off. 2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
InstallationRemoval
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
(5 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8BG3-EA-09J_Edition2 Page421
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 422 of 504

Black plate (422,1)
With Non-LED bulb
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Remove the liftgate upper trim.
3. Disconnect the electrical connector from the bulb by pressing the tab on
the connector with your finger and
pulling the connector sideward to the
left.
4. Turn the socket and bulb assemblycounterclockwise and remove it. 5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of removal.
License plate lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8BG3-EA-09J_Edition2 Page422
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J

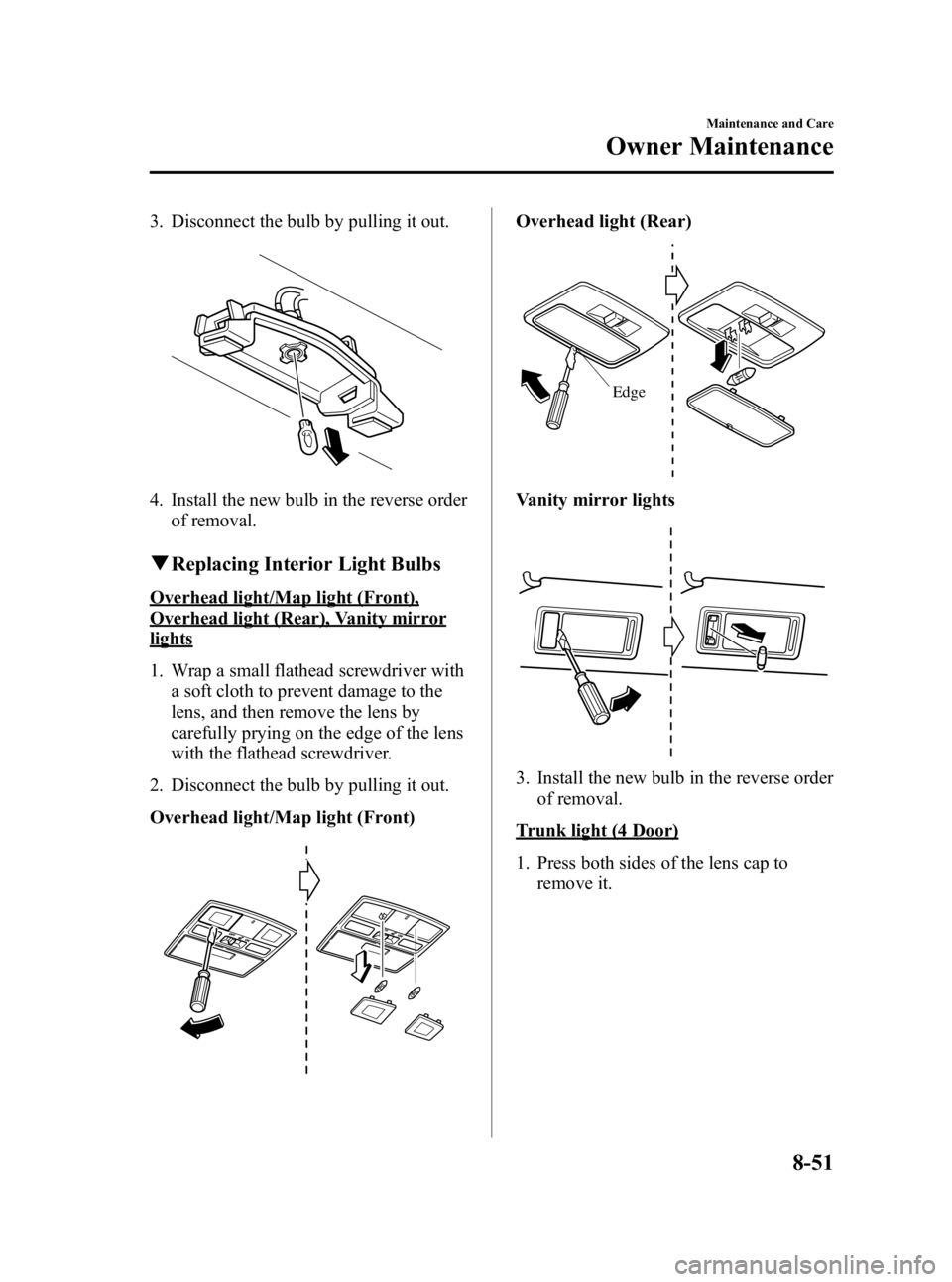

Page 423 of 504

Black plate (423,1)
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof removal.
qReplacing Interior Light Bulbs
Overhead light/Map light (Front),
Overhead light (Rear), Vanity mirror
lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Map light (Front)
Overhead light (Rear)
Edge
Vanity mirror lights
3. Install the new bulb in the reverse order of removal.
Trunk light (4 Door)
1. Press both sides of the lens cap toremove it.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8BG3-EA-09J_Edition2 Page423
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 424 of 504

Black plate (424,1)
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse orderof removal.
Luggage compartment light (5 Door)
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8BG3-EA-09J_Edition2 Page424
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 425 of 504

Black plate (425,1)
3. Pull the fuse straight out with the fusepuller provided on the inside of the
engine compartment fuse block cover.
4. Inspect the fuse and replace it if it'sblown.
Normal Blown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8BG3-EA-09J_Edition2 Page425
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 426 of 504

Black plate (426,1)
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
8-54
Maintenance and Care
Owner Maintenance
Mazda3_8BG3-EA-09J_Edition2 Page426
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 427 of 504

Black plate (427,1)
qFuse Panel Description
Fuse block (Engine compartment)
32 33 34 35
36 37 38 39
54
1 2 3 678
1312 14 15 16
22
11109
212019
23 24 25
29 30 3127
28
26
17 18
DESCRIPTION
FUSE
RATING PROTECTED COMPONENT
1 FAN 2 40 A Cooling fan
Ã
2 ENG MAIN 40 A Engine control system
3 BTN 1 50 A For protection of various circuits
4 A/C MAG 7.5 A Air conditioner
5 H/L HI 20 A Headlight high beam
6 FOG 15 A Fog lights
Ã
7 H/L WASH ――
8 SUNROOF 15 A MoonroofÃ
9 F.DEF RH ――
10 F.DEF LH ――
11 FAN 1 40 A Cooling fan
12 ROOM 15 A Interior lights
13 TCM 15 A TCM
Ã
14 DSC 20 A Dynamic Stability Control systemÃ
15BTN 2 7.5 A For protection of various circuits
16 AT PUMP ――
17 HEATER 40 A Heater
Maintenance and Care
Owner Maintenance
8-55ÃSome models.
Mazda3_8BG3-EA-09J_Edition2 Page427
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 428 of 504

Black plate (428,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 INJ 30 A Injector
Ã
19R.DEF 30 A Rear window defroster
20 IGKEY 2 40 A For protection of various circuits
21 IGKEY 1 40 A For protection of various circuits
22 HORN 15 A Horn
23 STOP 15 A Brake lights
24
10A Engine control system
25 FUEL PUMP 25 A Fuel system
26 ABS 40 A ABS
27 SEAT WARM 20 A Seat warmer
Ã
28 EHPAS 80 A Electro-Hydraulic Power Assist Steering
29 ―― ―
30 ABS IG 7.5 A ABS
31 ―― ―
32 H/L LO RH 15 A Headlight low beam (RH)
33 H/L LO LH 15 A Headlight low beam (LH)
34 ILLUM 7.5 A Dashboard illumination
35 TAIL 15 A Taillights
36 ENG INJ 15 A Engine control system
37 ENG BAR 15 A PCM
38 ENG BAR 2 20 A PCM
39 ETV 15 A Electric throttle valve
8-56
Maintenance and Care
ÃSome models.
Owner Maintenance
Mazda3_8BG3-EA-09J_Edition2 Page428
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 429 of 504

Black plate (429,1)
Fuse block (Passenger's side)
1 4 7 101316195 8 11 14 17 20
6 9 12 15 18 2128 30
22 24 26
29 31
23 25 27 32 33 34
2
3
DESCRIPTION
FUSE
RATING PROTECTED COMPONENT
1 BOSE 30 A Bose
®Sound System-equipped modelÃ
2P SEAT 30 A Power seatÃ
3P.WIND 30 A Power window
4 D LOCK 25 A Door lock motor
5 ―― ―
6 ―― ―
7 ESCL 15 A Electronic steering lock
Ã
8SAS 15 A Air bag
9 ―― ―
10 HAZARD 15 A Hazard warning flashers 11 METER 15 A For protection of various circuits
12 OUTLET 15 A Accessory sockets
13 R WIPER 15 A Rear wiper
Ã
14CIGAR 15 A Lighter
15 ―― ―
16 HEATER 10 A Blower motor
17 MIRROR 10 A Power control mirror
18 ST SIG 10 A Starter sig
19 ―― ―
Maintenance and Care
Owner Maintenance
8-57ÃSome models.
Mazda3_8BG3-EA-09J_Edition2 Page429
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
Page 430 of 504

Black plate (430,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
20 AUDIO 7.5 A Audio system
21 M.DEF 7.5 A Mirror defroster
Ã
22AFS 7.5 A Adaptive Front-Lighting SystemÃ
23―― ―
24 ENG 20 A Engine control system
25 ―― ―
26 ―― ―
27 ―― ―
28 ―― ―
29 ―― ―
30 P.WIND 25 A Power window
31 ―― ―
32 F WIPER 25 A Windshield wiper and washer
33 ―― ―
34 ―― ―
8-58
Maintenance and Care
ÃSome models.
Owner Maintenance
Mazda3_8BG3-EA-09J_Edition2 Page430
Tuesday, December 8 2009 1:30 PM
Form No.8BG3-EA-09J
