MAZDA MODEL 3 5-DOOR 2011 Owners Manual

Black plate (501,1)

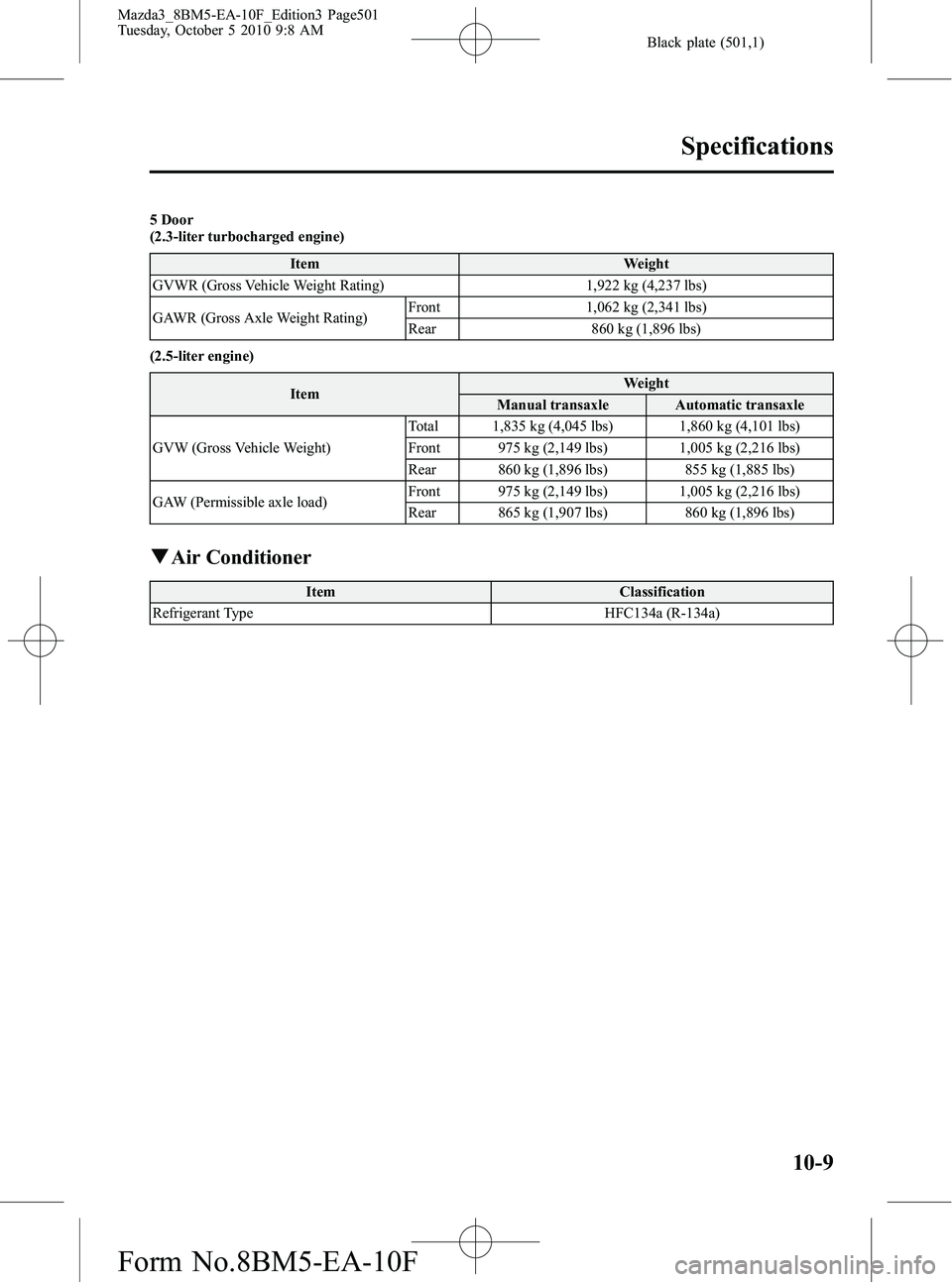

5 Door
(2.3-liter turbocharged engine)Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating) Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total 1,835 kg (4,045 lbs) 1,860 kg (4,101 lbs)
Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 860 kg (1,896 lbs) 855 kg (1,885 lbs)
GAW (Permissible axle load) Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 865 kg (1,907 lbs) 860 kg (1,896 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-9
Mazda3_8BM5-EA-10F_Edition3 Page501
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (502,1)

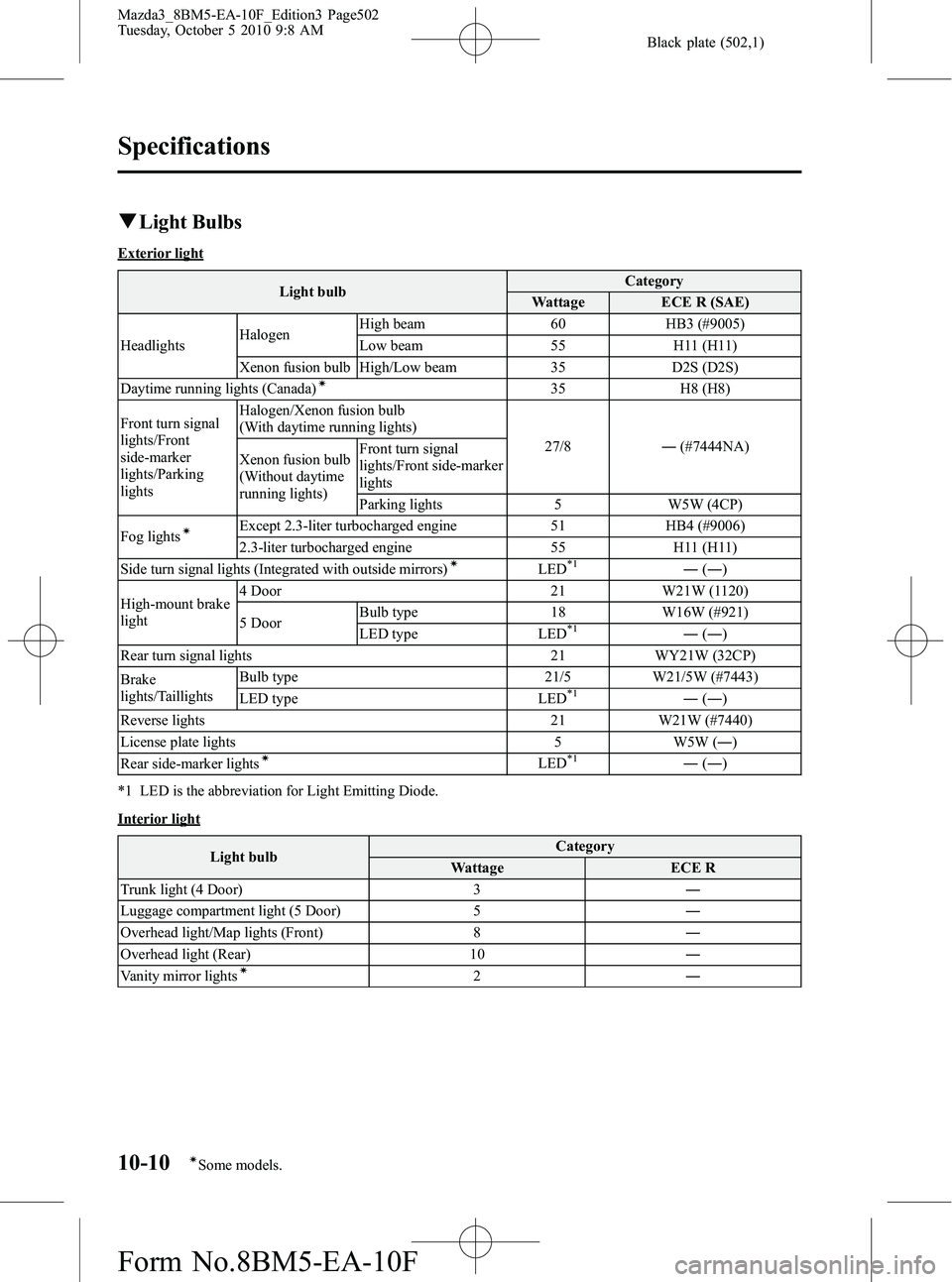

qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights Halogen High beam 60 HB3 (#9005)
Low beam 55 H11 (H11)
Xenon fusion bulb High/Low beam 35 D2S (D2S)
Daytime running lights (Canada)
í35 H8 (H8)
Front turn signal
lights/Front
side-marker
lights/Parking
lights Halogen/Xenon fusion bulb
(With daytime running lights)
27/8―(#7444NA)
Xenon fusion bulb
(Without daytime
running lights) Front turn signal
lights/Front side-marker
lights
Parking lights
5W5W (4CP)
Fog lights
íExcept 2.3-liter turbocharged engine 51HB4 (#9006)
2.3-liter turbocharged engine 55H11 (H11)
Side turn signal lights (Integrated with outside mirrors)
íLED*1― (― )
High-mount brake
light 4 Door
21W21W (1120)
5 Door Bulb type
18W16W (#921)
LED type LED
*1―(― )
Rear turn signal lights 21 WY21W (32CP)
Brake
lights/Taillights Bulb type 21/5 W21/5W (#7443)
LED type LED
*1―
(― )
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W ( ―)
Rear side-marker lights
íLED*1― (― )
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Trunk light (4 Door) 3 ―
Luggage compartment light (5 Door) 5 ―
Overhead light/Map lights (Front) 8 ―
Overhead light (Rear) 10 ―
Vanity mirror lights
í2 ―
10-10íSome models.
Specifications
Mazda3_8BM5-EA-10F_Edition3 Page502
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (503,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-36.
Standard tire
(Except 2.3-liter turbocharged engine)
Tire size Inflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
(2.3-liter turbocharged engine)
Tire size Inflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi) 230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-54.
Specifications
10-11
Mazda3_8BM5-EA-10F_Edition3 Page503
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (504,1)

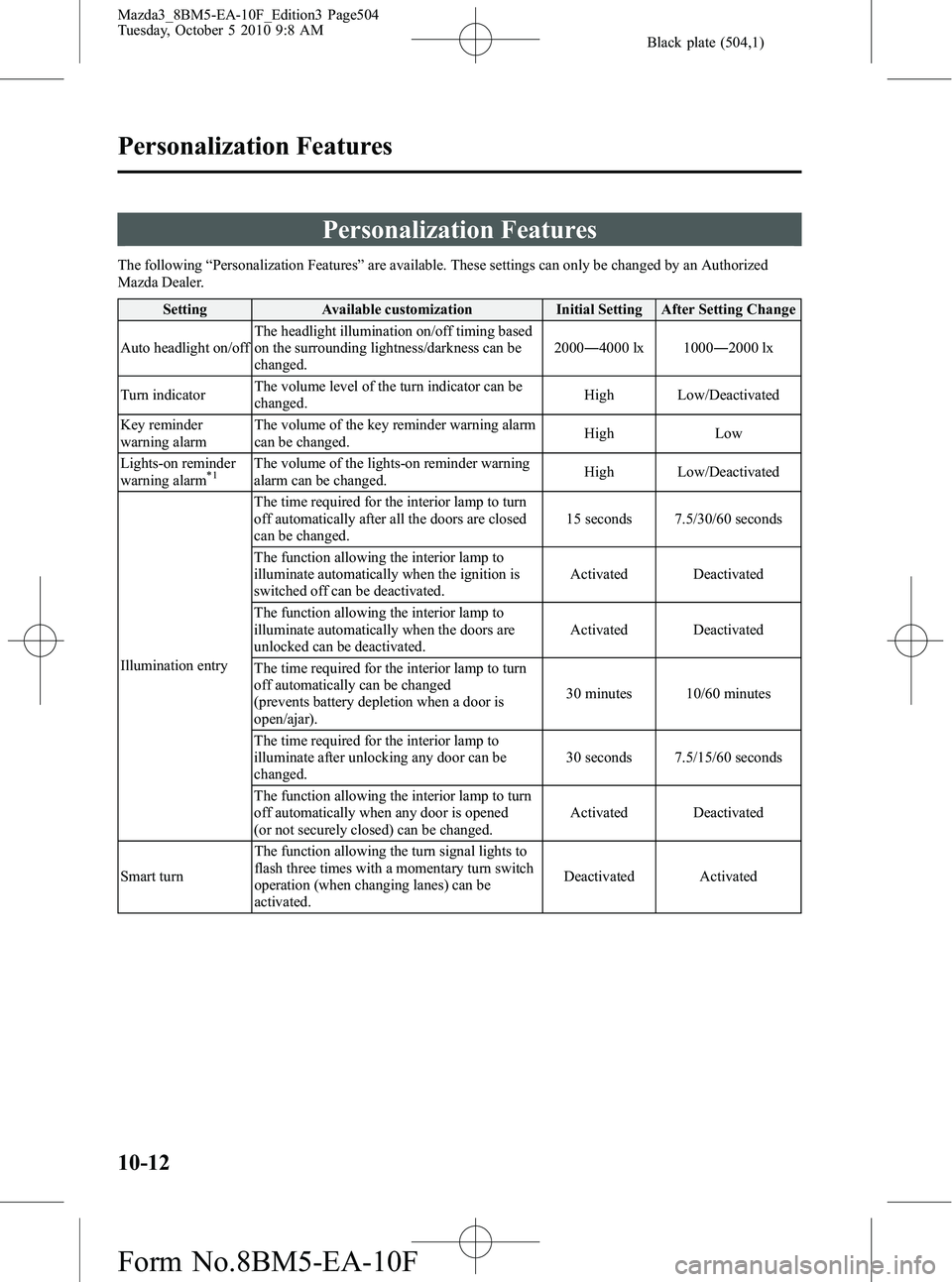

Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Setting Available customization Initial Setting After Setting Change
Auto headlight on/off The headlight illumination on/off timing based
on the surrounding lightness/darkness can be
changed. 2000
―4000 lx 1000 ―2000 lx
Turn indicator The volume level of the turn indicator can be
changed. High Low/Deactivated
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed.
High Low
Lights-on reminder
warning alarm
*1The volume of the lights-on reminder warning
alarm can be changed. High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed.
15 seconds 7.5/30/60 seconds
The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated. Activated Deactivated
The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated. Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar). 30 minutes 10/60 minutes
The time required for the interior lamp to
illuminate after unlocking any door can be
changed. 30 seconds 7.5/15/60 seconds
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed. Activated Deactivated
Smart turn The function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
activated. Deactivated Activated
10-12
Personalization Features
Mazda3_8BM5-EA-10F_Edition3 Page504
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (505,1)

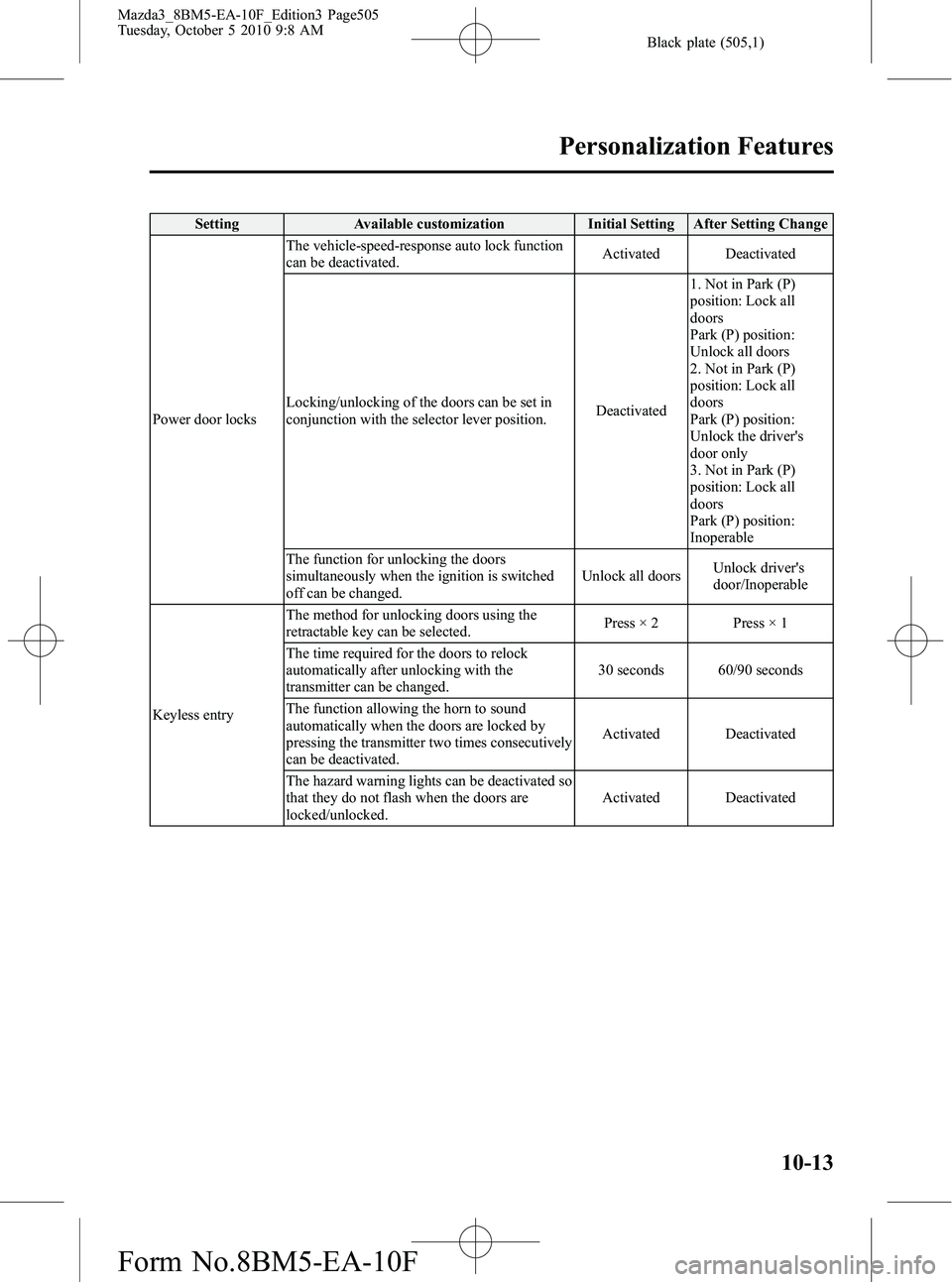

SettingAvailable customization Initial Setting After Setting Change
Power door locks The vehicle-speed-response auto lock function
can be deactivated.
Activated Deactivated
Locking/unlocking of the doors can be set in
conjunction with the selector lever position. Deactivated1. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock all doors
2. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock the driver's
door only
3. Not in Park (P)
position: Lock all
doors
Park (P) position:
Inoperable
The function for unlocking the doors
simultaneously when the ignition is switched
off can be changed. Unlock all doors
Unlock driver's
door/Inoperable
Keyless entry The method for unlocking doors using the
retractable key can be selected.
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed. 30 seconds 60/90 seconds
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated. Activated Deactivated
The hazard warning lights can be deactivated so
that they do not flash when the doors are
locked/unlocked. Activated Deactivated
Personalization Features
10-13
Mazda3_8BM5-EA-10F_Edition3 Page505
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (506,1)
SettingAvailable customization Initial Setting After Setting Change
Advanced keyless
entry The function to automatically lock doors when
leaving the vehicle while carrying the key can
be activated.
Deactivated Activated
The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated. Activated Deactivated
The volume of the answer-back beep during
keyless entry system operation can be adjusted. High Low/Deactivated
The volume of the warning beep for the
advanced keyless entry system can be adjusted. High
Low
The function allowing the power supply to turn
off automatically after the ignition has been left
in the ACC position for a long period of time
can be deactivated. Activated Deactivated
A transition pattern in which the ignition
position can be switched when pressing the
push button start can be selected. ON
→Off ON →ACC →Off
The advanced key function can be deactivated. Activated Deactivated
The method for unlocking the doors using the
request switch can be selected. Press × 2 Press × 1
*1 Without auto-light control function
The following “Personalization Features ”can be changed the vehicle owner.
Setting FunctionInitial Setting After Setting Change
Multi information
display The display language can be selected. 6-110
English, French,
or Spanish
English/German/French/Italian/ Spanish
The distance unit can be changed. 6-110 mile or km km or mile
The temperature unit can be changed. 6-110 °F or °C °C or °F
10-14
Personalization Features
Mazda3_8BM5-EA-10F_Edition3 Page506
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (507,1)

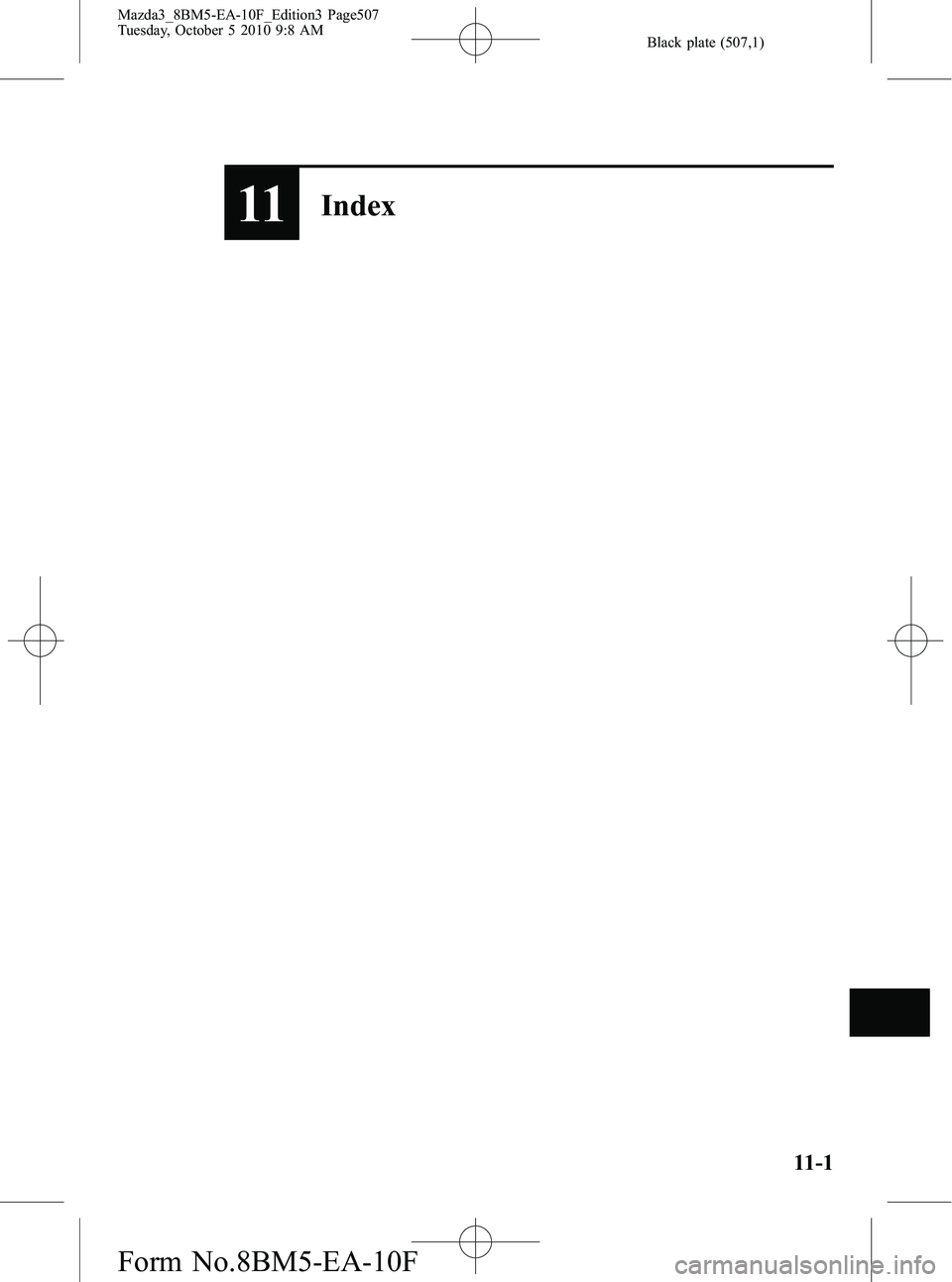

11Index
11-1
Mazda3_8BM5-EA-10F_Edition3 Page507
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (508,1)
A
Accessory Socket ............................ 6-116
Adaptive Front Lighting System
(AFS) ................................................ 5-63
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-21
Auxiliary key .............................. 3-21
Locking, unlocking with request
switch ........................................... 3-9
Opening the liftgate/trunk lid ..... 3-11
Operational range ......................... 3-7
Remote control function ............. 3-17
Service ......................................... 3-7
Warning and beep sounds .......... 3-22
When warning indicator/beep is
activated ..................................... 3-25
Air Bag Systems ............................... 2-43
Antenna ............................................. 6-18
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-9
Appearance Care ............................... 8-60
Audio System ................................... 6-18 Audio control switch .................. 6-58
Audio set .................................... 6-29
AUX mode ................................. 6-61
Operating tips for audio
system ........................................ 6-19
Safety certification ..................... 6-63
Automatic Transaxle Driving tips ................................ 5-19
Fluid ........................................... 8-24
Manual shift mode ..................... 5-16
Shift-lock override ..................... 5-15
Shift-lock system ....................... 5-15
Transaxle ranges ........................ 5-14
B
BatteryEmergency starting .................... 7-18
Maintenance ............................... 8-31
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-57
Lights-on reminder ..................... 5-57
Seat belt warning ........................ 5-57
Tire inflation pressure warning ... 5-58
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Bluetooth Audio ............................... 6-64
Bluetooth Hands-Free ....................... 6-74 Basic Bluetooth Hands-Free
operation .................................... 6-78
Convenient use of the hands-free
system ........................................ 6-83
Hands-free setting ...................... 6-89
Mazda Bluetooth Hands-Free
customer service ......................... 6-96
Safety certification ..................... 6-96
When Bluetooth Hands-Free cannot
be used ....................................... 6-95
Body Lubrication .............................. 8-27
Boost Gauge ..................................... 5-39
Bottle Holder ................................... 6-112
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-8
Brakes assist ............................... 5-10
Foot brake .................................... 5-5
Parking brake ............................... 5-7
Warning light ............................... 5-8
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-42
11-2
Index
Mazda3_8BM5-EA-10F_Edition3 Page508
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (509,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-114
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-113
Child RestraintChild restraint precautions ......... 2-26
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-38
Child Safety Locks for Rear Doors ... 3-37
Climate Control System ...................... 6-2 Gas specifications ...................... 10-9
Clock ............................................... 6-100
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-111
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-40
Daytime Running Lights ................... 5-64
Defroster Mirror ......................................... 5-70
Rear window .............................. 5-70
Dimensions ....................................... 10-5
Door Locks ....................................... 3-33
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
D
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-19
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27 DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-28
TCS/DSC indicator light ............ 5-28
E
Emergency Starting ........................... 7-18Flooded engine ........................... 7-18
Jump-starting .............................. 7-19
Push-starting .............................. 7-23
Emergency Towing ........................... 7-24
Emission Control System .................... 4-4
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-49
Oil .............................................. 8-18
Overheating ................................ 7-16
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-16
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-62
Index
11-3
Mazda3_8BM5-EA-10F_Edition3 Page509
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (510,1)
F
FlasherHazard warning .......................... 5-71
Headlights .................................. 5-59
Flat Tire ............................................... 7-3 Changing ...................................... 7-9
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-65
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-47
Gauge ......................................... 5-38
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-54 Panel description ........................ 8-56
Replacement ............................... 8-54
G
Gauges .............................................. 5-36
Glove Compartment ........................ 6-113
H
Hazard Warning Flasher .................... 5-71
Hazardous Driving .............................. 4-8
H
HeadlightsControl ....................................... 5-59
Flashing ...................................... 5-62
High-low beam .......................... 5-62
Leveling ..................................... 5-62
On reminder ............................... 5-62
Hood Release .................................... 3-49
Horn .................................................. 5-71
I
Ignition
Keys ........................................... 3-26
Switch .......................................... 5-2
Illuminated Entry System ................. 6-97
Immobilizer System
(with Advanced Key) ........................ 3-53
Immobilizer System
(without Advanced Key) ................... 3-57
Indicator Lights ................................. 5-41 AFS OFF .................................... 5-55
Cruise ......................................... 5-55
DSC OFF .................................... 5-55
Headlight high-beam .................. 5-54
KEY ............................................ 5-52
Low engine coolant
temperature ................................ 5-54
Power steering malfunction ........ 5-56
Security ...................................... 5-53
Shift position .............................. 5-54
TCS/DSC ................................... 5-54
Turn signal/hazard warning ........ 5-56
Information Display .......................... 6-99
Audio display ........................... 6-100
Climate control display ............ 6-100
Clock ........................................ 6-100
Information display functions .... 6-99
Outside temperature display ..... 6-100
11-4
Index
Mazda3_8BM5-EA-10F_Edition3 Page510
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F
