MAZDA MODEL 3 5-DOOR 2011 Owners Manual

Black plate (491,1)
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
Customer Information
Service Publications
9-45
Mazda3_8BM5-EA-10F_Edition3 Page491
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (492,1)
9-46
Mazda3_8BM5-EA-10F_Edition3 Page492
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (493,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features .......................................................... 10-12 Personalization Features ........................................................ 10-12
10-1
Mazda3_8BM5-EA-10F_Edition3 Page493
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (494,1)

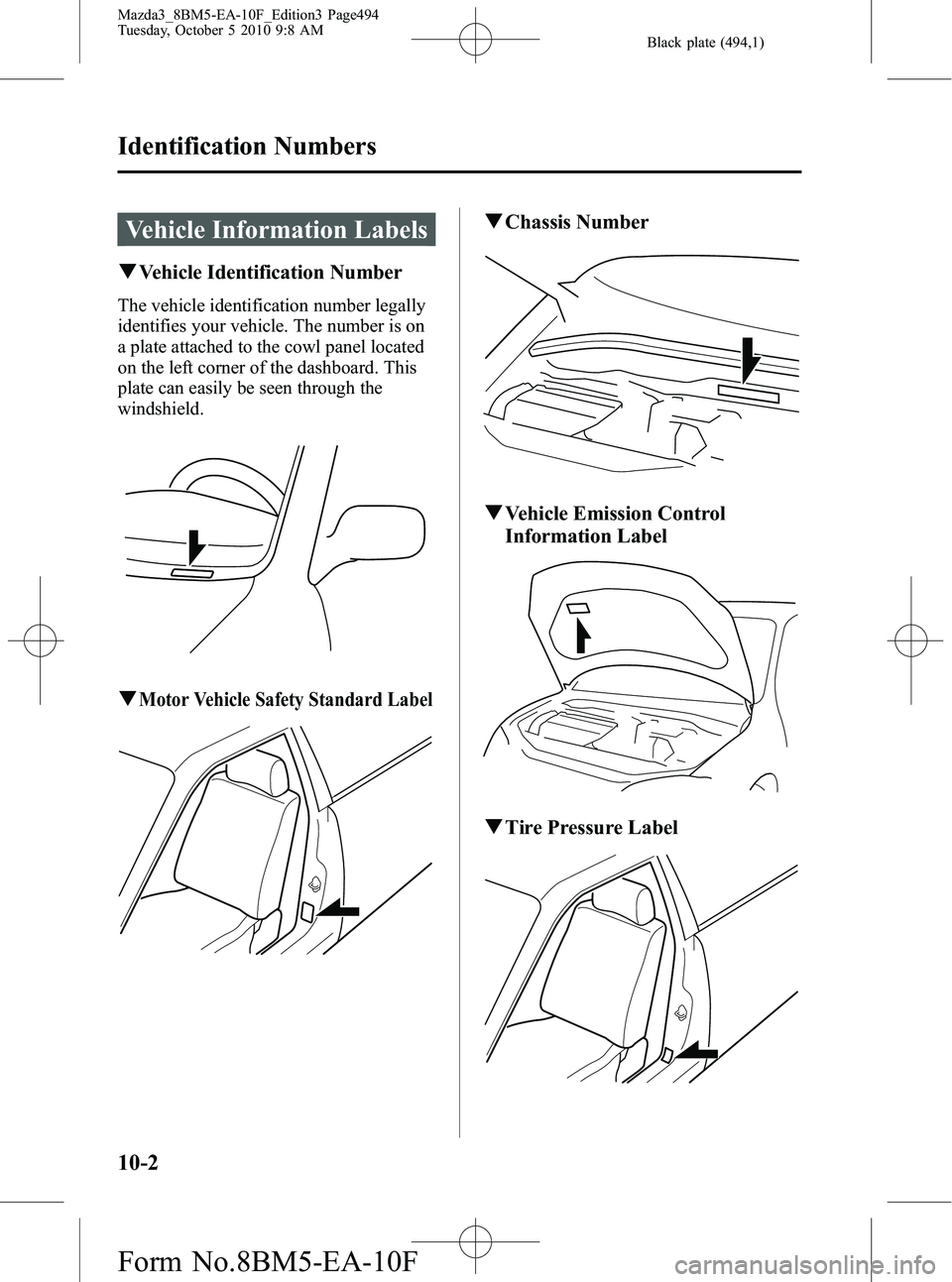

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda3_8BM5-EA-10F_Edition3 Page494
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (495,1)

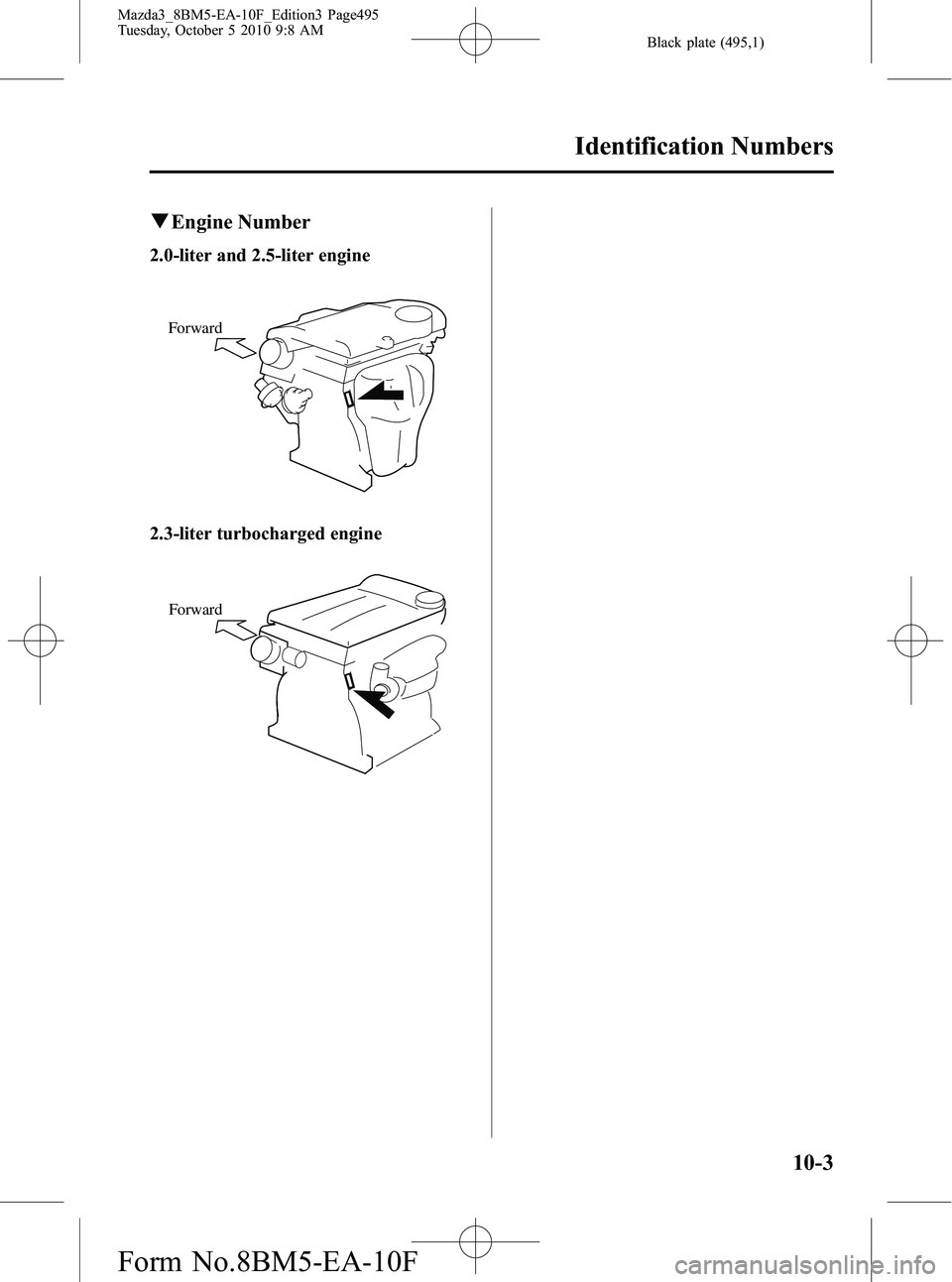

qEngine Number
2.0-liter and 2.5-liter engine
Forward
2.3-liter turbocharged engine
Forward
Identification Numbers
10-3
Mazda3_8BM5-EA-10F_Edition3 Page495
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (496,1)
Specifications
qEngine
Item Specification
2.0-liter engine 2.3-liter turbocharged
engine 2.5-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 83.1 mm
(3.44 × 3.27 in) 87.5 × 94.0 mm
(3.44 × 3.70 in) 89.0 × 100 mm
(3.50 × 3.94 in)
Displacement 1,999 ml
(1,999 cc, 122.0 cu in) 2,261 ml
(2,261 cc, 138.0 cu in) 2,488 ml
(2,488 cc, 151.8 cu in)
Compression ratio 10.09.59.7
qElectrical System
Item Classification
2.0-liter engine 2.3-liter turbocharged
engine 2.5-liter engine
Battery 12V-40AH/5HR,
12V-52AH/5HR 12V-48AH/5HR,
12V-52AH/5HR 12V-40AH/5HR,
12V-48AH/5HR,
12V-52AH/5HR
Spark-plug number LFG1 18 110
*1, L3Y2 18
110 L3BD 18 110*1, L3YD 18
110 LFG1 18 110*1, L3Y2 18
110
Spark-plug gap 1.25
―1.35 mm
(0.049 ―0.053 in) 0.60
―0.70 mm
(0.024 ―0.027 in) 1.25
―1.35 mm
(0.049 ―0.053 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8BM5-EA-10F_Edition3 Page496
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (497,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil 2.0-liter engine
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engine With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engine With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil 2.0-liter engine
2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 2.0-liter engine
55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8BM5-EA-10F_Edition3 Page497
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (498,1)
5 Door
(Except 2.3-liter turbocharged engine)Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
Mexico
4 Door
Item Vehicle specification
Overall length Without license plate
holder
4,580 mm (180.3 in)
With license plate holder 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BM5-EA-10F_Edition3 Page498
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (499,1)
5 Door
(Except 2.3-liter turbocharged engine)Item Vehicle specification
Overall length Without license plate
holder
4,490 mm (176.8 in)
With license plate holder 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
q Weights
Except Mexico
4 Door
(2.0-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating) Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating) Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
Specifications
10-7
Mazda3_8BM5-EA-10F_Edition3 Page499
Tuesday, October 5 2010 9:8 AM
Form No.8BM5-EA-10F

Black plate (500,1)

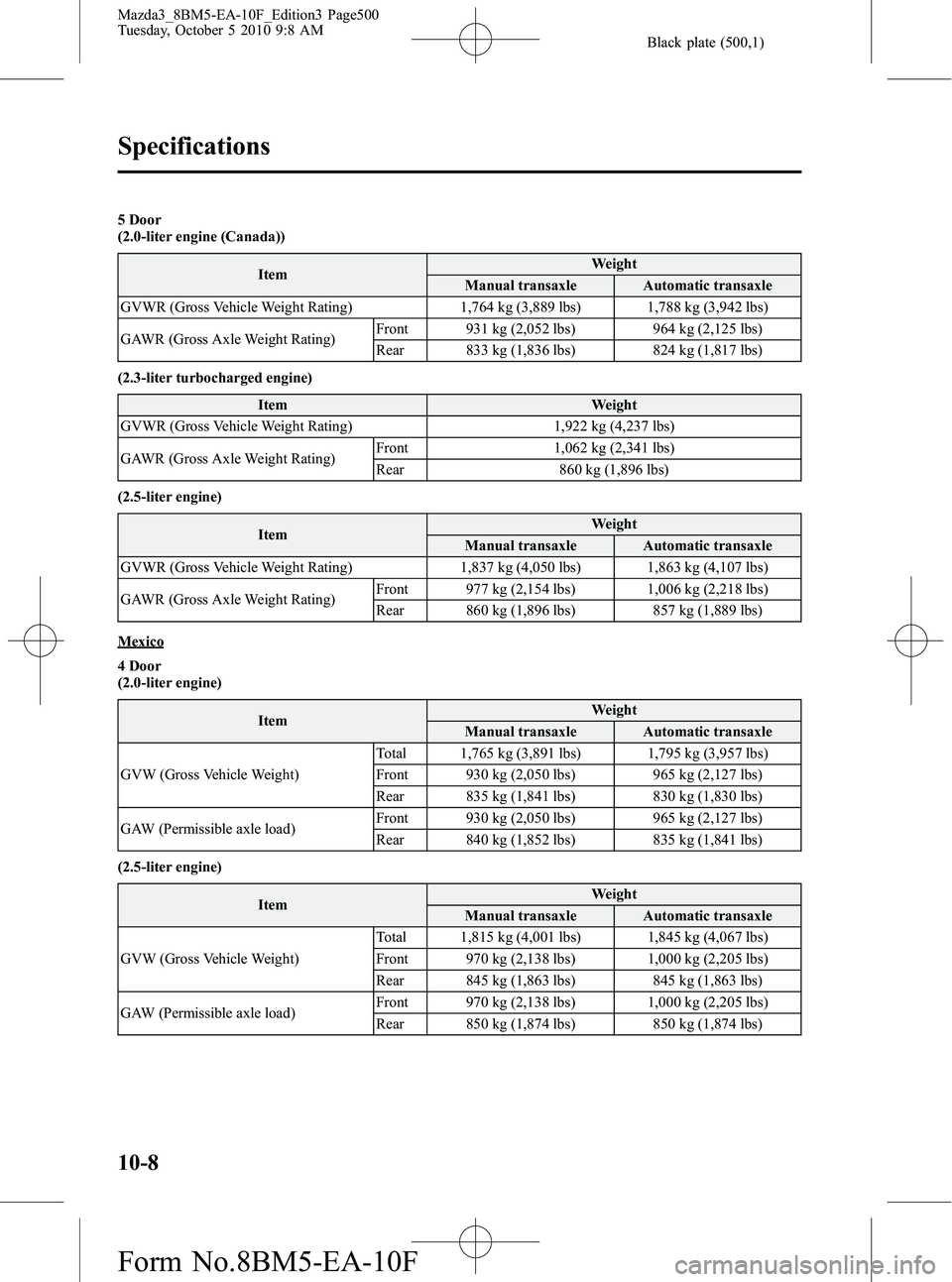

5 Door
(2.0-liter engine (Canada))Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,788 kg (3,942 lbs)
GAWR (Gross Axle Weight Rating) Front 931 kg (2,052 lbs) 964 kg (2,125 lbs)
Rear 833 kg (1,836 lbs) 824 kg (1,817 lbs)
(2.3-liter turbocharged engine) Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating) Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,837 kg (4,050 lbs) 1,863 kg (4,107 lbs)
GAWR (Gross Axle Weight Rating) Front 977 kg (2,154 lbs) 1,006 kg (2,218 lbs)
Rear 860 kg (1,896 lbs) 857 kg (1,889 lbs)
Mexico
4 Door
(2.0-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total 1,765 kg (3,891 lbs) 1,795 kg (3,957 lbs)
Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 835 kg (1,841 lbs) 830 kg (1,830 lbs)
GAW (Permissible axle load) Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 840 kg (1,852 lbs) 835 kg (1,841 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total 1,815 kg (4,001 lbs) 1,845 kg (4,067 lbs)
Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 845 kg (1,863 lbs) 845 kg (1,863 lbs)
GAW (Permissible axle load) Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 850 kg (1,874 lbs) 850 kg (1,874 lbs)
10-8
Specifications
