fuel MAZDA MODEL 3 5-DOOR 2011 Owners Manual

Black plate (10,1)
Interior Equipment (View C)
Seat belts ............................................................................................................ page 2-14
SRS air bag ........................................................................................................ page 2-43
Remote fuel-filler lid release ............................................................................. page 3-48
Trunk release lever ............................................................................................. page 3-41
Bottle holder .................................................................................................... page 6-112
Vanity mirror ...................................................................................................... page 6-97
Overhead lights .................................................................................................. page 6-98
Rearview mirror ................................................................................................. page 3-65
Sunvisor ............................................................................................................. page 6-97
Seat warmer switches ........................................................................................ page 2-12
Cup holders ...................................................................................................... page 6-111
Front seats ............................................................................................................ page 2-2
Center console ................................................................................................. page 6-113
Rear seat .............................................................................................................. page 2-7
1-4
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Interior Overview
Mazda3_8BM5-EA-10F_Edition3 Page10
Tuesday, October 5 2010 9:4 AM
Form No.8BM5-EA-10F

Black plate (12,1)

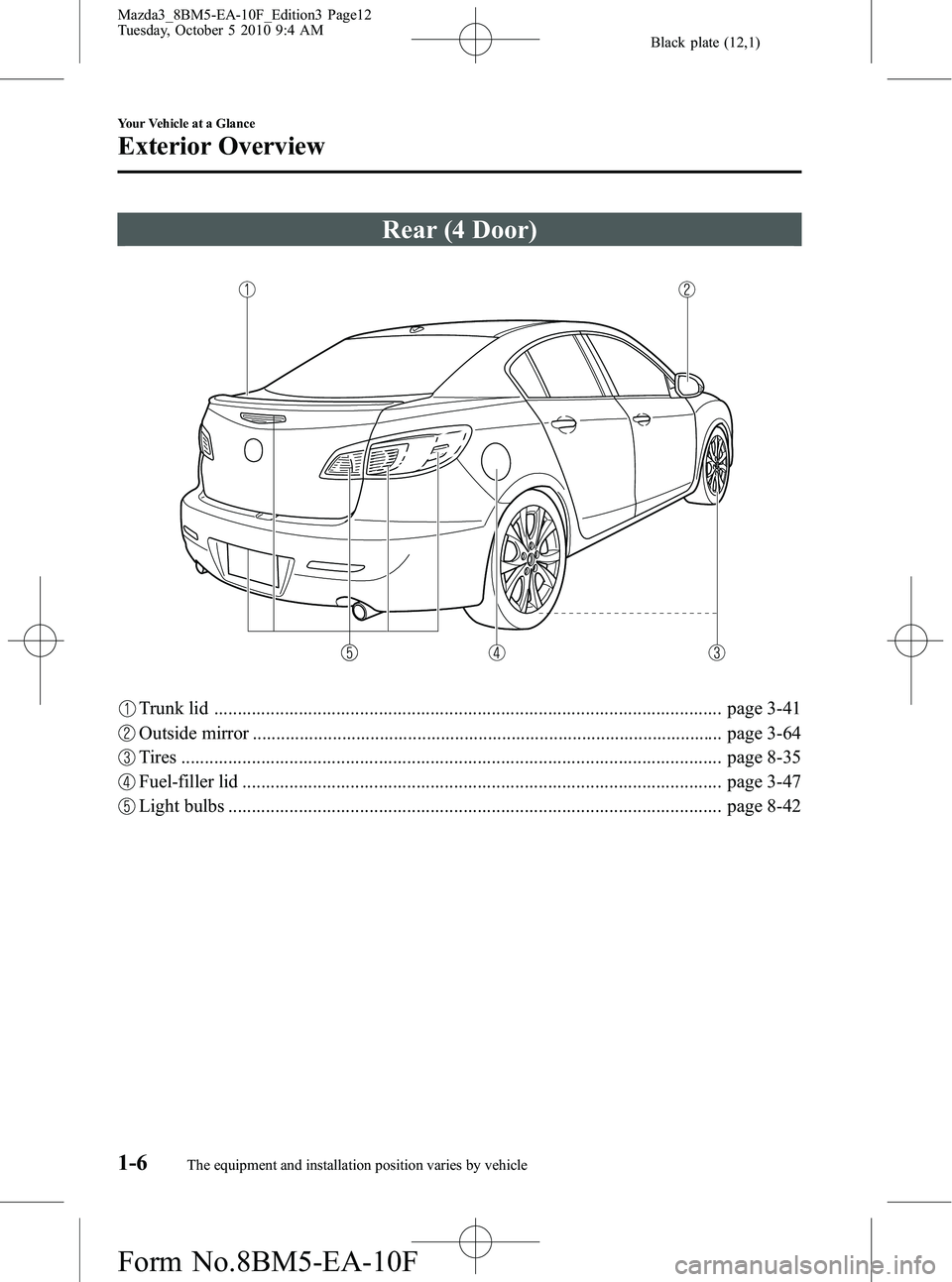

Rear (4 Door)
Trunk lid ............................................................................................................ page 3-41
Outside mirror .................................................................................................... page 3-64
Tires ................................................................................................................... page 8-35
Fuel-filler lid ...................................................................................................... page 3-47
Light bulbs ......................................................................................................... page 8-42
1-6
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda3_8BM5-EA-10F_Edition3 Page12
Tuesday, October 5 2010 9:4 AM
Form No.8BM5-EA-10F

Black plate (14,1)
Rear (5 Door)
Rear wiper blade ................................................................................................ page 8-29
Liftgate .............................................................................................................. page 3-38
Antenna ............................................................................................................. page 6-18
Fuel-filler lid ...................................................................................................... page 3-47
Child safety lock ................................................................................................ page 3-37
Outside mirror .................................................................................................... page 3-64
Tires ................................................................................................................... page 8-35
Light bulbs ......................................................................................................... page 8-42
1-8
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda3_8BM5-EA-10F_Edition3 Page14
Tuesday, October 5 2010 9:4 AM
Form No.8BM5-EA-10F

Black plate (77,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-17
Advanced Key Suspend Function ........................................... 3-21
Warning Lights and Beep Sounds ........................................... 3-22
When Warning Indicator/Beep is Activated ............................ 3-25
Doors and Locks ......................................................................... 3-26 Keys ........................................................................................ 3-26
Keyless Entry System
í.......................................................... 3-27
Door Locks ............................................................................. 3-33
Liftgate (5 Door) ..................................................................... 3-38
Trunk Lid (4 Door) ................................................................. 3-41
Inside Trunk Release Lever ..................................................... 3-43
Power Windows ...................................................................... 3-44
Fuel-Filler Lid and Cap ........................................................... 3-47
Hood ....................................................................................... 3-49
Moonroof
í............................................................................. 3-50
Security System ........................................................................... 3-53 Immobilizer System (with Advanced Key) ............................. 3-53
Immobilizer System (without Advanced Key) ........................ 3-57
Theft-Deterrent System
í........................................................ 3-61
Steering Wheel and Mirrors ...................................................... 3-64 Steering Wheel ........................................................................ 3-64
Mirrors .................................................................................... 3-64
3-1íSome models.
Mazda3_8BM5-EA-10F_Edition3 Page77
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (91,1)
NOTElUnder the following conditions, the KEY
warning light (red) flashes to inform the
driver that the push button start will not
switch to ACC even if it is pressed from off.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer similar
to the advanced key is in the operational
range.
l(Forced engine starting method)
If the KEY warning light (red) and the push
button start indicator light (red) illuminate
when the brake pedal (Automatic transaxle)
or the clutch pedal (Manual transaxle) is
depressed to start the engine, the engine
may not start using these methods. Have
your vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If this
occurs, the engine can be force-started.
Press and hold the push button start until
the engine starts. Other procedures
necessary for starting the engine such as
having the advanced key in the cabin, and
depressing the brake pedal (Automatic
transaxle) or the clutch pedal (Manual
transaxle) are required.
lWhen the engine is force-started, the key
warning light (red) remains illuminated and
the key indicator light (green) does not
illuminate.
7. Press the push button start after boththe KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate. NOTE
lAfter starting the engine, the push button
start indicator lights (ACC and ON) turn
off and the ignition is in the ON position.
lAfter pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near the
fuel tank can be heard, however, this does
not indicate a malfunction.
l(With headlight auto-leveling)
After pressing the push button start and
before the engine starts, the operation
sound of the headlight leveling motors
operating at the front of the engine
compartment can be heard, however, this
does not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
lWhether the engine is cold or warm, it
should be started without the use of the
accelerator.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-18).
Starting the engine using the auxiliary
key
If the engine cannot be started for reasons
such as the advanced key battery is dead,
the engine can be started using the
auxiliary key.
1. Slide the auxiliary key out from the bottom of the advanced key.
2. Use the auxiliary key to remove the key slot cover.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
Mazda3_8BM5-EA-10F_Edition3 Page91
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (123,1)
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-47
Mazda3_8BM5-EA-10F_Edition3 Page123
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (124,1)
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
5 door
Remote fuel-filler
lid release
4 door
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
3-48
Knowing Your Mazda
Doors and Locks
Mazda3_8BM5-EA-10F_Edition3 Page124
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (125,1)

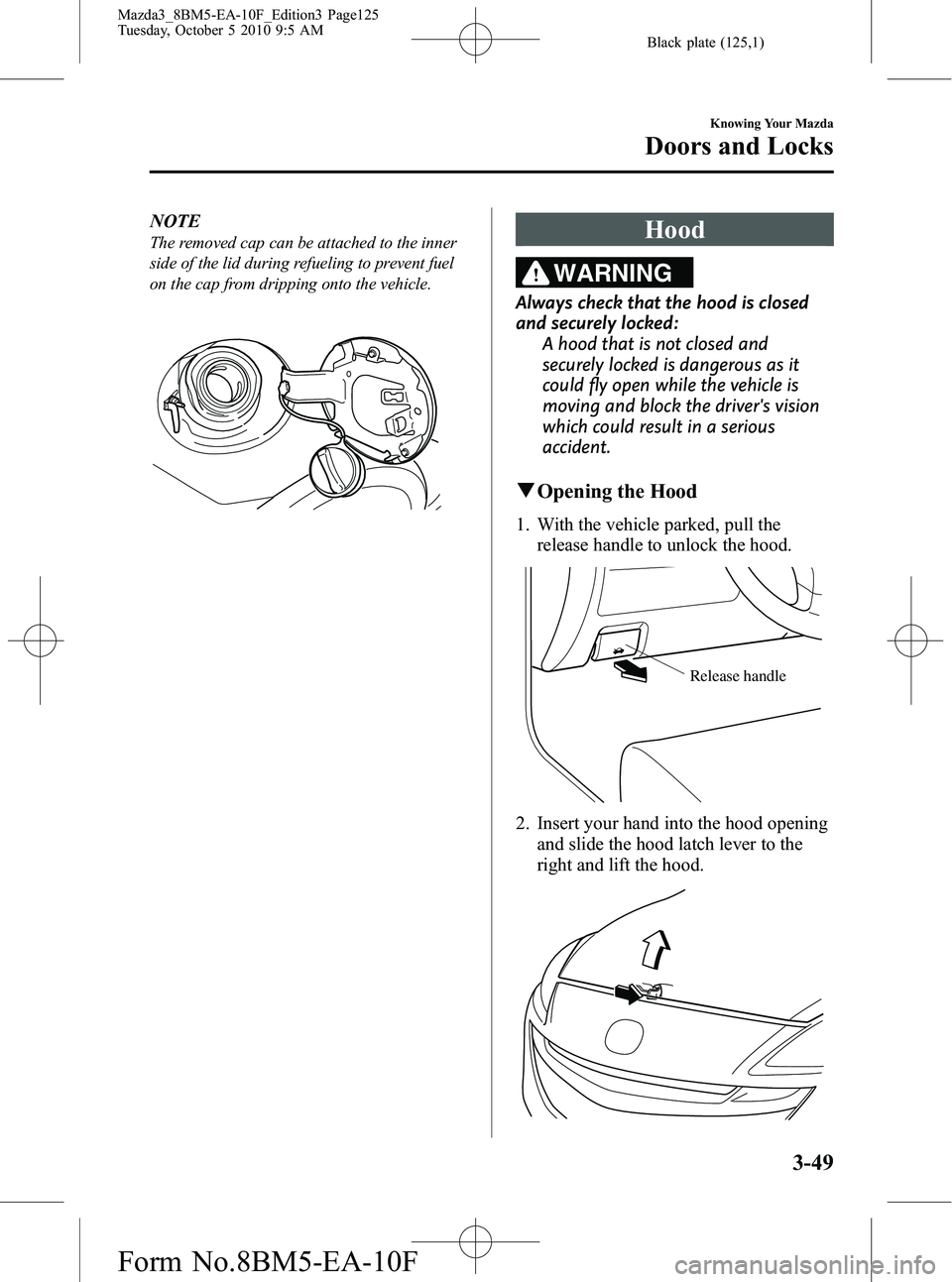

NOTE
The removed cap can be attached to the inner
side of the lid during refueling to prevent fuel
on the cap from dripping onto the vehicle.Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening
and slide the hood latch lever to the
right and lift the hood.
Knowing Your Mazda
Doors and Locks
3-49
Mazda3_8BM5-EA-10F_Edition3 Page125
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (145,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-4
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6 Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7 Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Floor Mat .................................................................................. 4-8
Rocking the Vehicle .................................................................. 4-9
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-11
Overloading ............................................................................ 4-12
Driving on Uneven Road ........................................................ 4-13
Turbocharger Information
í.................................................... 4-14
Towing ......................................................................................... 4-15 Trailer Towing ......................................................................... 4-15
4-1íSome models.
Mazda3_8BM5-EA-10F_Edition3 Page145
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F

Black plate (146,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
2.3-liter turbocharged engine
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R
M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
This vehicle is designed for and requires use of premium unleaded fuel. If 91 octane fuel [
(R
M)/2 method] (96RON) is not available, gasoline as low as 87 octane [ (RM)/2
method] (91RON) can be used temporarily for emergency purposes. Use of gasoline lower
than 91 octane [ (R
M)/2 method] (96RON) can decrease performance during its use.
Refueling the vehicle with the correct octane fuel a couple of times will restore vehicle
performance.
2.0-liter and 2.5-liter engine
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Never add cleaning agents other than those
specified by Mazda. Other cleaning agents and additives may damage the system.
Consult an Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda3_8BM5-EA-10F_Edition3 Page146
Tuesday, October 5 2010 9:5 AM
Form No.8BM5-EA-10F
