MAZDA MODEL 3 5-DOOR 2012 Owner's Manual

Black plate (21,1)
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks or place articles on the rear
package tray or on the luggage
compartment cover:Stacking luggage or other cargo
higher than the seatbacks, and
placing articles on the rear package
tray or on the luggage compartment
cover is dangerous. During sudden
braking or a collision, objects can fly
around and become projectiles that
may hit and injure passengers.
Make sure luggage and cargo are
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Do not drive with the seatback
unlocked: All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place. Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
Never give the car keys to children and
do not allow them to play in the vehicle
(4 Door): Playing with the folding rear seats is
dangerous. The folding rear
seatbacks cannot be folded down
from inside the trunk. Once the
seatbacks are back up, a child in the
trunk would not be able to get out
the way they had entered. If you have
small children, keep the seatbacks
locked.
Essential Safety Equipment
Seats
2-7
Mazda3_8BY6-EA-11F_Edition3 Page21
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (22,1)
Always leave your car locked and keep
the car keys safely away from children:Leaving your car unlocked or the
keys in reach of children is
dangerous. Children who find their
way into the trunk through an
unlocked rear seatback or an open
trunk can become accidentally locked
in the trunk. This could result in
death or brain damage from heat
prostration, particularly in the
summer. Always lock the doors and
the trunk, and as an added measure,
keep the rear seatbacks locked,
whether you have children in your
home or not.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
When returning a rear seat to its original
position, also replace the seat belt to its
normal position. Verify that the seat belt pulls
out and retracts.
q Split-Folding Rear Seatback
To fold the seatbacks
CAUTION
When operating the rear seatback
knob, make sure you support the
seatback with your hand. If the
seatback is not supported with your
hand, it will flip forward suddenly
and could cause injury to the finger
that pushes the rear seatback knob
down.
1. Support the seatback with your hand.
2. Push the rear seatback knob down.
To return the seatbacks to the upright
position
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks from inside the vehicle to make sure they are
locked.
2-8
Essential Safety Equipment
Seats
Mazda3_8BY6-EA-11F_Edition3 Page22
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (23,1)

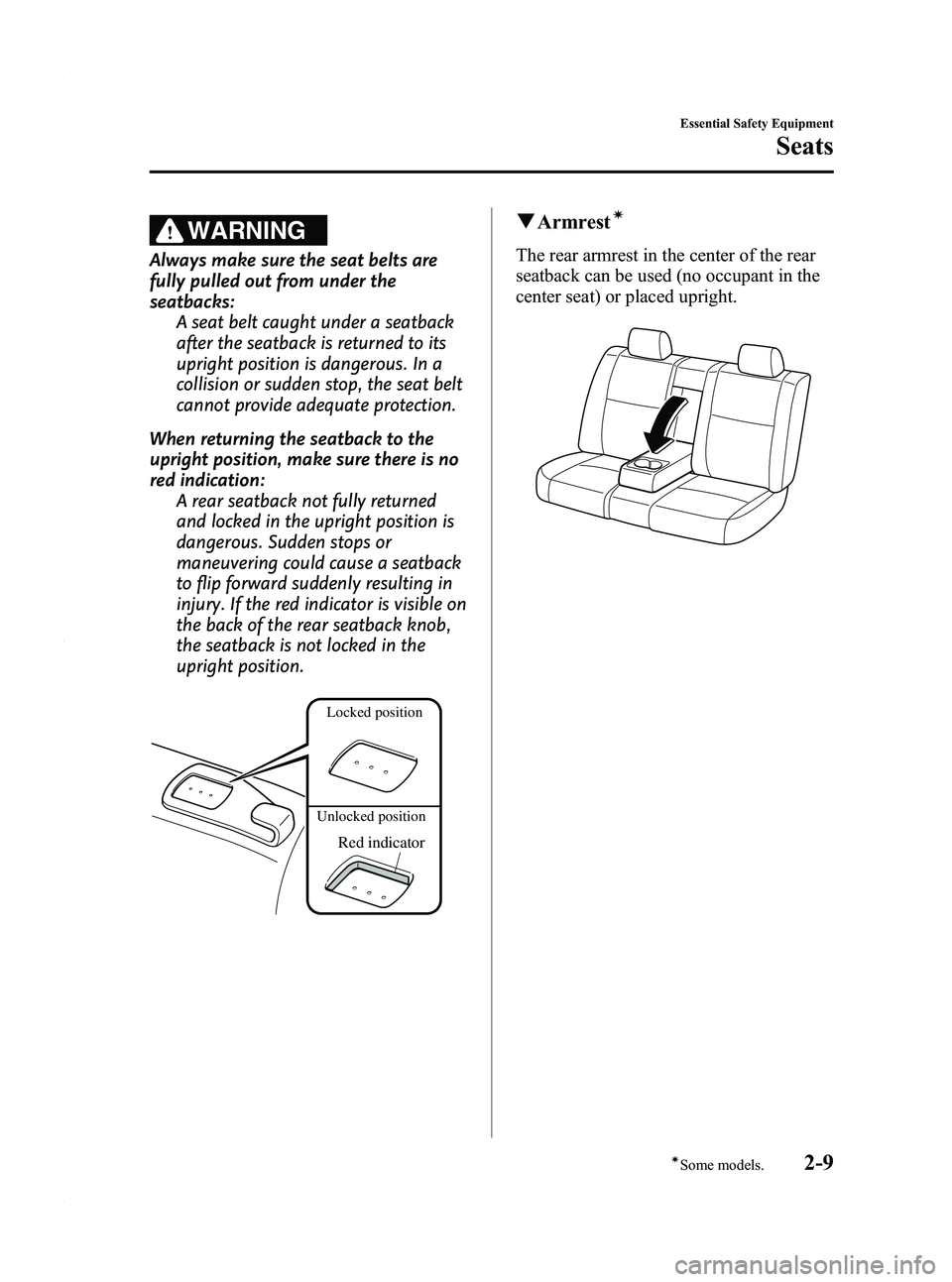

WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
When returning the seatback to the
upright position, make sure there is no
red indication: A rear seatback not fully returned
and locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob,
the seatback is not locked in the
upright position.
Locked position
Unlocked position
Red indicator
q Armrestí
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Essential Safety Equipment
Seats
2-9íSome models.
Mazda3_8BY6-EA-11F_Edition3 Page23
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (24,1)

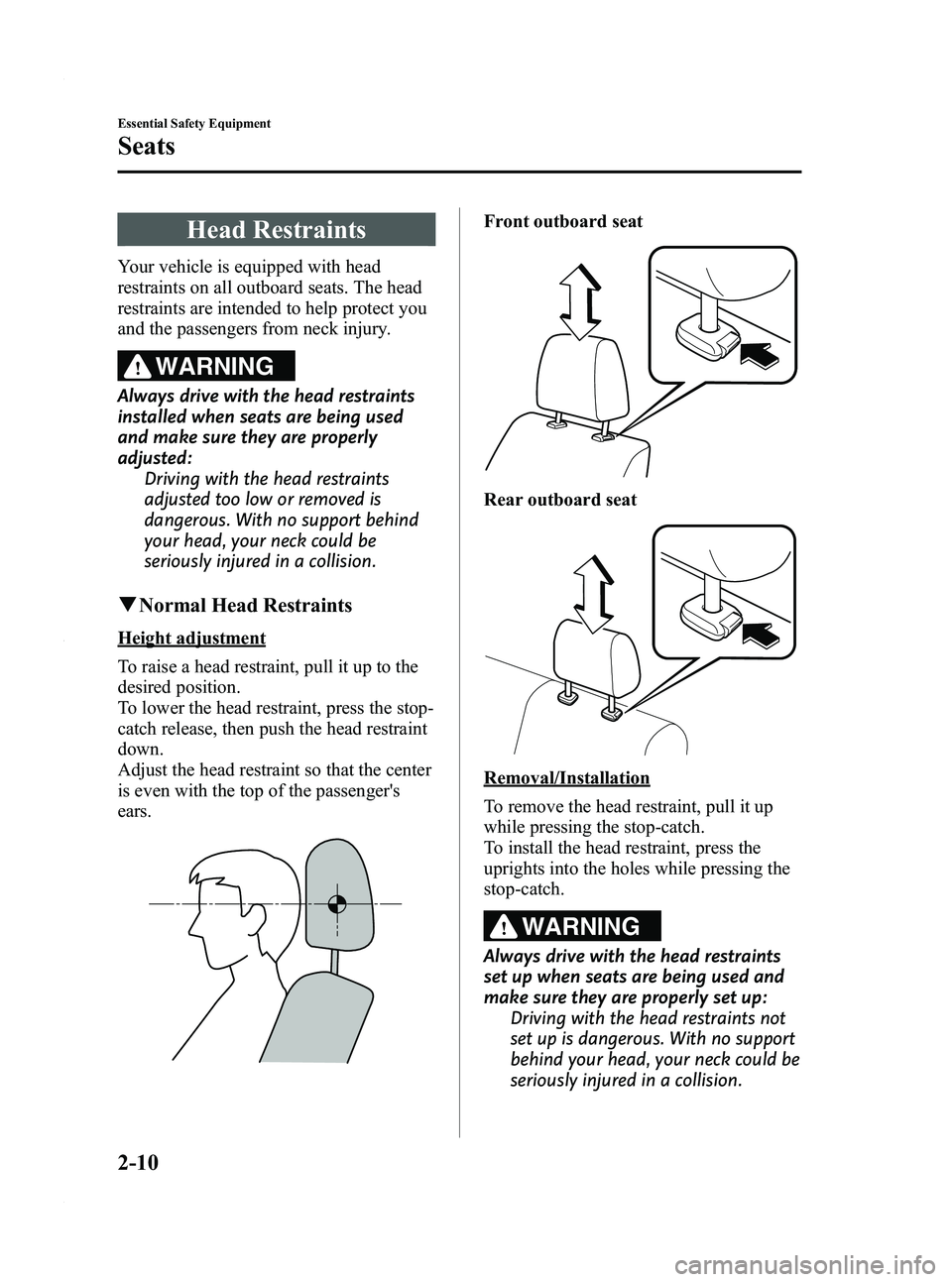

Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats. The head
restraints are intended to help protect you
and the passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
qNormal Head Restraints
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
Front outboard seat
Rear outboard seat
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:
Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
2-10
Essential Safety Equipment
Seats
Mazda3_8BY6-EA-11F_Edition3 Page24
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (25,1)

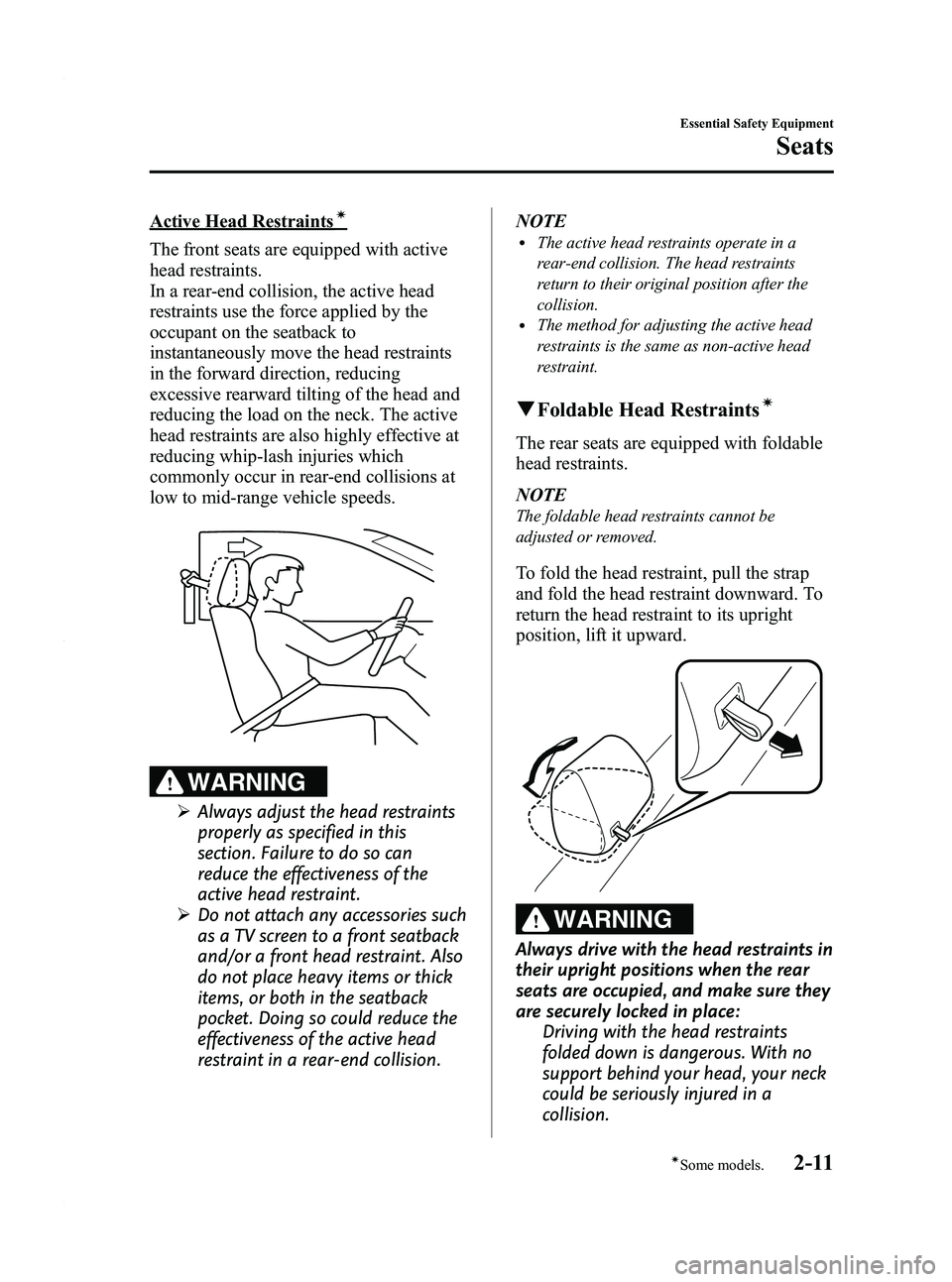

Active Head Restraintsí
The front seats are equipped with active
head restraints.
In a rear-end collision, the active head
restraints use the force applied by the
occupant on the seatback to
instantaneously move the head restraints
in the forward direction, reducing
excessive rearward tilting of the head and
reducing the load on the neck. The active
head restraints are also highly effective at
reducing whip-lash injuries which
commonly occur in rear-end collisions at
low to mid-range vehicle speeds.
WARNING
ØAlways adjust the head restraints
properly as specified in this
section. Failure to do so can
reduce the effectiveness of the
active head restraint.
Ø Do not attach any accessories such
as a TV screen to a front seatback
and/or a front head restraint. Also
do not place heavy items or thick
items, or both in the seatback
pocket. Doing so could reduce the
effectiveness of the active head
restraint in a rear-end collision. NOTE
lThe active head restraints operate in a
rear-end collision. The head restraints
return to their original position after the
collision.
lThe method for adjusting the active head
restraints is the same as non-active head
restraint.
q
Foldable Head Restraintsí
The rear seats are equipped with foldable
head restraints.
NOTE
The foldable head restraints cannot be
adjusted or removed.
To fold the head restraint, pull the strap
and fold the head restraint downward. To
return the head restraint to its upright
position, lift it upward.
WARNING
Always drive with the head restraints in
their upright positions when the rear
seats are occupied, and make sure they
are securely locked in place:
Driving with the head restraints
folded down is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
Essential Safety Equipment
Seats
2-11íSome models.
Mazda3_8BY6-EA-11F_Edition3 Page25
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (26,1)
Seat Warmerí
The driver and front passenger seats can
be warmed by rotating the applicable seat
warmer dial while the ignition is switched
ON.
The seat temperature increases as the
number on the dial increases. When the
seat warmers are not in use, rotate the seat
warmer dials to 0.
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who are intoxicated
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
Ø Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
Ø Do not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
Ø Do not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
2-12
Essential Safety Equipment
íSome models.
Seats
Mazda3_8BY6-EA-11F_Edition3 Page26
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (27,1)
NOTE
Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.
Essential Safety Equipment
Seats
2-13
Mazda3_8BY6-EA-11F_Edition3 Page27
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (28,1)

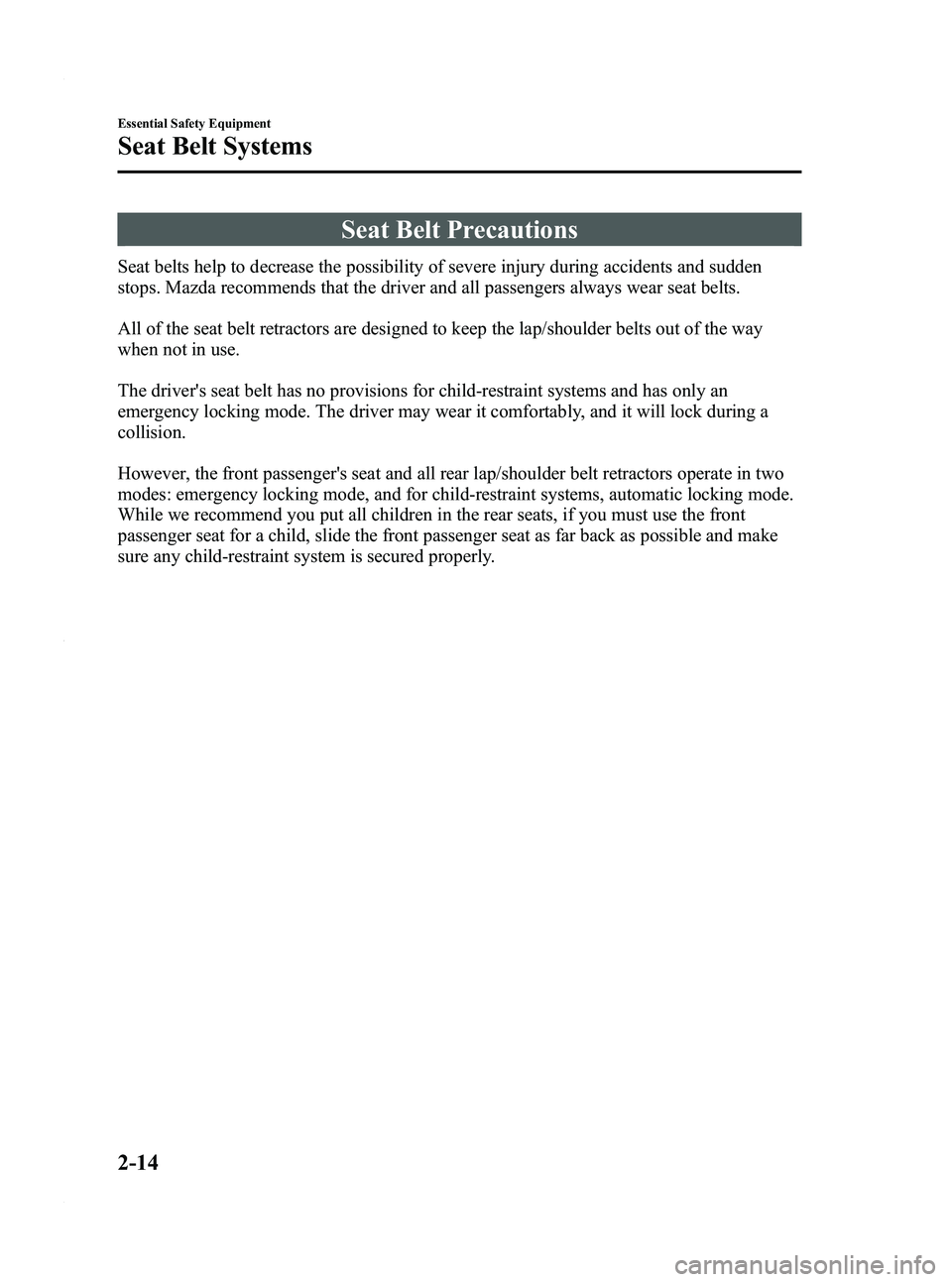

Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
2-14
Essential Safety Equipment
Seat Belt Systems
Mazda3_8BY6-EA-11F_Edition3 Page28
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (29,1)

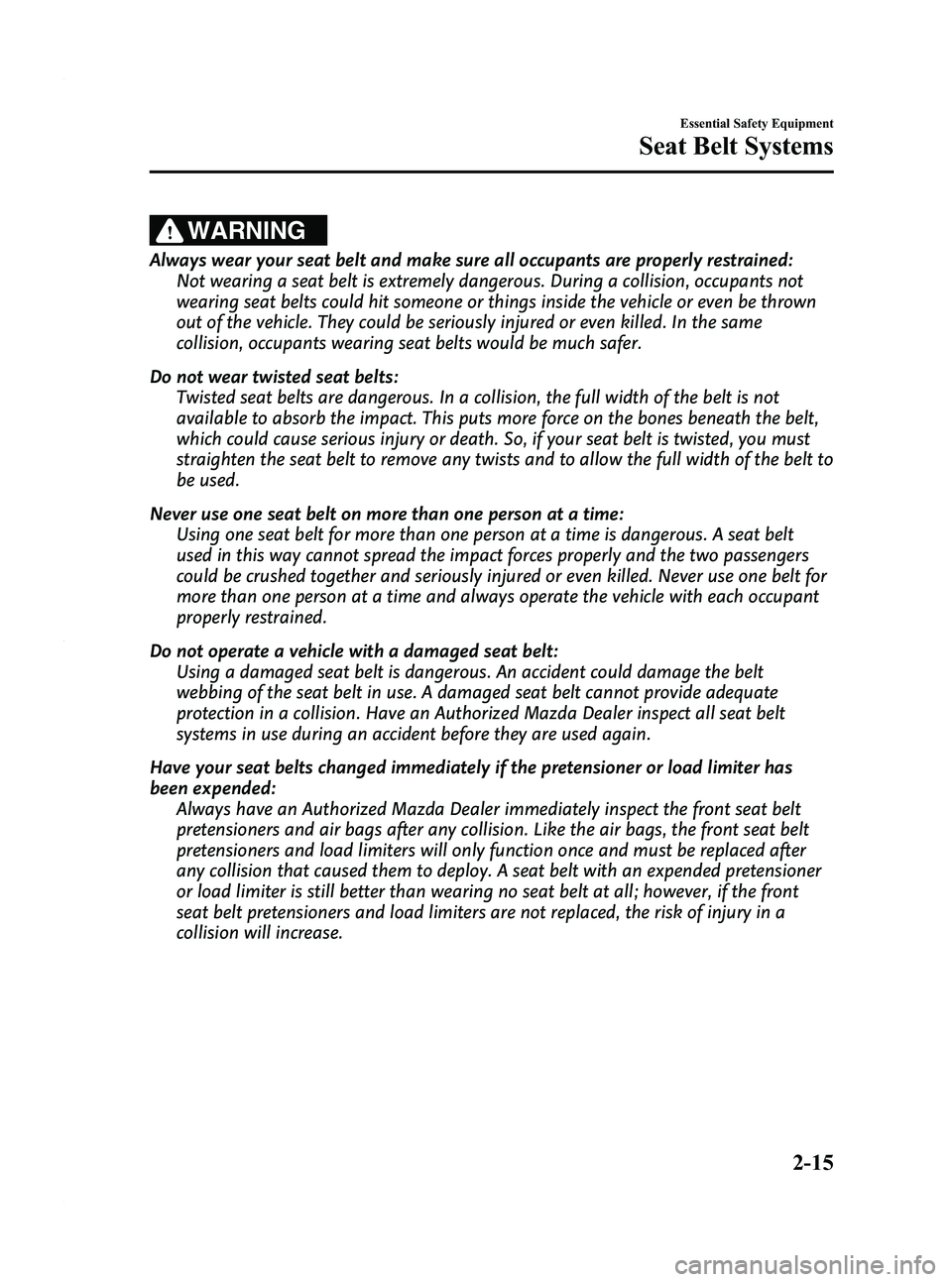

WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended: Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazda3_8BY6-EA-11F_Edition3 Page29
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F

Black plate (30,1)
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing ”(page 8-71).
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda3_8BY6-EA-11F_Edition3 Page30
Thursday, March 1 2012 10:16 AM
Form No.8BY6-EA-11F
