8–47
Customer Information and Reporting Safety Defects

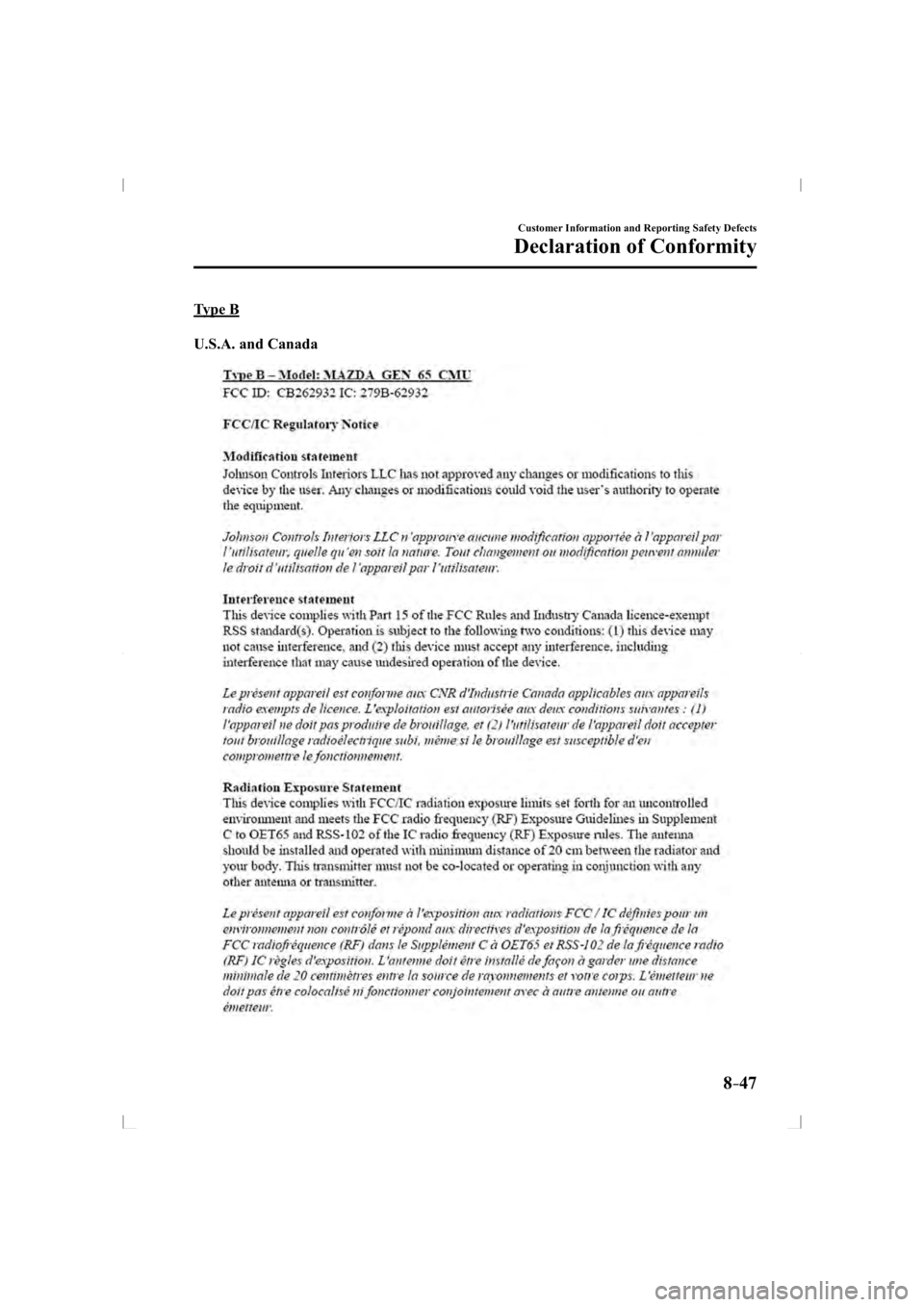

Declaration of Conformity
Type B
U.S.A. and Canada
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 502 of 524
8–48
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 503 of 524
![MAZDA MODEL 3 5-DOOR 2014 Owners Manual 8–49
Customer Information and Reporting Safety Defects
Service Publications
Service Publications
Factory-authorized Mazda service publications are available for owners w\
ho wish t](/img/28/41001/w960_41001-502.png "MAZDA MODEL 3 5-DOOR 2014 Owners Manual 8–49
Customer Information and Reporting Safety Defects
Service Publications
Service Publications
Factory-authorized Mazda service publications are available for owners w\
ho wish t")
8–49
Customer Information and Reporting Safety Defects
Service Publications
Service Publications
Factory-authorized Mazda service publications are available for owners w\
ho wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-017B-14 2014 WORKSHOP MANUAL (English)
9999-MX-017B-14 2014 WORKSHOP MANUAL (Spanish)
9999-95-019G-14 2014 WIRING DIAGRAM (English)
9999-MX-019G-14 2014 WIRING DIAGRAM (Spanish)
9999-95-038C-14R2 2014 OWNER'S MANUAL (English)
9999-EC-038C-14R2 2014 OWNER'S MANUAL (English and French)
9999-PR-038C-14R2 2014 OWNER'S MANUAL (Spanish)
9999-95-064F-14 2014 SERVICE HIGHLIGHTS
9999-95-038C-14NAVR 2014 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-038C-14NAVR 2014 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-038C-14NAVR 2014 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train,\
body and
chassis.
WIRING DIAGRAM:
Provides electrical schematics as well as component location for the ent\
ire electrical system.
OWNER'S MANUAL:
This booklet contains information regarding the proper care and operatio\
n of your vehicle.
This is not a technician's manual.
SERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 504 of 524
8–50
Customer Information and Reporting Safety Defects
Service Publications
NAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use\
of the navigation
system. This is not a technician's manual.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 505 of 524
9–1
9Specifi cations
Technical information about your Mazda.
Identifi cation Numbers ...................................................................... 9-2
Vehicle Information Labels ........................................................... 9-2
Specifi cations ........................................................................\
.............. 9-4 Specifi cations ........................................................................\
........ 9-4
Personalization Features ................................................................. 9-10 Personalization Features ............................................................. 9-10
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 506 of 524
9–2
Specifi cations
Identifi cation Numbers
Vehicle Information Labels
Vehicle Identifi cation Number
The vehicle identifi cation number legally
identifi es your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
Motor Vehicle Safety Standard Label (U.S.A. and Canada)
Chassis Number
Open the cover shown in the fi gure to
check the chassis number.
Vehicle Emission Control Information Label (U.S.A. and
Canada)
Tire Pressure Label
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 507 of 524
9–3
Specifi cations
Identifi cation Numbers
Engine Number
For war d
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 508 of 524
9–4
Specifi cations
Specifi cations
Specifi cations
Engine
Item Specifi cation
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
Electrical System
Item Classifi cation
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1 PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fi ne particulate coating on
the iridium alloy and platinum tips could be damaged.
Lubricant Quality
Lubricant Classifi cation
Engine oil Refer to Recommended Oil on page 6-27 .
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fl uid Mazda Genuine ATF FZ
Brake/Clutch fl uid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2 ) for owner's responsibility in protecting your investment.
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 509 of 524
9–5
Specifi cations
Specifi cations
Capacities
(Approximate Quantities)
Item Capacity
Engine oil With oil fi
lter replacement 4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil fi lter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
Coolant Manual transaxle
6.7 L (7.1 US qt, 5.9 Imp qt)
Automatic transaxle 6.9 L (7.3 US qt, 6.1 Imp qt)
Manual transaxle oil 1.70 L (1.80 US qt, 1.50 Imp qt)
Automatic transaxle fl uid 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank U.S.A. and Canada
50.0 L (13.2 US gal, 11.0 Imp gal)
Mexico 51.0 L (13.5 US gal, 11.2 Imp gal)
Check oil and fl uid levels with dipsticks or reservoir gauges.
Dimensions
4-Door
(U.S.A. and Canada)
Item Vehicle specifi cation
Overall length 4,580 mm (180.3 in)
Overall width 1,795 mm (70.7 in)
Overall height 1,455 mm (57.3 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
(Mexico)
Item Vehicle specifi cation
Overall length 4,580 mm (180.3 in)
Overall width 1,795 mm (70.7 in)
Overall height 1,450 mm (57.1 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
. B [ E B @ % $ & " " @ & E J U J P O J O E C
Page 510 of 524
9–6
Specifi cations
Specifi cations
5-Door
(U.S.A. and Canada)
Item Vehicle specifi cation
Overall length 4,460 mm (175.6 in)
Overall width 1,795 mm (70.7 in)
Overall height
*1 Type A 1,470 mm (57.9 in)
Type B 1,455 mm (57.3 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
*1 The overall height is categorized according to the antenna type as follo\
ws:
Type A
A ntenna
Type B
Except above.
(Mexico)
Item Vehicle specifi cation
Overall length 4,460 mm (175.6 in)
Overall width 1,795 mm (70.7 in)
Overall height 1,450 mm (57.1 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
. B [ E B @ % $ & " " @ & E J U J P O J O E C
