MAZDA MODEL 3 5-DOOR 2016 Owners Manual

3–45
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
 Be cautious and allow extra distance for
braking. Avoid sudden braking and sudden
maneuvering. Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-62. If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
 For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Floor Mat
WARNING
Make sure the floor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals: Using a floor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.
Do not install two floor mats, one on top
of the other, on the driver's side: Installing two floor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one floor mat from sliding
forward.
If using a heavy duty floor mat for
winter use always remove the original
floor mat.
Loose floor mat(s) will interfere with
the foot pedal and could result in an
accident.
When setting a floor mat, position the floor
mat so that its grommets are inserted over
the pointed end of the retention posts.
Mazda3_8FA4-EA-15G_Edition1.indb 452015/05/11 14:00:31

3–46
Before Driving
Driving Tips
Rocking the Vehicle
WARNING
Do not spin the wheels at more than
56 km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:When the vehicle is stuck, spinning the
wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
 Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page
6-30.
 Inspect the battery and its cables. Cold
reduces battery capacity. Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-27).
 Inspect the ignition system for damage
and loose connections. Use washer fluid made with antifreeze—
but do not use engine coolant antifreeze
for washer fluid (page 6-32).
NOTE
 Do not use the parking brake in fr eezing
weather as it may freeze. Instead, shift
to P with an automatic transaxle and to
1 or R with a manual transaxle. Block
the rear wheels.
 Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
 Do not apply excessive for ce to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
Mazda3_8FA4-EA-15G_Edition1.indb 462015/05/11 14:00:31

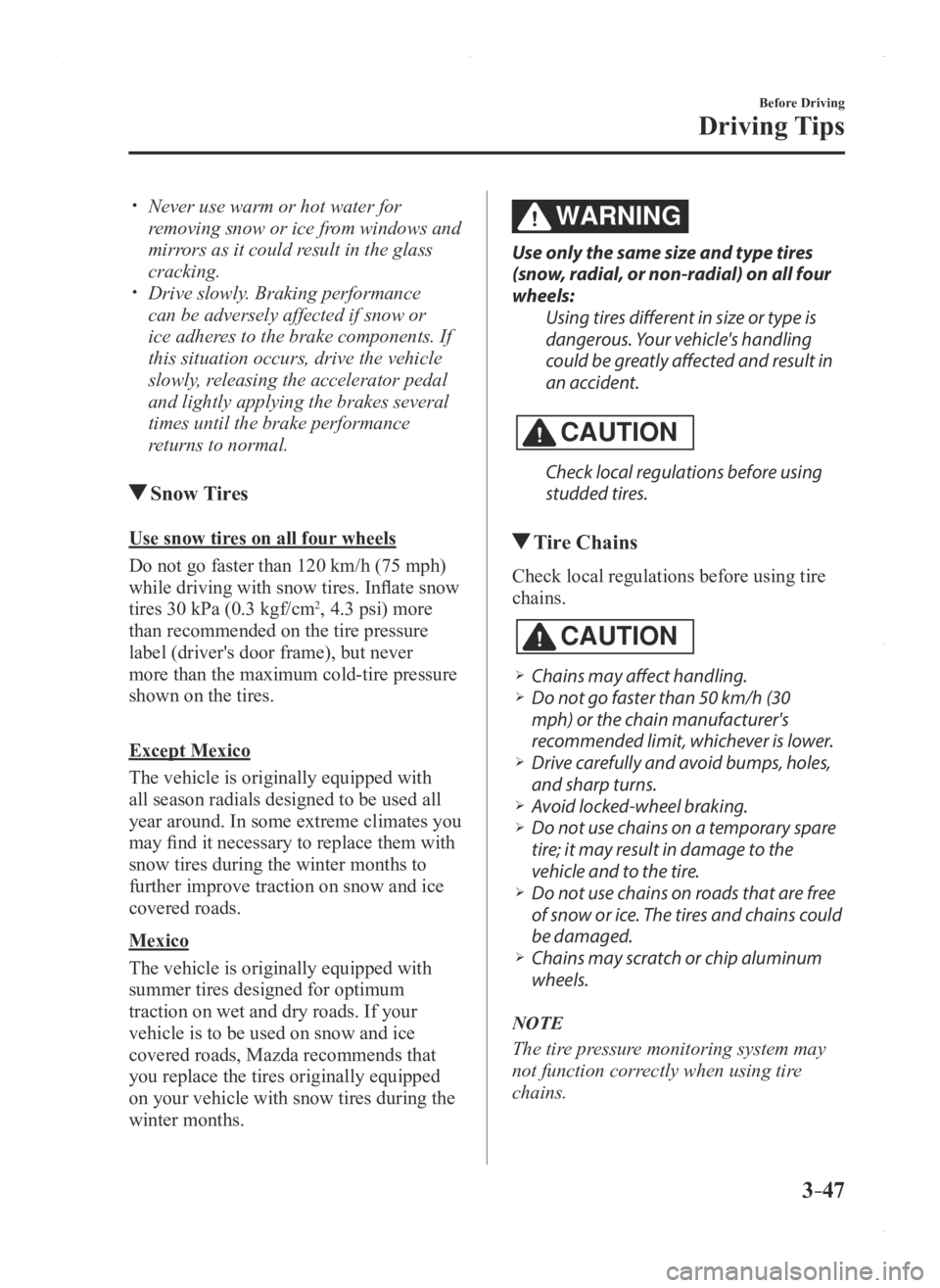

3–47
Before Driving
Driving Tips
 Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
 Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake components. If
this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.
Snow Tires
Use snow tires on all four wheels
Do not go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate snow
tires 30 kPa (0.3 kgf/cm
2, 4.3 psi) more
than recommended on the tire pressure
label (driver's door frame), but never
more than the maximum cold-tire pressure
shown on the tires.
Except Mexico
The vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates you
may find it necessary to replace them with
snow tires during the winter months to
further improve traction on snow and ice
covered roads.
Mexico
The vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, Mazda recommends that
you replace the tires originally equipped
on your vehicle with snow tires during the
winter months.
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels: Using tires different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result in
an accident.
CAUTION
Check local regulations before using
studded tires.
Tire Chains
Check local regulations before using tire
chains.
CAUTION
 Chains may a ffect handling. Do not go faster than 50 km/h (30
mph) or the chain manufacturer's
recommended limit, whichever is lower.
 Drive carefully and avoid bumps, holes,
and sharp turns. Avoid locked-wheel braking. Do not use chains on a temporary spare
tire; it may result in damage to the
vehicle and to the tire.
 Do not use chains on roads that are free
of snow or ice. The tires and chains could
be damaged.
 Chains may scr atch or chip aluminum
wheels.
NOTE
The tire pressure monitoring system may
not function correctly when using tire
chains.
Mazda3_8FA4-EA-15G_Edition1.indb 472015/05/11 14:00:31

3–48
Before Driving
Driving Tips
Install the chains on the front tires only.
Do not use chains on the rear tires.
Please consult an Authorized Mazda
Dealer.
Installing the chains
1. If your vehicle is equipped with wheel
covers remove them, otherwise the
chain bands will scratch them.
2. Secure the chains on the front tires as
tightly as possible.
Always follow the chain manufacturer's
instructions.
3. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile).
Driving In Flooded Area
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
CAUTION
Do not drive the vehicle on flooded
roads as it could cause short circuiting
of electrical/electronic parts, or
engine damage or stalling from
water absorption. If the vehicle has
been immersed in water, consult an
Authorized Mazda Dealer.
Mazda3_8FA4-EA-15G_Edition1.indb 482015/05/11 14:00:31

3–49
Before Driving
Driving Tips
Overloading
WARNING
Be careful not to overload your vehicle:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of the vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident
or vehicle damage. You can estimate
the weight of the load by weighing the
items (or people) before putting them
in the vehicle.
Mazda3_8FA4-EA-15G_Edition1.indb 492015/05/11 14:00:31

3–50
Before Driving
Driving Tips
Driving on Uneven Road
Your vehicle's suspension and underbody can be damaged if driven on rough\
/uneven roads
or over speed bumps at excessive speeds. Use care and reduce speed when \
traveling on
rough/uneven roads or over speed bumps.
Use care not to damage the vehicle's underbody, bumpers or muffler(s) when driving under
the following conditions:
 Ascending or descending a slope with a sharp transition angle Ascending or descending a driveway or trailer ramp with a sharp transiti\
on angle
This vehicle is equipped with low profile tires allowing class-leading performance and
handling. As a result, the sidewall of the tires are very thin and the tires and w\
heels can be
damaged if driven through potholes or on rough/uneven roads at excessive\
speeds. Use care
and reduce speed when traveling on rough/uneven roads or through pothole\
s.
Mazda3_8FA4-EA-15G_Edition1.indb 502015/05/11 14:00:31

3–51
Before Driving
Towing
Trailer Towing
Your Mazda is not designed for towing.
Never tow a trailer with your Mazda.
Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer
to "Towing Description" (page 7-21)
and "Tiedown Hooks" (page 7-22) and
carefully follow the instructions.
Mazda3_8FA4-EA-15G_Edition1.indb 512015/05/11 14:00:32

3–52
Mazda3_8FA4-EA-15G_Edition1.indb 522015/05/11 14:00:32
MEMO

4–1*Some models.
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine ................................4-4
Ignition Switch
...............................4-4
Starting the Engine
.........................4-5
Turning the Engine Off
................4-10
Instrument Cluster and Display
......4-11
Meters and Gauges
.......................4-11
Active Driving Display* ...............4-18
Warning/Indicator Lights
.............4-20
Transaxle
............................................4-26
Manual Transaxle Operation
........4-26
Automatic Transaxle Controls
.....4-29
Switches and Controls
......................4-40
Lighting Control
...........................4-40
Fog Lights* ...................................4-46
Turn and Lane-Change Signals
....4-46
Windshield Wipers and Washer
...4-47
Rear Window Wiper and
Washer
*......................................... 4-51
Rear Window Defogger
...............4-52
Horn
.............................................4-53
Hazard Warning Flasher
...............4-54
HomeLink Wireless Control
System
* .........................................4-54
Brake
..................................................4-58
Brake System
...............................4-58
Hill Launch Assist (HLA)
............4-60 ABS/TCS/DSC
...................................4-62
Antilock Brake System (ABS)
.....4-62
Traction Control System (TCS)
...4-63
Dynamic Stability Control
(DSC)
...........................................4-64
i-ELOOP
............................................4-66
i-ELOOP* .....................................4-66
Fuel Economy Monitor
.....................4-69
Fuel Economy Monitor* ...............4-69
Drive Selection
...................................4-71
Drive Selection* ...........................4-71
Power Steering ................................... 4-73
Power Steering
.............................4-73
Mazda3_8FA4-EA-15G_Edition1.indb 12015/05/11 14:00:32

4–2*Some models.
i-ACTIVSENSE................................. 4-74
i-ACTIVSENSE
...........................4-74
Adaptive Front Lighting System
(AFS)
............................................4-76
High Beam Control System
(HBC)
...........................................4-77
Lane Departure Warning System
(LDWS)
........................................4-80
Blind Spot Monitoring (BSM)
System
..........................................4-86
Rear Cross Traffic Alert
(RCTA)
.........................................4-92
Forward Obstruction Warning
(FOW)
..........................................4-95
Mazda Radar Cruise Control
(MRCC)
.......................................4-98
Smart City Brake Support
(SCBS)
.......................................4-106
Forward Sensing Camera
(FSC)
..........................................4-111
Radar Sensor (Front)
..................4-113
Laser Sensor (Front)
..................4-116
Radar Sensors (Rear)
.................4-118
Cruise Control
.................................4-119
Cruise Control* ...........................4-119
Tire Pressure Monitoring System ...4-123
Tire Pressure Monitoring
System
* .......................................4-123
Rear View Monitor
..........................4-127
Rear View Monitor* ...................4-127
Mazda3_8FA4-EA-15G_Edition1.indb 22015/05/11 14:00:32
