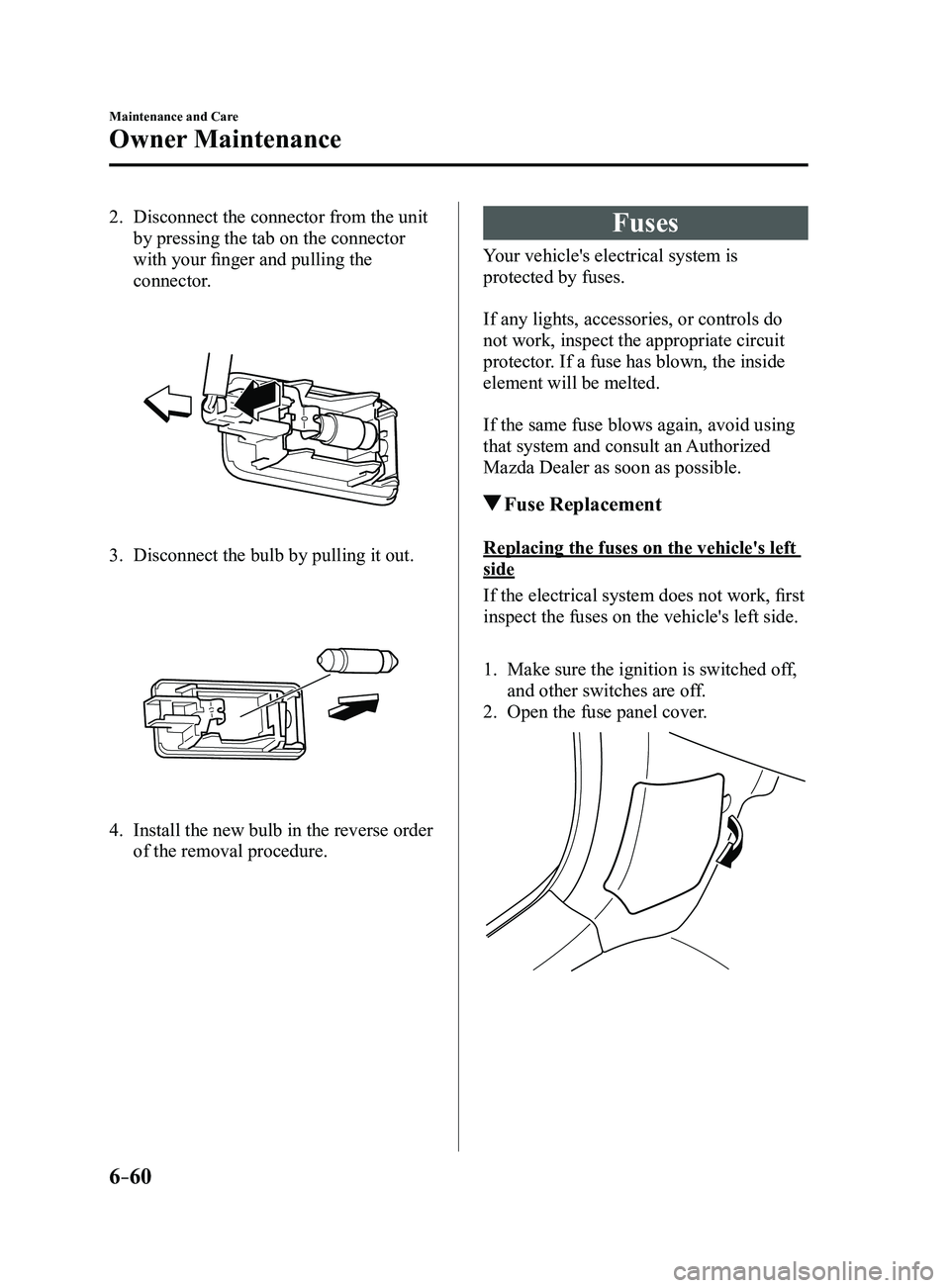

Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Mazda3_8FL6-EA-16F_Edition2.indb 602016/08/10 17:39:01

6–61
Maintenance and Care
Owner Maintenance

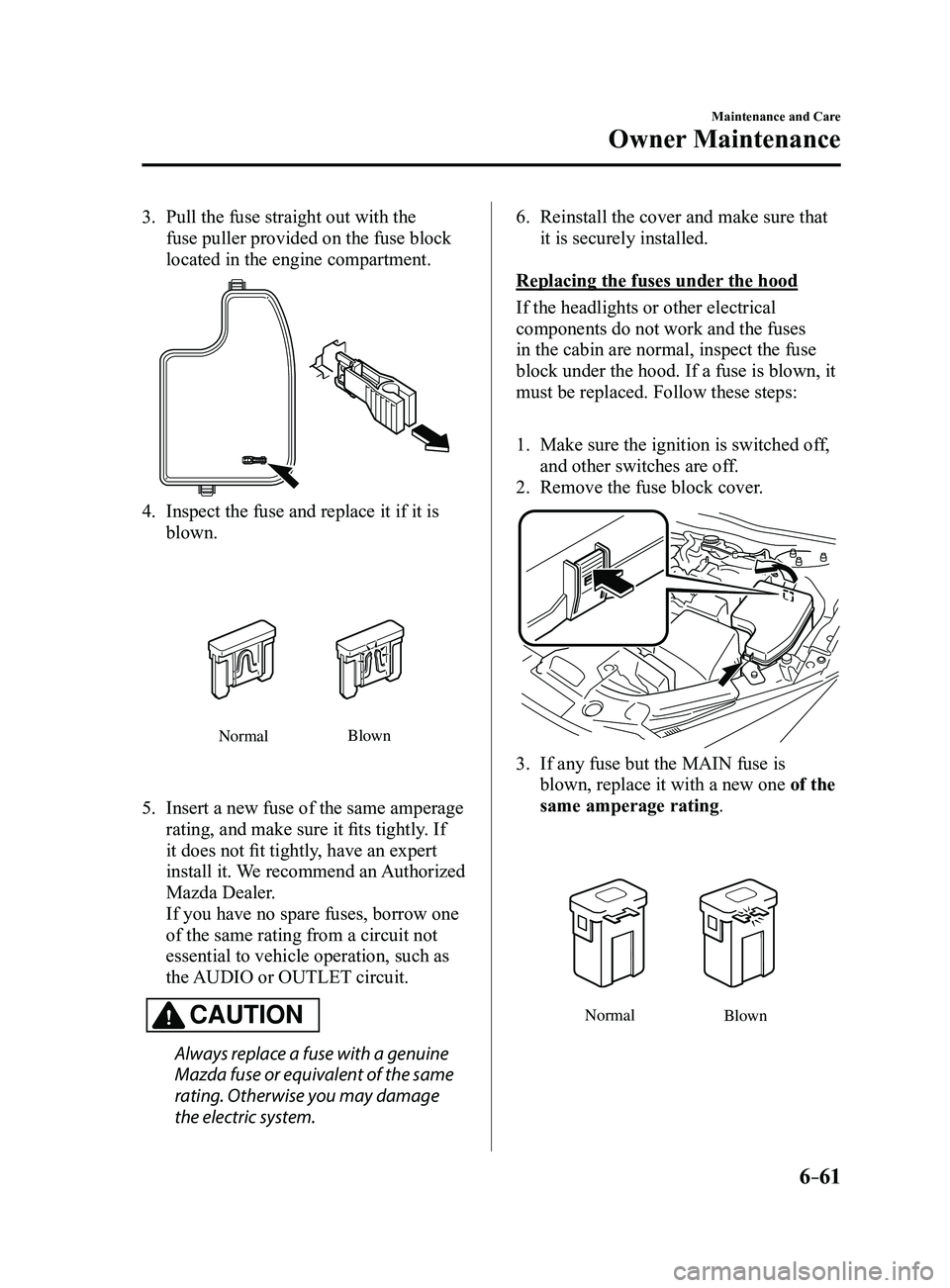

3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If
it does not fit tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched of f,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating.
Normal Blown
Mazda3_8FL6-EA-16F_Edition2.indb 612016/08/10 17:39:01

6–62
Maintenance and Care
Owner Maintenance

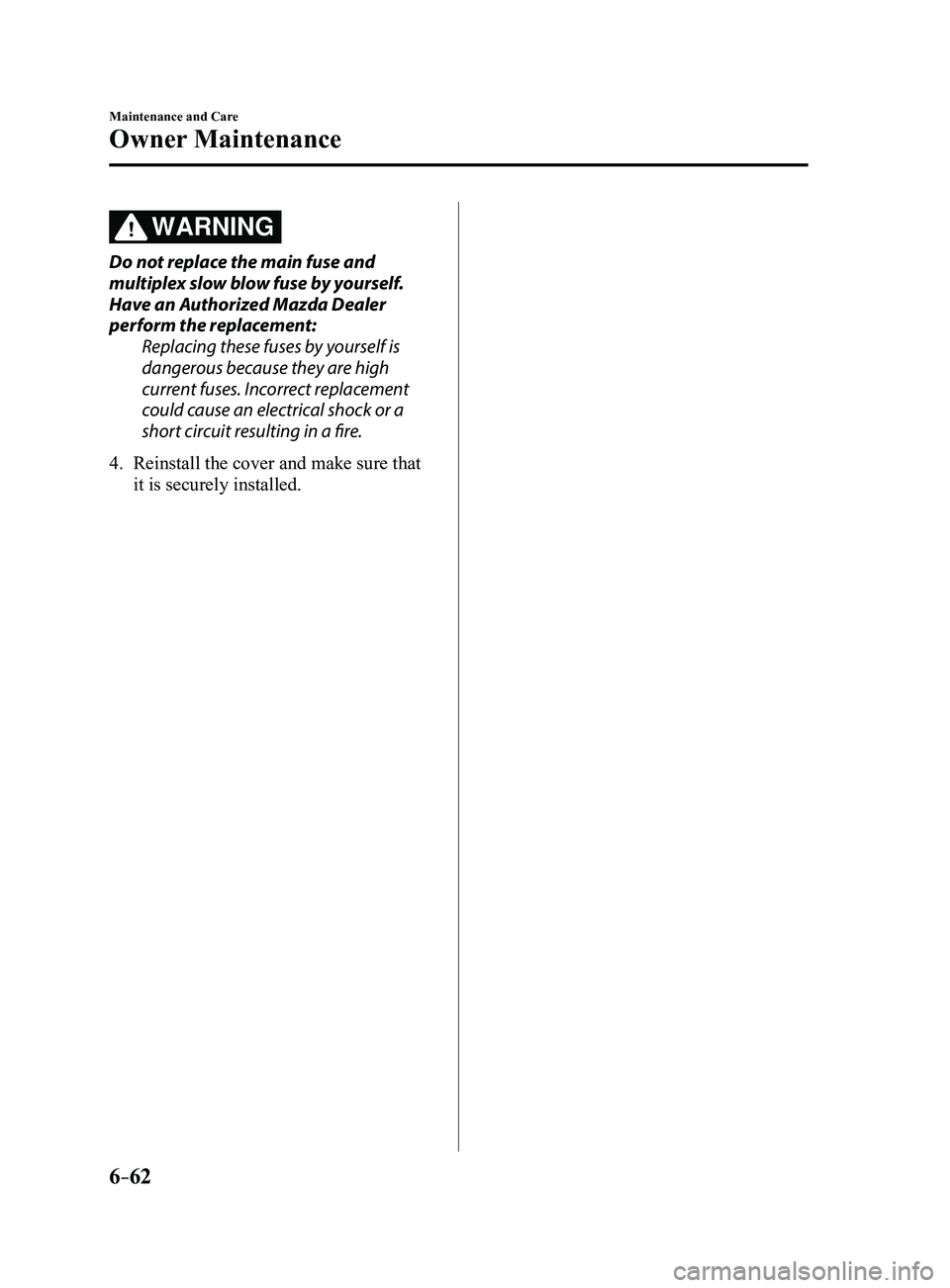

WARNING
Do not replace the main fuse and
multiplex slow blow fuse by yourself.
Have an Authorized Mazda Dealer
perform the replacement:Replacing these fuses by yourself is
dangerous because they are high
current fuses. Incorrect replacement
could cause an electrical shock or a
short circuit resulting in a fire.
4. Reinstall the cover and make sure that
it is securely installed.
Mazda3_8FL6-EA-16F_Edition2.indb 622016/08/10 17:39:02

9–11
Specifications
Specifications
Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
P205/60R16 91H 250 kPa (36 psi)250 kPa (36 psi)
215/45R18 89W 250 kPa (36 psi)250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
P205/60R16 91H 250 kPa (2.5 bar, 36 psi)250 kPa (2.5 bar, 36 psi)
Tire size Inflation pressure
Up to 3 persons —Full load
215/45R18 89W Front
240 kPa (2.4 bar, 35 psi) 280 kPa (2.8 bar, 41 psi)
Rear 230 kPa (2.3 bar, 33 psi) 300 kPa (3.0 bar, 44 psi)
1 person's weight: About 75 kg
Temporary spare tire
Tire size Inflation pressure
T125/70D16 96M 420 kPa (60 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)
Fuses
Refer to Fuses on page 6-60.
