Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle
Interior Equipment (View A)
Door-lock knob ........................................................................\
.............................page 3-20
Turn and lane-change signal ........................................................................\
.........page 4-49
Lighting control........................................................................\
.............................page 4-43
Wiper and washer lever ........................................................................\
.................page 4-50
Lane-keep Assist System (LAS) &
Lane Departure Warning System (LDWS) OFF switch
.....................................page 4-120
DSC OFF switch ........................................................................\
...........................page 4-71
Tire pressure monitoring system set switch ........................................................page 4-154
Blind Spot Monitoring (BSM) switch ...................................................................page 4-93
Outside mirror switch........................................................................\
.................... page 3-34
Door-lock switch ........................................................................\
...........................page 3-17
Power window lock switch ........................................................................\
...........page 3-39
Power window switches ........................................................................\
................page 3-37
Mazda3_8FL6-EA-16F_Edition2.indb 22016/08/10 17:34:46

2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer*
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
OFF
High Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
 Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin People who are excessively fatigued People who are intoxicated People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat: The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle: The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it: This could cause the seat to become
excessively heated and result in injury
from a minor burn.
Mazda3_8FL6-EA-16F_Edition2.indb 72016/08/10 17:34:52

2–18
Essential Safety Equipment
Seat Belt Systems
Seat Belt Warning Systems
If it detects that the occupant seat belt
is unfastened, the warning light or beep
alerts the occupant.
Refer to Warning/Indicator Lights on page
4-23.
Refer to Seat Belt Warning Beep on page
7-40.
Front Seat Belt
Pretensioner and Load
Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.
Pretensioners:
When a collision is detected, the
pretensioners deploy simultaneously with
the air bags.
For vehicles with the front passenger
occupant classification system, the
pretensioners deploy simultaneously
with the air bags when a roll-over is also
detected.
For deployment details, refer to the SRS
Air Bag Deployment Criteria (page
2-54).
The front seat belt retractors remove slack
quickly as the air bags are expanding.
Any time the air bags and seat belt
pretensioners have fired they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-23.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning Beep on
page
7-39.
Mazda3_8FL6-EA-16F_Edition2.indb 182016/08/10 17:34:58

2–20
Essential Safety Equipment
Seat Belt Systems
NOTE
 The pretensioner system may not
operate depending on the type of the
collision. For details, refer to the SRS
Air Bag Deployment Criteria (page
2-54). Some smoke (non-toxic gas) will
be released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however, those
with sensitive skin may experience
light skin irritation. If residue from the
deployment of the air bags or the front
pretensioner system gets on the skin
or in the eyes, wash it off as soon as
possible.
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WARNING
Do not use a seat belt extender unless it
is necessary:Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use the
extender when it is required to fasten
the seat belt properly.
Mazda3_8FL6-EA-16F_Edition2.indb 202016/08/10 17:34:58

2–21
Essential Safety Equipment
Seat Belt Systems
Do not use an improper extender:Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the particular
vehicle and seat. NEVER use the
extender in a different vehicle or seat.
If you sell your Mazda, do not leave
your seat belt extender in the vehicle. It
could be used accidentally by the new
owner of the vehicle. After removing
the seat belt extender, discard it. Never
use the seat belt extender in any other
vehicle you may own in the future.
Do not use an extender that is too long: Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Do not use the extender or choose
one shorter in length if the distance
between the extender's buckle and the
center of the user's body is less than 15
cm (6 in). Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected
to the buckle without using the seat
belt is dangerous. When the seat belt
extender is connected to the driver's
seat belt buckle (or front passenger's
seat belt buckle), the SRS driver's (or
front passenger's) air bag system will
determine that the driver (or front
passenger) is wearing the seat belt
even if the driver (or front passenger)
is not wearing it. This condition could
cause the driver's (or front passenger's)
air bag to not activate correctly and
result in death or serious injury in the
event of collision. Always wear the seat
belt with the seat belt extender.
Do not use the seat belt extender when
installing a child-restraint system on the
front or rear passenger seat: Using a seat belt extender to fasten
a child-restraint system on any seat
is dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use
a seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged
as it will not retract with the rest of the
seat belt and can easily fall out of the
door when not in use and be damaged. In
addition, the seat belt warning light will
not illuminate and function properly.
Mazda3_8FL6-EA-16F_Edition2.indb 212016/08/10 17:34:58

2–24
Essential Safety Equipment
Child-Restraint

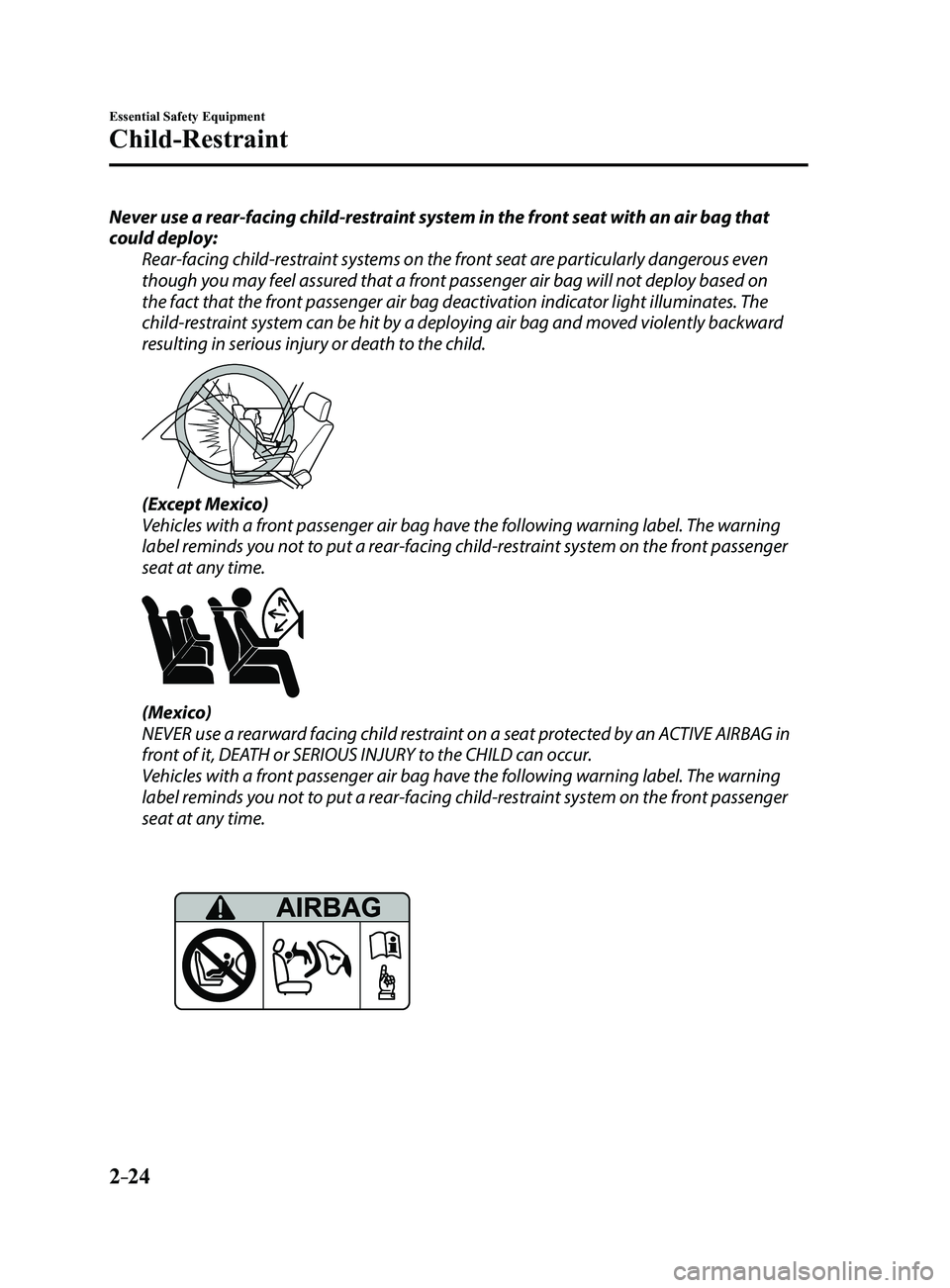

Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates. The
child-restraint system can be hit by a deploying air bag and moved violently backward
resulting in serious injury or death to the child.
(Except Mexico)
Vehicles with a front passenger air bag have the following warning label. The warning
label reminds you not to put a rear-facing child-restraint system on the front passenger
seat at any time.
(Mexico)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have the following warning label. The warning
label reminds you not to put a rear-facing child-restraint system on the front passenger
seat at any time.
Mazda3_8FL6-EA-16F_Edition2.indb 242016/08/10 17:34:59

2–33
Essential Safety Equipment
Child-Restraint
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a serious
accident, injury or death.
Refer to Head Restraints on page
2-12.
If You Must Use the Front Seat for
Children
If you cannot put all children in the rear
seat, at least put the smallest children
in the rear and be sure the largest child
up front uses the shoulder belt over the
shoulder.
NEVER put a rear-facing child-restraint
system on the front passenger seat whether
your vehicle is equipped with a occupant
classification sensor or not.
This seat is also not set up for tethered
child-restraint systems, put them in one of
the rear seat positions set up with tether
anchors.
Likewise the LATCH child-restraint
system cannot be secured in the front
passenger's seat and should be used in the
rear seat.
Do not allow anyone to sleep against the
side window since your vehicle has side
and curtain air bags, it could cause serious
injuries to an out of position occupant.
As children more often sleep in cars,
it is better to put them in the rear seat.
If installing the child-restraint system
on the front seat is unavoidable, follow
these instructions when using a front-
facing child-restraint system in the front
passenger's seat.
NOTE
 To check if your front seats have side air
bags:
Mazda vehicles equipped with side air
bag will have a "SRS AIRBAG" tag on
the outboard shoulder of the front seats.
 To check if your vehicle has curtain air
bags:
Mazda vehicles equipped with curtain
air bag will have an "SRS AIRBAG"
marking on the window pillars along
the roof edge.
WARNING
Always move the front passenger seat
as far back as possible if installing a
front-facing child-restraint system on it
is unavoidable:As your vehicle has front air bags and
doubly so because your vehicle has
side air bags, a front-facing child-
restraint system should be put on the
front passenger seat only when it is
unavoidable.
Even if the front passenger air
bag deactivation indicator light
illuminates, always move the seat as
far back as possible, because the force
of a deploying air bag could cause
serious injury or death to the child.
Mazda3_8FL6-EA-16F_Edition2.indb 332016/08/10 17:35:03

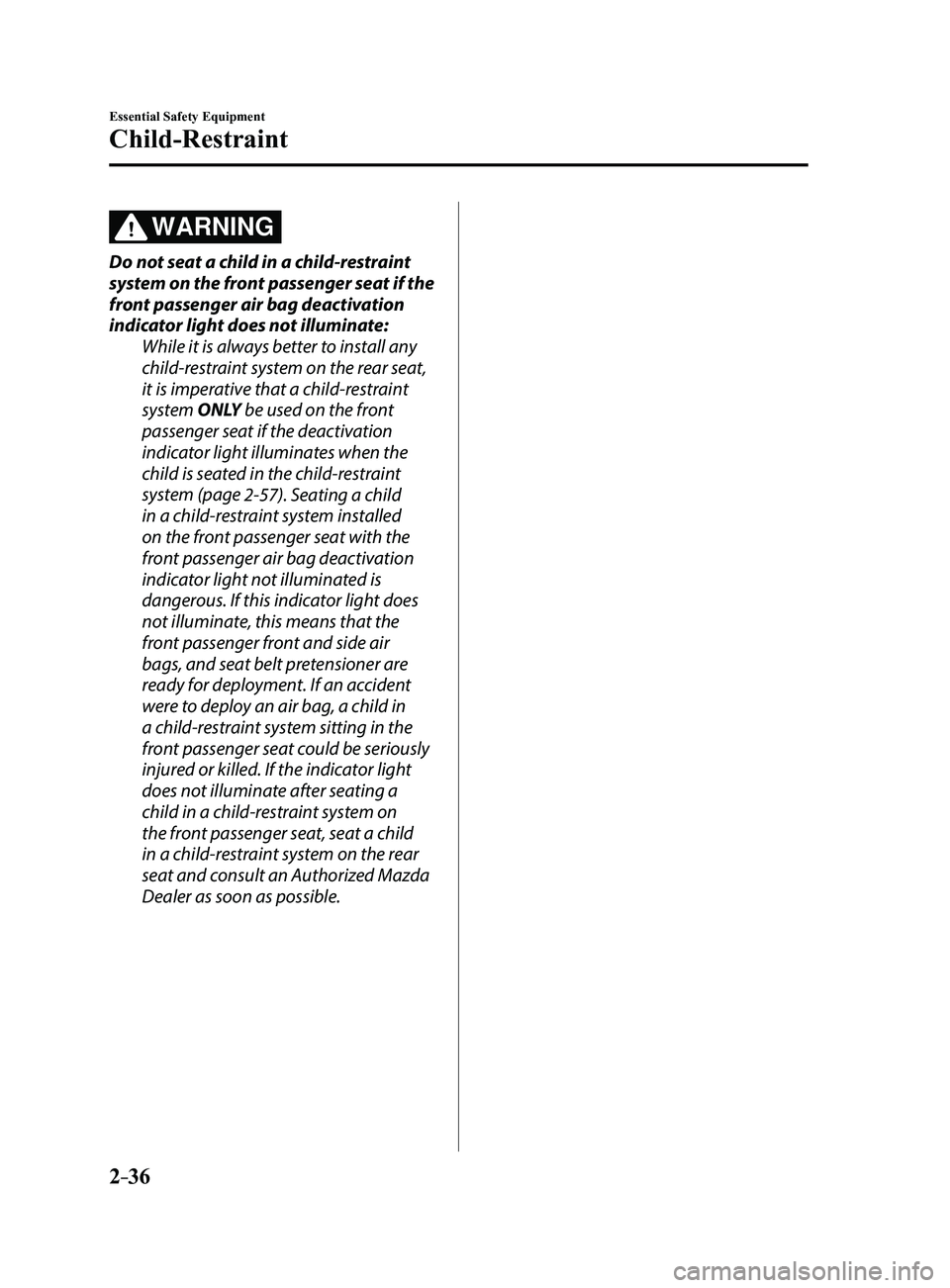

2–36
Essential Safety Equipment
Child-Restraint
WARNING
Do not seat a child in a child-restraint
system on the front passenger seat if the
front passenger air bag deactivation
indicator light does not illuminate:While it is always better to install any
child-restraint system on the rear seat,
it is imperative that a child-restraint
system ONLY be used on the front
passenger seat if the deactivation
indicator light illuminates when the
child is seated in the child-restraint
system (page
2-57). Seating a child
in a child-restraint system installed
on the front passenger seat with the
front passenger air bag deactivation
indicator light not illuminated is
dangerous. If this indicator light does
not illuminate, this means that the
front passenger front and side air
bags, and seat belt pretensioner are
ready for deployment. If an accident
were to deploy an air bag, a child in
a child-restraint system sitting in the
front passenger seat could be seriously
injured or killed. If the indicator light
does not illuminate after seating a
child in a child-restraint system on
the front passenger seat, seat a child
in a child-restraint system on the rear
seat and consult an Authorized Mazda
Dealer as soon as possible.
Mazda3_8FL6-EA-16F_Edition2.indb 362016/08/10 17:35:04

2–38
Essential Safety Equipment
Child-Restraint
Installation on rear outboard seats
1. First, adjust the front seat to allow
clearance between the child-restraint
system and the front seat (page
2-5).
2. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
3. Expand the area between the seat
bottom and the seatback slightly to
verify the locations of the LATCH
lower anchors.

NOTE
The markings above the LATCH lower
anchors indicate the locations of the
LATCH lower anchors for the attachment
of a child-restraint system.
4. Remove the head restraint.
Refer to Head Restraints on page
2-12.
5. Secure the child-restraint system
using BOTH LATCH lower anchors,
following the child-restraint system
manufacturer's instruction. Pull on the
child-restraint to be sure both anchors
are engaged.
6. If your child-restraint system came
equipped with a tether, that means it is
very important to properly secure the
tether for child safety. Please carefully
follow the child-restraint system
manufacturer's instructions when
installing tethers.
WARNING
Use the tether and tether anchor only
for a child-restraint system:Using the tether or tether anchor to
secure anything but a child-restraint
system is dangerous. This could
weaken or damage the tether or tether
anchor and result in injury.
Always remove the head restraint and
set the tether strap: Routing the tether strap on top of
the head restraint is dangerous. In a
collision the tether strap could slide off
the head restraint and loosen the child-
restraint system. The child-restraint
system could move which may result in
death or injury to the child.
Anchor bracket
Tether strap(4-Door)
Mazda3_8FL6-EA-16F_Edition2.indb 382016/08/10 17:35:04

2–42
Essential Safety Equipment
SRS Air Bags
If your vehicle is also equipped with a front passenger occupant classification system,
refer to the Front Passenger Occupant Classification System (page
2-57) for details.
If your vehicle is equipped with a front passenger occupant classification system, the front
passenger air bag deactivation indicator light illuminates for a specified time after the
ignition is switched ON.
Small children must be protected by a child-restraint system as stipulat\
ed by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page
2-22).
Carefully consider which child-restraint system is necessary for your ch\
ild and follow
the installation directions in this Owner's Manual as well as the child-\
restraint system
manufacturer's instructions.
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
inflate only in the first accident, such as frontal, near frontal or side collisions or roll-over
accidents that are at least moderate. Vehicle occupants should always wear seat belts.
Children should not ride in the front passenger seat: Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit
by a deploying air bag and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side air bag in moderate collision to the
front-passenger side of the vehicle. Whenever possible, always secure a child 12 years and
under on the rear seats with an appropriate child-restraint system for the child's age and
size.
Mazda3_8FL6-EA-16F_Edition2.indb 422016/08/10 17:35:06
