NOTE
Each tire pressure sensor has a unique
ID signal code. The signal code must be
registered with the TPMS before it can
work. The easiest way to do it is to have
an Authorized Mazda Dealer change
your tire and complete ID signal code
registration.
When having tires changed at an
Authorized Mazda Dealer
Tire pressure sensor ID signal code
registration is completed when an
Authorized Mazda Dealer changes your
vehicle's tires.
When changing tires yourself
If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, turn the
ignition switch to the ON position, then
turn it back to the ACC or LOCK
position.
2. Wait for about 15 minutes.
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.
NOTE
If the vehicle is driven within about 15
minutes of changing tires, the tire
pressure monitoring system warning
light will flash because the sensor ID
signal code would not have been
registered. If this happens, park the
vehicle for about 15 minutes, after
which the sensor ID signal code will
register upon driving the vehicle for 10
minutes.
Replacing tires and wheels
CAUTION
lWhen replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.
lThe wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installation are possible.
lThe tire pressure sensor is removed
from the old wheel and installed to the
new one.
lThe same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.
5-26
Driving Your Mazda
Starting and Driving
Mazda3_8U55-EA-05G_Edition2 Page140
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (141,1)
lA new tire pressure sensor is installed
to a new wheel.
NOTE
lThe tire pressure sensor ID signal
code must be registered when a new
tire pressure sensor is purchased. For
purchase of a tire pressure sensor and
registration of the tire pressure
sensor ID signal code, consult an
Authorized Mazda Dealer.
lWhen reinstalling a previously
removed tire pressure sensor to a
wheel, replace the grommet for the
tire pressure sensor.
Driving Your Mazda
Starting and Driving
5-27
Mazda3_8U55-EA-05G_Edition2 Page141
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

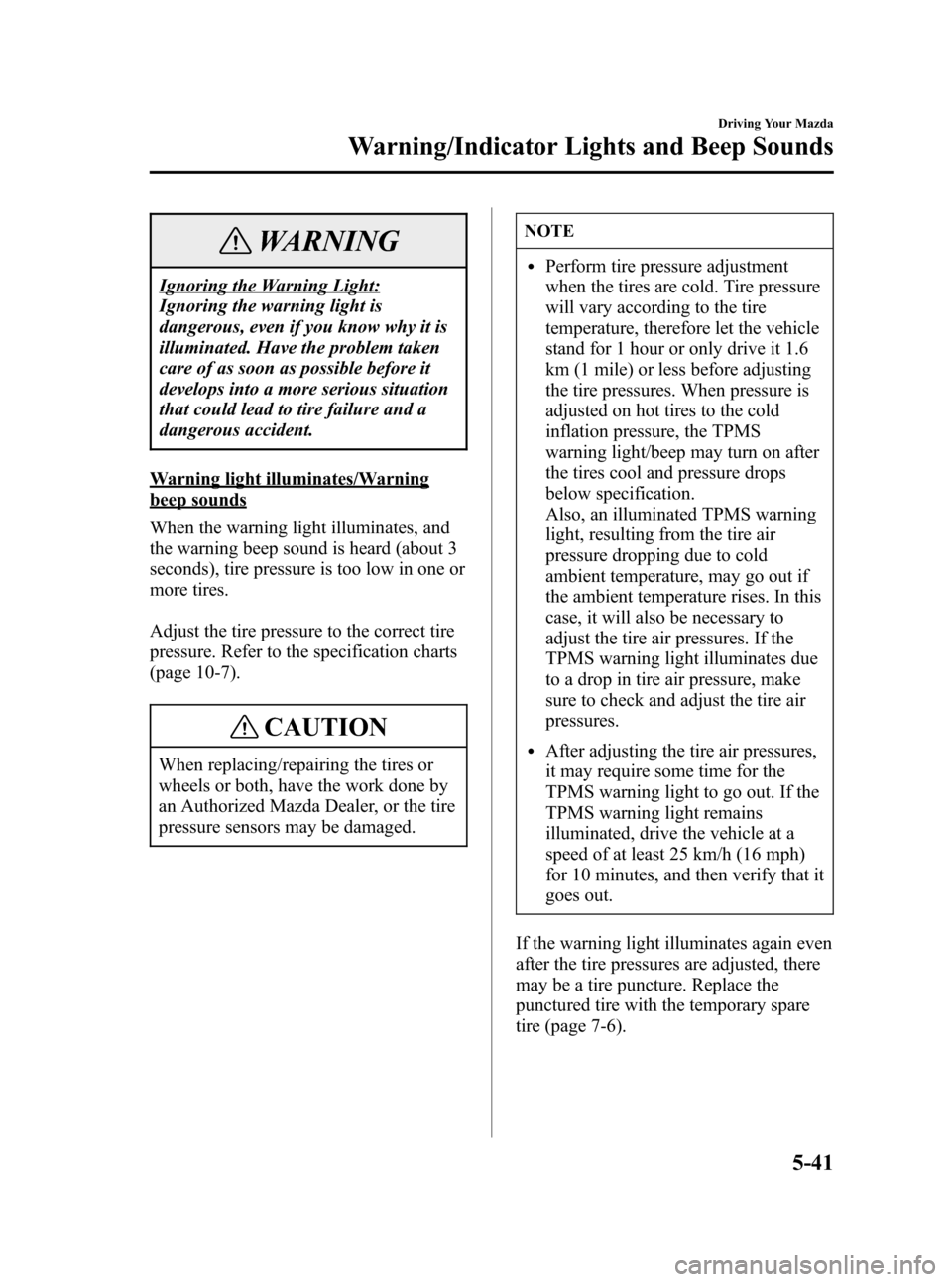

Black plate (155,1)
WARNING
Ignoring the Warning Light:
Ignoring the warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious situation
that could lead to tire failure and a
dangerous accident.
Warning light illuminates/Warning
beep sounds
When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low in one or
more tires.
Adjust the tire pressure to the correct tire
pressure. Refer to the specification charts
(page 10-7).
CAUTION
When replacing/repairing the tires or
wheels or both, have the work done by
an Authorized Mazda Dealer, or the tire
pressure sensors may be damaged.
NOTE
lPerform tire pressure adjustment
when the tires are cold. Tire pressure
will vary according to the tire
temperature, therefore let the vehicle
stand for 1 hour or only drive it 1.6
km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold
inflation pressure, the TPMS
warning light/beep may turn on after
the tires cool and pressure drops
below specification.
Also, an illuminated TPMS warning
light, resulting from the tire air
pressure dropping due to cold
ambient temperature, may go out if
the ambient temperature rises. In this
case, it will also be necessary to
adjust the tire air pressures. If the
TPMS warning light illuminates due
to a drop in tire air pressure, make
sure to check and adjust the tire air
pressures.
lAfter adjusting the tire air pressures,
it may require some time for the
TPMS warning light to go out. If the
TPMS warning light remains
illuminated, drive the vehicle at a
speed of at least 25 km/h (16 mph)
for 10 minutes, and then verify that it
goes out.
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture. Replace the
punctured tire with the temporary spare
tire (page 7-6).
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41
Mazda3_8U55-EA-05G_Edition2 Page155
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (156,1)
NOTE
A tire pressure sensor is not installed to
the temporary spare tire. The warning
light will flash continuously while the
temporary spare tire is being used.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transaxle)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
5-42
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8U55-EA-05G_Edition2 Page156
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (160,1)
Lighting Control
qHeadlights
Type A (Without AUTO position)
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.
Type B (With AUTO position)
Turn the headlight switch to turn the
headlights, other exterior lights and
dashboard illumination on or off.
Switch Position
Headlights Off Off On
Auto Taillights
Parking lights
License lights
Side-marker
lights
Dashboard
illuminationOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.
AUTO(Auto-light control)
When the headlight switch is in the
AUTO position and the ignition switch is
in the ON position, the light sensor senses
the surrounding lightness or darkness and
automatically turns on or off the
headlights, other exterior lights and
dashboard illumination (see chart above).
5-46
Driving Your Mazda
Switches and Controls
Mazda3_8U55-EA-05G_Edition2 Page160
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (161,1)
CAUTION
lDo not shade the light sensor by
adhering a sticker or a label on the
windshield. Otherwise the light
sensor will not operate correctly.
Light sensor
lThe light sensor also works as a rain
sensor for the auto-wiper control.
When the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically. Be
careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers (page 5-50).
NOTE
lWhen the headlight switch is in the
AUTO position and the ignition
switch is turned to the ACC or
LOCK position, the headlights, other
exterior lights and dashboard
illumination will turn off.
lThe timing for turning on the
headlights, other exterior lights and
dashboard illumination can be
delayed by adjusting the sensitivity
of the light sensor. Consult an
Authorized Mazda Dealer regarding
sensor adjustment.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-47íSome models. Mazda3_8U55-EA-05G_Edition2 Page161
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (165,1)
For a single wiping cycle, push the lever
up to
.
Variable-speed intermittent wipersí
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
Type B (With AUTO position)
Turn the wipers on by pulling the lever
down.
―Mist
AUTO―Auto control
1―Low speed
2―High speed
For a single wiping cycle, push the lever
up to
.AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (_
) for less sensitivity
(slower response).
Switch
Higher sensitivity Less sensitivity
Center
position
Driving Your Mazda
Switches and Controls
5-51íSome models. Mazda3_8U55-EA-05G_Edition2 Page165
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (166,1)
CAUTION
lDo not shade the rain sensor by
adhering a sticker or a label on the
windshield. Otherwise the rain
sensor will not operate correctly.
Rain sensor
lWhen the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:
lIf the windshield above the rain
sensor is touched.
lIf the windshield above the rain
sensor is wiped with a cloth.
lIf the windshield is struck with a
hand or other object.
lIf the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF
position.
NOTE
lThe auto-wiper control may not
operate when the rain sensor
temperature is about_
10 °C (14 °F)
or lower, or about 85 °C (185 °F) or
higher.
lIf the windshield is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and auto-wiper
control may not operate properly.
lIf dirt or foreign matter (e.g. ice or
matter containing salt water) adheres
to the windshield above the rain
sensor or if the windshield is iced, it
could cause the wipers to move
automatically. However, if the wipers
cannot remove this ice, dirt or
foreign matter, the auto-wiper
control will stop operation. In this
case, pull the wiper lever to the 1 or
2 position for manual operation, or
remove the ice, dirt or foreign matter
by hand to restore the auto-wiper
operation.
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
5-52
Driving Your Mazda
Switches and Controls
Mazda3_8U55-EA-05G_Edition2 Page166
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (185,1)
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turned on. The
air conditioner will direct dehumidified air
to the front windshield and side windows
(page 6-4). Airflow amount will be
increased.
WARNING
Foggy Windshield:
Using the
position with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to hot or warm position when
using the
position.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly. Don't obstruct
the sensor.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda3_8U55-EA-05G_Edition2 Page185
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (231,1)
NOTE
(With Tire Pressure Monitoring
System)
A tire pressure sensor is not installed to
the temporary spare tire. The warning
light will flash continuously while the
temporary spare tire is being used (page
5-23).
To remove the spare tire
(4 Door)
1. Remove the trunk mat and trunk board.
2. Turn the tire hold-down bolt
counterclockwise with the lug wrench.
(5 Door)
1. Remove the trunk mat, trunk board and
cargo sub-compartment.
2. Turn the tire hold-down bolt
counterclockwise with the lug wrench.
In Case of an Emergency
Flat Tire
7-5
Mazda3_8U55-EA-05G_Edition2 Page231
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G
