Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along
with the heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page172
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (178,1)
WARNING
The Recirculated Air Position:
Using the
position in cold or
rainy weather will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident. Do not use the
position in cold or rainy weather.
qHeating
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
hot position.
3. Set the fan control dial to the desired
speed.
NOTE
lIf the windshield fogs up easily, set
the mode selector dial to the
position.
lIf cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
lThe air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
lIn the,,orposition, the
air conditioner is automatically
turned on (however, the indicator
light does not illuminate) and the
position is automatically
selected to defrost the windshield.
In the
orposition, the
position cannot be changed to
the
position.
qCooling (With Air Conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
6-8
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page178
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (180,1)

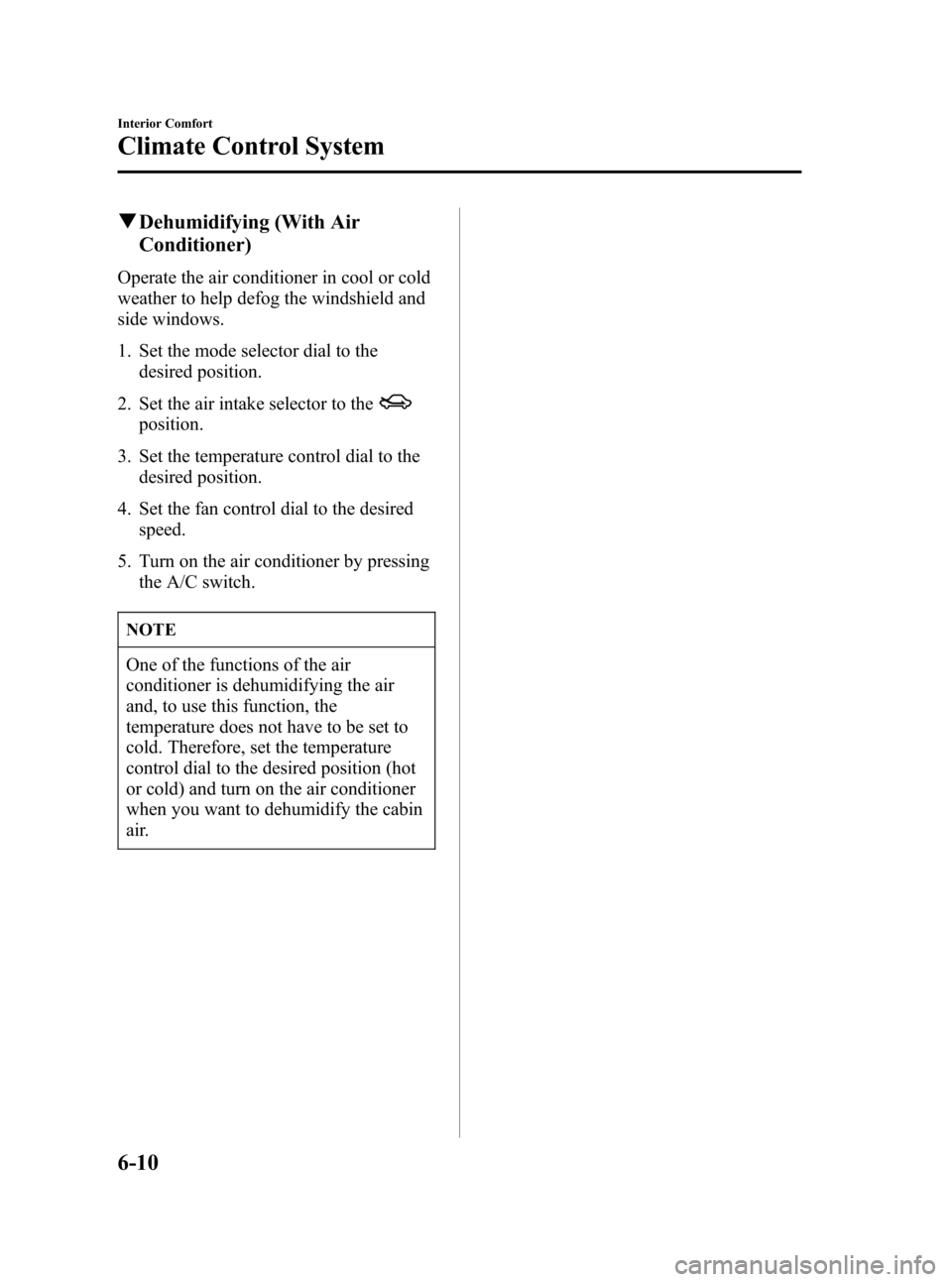

qDehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner by pressing
the A/C switch.
NOTE
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the
temperature does not have to be set to
cold. Therefore, set the temperature
control dial to the desired position (hot
or cold) and turn on the air conditioner
when you want to dehumidify the cabin
air.
6-10
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page180
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (183,1)
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
lSelection of A/C and A/C ECO is
done automatically. Although air
conditioning and defogging ability is
reduced, the A/C ECO function is
designed to economize use of the air
conditioning system.
lThe air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F). (Indicator
remains on even when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.Recirculated air position (
)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (
)
Use this position for normal conditions
and defogging.
WARNING
The Recirculated Air Position:
Using the
position in cold or
rainy weather will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident. Do not use the
position in cold or rainy weather.
AMB (Ambient Temperature) switch
Press the AMB button to display the
ambient temperature.
Interior Comfort
Climate Control System
6-13
Mazda3_8U55-EA-05G_Edition2 Page183
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (184,1)
NOTE
lThe displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
lPress the AMB button again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Hot Cold
To turn off the system, press the OFF
switch.
NOTE
lFor an optimal cabin temperature, set
the temperature close to“72°F”.
Adjust to the desired temperature if
necessary.
lSetting the temperature to maximum
high or low will not provide the
desired temperature at a faster rate.
lWhen selecting heat, the system will
restrict airflow until it has warmed to
prevent cold air from blowing out of
the vents.
6-14
Interior Comfort
Climate Control System
Mazda3_8U55-EA-05G_Edition2 Page184
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (185,1)
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turned on. The
air conditioner will direct dehumidified air
to the front windshield and side windows
(page 6-4). Airflow amount will be
increased.
WARNING
Foggy Windshield:
Using the
position with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to hot or warm position when
using the
position.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly. Don't obstruct
the sensor.
Sunlight sensor
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda3_8U55-EA-05G_Edition2 Page185
Thursday, June 23 2005 2:54 PM
Form No.8U55-EA-05G

Black plate (278,1)
5. Wipe inside the air cleaner housing
with a damp cloth.
6. Clean or replace the filter.
7. Install in the reverse order of removal.
Replace the filter according to the
Scheduled Maintenance (page 8-3).Wiper Blades
CAUTION
lHot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.
lTo prevent damage to the wiper
blades, don't use gasoline, kerosene,
paint thinner, or other solvents on or
near them.
lWhen the wiper lever is in the
AUTO position and the ignition
switch is in the ON position, the
wipers may move automatically in
the following cases:
lIf the windshield above the rain
sensor is touched.
lIf the windshield above the rain
sensor is wiped with a cloth.
lIf the windshield is struck with a
hand or other object.
lIf the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF
position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
8-30
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition2 Page278
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (279,1)
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
qReplacing Windshield Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, don't try to
sweep the wiper arm by hand.
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Slide the assembly downward; then lift
it off the arm.
Plastic locking clip
CAUTION
To prevent damage to the windshield let
the wiper arm down easily, don't let it
slap down on the windshield.2. Pull down the blade rubber and slide it
out of blade holder.
3. Remove the metal stiffeners from the
blade rubber and install them in new
blades.
Maintenance and Care
Owner Maintenance
8-31
Mazda3_8U55-EA-05G_Edition2 Page279
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (280,1)
CAUTION
lDon't bend or discard the stiffeners.
You need to use them again.
lIf the metal stiffeners are switched,
the blade's wiping efficiency could
be reduced.
So don't use the driver's side metal
stiffeners on the passenger's side, or
vice versa.
lBe sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was in
the old blade rubber.
4. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
qReplacing Rear Wiper Blade (5
Door)
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, don't try to
sweep the wiper arm by hand.
1. Raise the wiper arm and rotate the
wiper blade to the right until it unlocks,
then remove the blade.
CAUTION
To prevent damage to the rear window
let the wiper arm down easily, don't let
it slap down on the rear window.
2. Pull down the blade rubber and slide it
out of the blade holder.
8-32
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition2 Page280
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (303,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3 45 6
789 10
11 12
13 14
15 16
17 18
1920 2122 23
24 25 26
27 2829
3031 3233 3435 36
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 FAN 40 A Cooling fan
2 P/ST 80 A EHPAS
3 BTN 40 A For protection of various circuits
4 HEAD 40 A Headlights
5 PTC 80 A―
6 GLOW 60 A―
7 ABS 1 30 A ABS
í
8 ABS 2 20 A ABSí
9 ENGINE 30 A For protection of various circuits
10―――
11 IG KEY 1 30 A Ignition switch
12 STARTER 20 A Starter clutch
13 IG KEY 2 30 A Ignition switch
14―――
15 HEATER 40 A Blower motor
16―――
17 DEFOG 40 A Rear window defroster
Maintenance and Care
Owner Maintenance
8-55íSome models. Mazda3_8U55-EA-05G_Edition2 Page303
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G
