mirror MAZDA MODEL 3 HATCHBACK 2007 Owner's Manual (in English)

Black plate (9,1)
Headlight leveling switch .................................................................................. page 5-53
Dashboard illumination knob ............................................................................ page 5-36
Lighting control/Turn signal .............................................................................. page 5-51
Instrument cluster .............................................................................................. page 5-32
SRS air bags ...................................................................................................... page 2-41
Cruise control switches ...................................................................................... page 5-19
Wiper and washer lever ..................................................................................... page 5-55
Hazard warning flasher switch .......................................................................... page 5-61
Information display ............................................................................................ page 6-55
Audio system ..................................................................................................... page 6-17
Glove box .......................................................................................................... page 6-63
Center console ................................................................................................... page 6-63
Parking brake ....................................................................................................... page 5-5
Cup holder ......................................................................................................... page 6-61
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Lighter ............................................................................................................... page 6-60
Rear window defroster switch ........................................................................... page 5-60
Ashtray ............................................................................................................... page 6-61
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-31
Audio control switches ...................................................................................... page 6-45
Remote fuel-filler lid release ............................................................................. page 3-21
Hood release handle .......................................................................................... page 3-22
Outside mirror switch ........................................................................................ page 3-31
Interior lights ..................................................................................................... page 6-52
Sunvisor ............................................................................................................. page 6-52
Rearview mirror ................................................................................................. page 3-32
Vanity mirror ...................................................................................................... page 6-52
Front seat ............................................................................................................. page 2-2
Seat belt ............................................................................................................. page 2-10
Rear seat .............................................................................................................. page 2-5
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda3_8V66-EA-06F_Edition3 Page9
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-15
Antenna ............................................................................................................. page 6-16
Rear window defroster ....................................................................................... page 5-60
Power window ................................................................................................... page 3-19
Tires ................................................................................................................... page 8-36
Fuel-filler lid ...................................................................................................... page 3-21
Light bulbs ......................................................................................................... page 8-41
Hood .................................................................................................................. page 3-22
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-24
Child safety lock ................................................................................................ page 3-11
Door lock ............................................................................................................. page 3-9
Outside mirror .................................................................................................... page 3-31
Your Vehicle at a Glance
Exterior Overview
1-5
Mazda3_8V66-EA-06F_Edition3 Page11
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (13,1)
Liftgate .............................................................................................................. page 3-12
Rear window defroster ....................................................................................... page 5-60
Rear wiper blade ................................................................................................ page 8-31
Antenna ............................................................................................................. page 6-16
Fuel-filler lid ...................................................................................................... page 3-21
Power window ................................................................................................... page 3-19
Tires ................................................................................................................... page 8-36
Light bulbs ......................................................................................................... page 8-41
Hood .................................................................................................................. page 3-22
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-24
Child safety lock ................................................................................................ page 3-11
Door lock ............................................................................................................. page 3-9
Outside mirror .................................................................................................... page 3-31
Your Vehicle at a Glance
Exterior Overview
1-7
Mazda3_8V66-EA-06F_Edition3 Page13
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (75,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-9
Liftgate (5 Door) ..................................................................... 3-12
Trunk Lid (4 Door) ................................................................. 3-15
Inside Trunk Release Lever (4 Door) ...................................... 3-17
Power Windows
í................................................................... 3-19
Fuel-Filler Lid and Cap ........................................................... 3-21
Hood ....................................................................................... 3-22
Moonroof
í............................................................................. 3-24
Security System ........................................................................... 3-26
Immobilizer System ................................................................ 3-26
Theft-Deterrent System
í........................................................ 3-29
Steering Wheel and Mirrors ...................................................... 3-31
Steering Wheel ........................................................................ 3-31
Mirrors .................................................................................... 3-31
3-1íSome models.
Mazda3_8V66-EA-06F_Edition3 Page75
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (105,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Move the selector switch to the left or
right to choose the left or right side
mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-31
Mazda3_8V66-EA-06F_Edition3 Page105
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (106,1)
2. Depress the mirror switch in the
appropriate direction.
Mirror switch
Outside mirror
Selector switch
After adjusting the mirror, lock the control
by moving the selector switch to the
middle position.
Manual control mirror
To adjust, move the mirror's control lever,
just inside the door.
Control lever
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-60).
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
3-32
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
Mazda3_8V66-EA-06F_Edition3 Page106
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

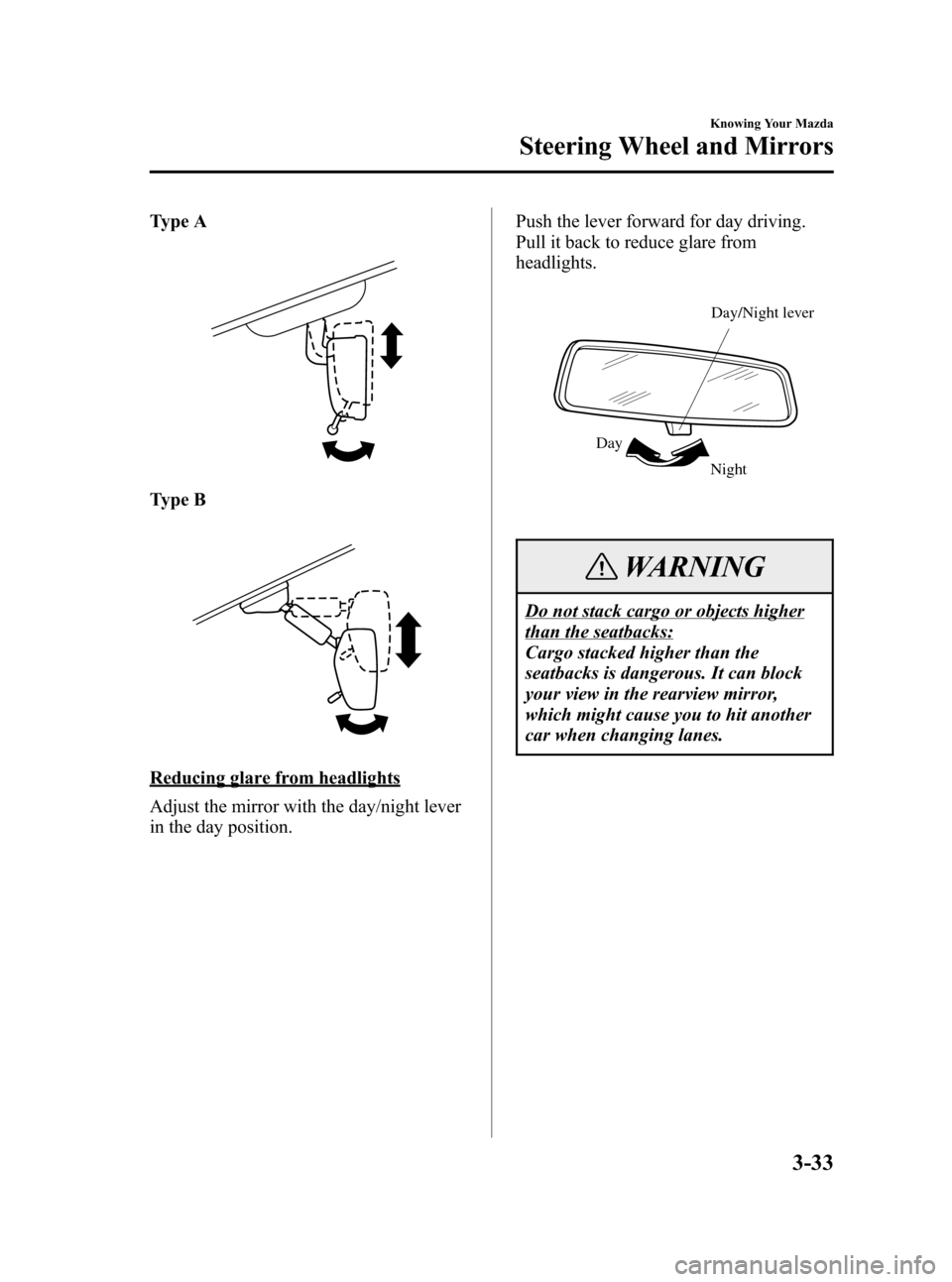

Black plate (107,1)
Type A
Type B
Reducing glare from headlights
Adjust the mirror with the day/night lever
in the day position.Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Knowing Your Mazda
Steering Wheel and Mirrors
3-33
Mazda3_8V66-EA-06F_Edition3 Page107
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (114,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch
fluid, washer fluid, and other fluid
levels should be inspected. See
Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?
lIs the seat adjusted properly?
lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?
lCheck all gauges.
lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
4-6
Before Driving Your Mazda
Before Starting the Engine
Mazda3_8V66-EA-06F_Edition3 Page114
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (236,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrorsí
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qIlluminated Entry Systemí
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).
lAbout 15 seconds after all doors are
closed.
lAbout 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes
out after about 30 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
6-52
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8V66-EA-06F_Edition3 Page236
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (327,1)
3. Turn the knobs counterclockwise and
lower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it's
blown.
NormalBlown
7. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an expert
repairer install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8V66-EA-06F_Edition3 Page327
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F
