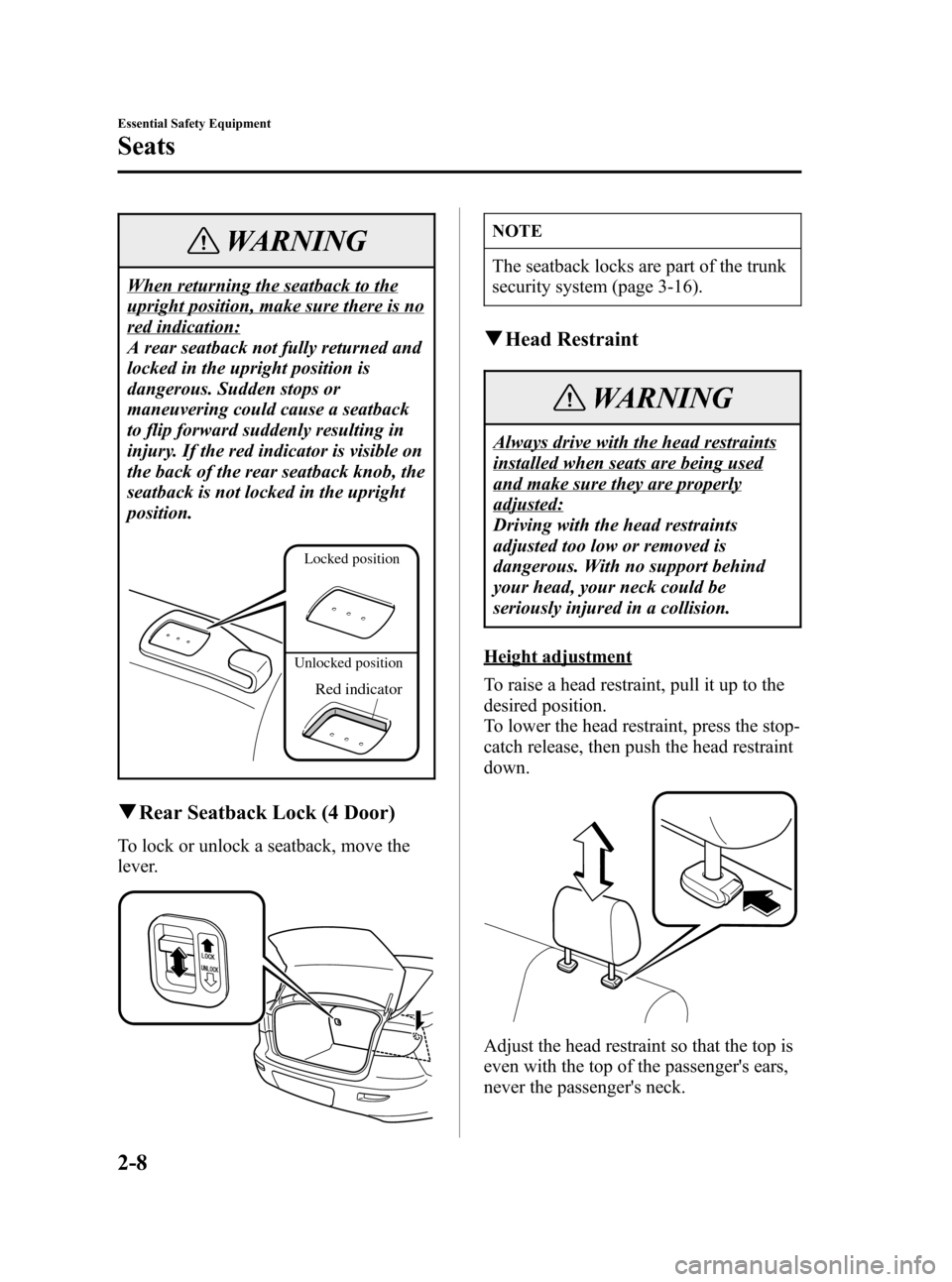

Black plate (22,1)
WARNING
When returning the seatback to the
upright position, make sure there is no
red indication:
A rear seatback not fully returned and
locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob, the
seatback is not locked in the upright
position.
Locked position
Unlocked position
Red indicator
qRear Seatback Lock (4 Door)
To lock or unlock a seatback, move the
lever.
NOTE
The seatback locks are part of the trunk
security system (page 3-16).
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-8
Essential Safety Equipment
Seats
Mazda3_8V66-EA-06F_Edition3 Page22
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (75,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-9
Liftgate (5 Door) ..................................................................... 3-12
Trunk Lid (4 Door) ................................................................. 3-15
Inside Trunk Release Lever (4 Door) ...................................... 3-17
Power Windows
í................................................................... 3-19
Fuel-Filler Lid and Cap ........................................................... 3-21
Hood ....................................................................................... 3-22
Moonroof
í............................................................................. 3-24
Security System ........................................................................... 3-26
Immobilizer System ................................................................ 3-26
Theft-Deterrent System
í........................................................ 3-29
Steering Wheel and Mirrors ...................................................... 3-31
Steering Wheel ........................................................................ 3-31
Mirrors .................................................................................... 3-31
3-1íSome models.
Mazda3_8V66-EA-06F_Edition3 Page75
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (90,1)
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the remote
release lever
Pull up the release lever next to the
driver's seat.
Release lever
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Security
In some situations you may want to
prevent the trunk from being opened with
the remote trunk lid release lever.
Give your key only to someone you trust.
To secure the trunk lid, lock the rear
seatbacks (page 2-8), push the trunk lock
lever up, and close the trunk.
To cancel the security feature, insert the
key into the lock, turn the key clockwise,
and pull the trunk lock lever down.
Unlock
Lock
Trunk lock lever
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
3-16
Knowing Your Mazda
Doors and Locks
Mazda3_8V66-EA-06F_Edition3 Page90
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (91,1)
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Inside Trunk Release
Lever (4 Door)
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don't have such handles.
Knowing Your Mazda
Doors and Locks
3-17
Mazda3_8V66-EA-06F_Edition3 Page91
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (92,1)
WARNING
Close the trunk lid, lock the rear
seatbacks and do not allow children to
play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking rear
seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
3-18
Knowing Your Mazda
Doors and Locks
Mazda3_8V66-EA-06F_Edition3 Page92
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (103,1)
Theft-Deterrent Systemí
The theft-deterrent system is designed to
prevent your vehicle or its contents from
being stolen when all doors, hood, and
trunk lid/liftgate are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all windows are completely closed
and all doors and the trunk lid/
liftgate are locked before leaving the
vehicle. Remember to take your key
and transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid/liftgate.
lUnlocking a door with the door lock
switch.
lOpening a door by operating an inside
door-lock knob.
lOpening the hood by operating the
hood release handle.
lOpening the trunk lid by operating the
trunk lid release lever.
If the system is triggered again, the lights
and horn will activate until a door or the
trunk lid is unlocked with the key or with
the transmitter.
qHow to Arm the System
1. Remove the key from the ignition
switch.
2. Make sure the hood is closed. Close
and lock all doors and the liftgate/trunk
lid from the outside using the key. If
you have the keyless entry system,
press the lock button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
Close the hood and the liftgate/trunk
lid . Press the area on the door-lock
switch marked“LOCK”once. Close all
doors.
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door or the trunk lid with the
key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
Knowing Your Mazda
Security System
3-29íSome models. Mazda3_8V66-EA-06F_Edition3 Page103
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (398,1)
G
Glove Box ......................................... 6-63
H
Hazard Warning Flasher .................... 5-61
Hazardous Driving .............................. 4-8
Headlights
Control ....................................... 5-51
Flashing ...................................... 5-53
High-low beam .......................... 5-53
Leveling ..................................... 5-53
On reminder ............................... 5-53
Hood Release .................................... 3-22
Horn .................................................. 5-61
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-52
Immobilizer System .......................... 3-26
Indicator Lights ................................. 5-37
Cruise ......................................... 5-48
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-47
TCS/DSC ................................... 5-47
Turn-signal/hazard warning ....... 5-49
Information Display .......................... 6-55
Ambient temperature display ..... 6-56
Audio display ............................. 6-57
Climate control display .............. 6-57
Clock .......................................... 6-56
Information display functions .... 6-55
Trip computer ............................. 6-57
I
Inside Trunk Release Lever ............... 3-17
Instrument Cluster ............................. 5-32
Instrument Cluster Dimmer Select
Button ............................................... 5-36
Interior Care ...................................... 8-65
Interior Lights ................................... 6-52
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-54
Liftgate .............................................. 3-12
Luggage compartment ............... 3-13
Light Bulbs
Replacement ............................... 8-41
Specifications ............................. 10-7
Lighter ............................................... 6-60
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-5
Luggage Compartment Light ............ 6-53
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
11-4
Index
Mazda3_8V66-EA-06F_Edition3 Page398
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F
